Plan 890102AH
3-Bed Traditional House Plan Ideal for Narrow Lot
Heated S.F.
1,836
Beds
3
Baths
3.5
Stories
2
Cars
2
What's Included
Plan Details
  • This traditional, two-story home comes in just under 30 feet wide, making it a perfect option for a narrow lot.
  • The main floor features an open-concept design of the essential shared rooms, keeping the master and second bedroom on the upper level.
  • The galley-style kitchen maximizes space by packing in ample storage, and an island-style counter allows the chef to remain part of the conversation.
  • Stairs off the great room go to a finished lower level where you'll find additional living space with a family room and third bedroom.
  • Homeowners delight in the full-length, covered porch and walk-out patio at the rear of this home.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Traditional House Plan Ideal for Narrow Lot

  • 1,836

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

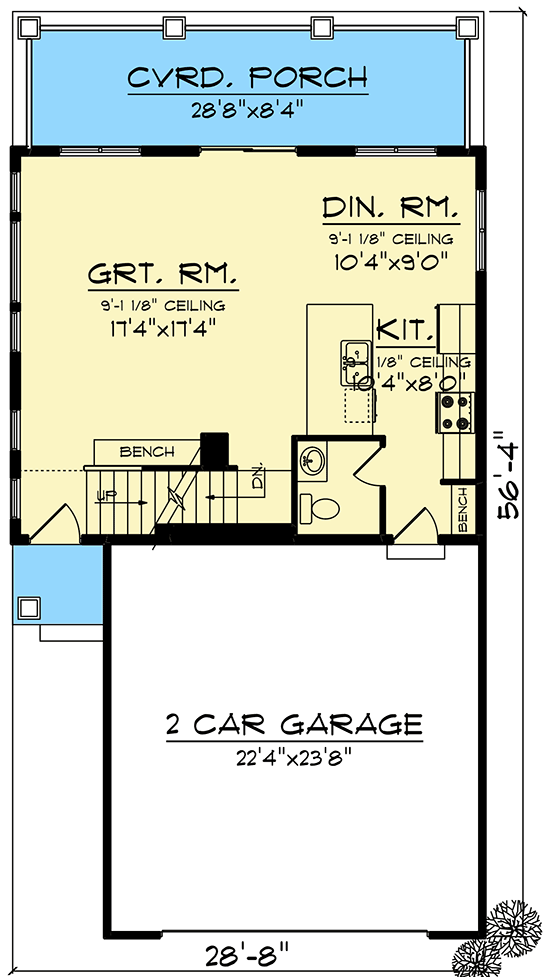

  • Main Level

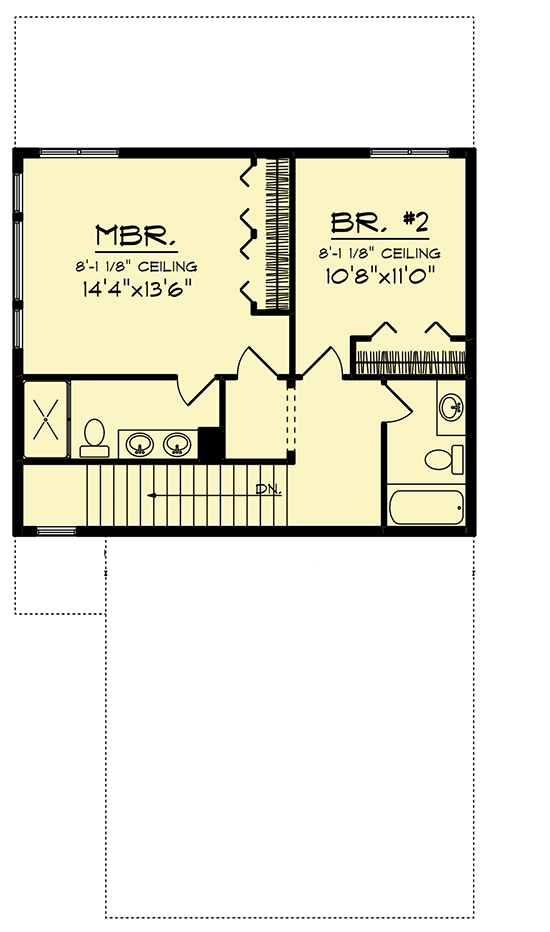

  • Second Level

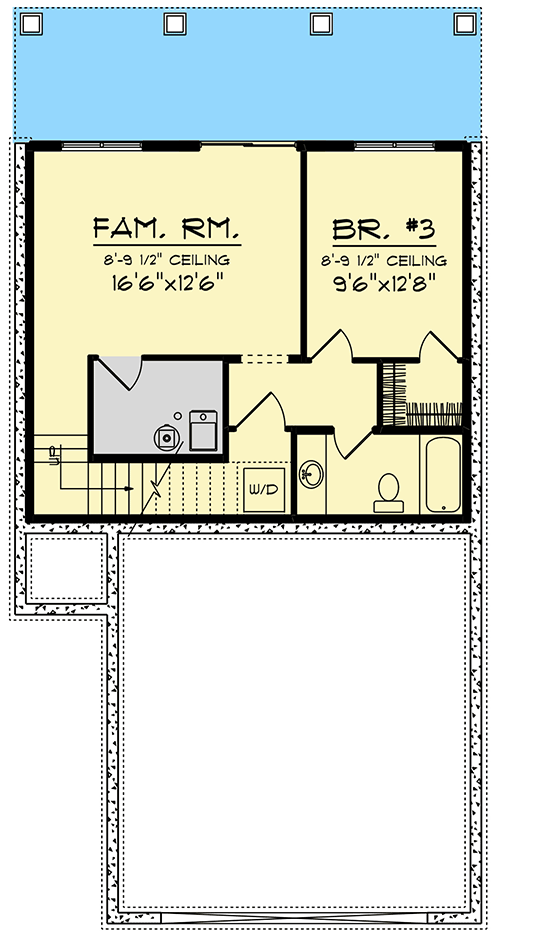

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 1,836 sq. ft.
  • Lower Level: 535 sq. ft.
  • 1st Floor: 688 sq. ft.
  • 2nd Floor: 613 sq. ft.

Dimensions

  • Width: 28' 8"
  • Depth: 56' 4"
  • Max ridge height: 26' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 552 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
