3 Bed Traditional House Plan with Flex Room

2,165 3 3 2 2
Pageloader

3 Bed Traditional House Plan with Flex Room

Plan 42373DB

  • 2,165

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • This 3 bed traditional house plan features a flex room off the foyer and signature space in back, allowing you to tailor the spaces for your lifestyle.
  • Use the flex room as a formal dining room or as a study or play room.
  • In back, the main living area has a wonderful open floor plan that lets the whole family be together sharing one large space.
  • Customize the signature space to serve as a wine cellar, pet center or a craft room - whatever you need.
  • All three bedrooms upstairs share flex space at the top of the stairs.
  • The master bathroom is brightened by a skylight so you have lots of natural light.
  • Related Plan: Get a fourth bedroom with house plan 42375DB (2,527 sq. ft.).

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Plan details

Architectural Style

Plan Collections



3 Bed Traditional House Plan with Flex Room

  • 2,165

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $995
  • 5 Sets $1,120
  • 8 Sets $1,190
  • PDF - multi-use $1,495
  • CAD $1,741
  • CAD - multi-use $2,241
  • View all purchase option online

About This Plan

  • This 3 bed traditional house plan features a flex room off the foyer and signature space in back, allowing you to tailor the spaces for your lifestyle.
  • Use the flex room as a formal dining room or as a study or play room.
  • In back, the main living area has a wonderful open floor plan that lets the whole family be together sharing one large space.
  • Customize the signature space to serve as a wine cellar, pet center or a craft room - whatever you need.
  • All three bedrooms upstairs share flex space at the top of the stairs.
  • The master bathroom is brightened by a skylight so you have lots of natural light.
  • Related Plan: Get a fourth bedroom with house plan 42375DB (2,527 sq. ft.).

Floor Plans

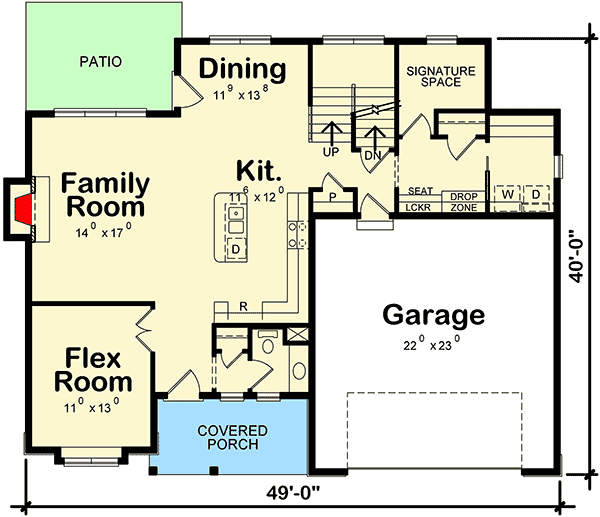

  • Main Level

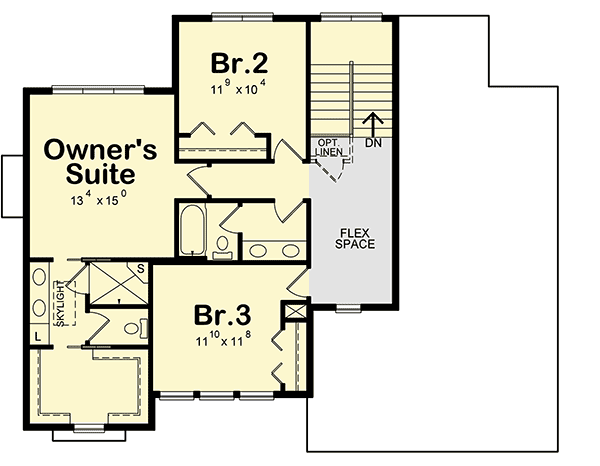

  • 2nd Floor

  • Optional

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,165 sq. ft.
  • 1st Floor: 1,173 sq. ft.
  • 2nd Floor: 992 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 49' 0"
  • Depth: 40' 0"
  • Max ridge height: 31' 10"

Garage

  • Type: Attached
  • Area: 532 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Architectural Style

  • Traditional

Special features

  • 2nd Floor Master Suite
  • CAD Available
  • Den-Office-Library-Study
  • PDF

Plan Collections

  • Photo Gallery
