Plan 135107GRA
3-Bed Traditional Ranch Plan with 4-Seasons Room
Heated S.F.
2,333
Beds
3
Baths
2.5
Stories
1
Cars
3
What's Included
Plan Details
  • Loaded with amenities, this 3-bedroom Traditional Ranch plan offers a comfortable and intuitive floor plan.
  • The heart of the home greets you upon entering and offers an eating bar when grabbing a quick bite. A tray ceiling rests above the open dining area, and a cathedral ceiling above the great room makes the space feel even larger.
  • French doors off the dining area lead to a 4-seasons room that expands onto a covered patio for outdoor enjoyment.
  • The bedrooms are situated to the left of the home, including the master bedroom that is paired with a 4-fixture bathroom and a walk-in closet.
  • The 3-car garage opens into a mud hall with a convenient powder bath and laundry room.
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Traditional Ranch Plan with 4-Seasons Room

  • 2,333

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

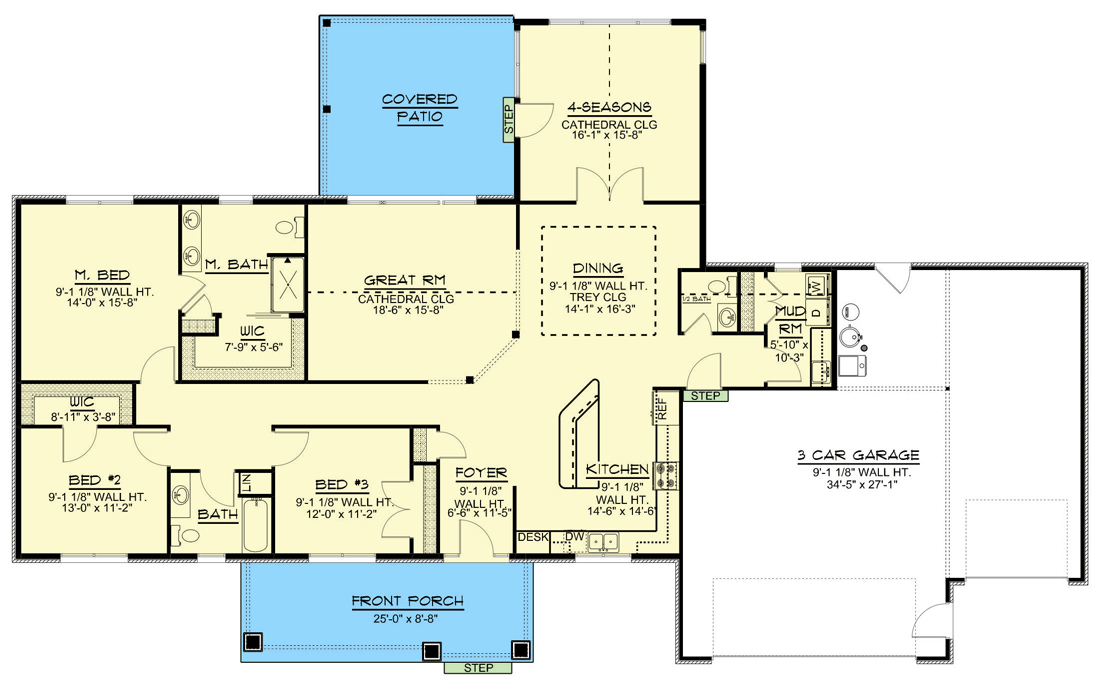

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,333 sq. ft.
  • 1st Floor: 2,333 sq. ft.

Dimensions

  • Width: 95' 0"
  • Depth: 57' 0"
  • Max ridge height: 19' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1017 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Truss
