3-Bed Transitional Home Plan with Stone-and-Stucco Exterior Under 2000 Square Feet

Plan 623154DJ

  • 1,984

    Heated s.f.

  • 3-5

    Beds

  • 2 - 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • This one-story transitional-style house plan has an attractive stone-and-stucco exterior with steep 16 on 12 gables. It gives you 3 beds, 2 bathrooms and 1,984 square feet of heated living space.
  • An open floor plan greets you as you step through the entry with coat closet. The kitchen has a deep walk-in pantry and an island with double sink on one side and seating on the other.
  • Sliding doors on the dining room wall take you to a covered porch, giving you al fresco options.
  • The bedrooms are clustered together and all have easy access to the laundry.
  • Choose the finished the lower level option and get two more bedrooms that share a bathroom and a family room with wet bar, an exercise  room and storage.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

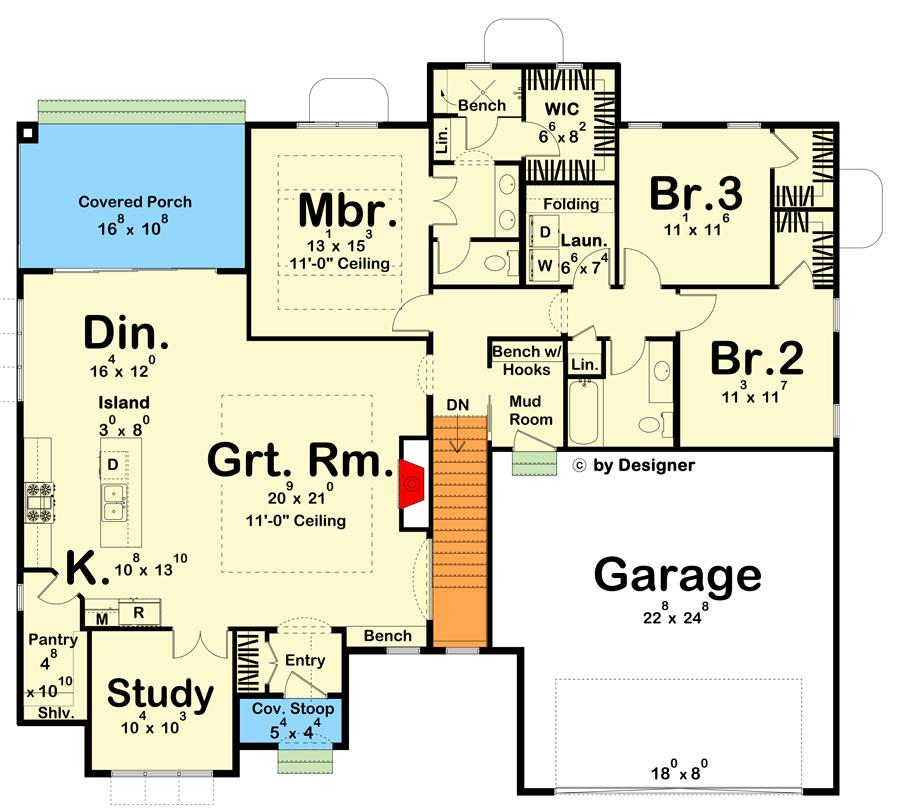

3-Bed Transitional Home Plan with Stone-and-Stucco Exterior Under 2000 Square Feet - 623154DJ floor plan - Main Level

Optionally Finished Lower Level ($250)

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

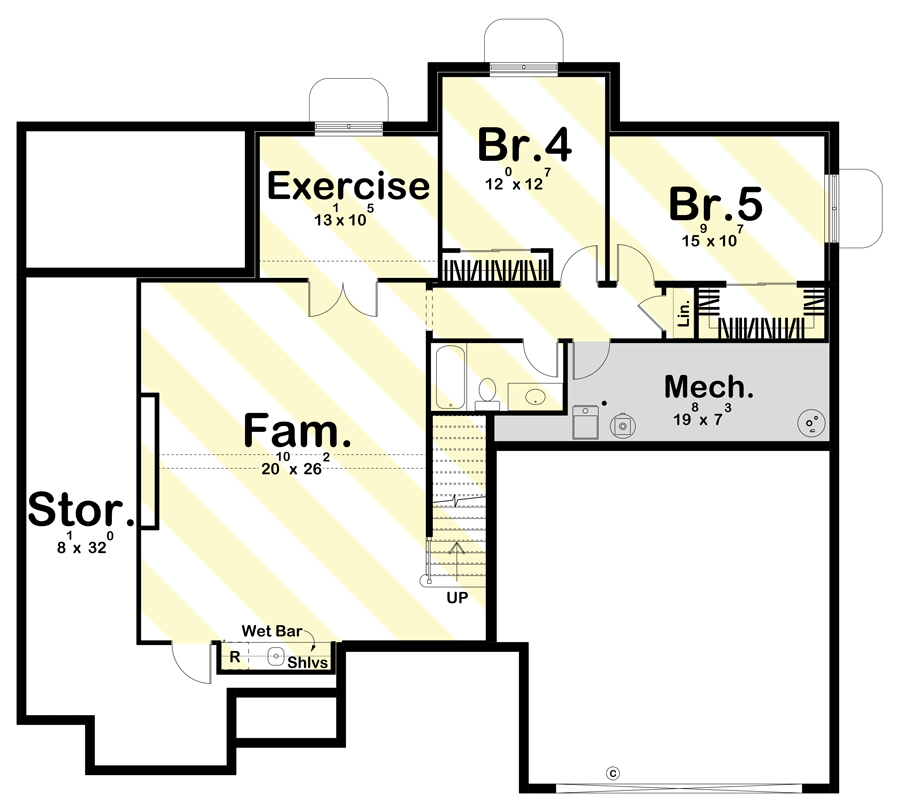

3-Bed Transitional Home Plan with Stone-and-Stucco Exterior Under 2000 Square Feet - 623154DJ floor plan - Optionally Finished Lower Level ($250)

Plan details

3-Bed Transitional Home Plan with Stone-and-Stucco Exterior Under 2000 Square Feet

  • 1,984

    Heated s.f.

  • 3-5

    Beds

  • 2 - 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,300
  • 5 Sets + PDF $1,550
  • PDF - Unlimited Build $1,800
  • CAD + PDF - Single-Build $1,800
  • CAD Unlimited + PDF $2,300
  • View all purchase option online

About This Plan

  • This one-story transitional-style house plan has an attractive stone-and-stucco exterior with steep 16 on 12 gables. It gives you 3 beds, 2 bathrooms and 1,984 square feet of heated living space.
  • An open floor plan greets you as you step through the entry with coat closet. The kitchen has a deep walk-in pantry and an island with double sink on one side and seating on the other.
  • Sliding doors on the dining room wall take you to a covered porch, giving you al fresco options.
  • The bedrooms are clustered together and all have easy access to the laundry.
  • Choose the finished the lower level option and get two more bedrooms that share a bathroom and a family room with wet bar, an exercise  room and storage.

Floor Plans

  • Main Level

  • Optionally Finished Lower Level ($250)

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,984 sq. ft.
  • 1st Floor: 1,984 sq. ft.
  • Porch, Rear: 207 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 53' 4"
  • Max ridge height: 27' 4"

Garage

  • Type: Attached
  • Area: 612 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 16 on 12
  • Framing Type: Stick
