Plan 580041DFT

Exclusive

3-Bed Tudor Style Ranch House Plan with RV Garage and Split-bed Layout

Heated S.F.
2,247
Beds
3
Baths
2
Stories
1
Cars
3

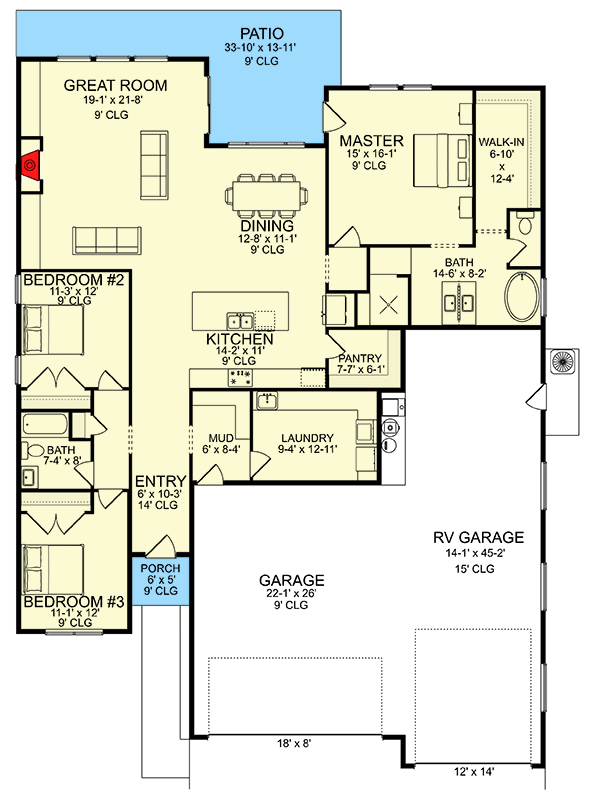

Floor Plan

Plan 580041DFT

Main Level
Main Level

Plan 580041DFT

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 580041DFT: 3-Bed Tudor Style Ranch House Plan with RV Garage and Split-bed Layout - Floor Plan - Main Level - Craftsman, Mountain, Ranch, Rustic, Traditional, Tudor

Plan Details

  • The central living spaces serve as a barrier between the master bedroom and family bedrooms in this one-level Tudor-style home plan.
  • The spacious kitchen provides plenty of workspace, a walk-in pantry, and adjoining dining area that overlooks the back patio.
  • Retreat to the calming master suite for peace and quiet and discover a door that leads to the patio. The ensuite features a freestanding tub, dual vanities, and walk-in closet.
  • Bedrooms 2 and 3 are located just off the entry and share the hall bath.
  • An oversized garage door (12' by 14') helps you store your RV and a mudroom just inside serves as a drop zone. The large laundry room sits next door and accommodates busy schedules.

What's Included

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details
  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details

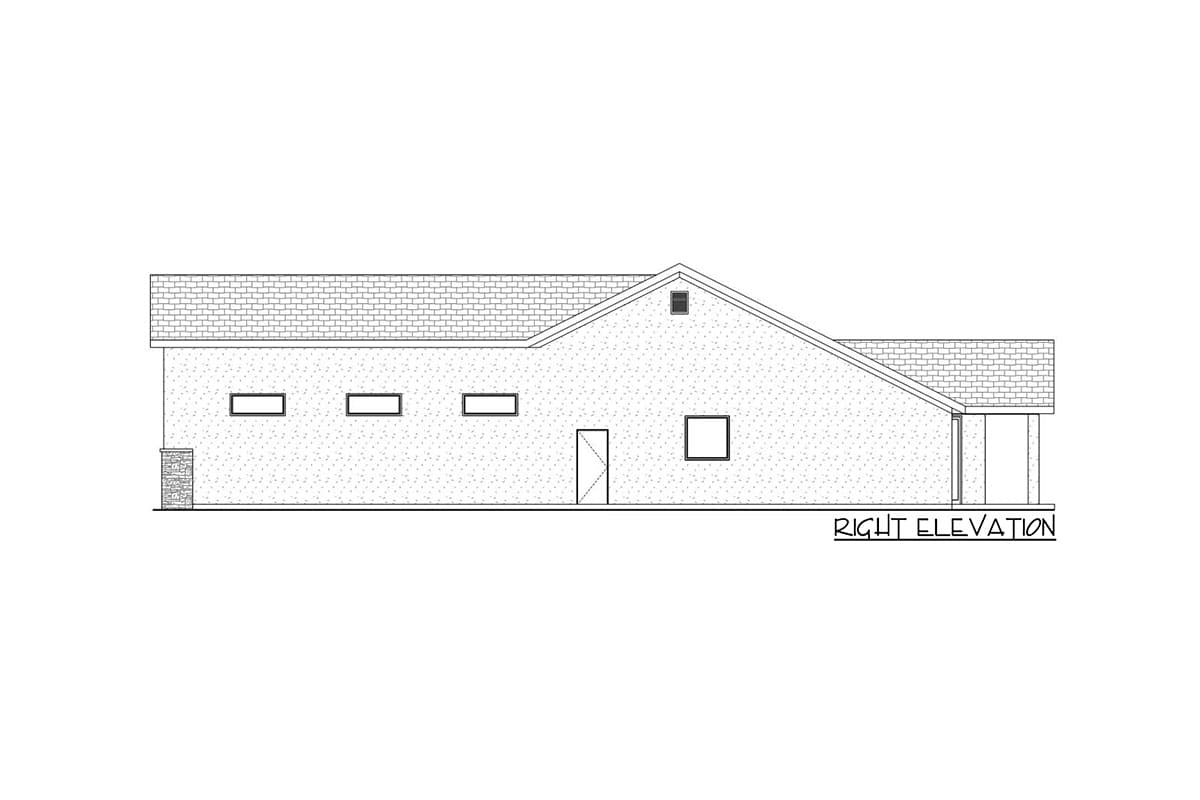

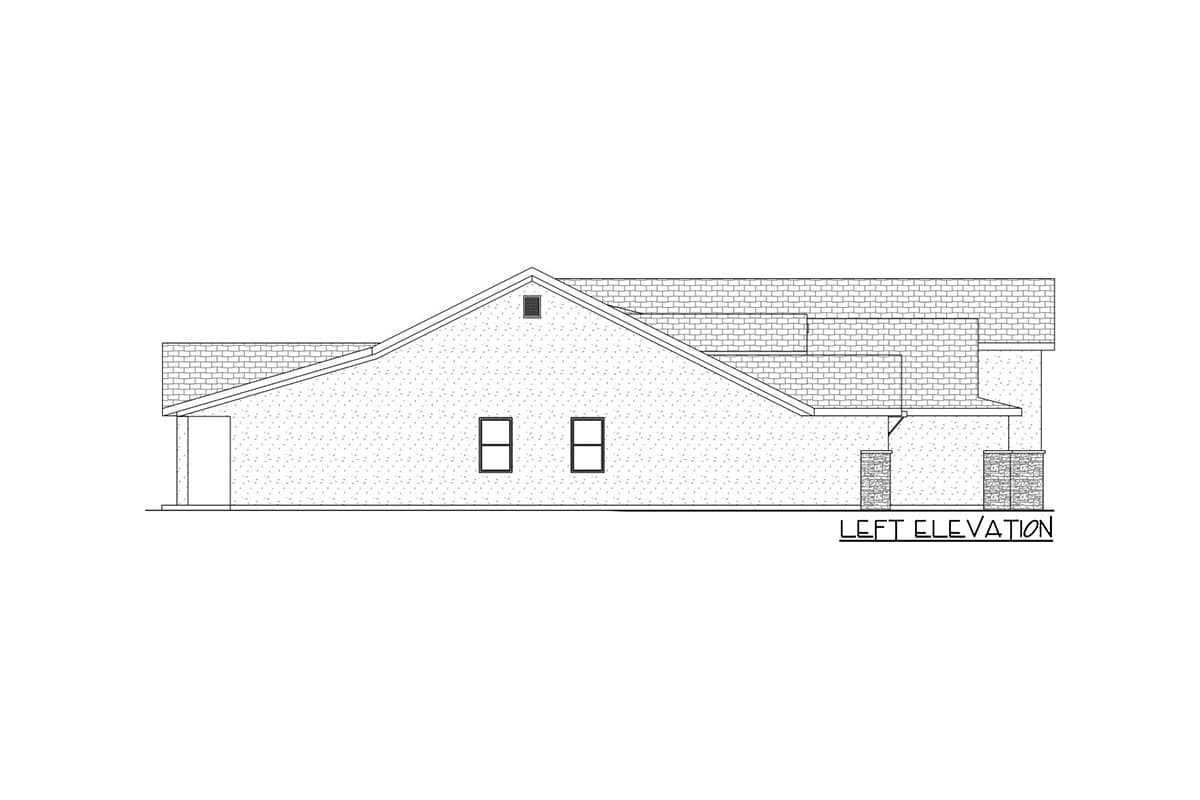

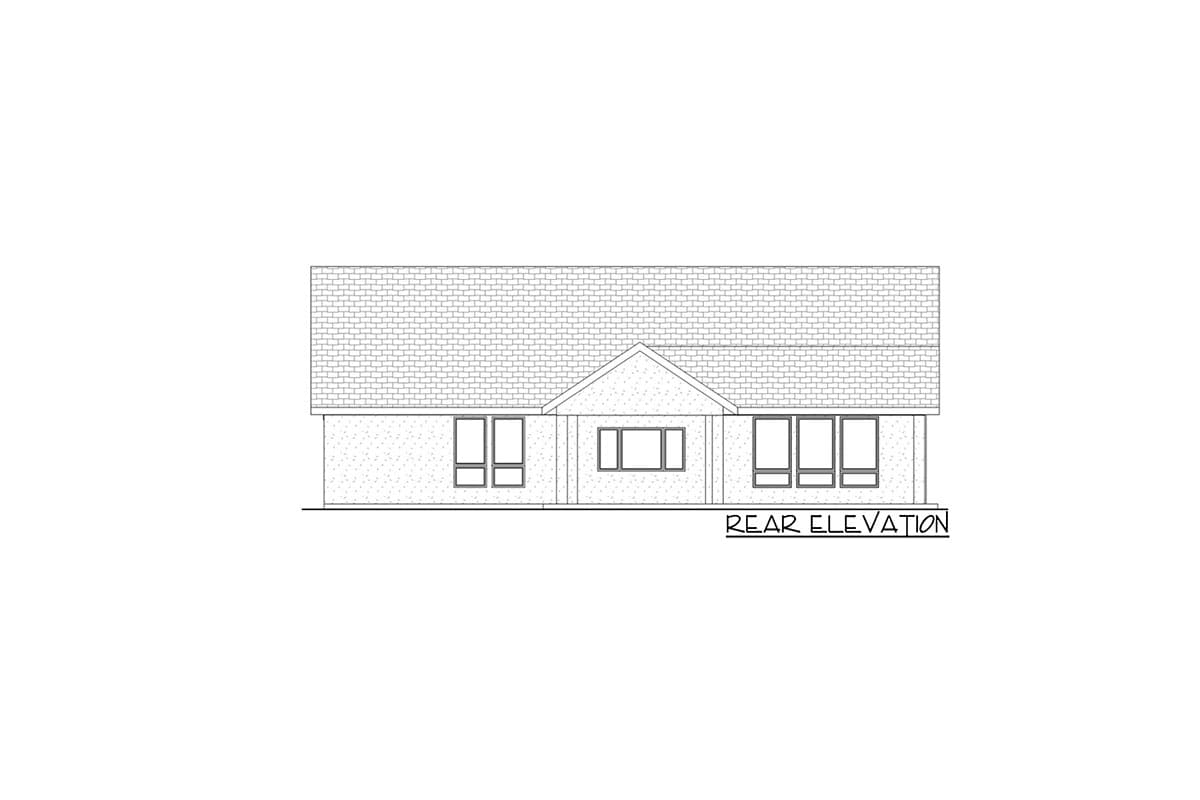

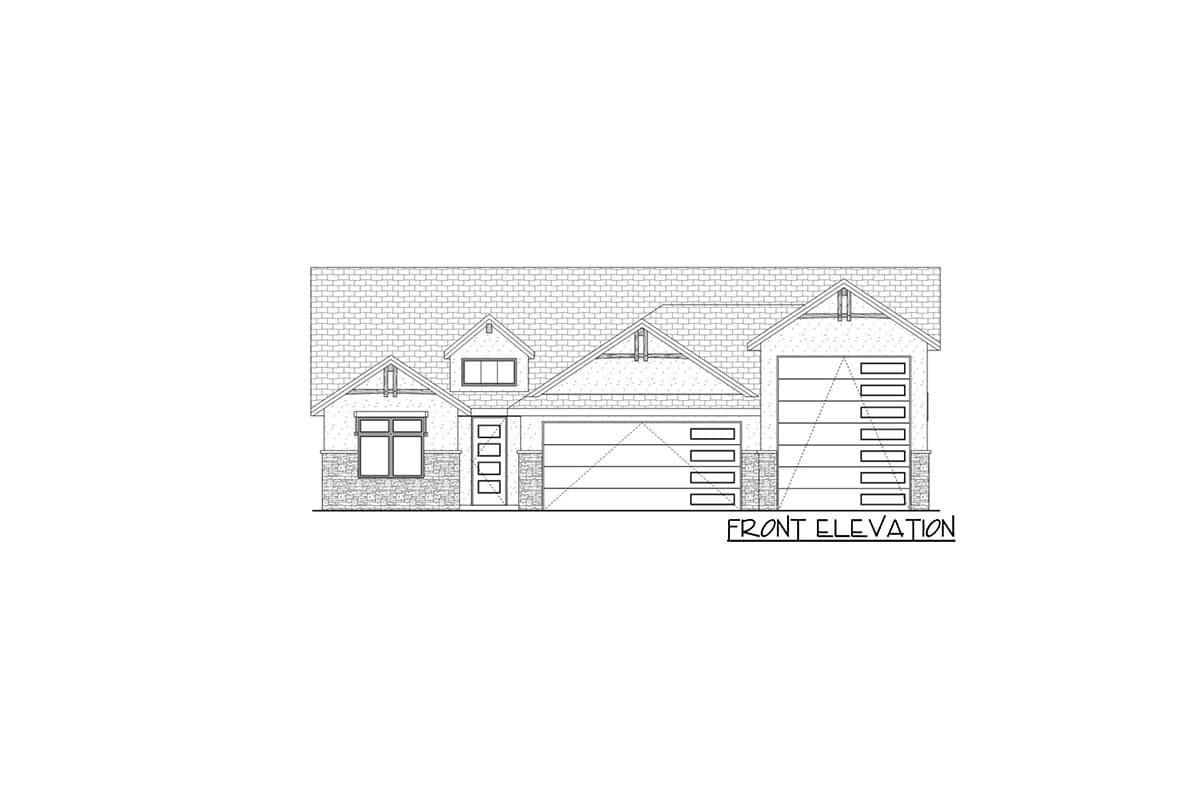

  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,247 sq. ft.

1st Floor

2,247 sq. ft.

Porch, Front

30 sq. ft.

Covered Patio

282 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

55' 0"

Depth

79' 0"

Garage

Type

Attached, RV Garage

Area

1280 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

Mountain

Ranch

Rustic

Traditional

Tudor

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

2,247 sq. ft.

1st Floor

2,247 sq. ft.

Porch, Front

30 sq. ft.

Covered Patio

282 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

55' 0"

Depth

79' 0"

Garage

Type

Attached, RV Garage

Area

1280 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

Mountain

Ranch

Rustic

Traditional

Tudor

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive
