Plan 39116ST

3-Bed Two-Story Craftsman with Great Room and Loft Above - 1994 Sq Ft

Heated S.F.
1,994
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 39116ST

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 39116ST

M-F 9am-5pm EST |

1-203-761-8500

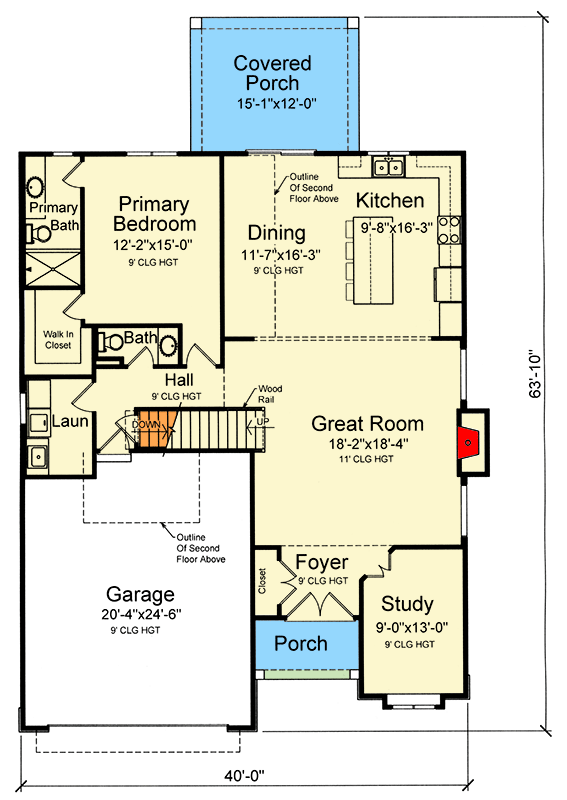

Main Level

Plan 39116ST: 3-Bed Two-Story Craftsman with Great Room and Loft Above - 1994 Sq Ft - Floor Plan - Main Level - Cottage, Craftsman, New American

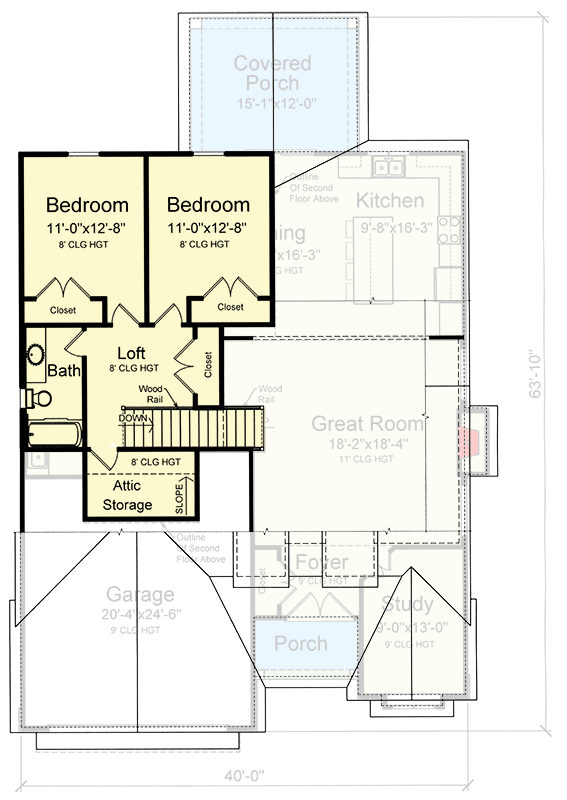

2nd Floor

Plan 39116ST: 3-Bed Two-Story Craftsman with Great Room and Loft Above - 1994 Sq Ft - Floor Plan - 2nd Floor - Cottage, Craftsman, New American

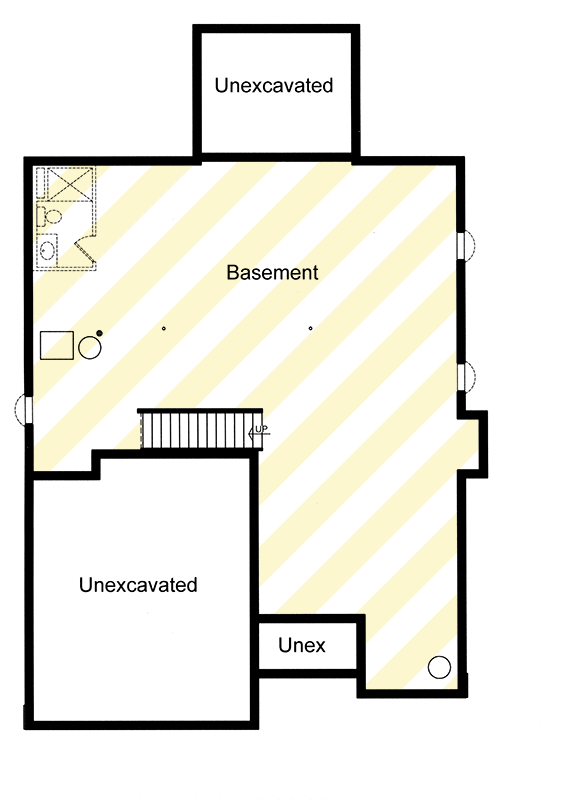

Lower Level

Plan 39116ST: 3-Bed Two-Story Craftsman with Great Room and Loft Above - 1994 Sq Ft - Floor Plan - Lower Level - Cottage, Craftsman, New American

Plan Details

  • This charming craftsman cottage features board & batten siding and metal dormer roofing.
  • The open floor plan provides ample family space and a rear covered porch.
  • The main level includes a great room with a fireplace, laundry room, master suite and a study.
  • On the second-floor you will find two additional bedrooms a long with a loft and attic storage.

What's Included

  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,994 sq. ft.

1st Floor

1,469 sq. ft.

2nd Floor

525 sq. ft.

Basement Unfinished

1,314 sq. ft.

Loft

81 sq. ft.

Porch, Front

50 sq. ft.

Porch, Rear

183 sq. ft.

Entry

43 sq. ft.

Attic

65 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

42' 0"

Depth

63' 8"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

486 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9' 1"

Second Floor

8' 1"

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Cottage

Craftsman

New American

Special Features

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,994 sq. ft.

1st Floor

1,469 sq. ft.

2nd Floor

525 sq. ft.

Basement Unfinished

1,314 sq. ft.

Loft

81 sq. ft.

Porch, Front

50 sq. ft.

Porch, Rear

183 sq. ft.

Entry

43 sq. ft.

Attic

65 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

42' 0"

Depth

63' 8"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

486 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9' 1"

Second Floor

8' 1"

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Cottage

Craftsman

New American

Special Features

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor
