Plan 623403DJ

3-Bed Victorian-Style Home Plan with 2-Car Garage - 1720 Sq Ft

Heated S.F.
1,720
Beds
3
Baths
2.5
Stories
2
Cars
2
Tour

Floor Plan

Plan 623403DJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 623403DJ

M-F 9am-5pm EST |

1-203-761-8500

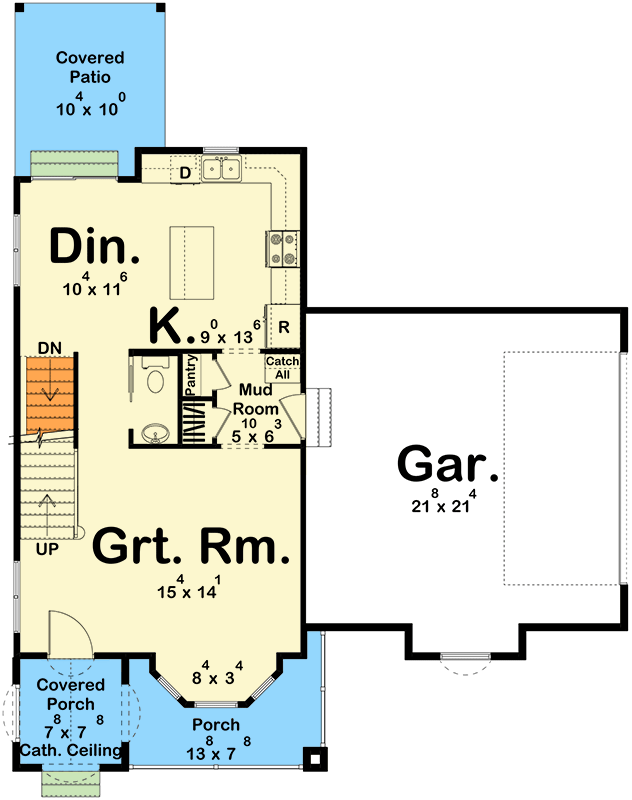

Main Level

Plan 623403DJ: 3-Bed Victorian-Style Home Plan with 2-Car Garage - 1720 Sq Ft - Floor Plan - Main Level - Traditional, Victorian

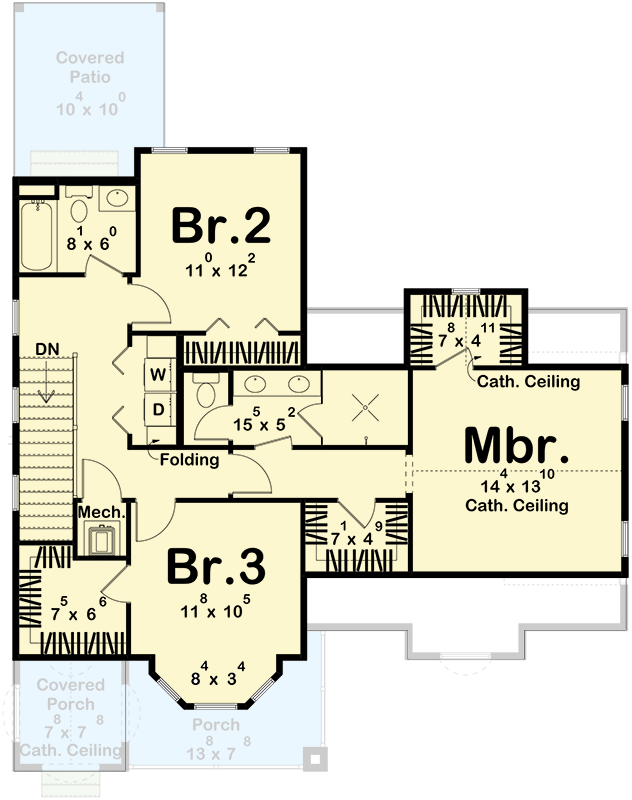

2nd Floor

Plan 623403DJ: 3-Bed Victorian-Style Home Plan with 2-Car Garage - 1720 Sq Ft - Floor Plan - 2nd Floor - Traditional, Victorian

Plan Details

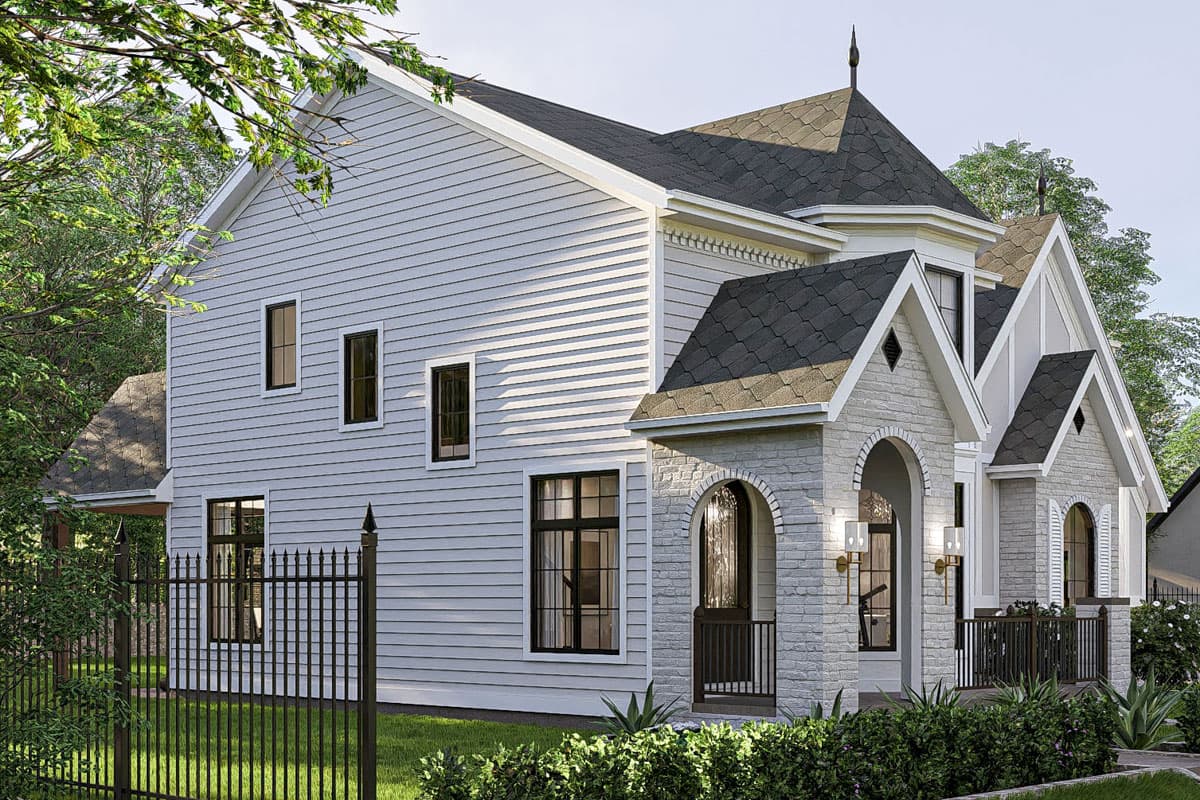

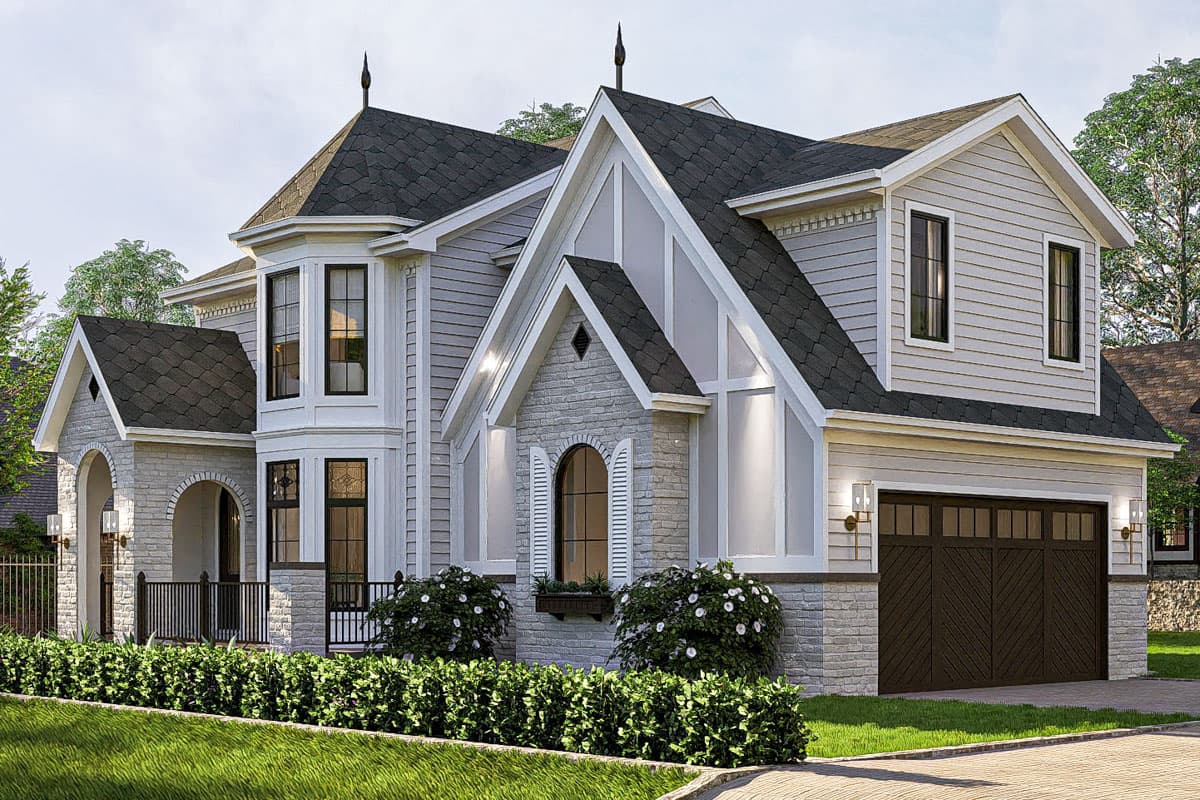

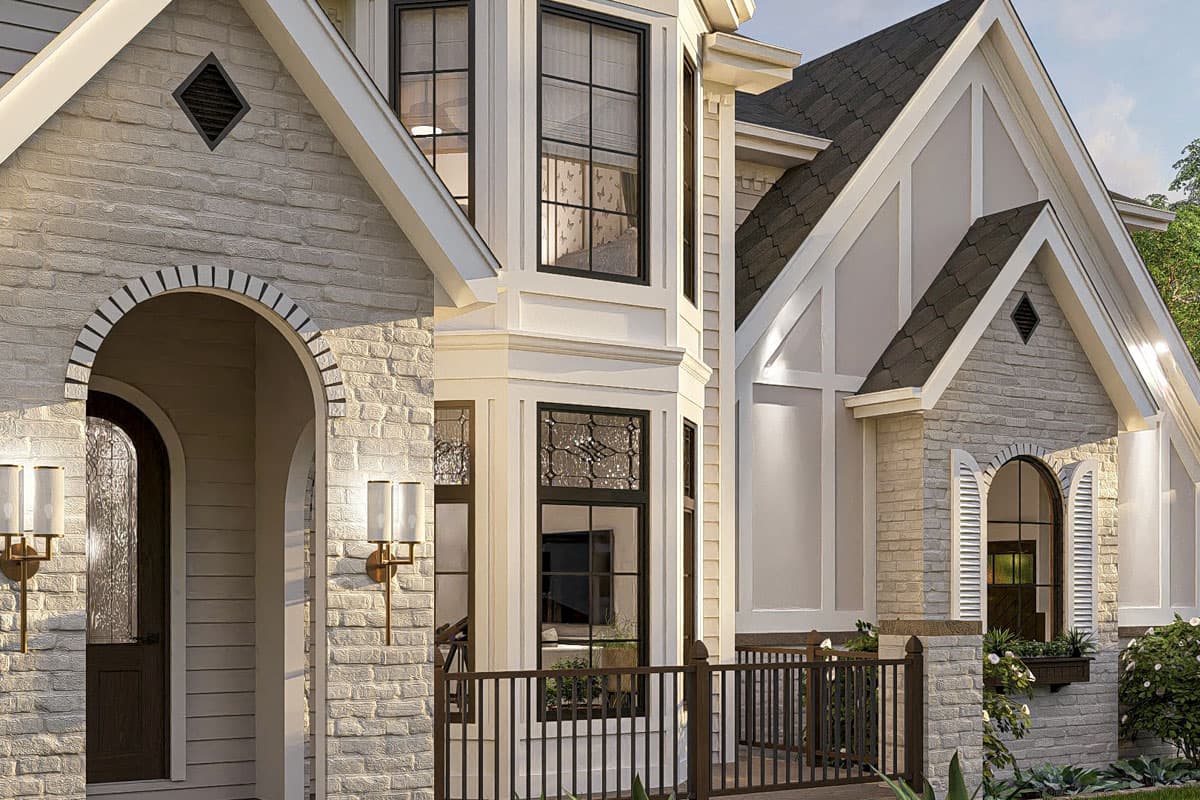

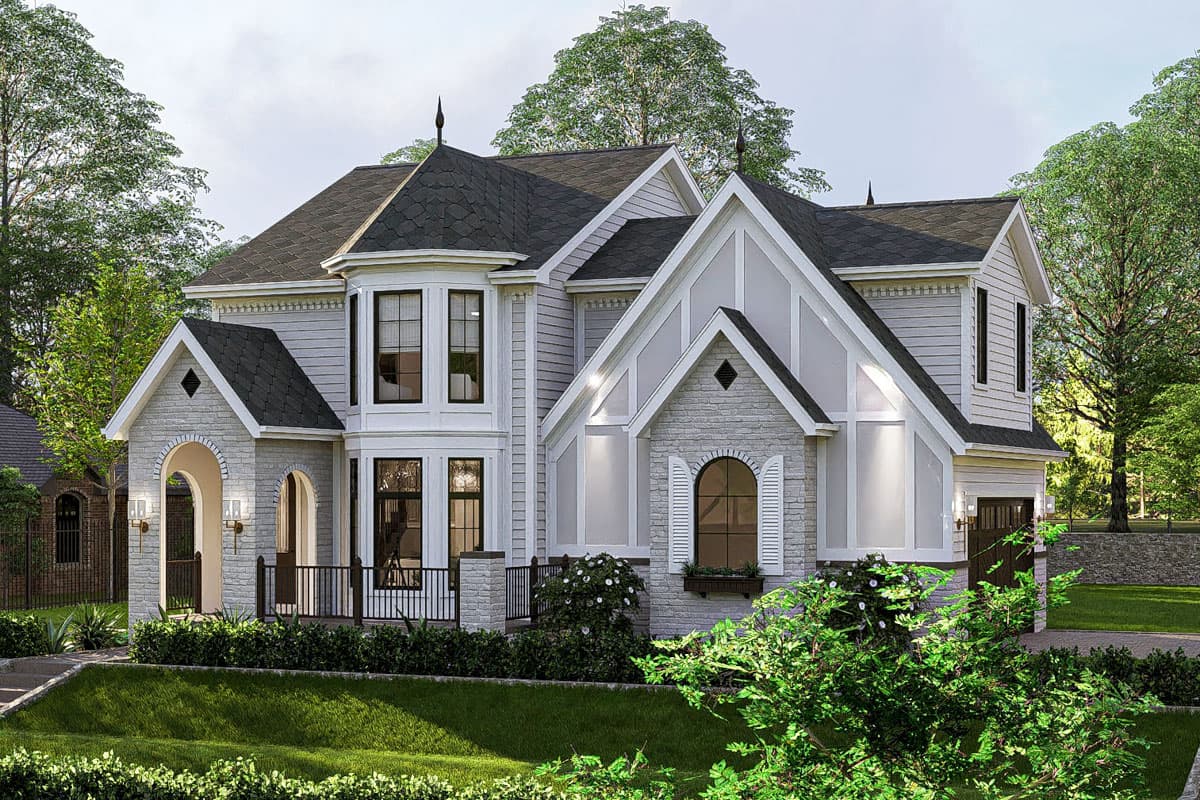

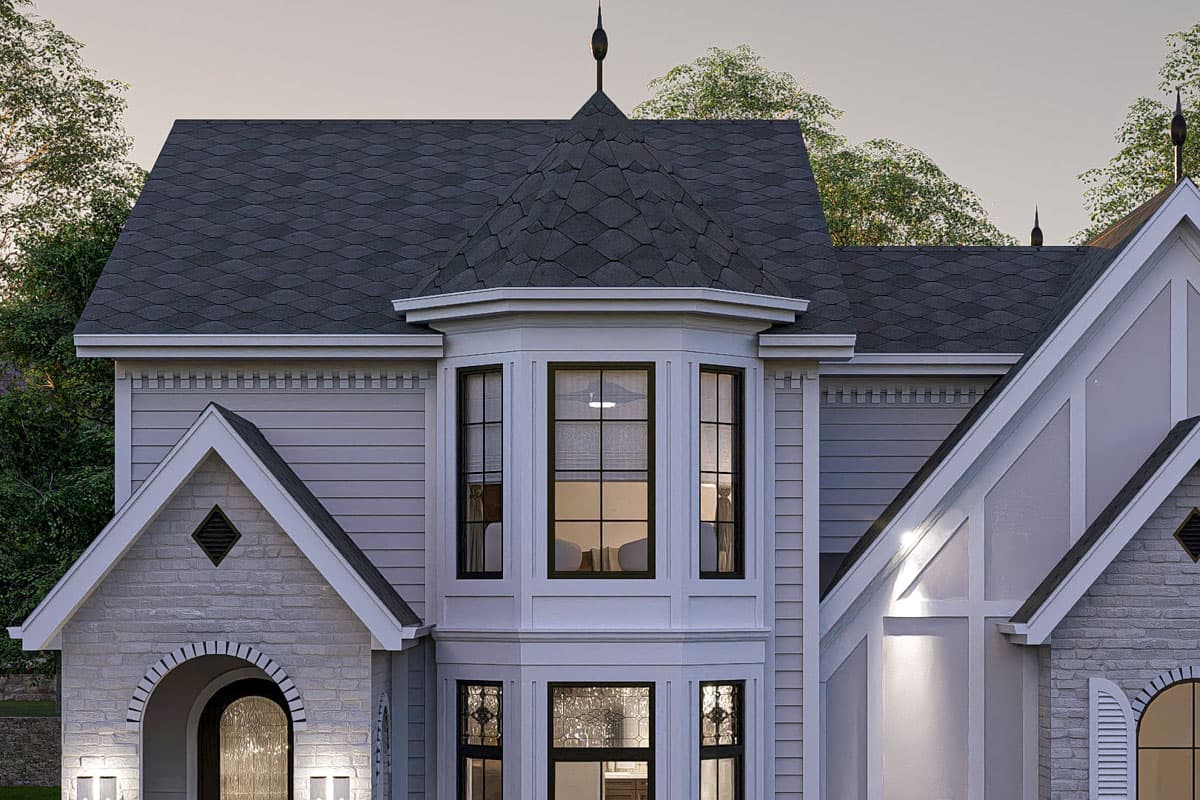

  • This two-story classic Victorian house plan features intricate detailing, including decorative trim, gables, and a welcoming front porch. Large windows with ornate frames and a steeply pitched roof enhance its traditional charm. An attached two-car garage provides ample space for your vehicles.

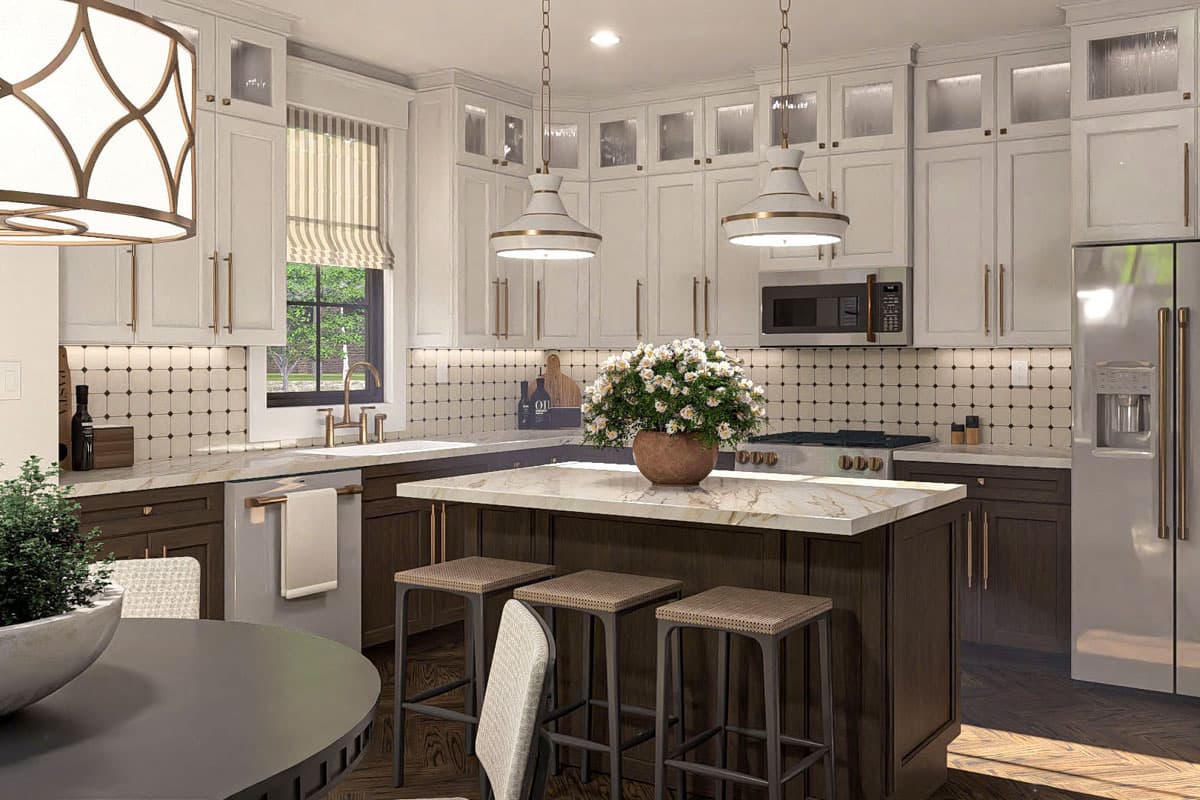

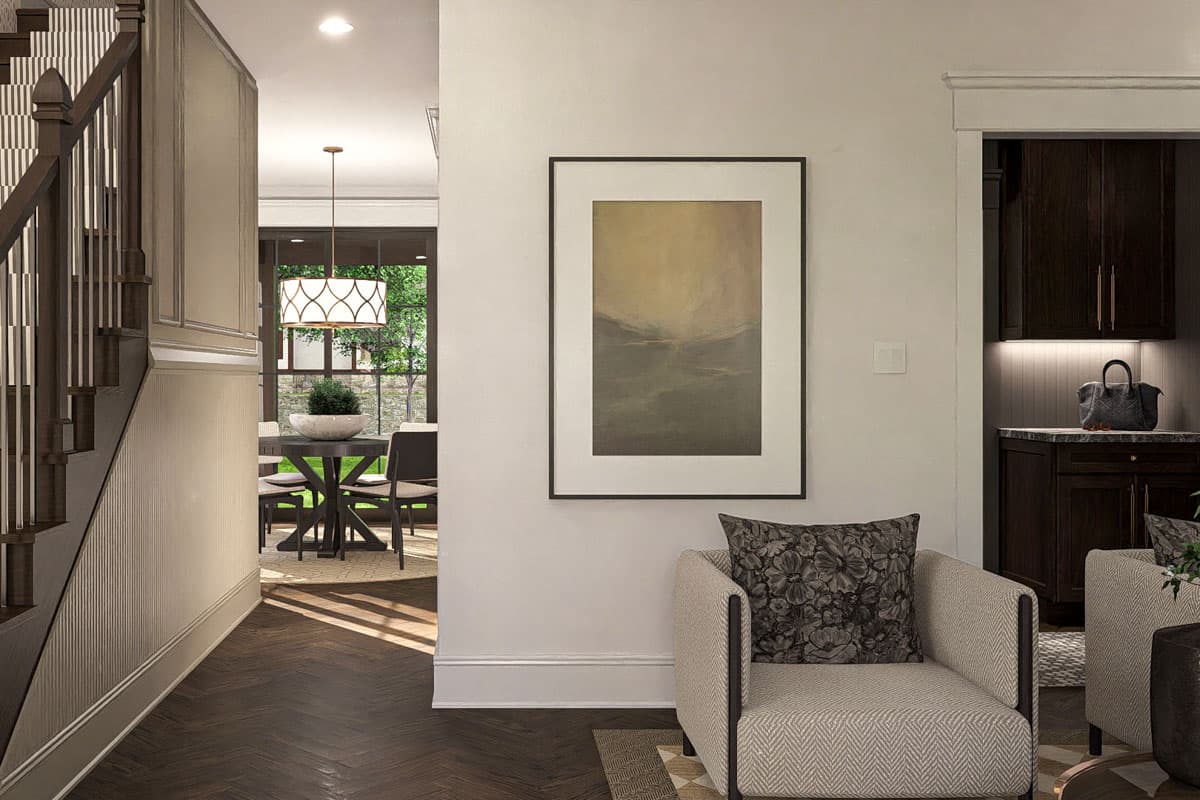

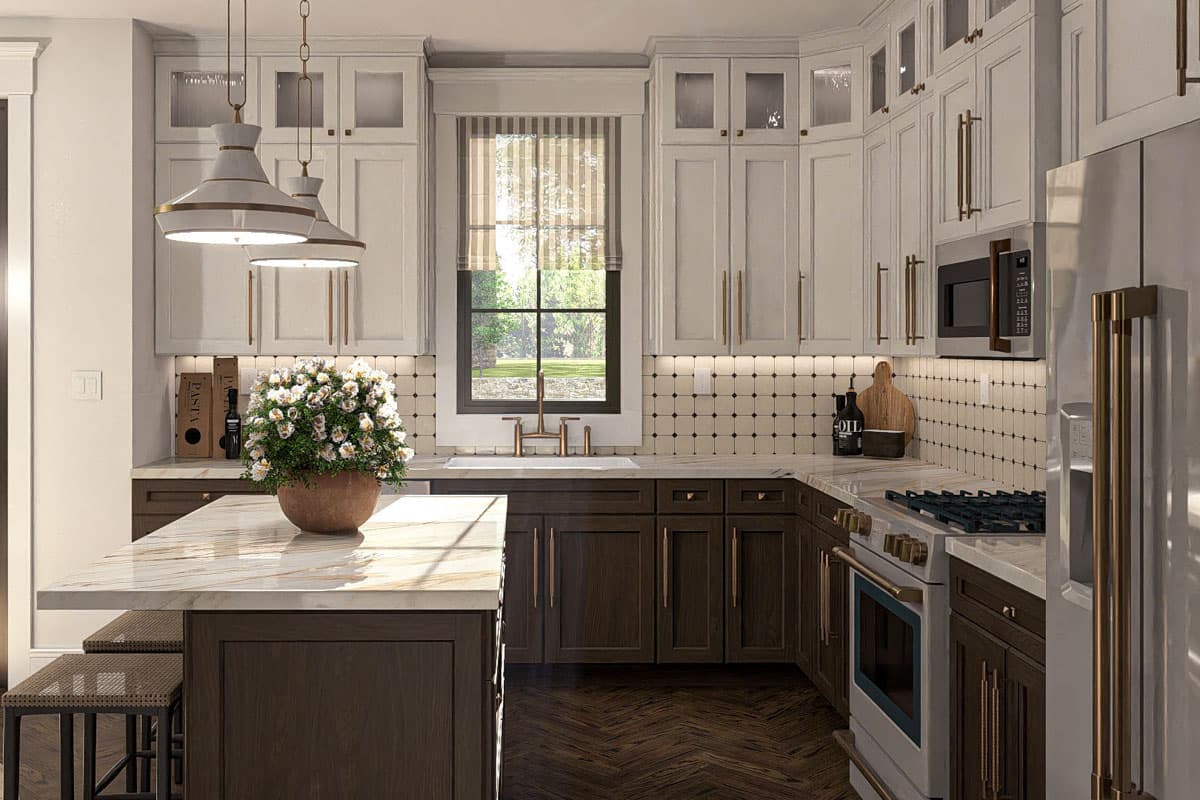

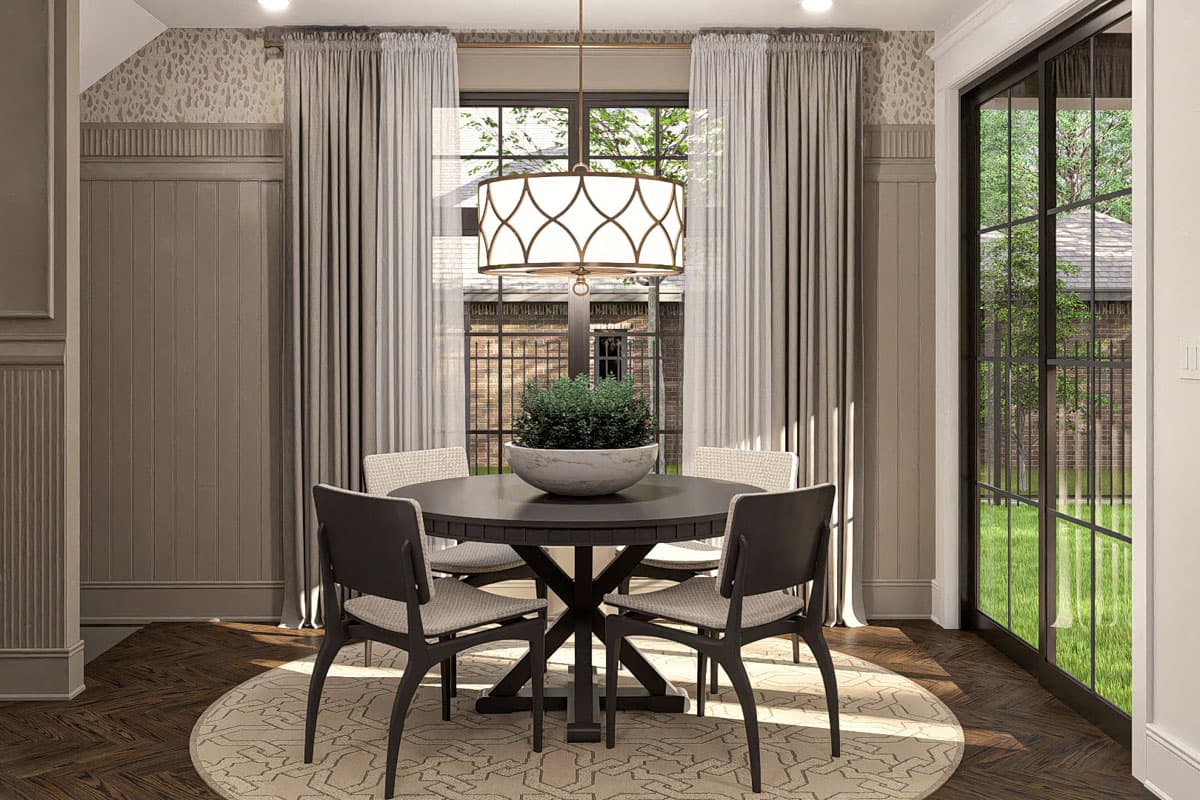

  • Inside, you're greeted by a cozy great room, perfect for entertaining. Beyond the great room, the dining room and kitchen are located at the rear of the home. The kitchen features a large island with seating and ample cabinetry, ideal for both everyday meals and entertaining guests.

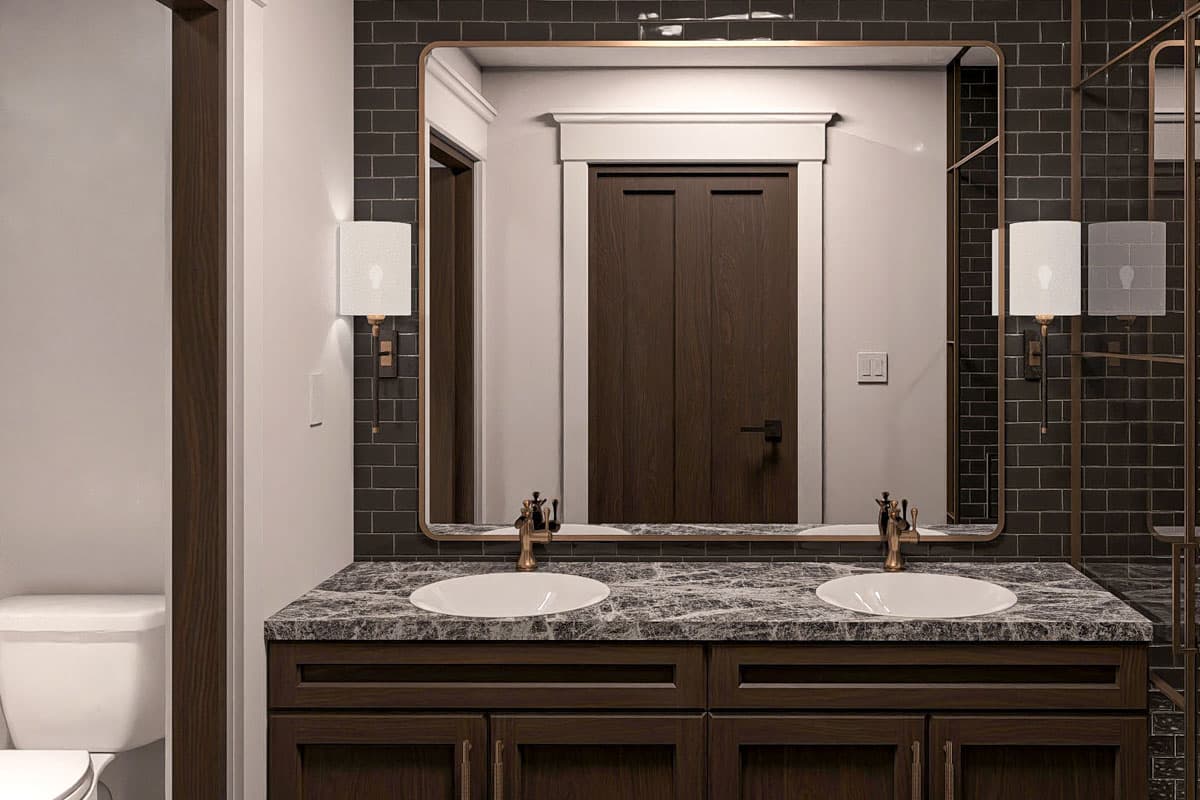

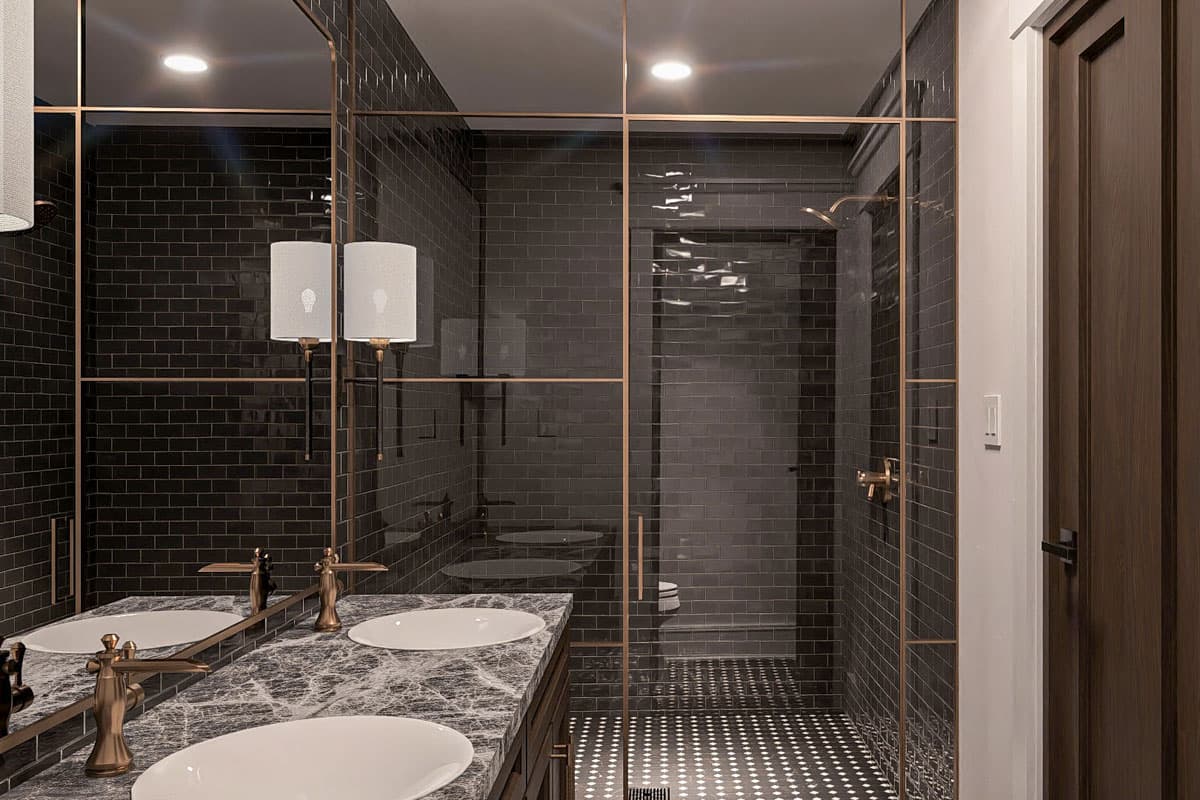

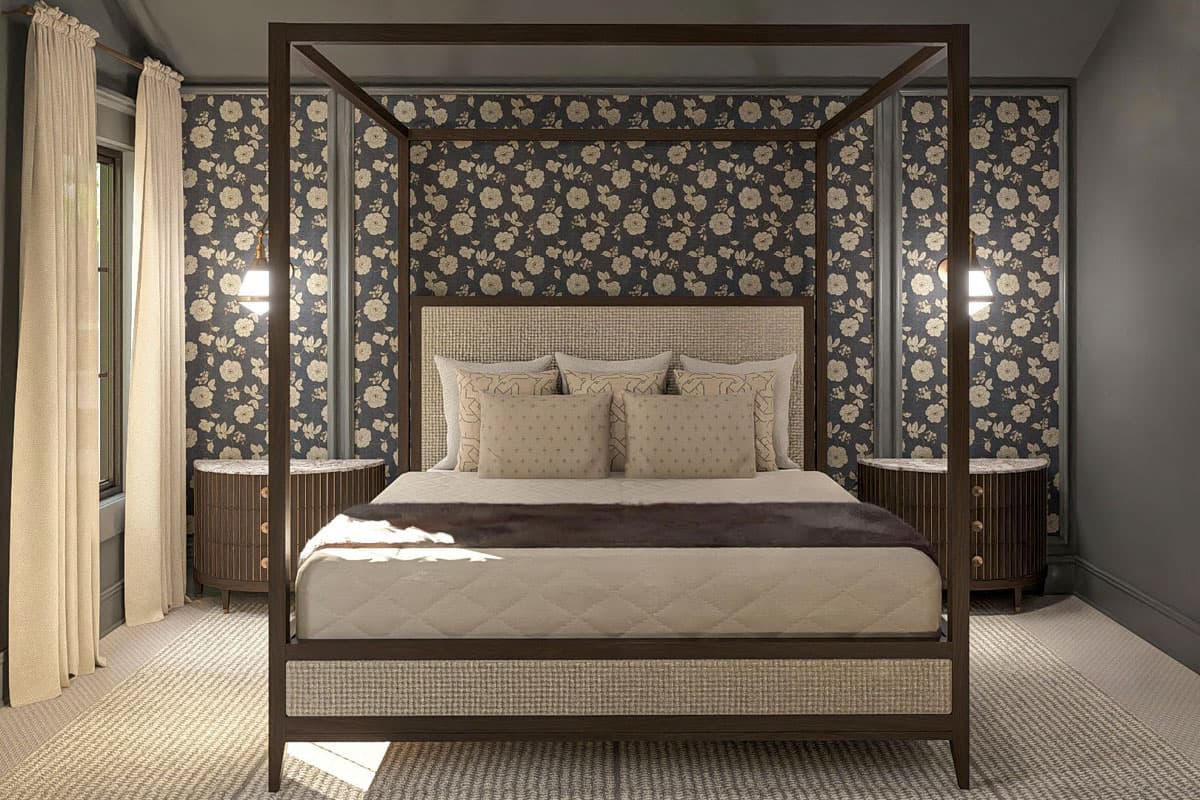

  • The house boasts three generously sized bedrooms, each designed with comfort and style in mind. The master suite is a true retreat, featuring a spacious bedroom and two walk-in closets. The ensuite bathroom includes a walk-in shower, dual vanities, and a private water closet.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,720 sq. ft.

1st Floor

708 sq. ft.

2nd Floor

1,012 sq. ft.

Porch, Combined

179 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 0"

Depth

52' 8"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

500 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

6 on 12

Architectural Style

Traditional

Victorian

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Square Footage Breakdown

Total Heated Area

1,720 sq. ft.

1st Floor

708 sq. ft.

2nd Floor

1,012 sq. ft.

Porch, Combined

179 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 0"

Depth

52' 8"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

500 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

6 on 12

Architectural Style

Traditional

Victorian

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - Upstairs

Mudroom
