Plan 29903LDG

3-Bed Wilderness Cabin Under 2300 Square Feet with Lower Level Expansion

Name: Plan 29903LDG: 3-Bed Wilderness Cabin Under 2300 Square Feet with Lower Level Expansion
Brand: Architectural Designs
SKU: 29903LDG
Price: 1149.0 USD
Availability: InStock

Heated S.F.

2,280

Beds

Baths

3.5

Stories

Floor Plan

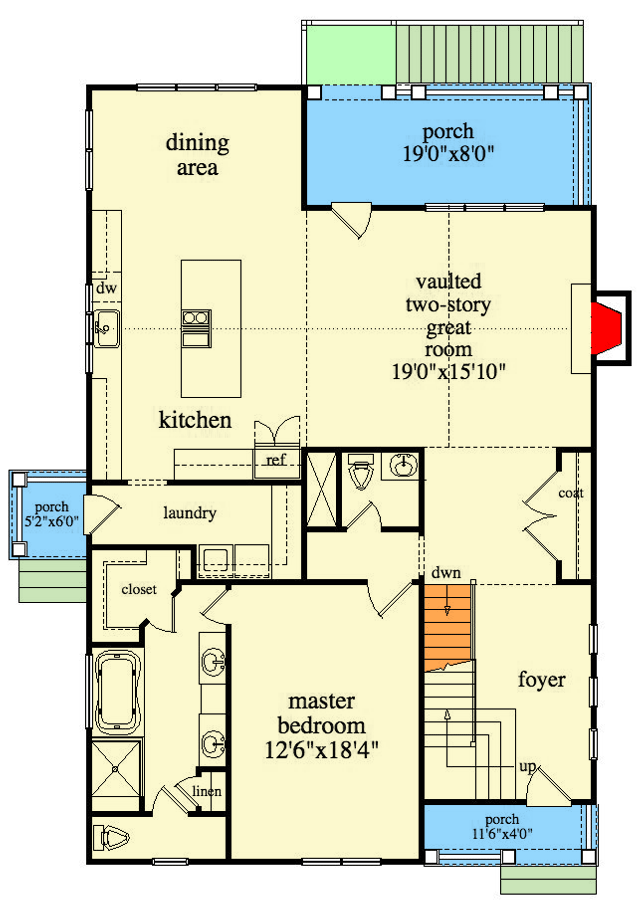

Main Level

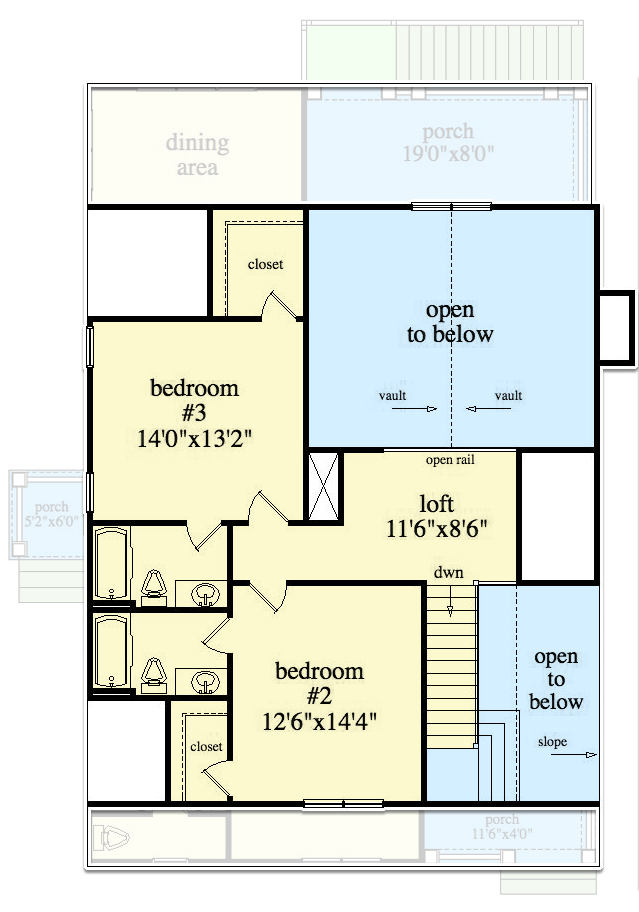

2nd Floor

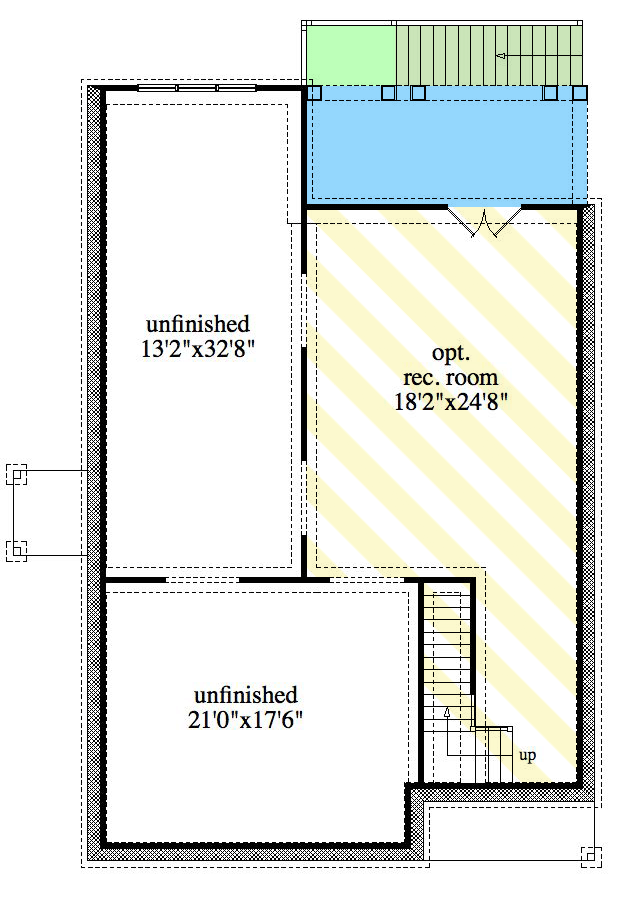

Optionally Finished Lower Level

Plan Details

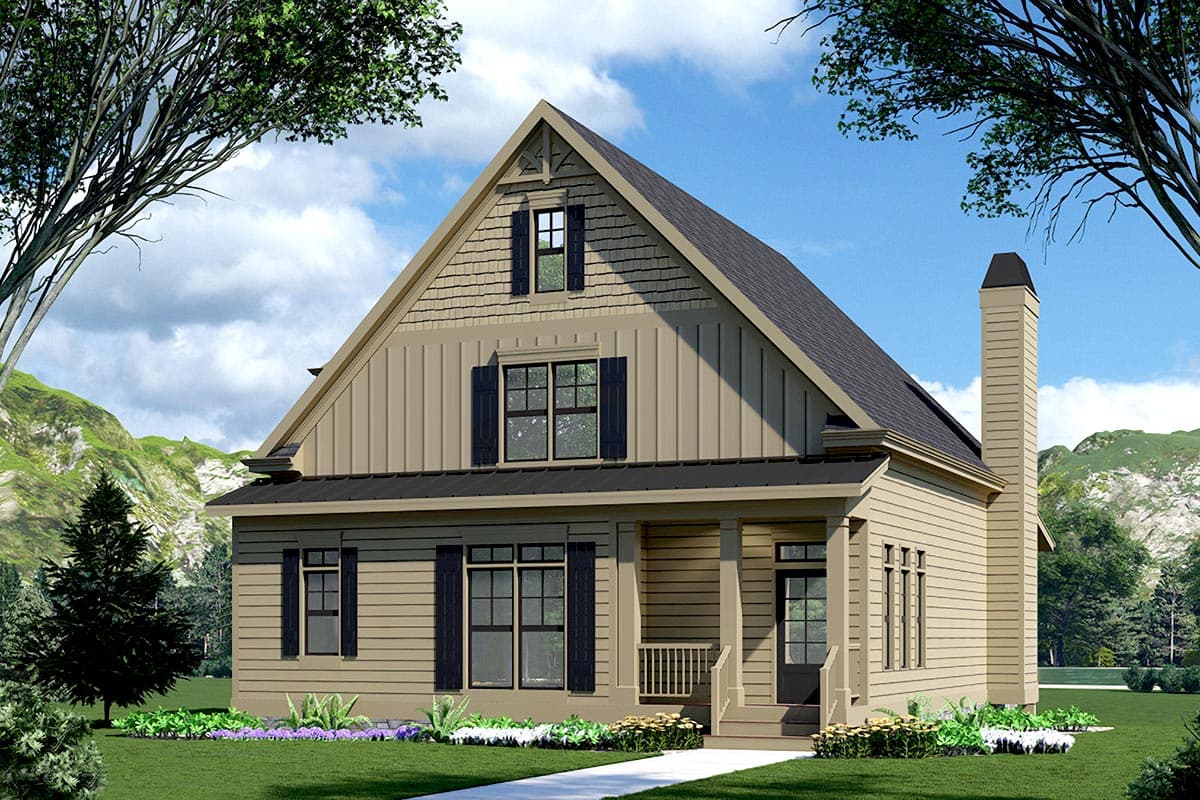

This is a very cozy wilderness type of cabin. It is a master on the main level with steep roof pitches. Each entry to the house is a covered entry. The laundry room entry also acts as a mud room type of entry.
The front porch is small but functional. The kitchen is open to the vaulted two story great room and a dining area. The great room has direct access to the rear porch. The master bedroom is on the front of the house on the main level.
Upstairs are two comfortable bedrooms, two full baths and a loft overlooking the greenroom below.
The unfinished basement has daylight, an optional rec room and plenty of storage.

What's Included

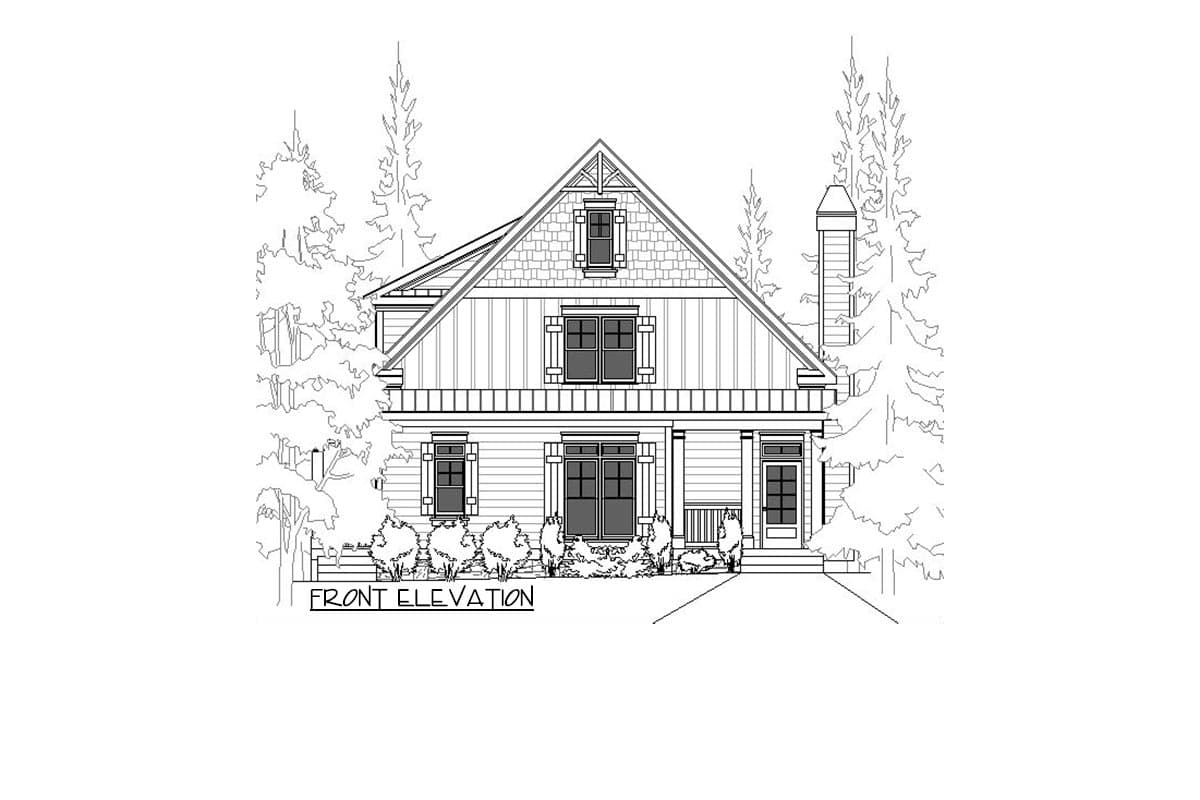

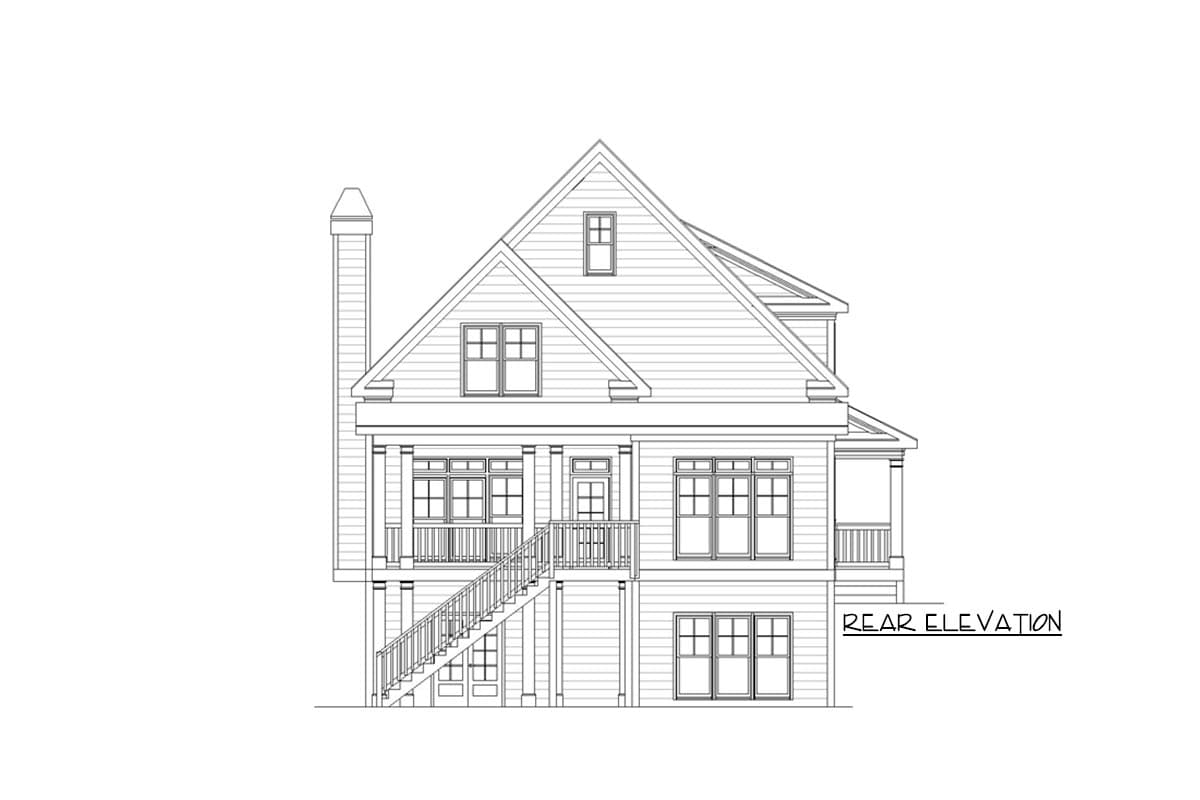

All Four Elevations (front, rear, left, right)
2D Roof overview
3D Roof overview
Main Level Layout
Basement Level Layout
Cross-Section (Typical Wall, Stairs (if applicable))
Typical Details

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
