Plan 11771HZ
3 Bedroom Acadian House Plan
Heated S.F.
1,952
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details

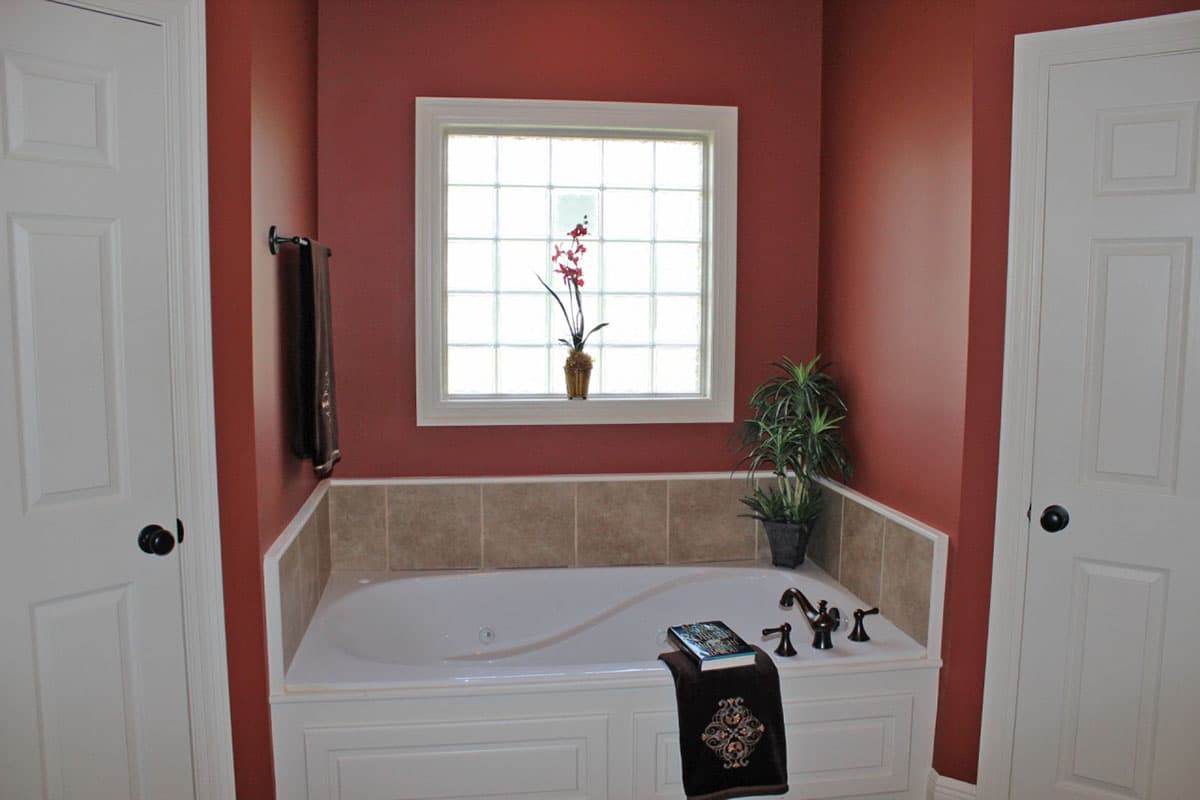

  • This wonderful 3 bedroom 2 bath Acadian style house plan is loaded with features and style. It features a luxurious master suite with his and her walk-in closets and privacy ensured by a split bedroom layout.
  • An oversized utility room is a welcome features, as is the mudroom entry with lockers to minimize clutter.

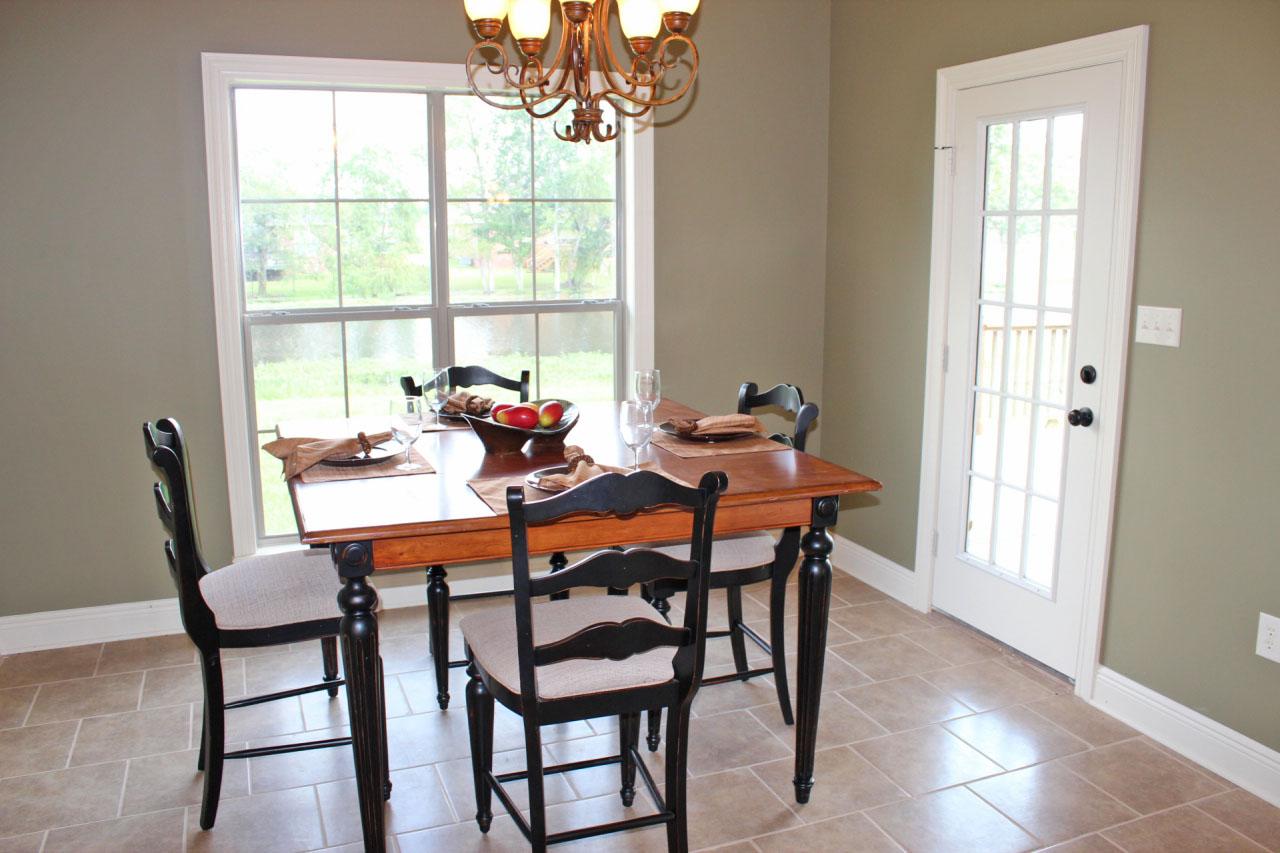

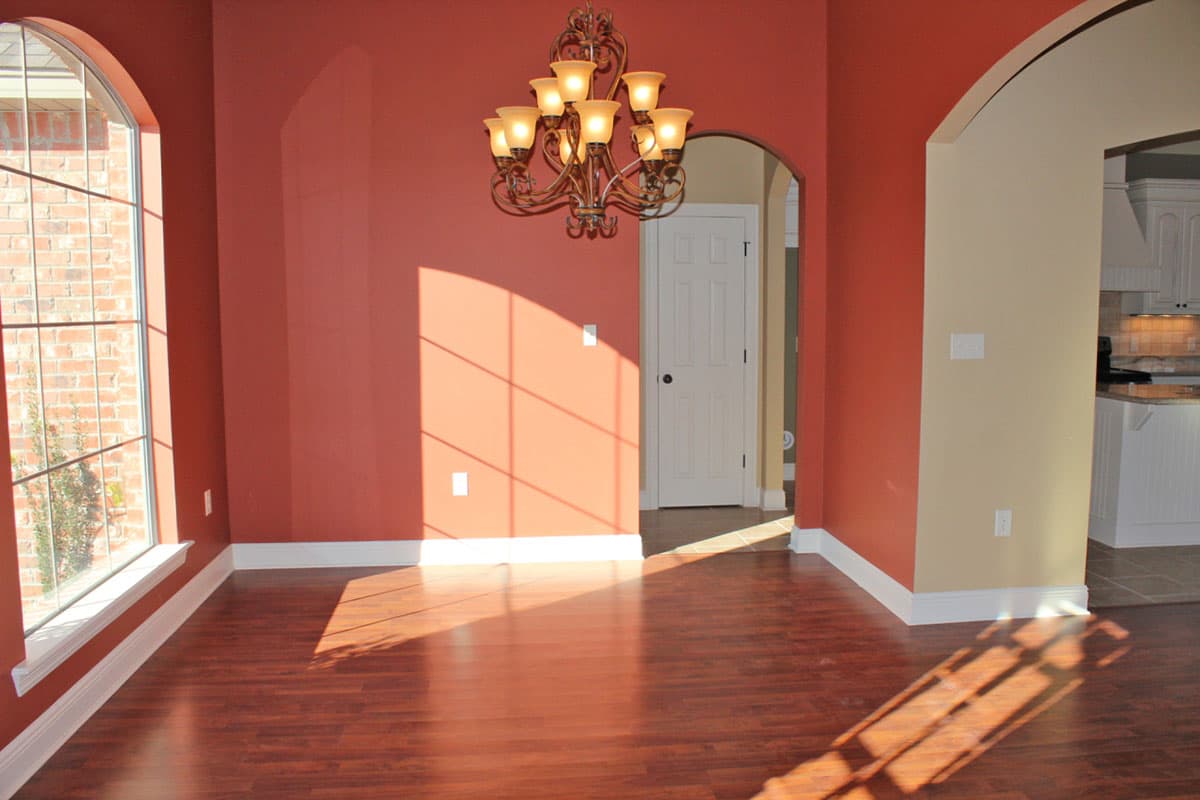

  • A formal dining room is great for guests. And the breakfast area with vaulted ceiling rising to 12' is perfect for informal meals.
  • The roof is stick framed and has a primary pitch of 8:12 and secondary pitches of 12:12 and 14:12.
  • Related Plans: Downsize with house plans 11742HZ (1,750 sq. ft.)and 11731HZ (1,850 sq. ft.).
What's Included
  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
