Plan 350186GH

3-Bedroom Country Ranch House Plan with Split Layout and Covered Porch

Name: Plan 350186GH: 3-Bedroom Country Ranch House Plan with Split Layout and Covered Porch
Brand: Architectural Designs
SKU: 350186GH
Price: 1370.0 USD
Availability: InStock

Heated S.F.

1,531

Beds

Baths

Stories

Cars

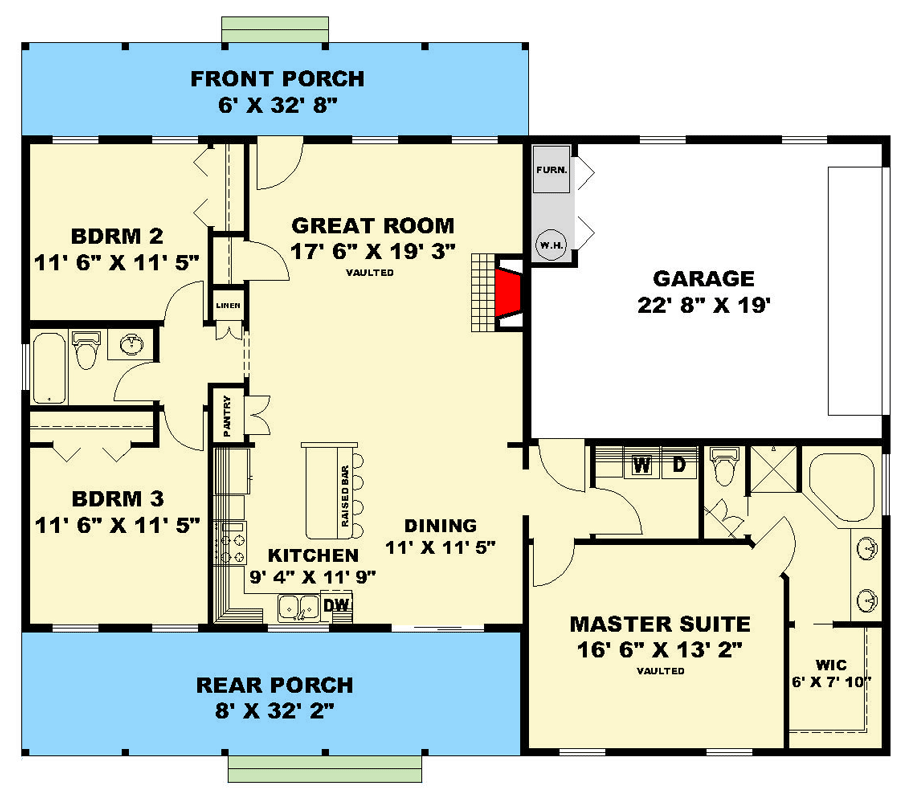

Floor Plan

Main Level

Plan Details

This inviting 1,531 sq. ft. Country Ranch House Plan features 3 bedrooms, 2 full bathrooms, and an attached 452 sq. ft. two-car side-entry garage, all wrapped in a charming gray siding exterior with a welcoming covered front porch.
Step inside from the gracious covered porch into a thoughtfully designed single-level layout where an immediate sense of comfort and flow prevails, featuring convenient main-level laundry for effortless daily living.
The main living areas are crafted for ease, featuring a well-appointed kitchen with a breakfast nook for casual meals and a butler walk-in pantry, seamlessly connecting to the dining and living spaces, ideal for gathering and entertaining.
Designed with a popular split-bedroom layout, the private master suite occupies its own wing on the first floor, offering a tranquil retreat, while two additional bedrooms and a shared bath are thoughtfully placed on the opposite side of the home, ensuring privacy for all.
The expansive covered front porch, supported by rustic wooden posts, offers a delightful space to enjoy morning coffee or relax in the evening, enhancing the home's charming curb appeal and connection to the outdoors.

What's Included

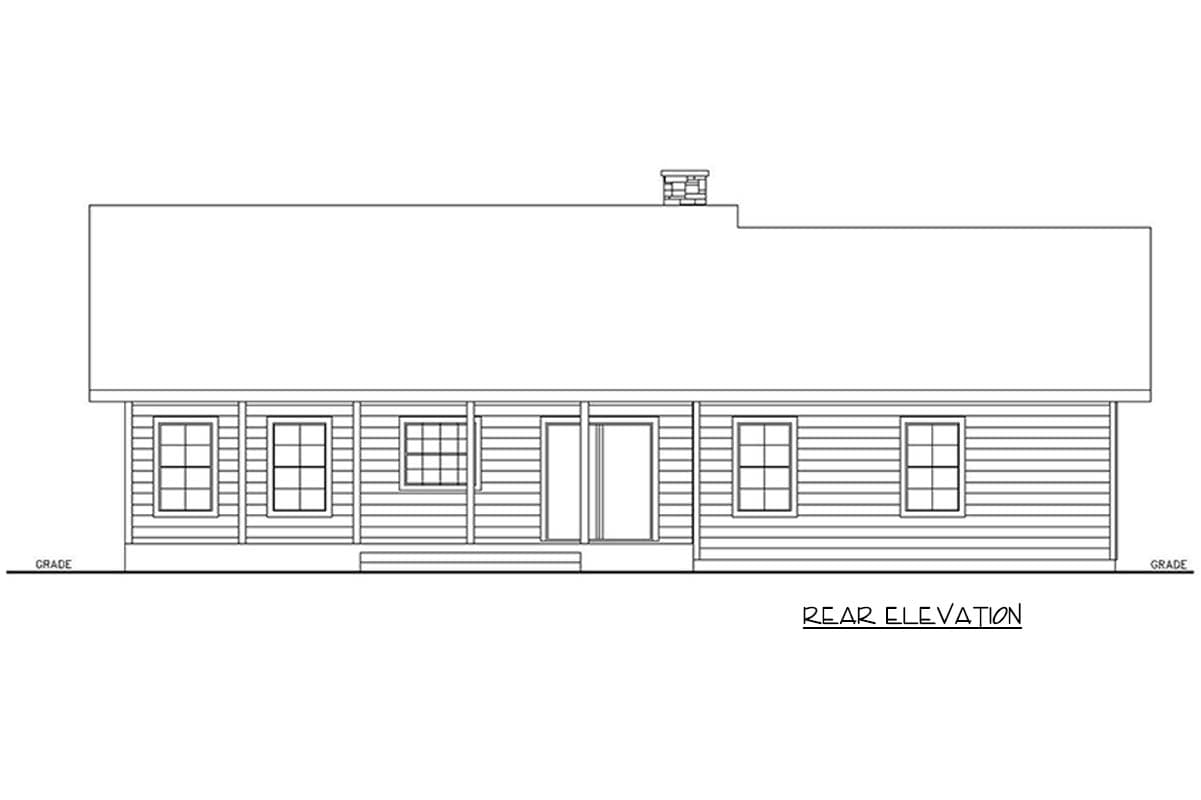

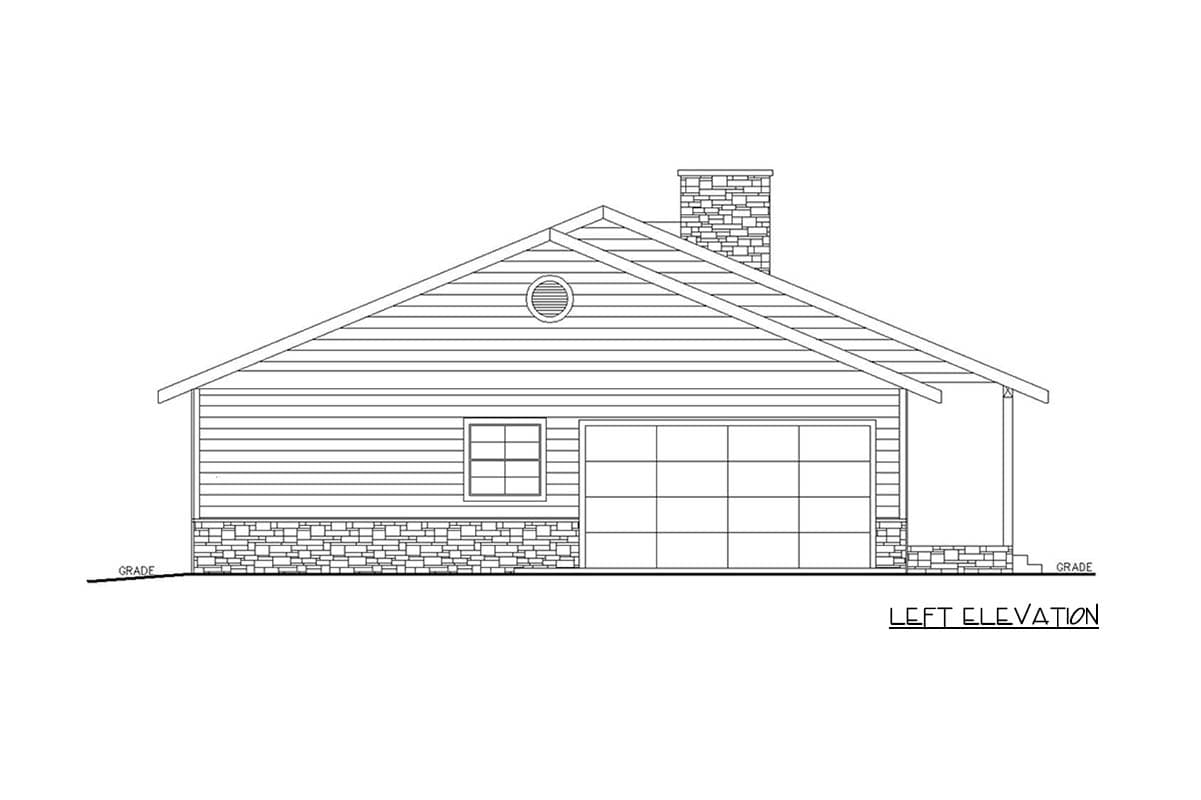

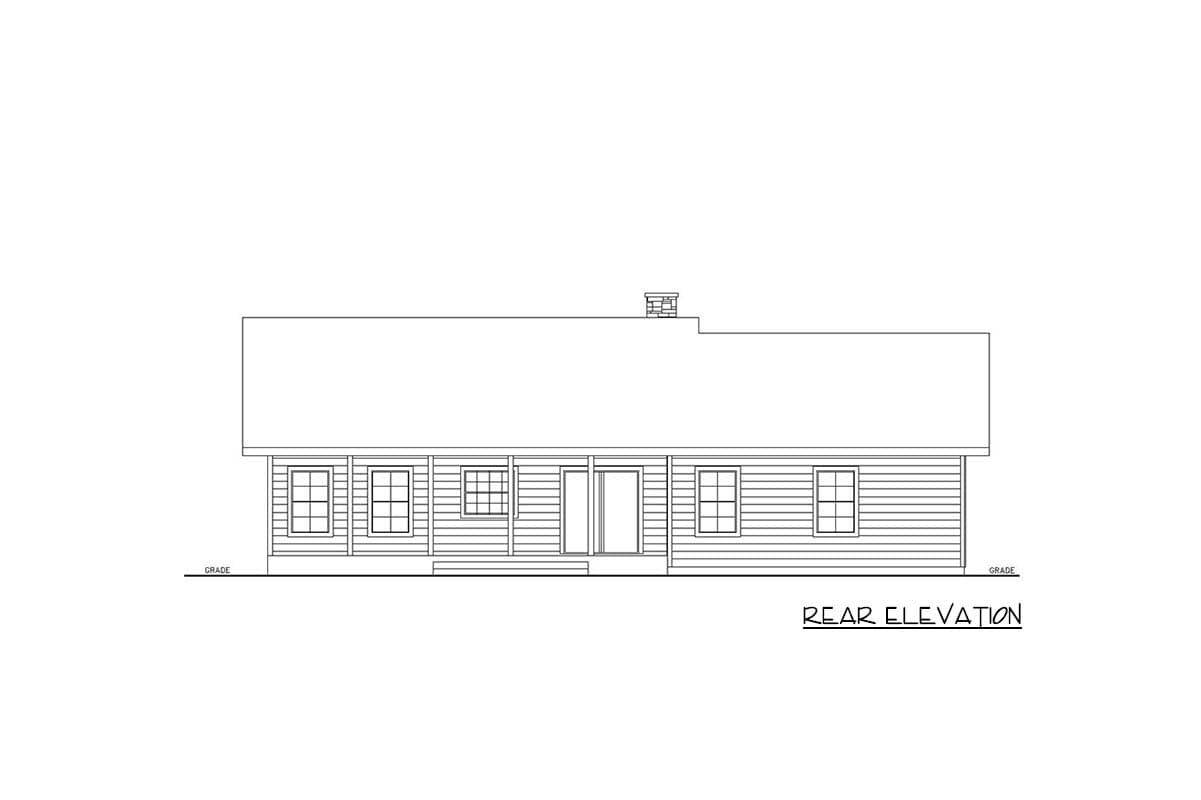

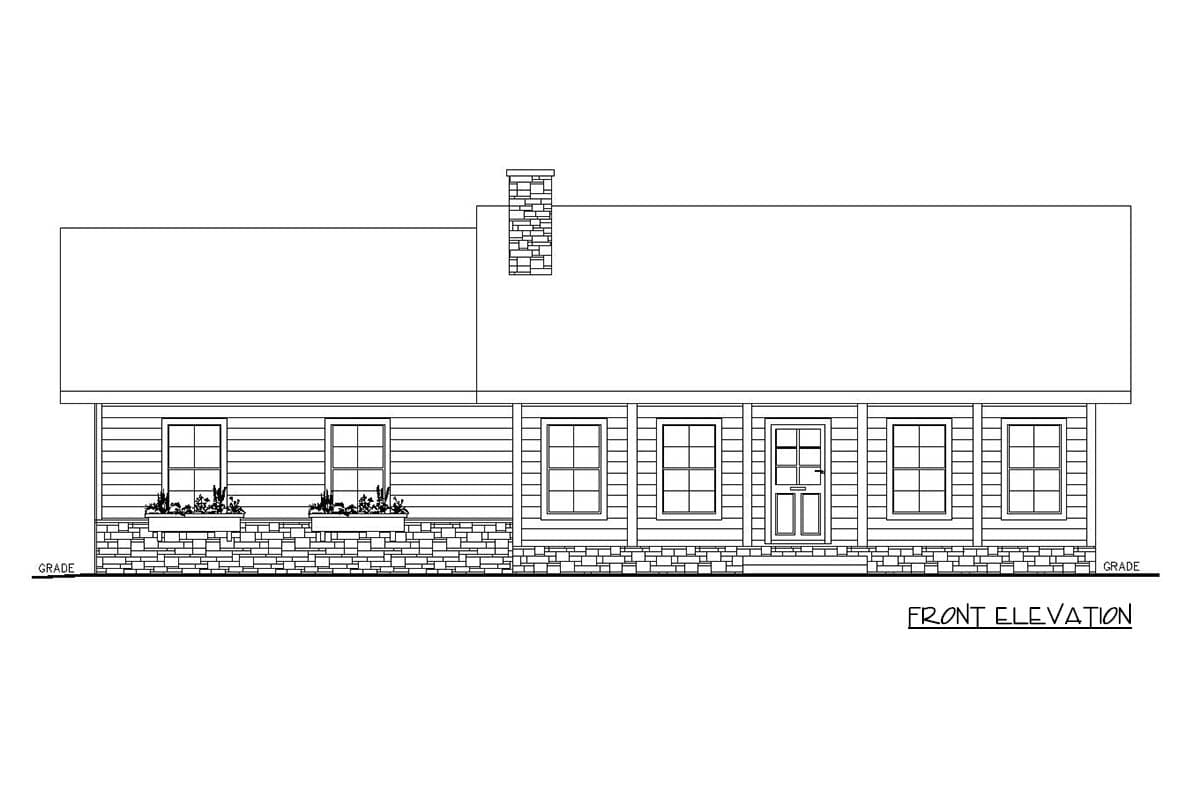

Exterior Elevations: The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
Floor Plans: The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
Details: This page includes the structural details for the construction of the house.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
