Plan 89930AH

3 Bedroom Craftsman Ranch

Heated S.F.
1,282
Beds
3
Baths
2
Stories
1
Cars
3

Floor Plan

Plan 89930AH

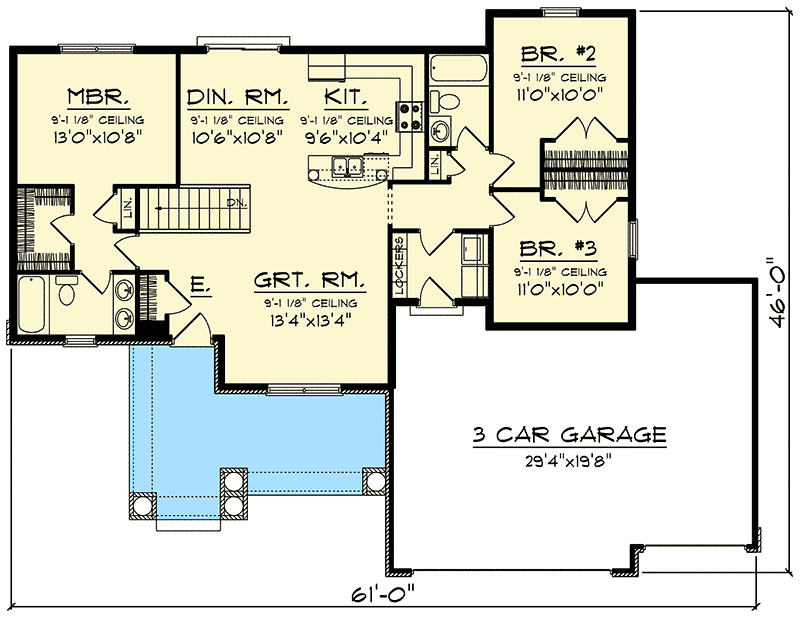

Main Level
Main Level

Plan 89930AH

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 89930AH: 3 Bedroom Craftsman Ranch - Floor Plan - Main Level - Craftsman, Northwest

Plan Details

  • Craftsman details give this three-bedroom ranch home the curb appeal to attract buyers and homeowners.
  • A porch flanked by columns provides an outside living space that's an added benefit to the home.
  • The open-concept floor plan includes a kitchen with breakfast bar to the back of the home that overlooks the great room to the front.
  • The bedrooms are split with the master suite to the left of the home and two additional bedrooms tucked behind the garage on the right.
  • The three-stall garage includes extra space for storage.
  • VIDEO: See this house plan from all angles in our YouTube video.
  • Related Plan: Downsize and change the exterior with house plan 89065AH (1,274 sq. ft.).

What's Included

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,282 sq. ft.

1st Floor

1,282 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

61' 0"

Depth

46' 0"

Max Ridge Height

19' 8"

Garage

Type

Attached

Area

633 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,282 sq. ft.

1st Floor

1,282 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

61' 0"

Depth

46' 0"

Max Ridge Height

19' 8"

Garage

Type

Attached

Area

633 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Split

Master Suite - 1st Floor
