Plan 14647RK

3 Bedroom Craftsman with Bonus Room

3,507 3 3.5 2 2
Pageloader

3 Bedroom Craftsman with Bonus Room

Plan 14647RK

  • 3,507

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

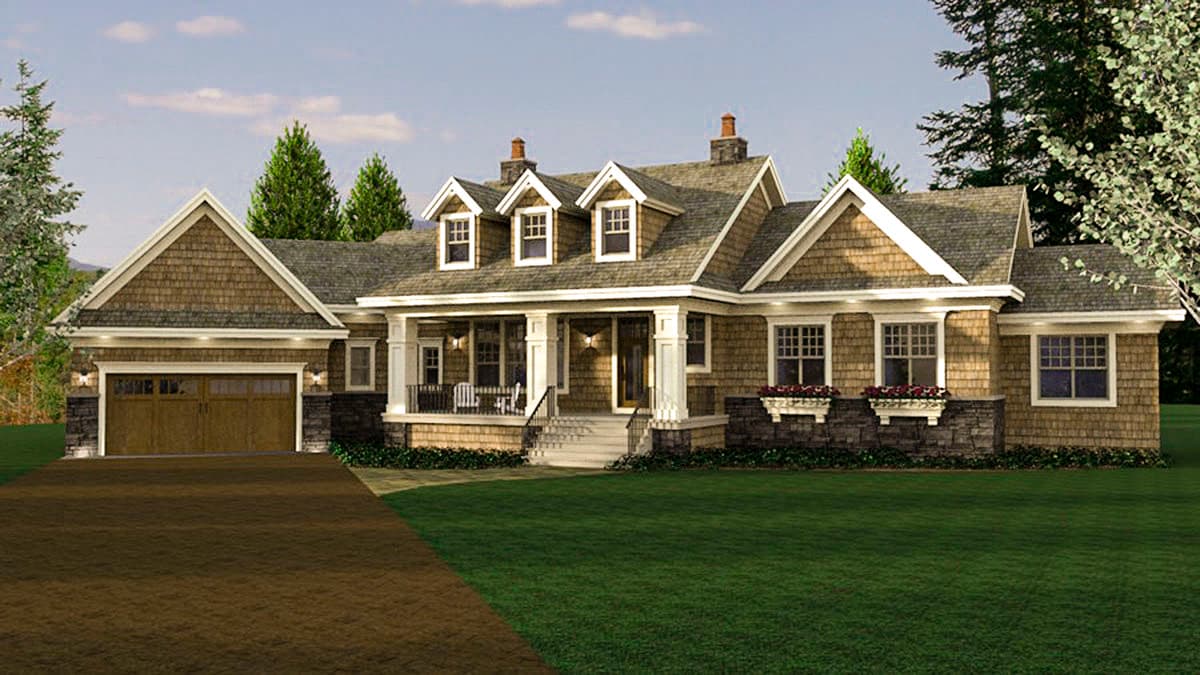

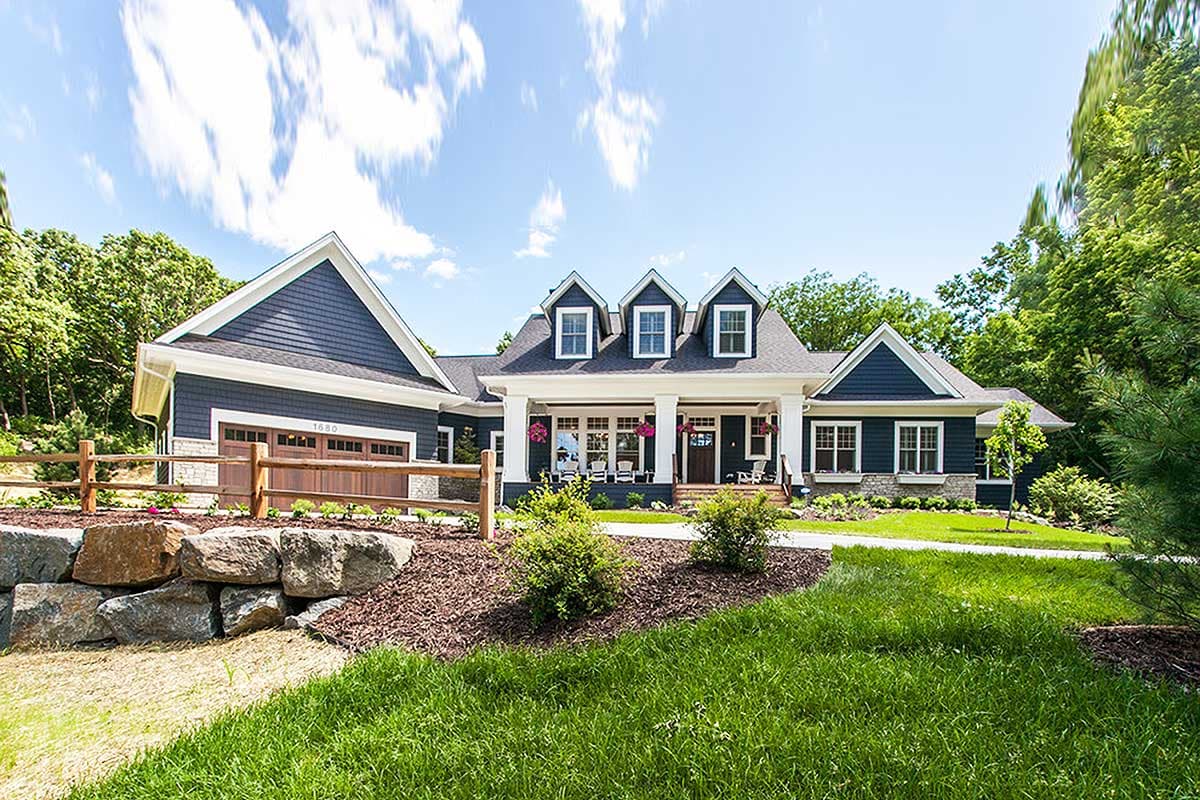

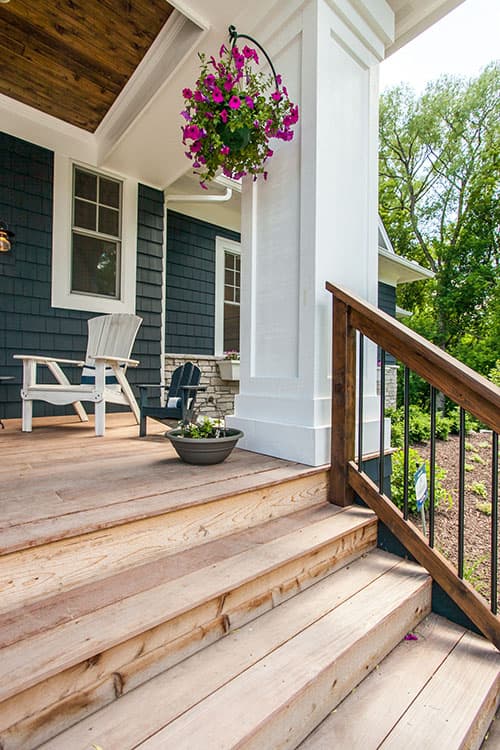

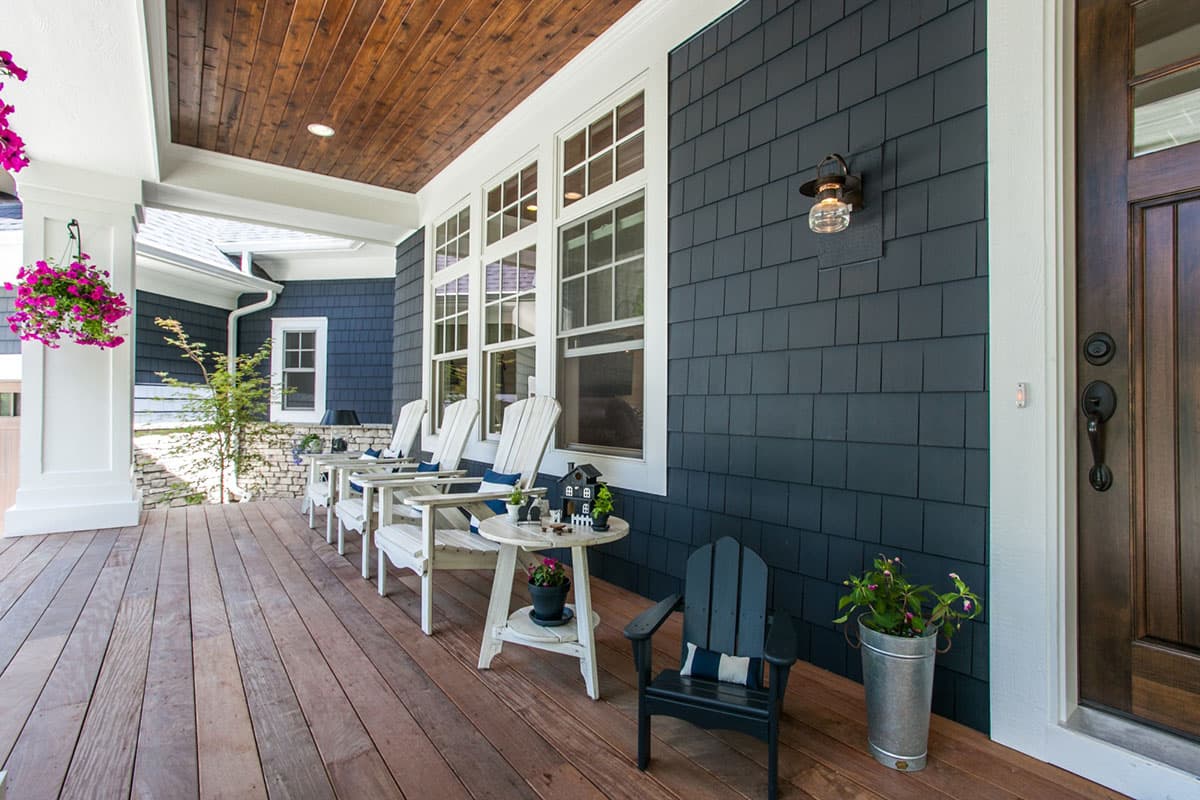

  • A 10' deep front porch makes a great spot for sitting and relaxing in this Shingle style house plan.

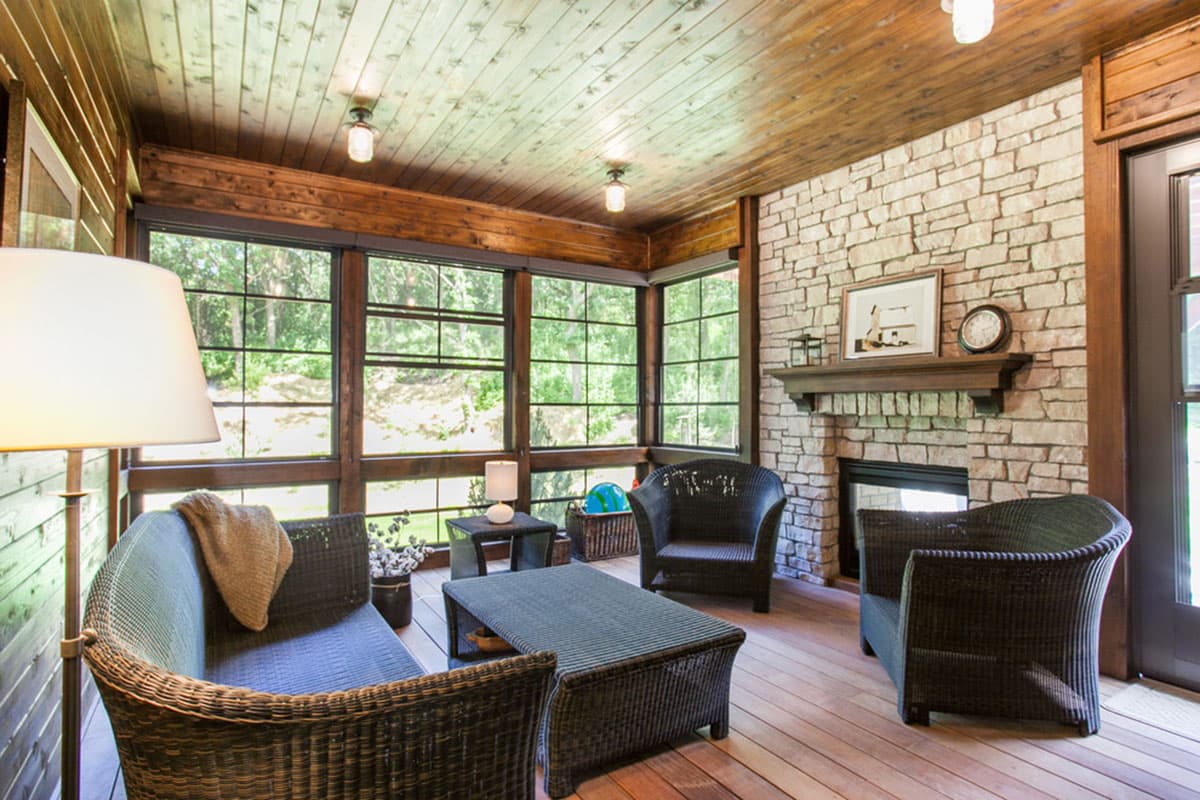

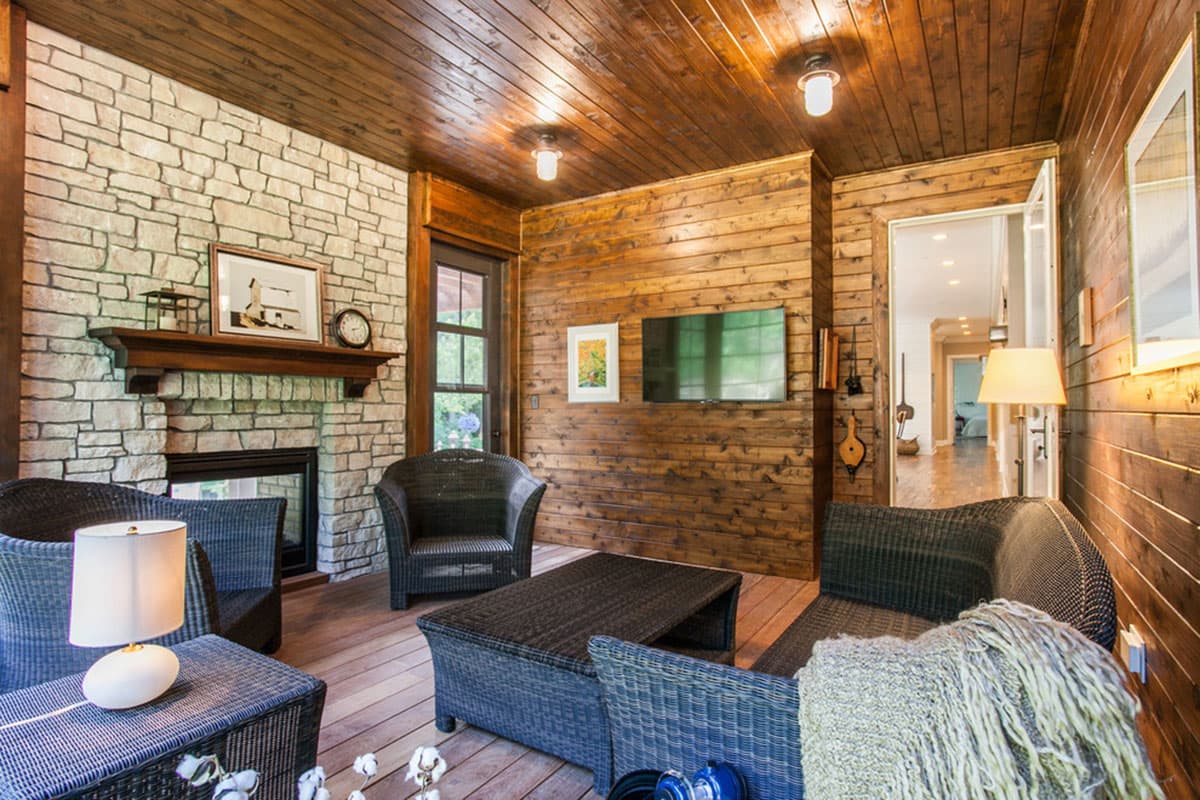

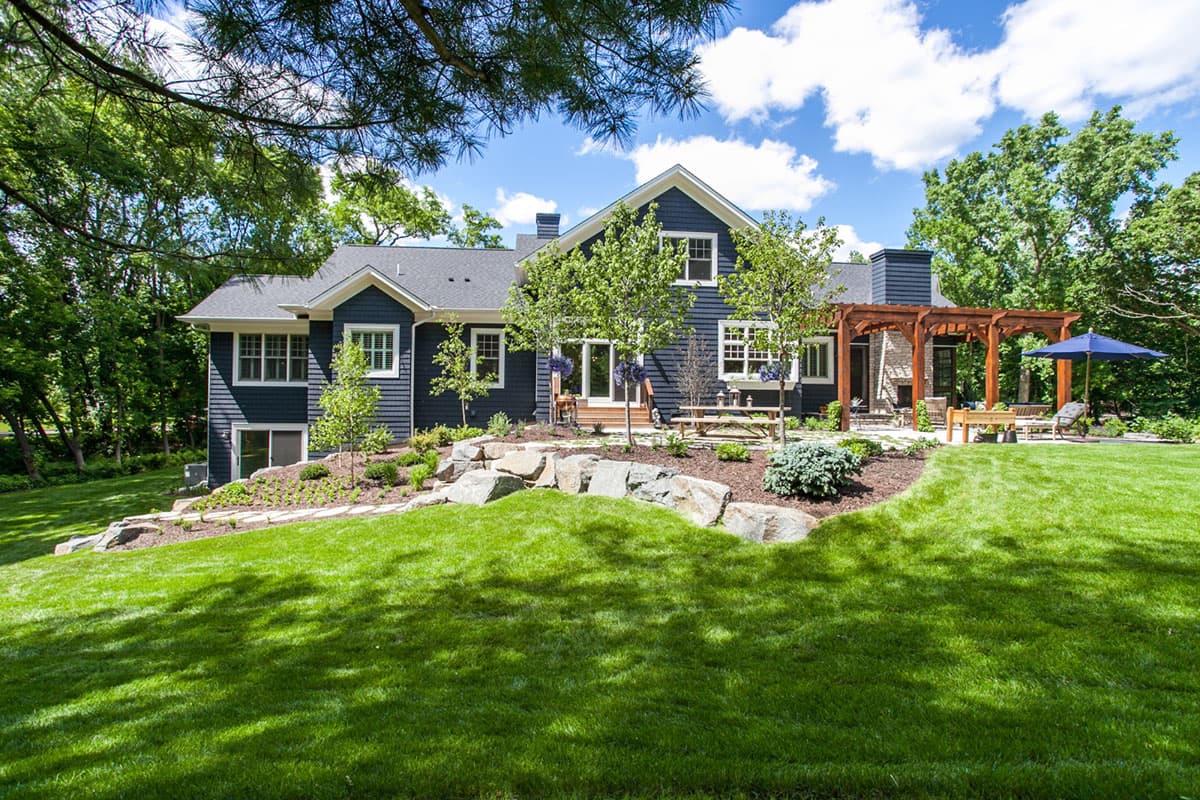

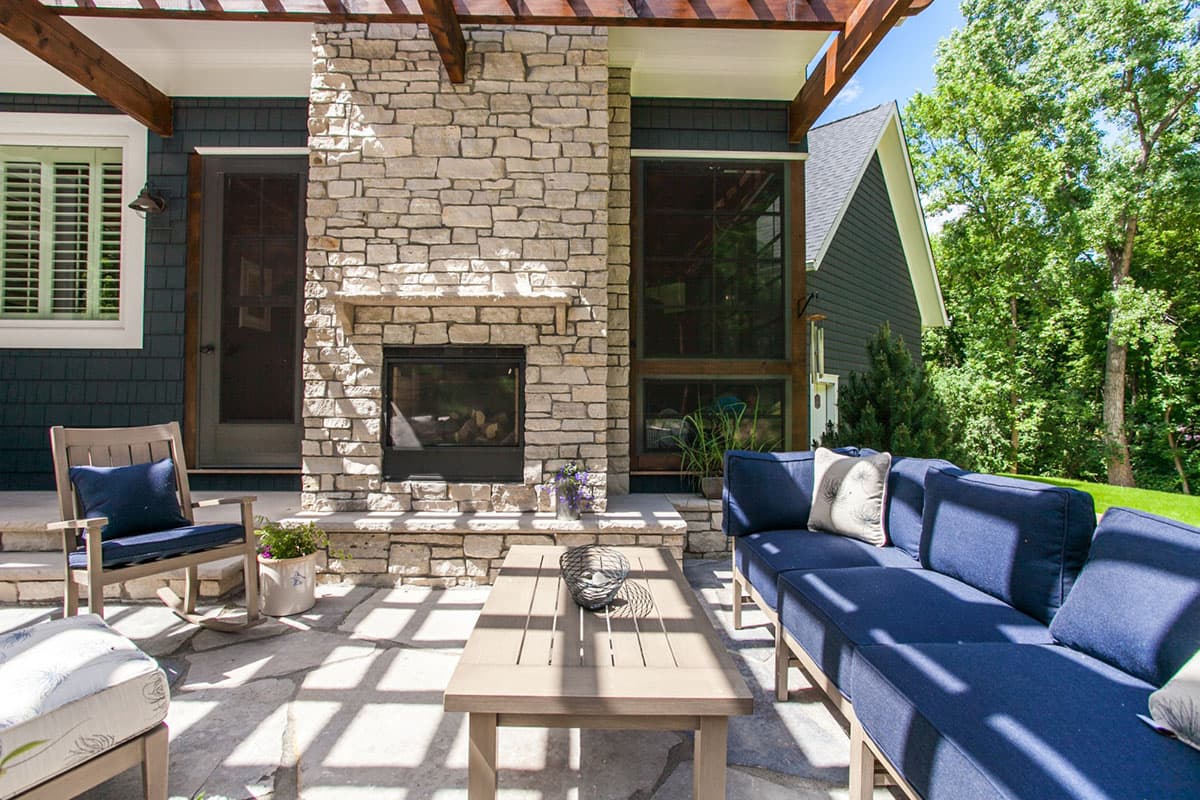

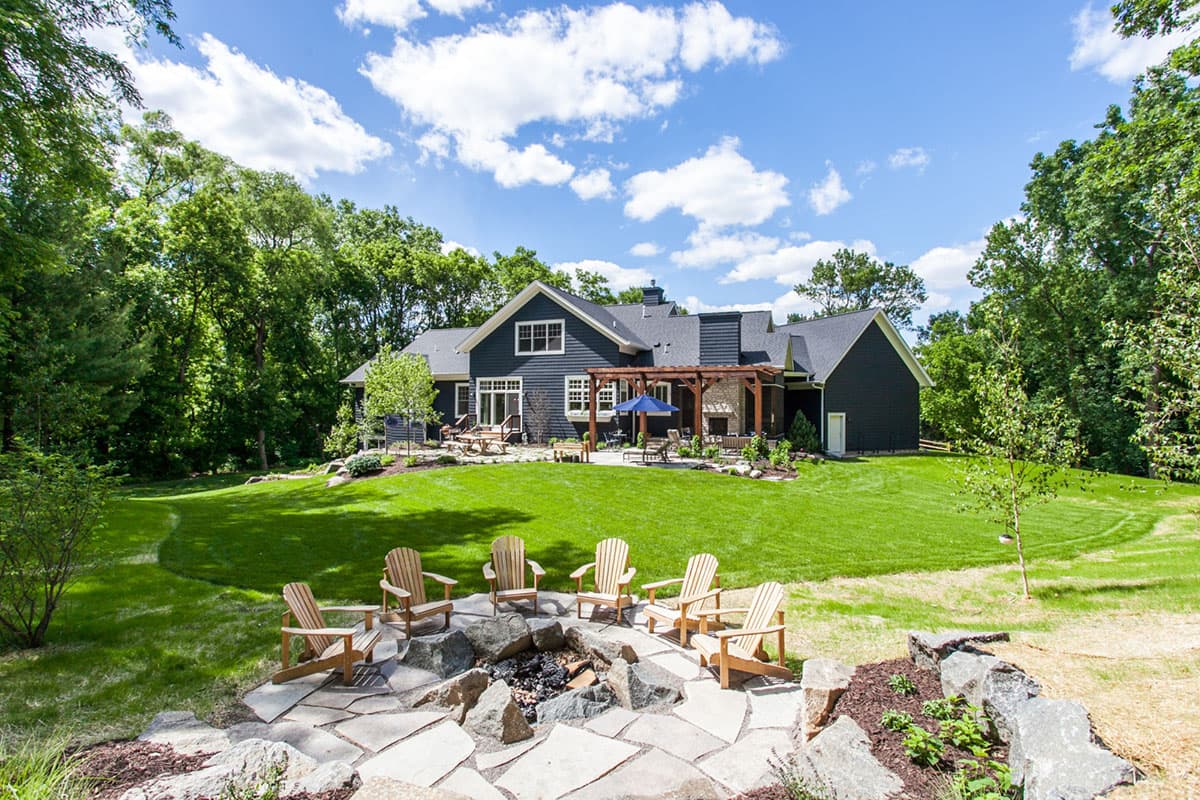

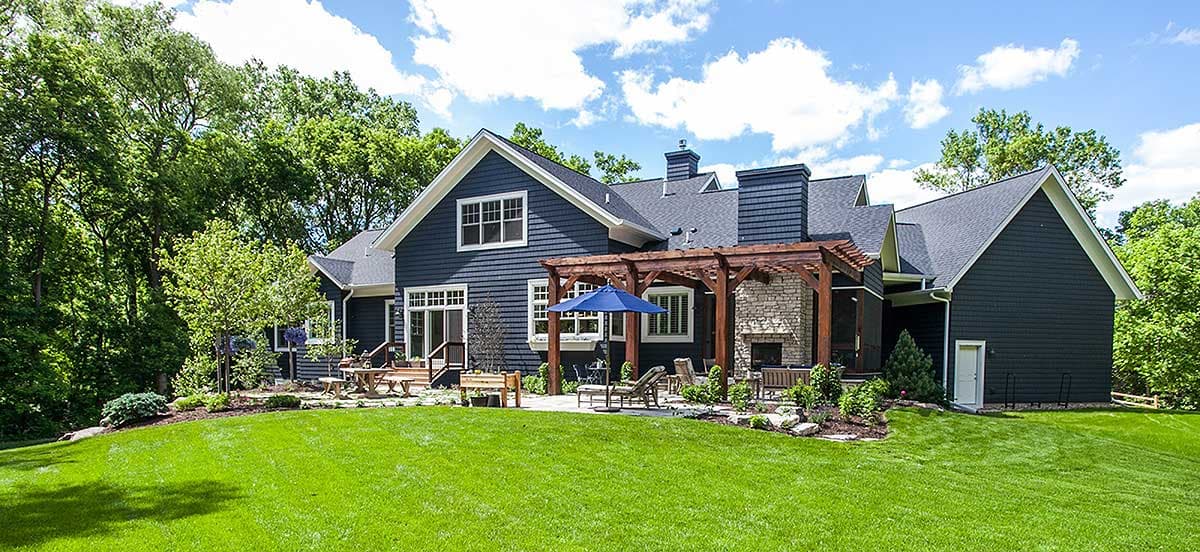

  • Or choose to spend time in the screened porch in back that comes with an outdoor fireplace.

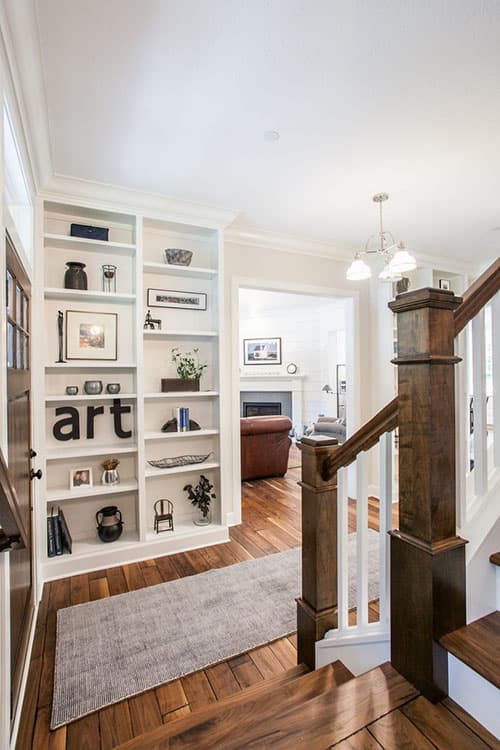

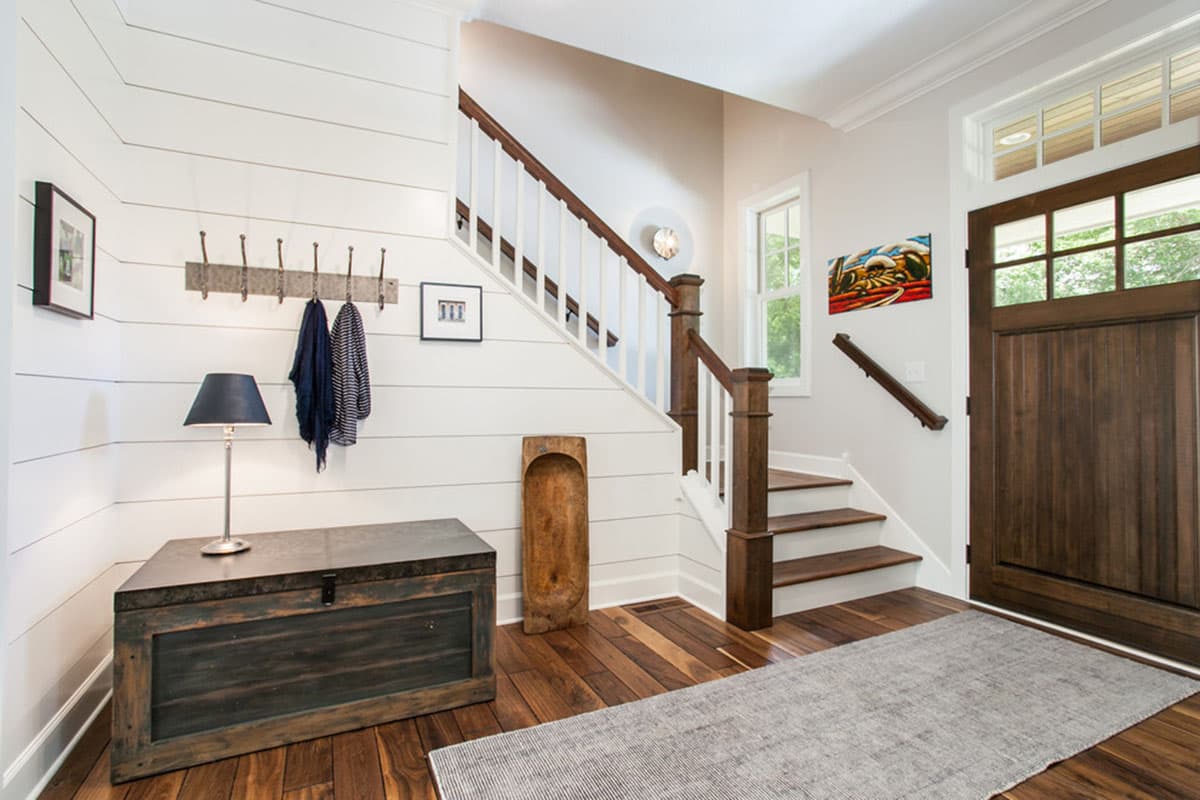

  • Built-in shelves line the foyer hall so you can display your collectibles.

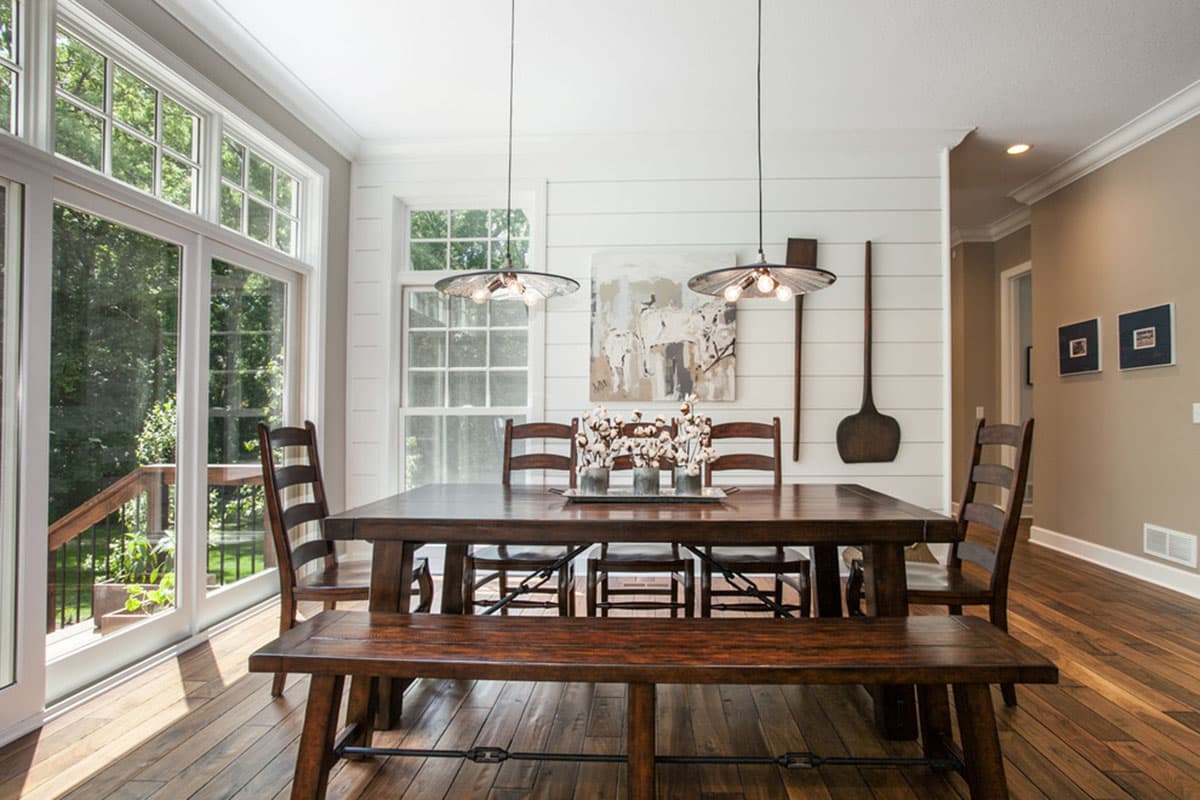

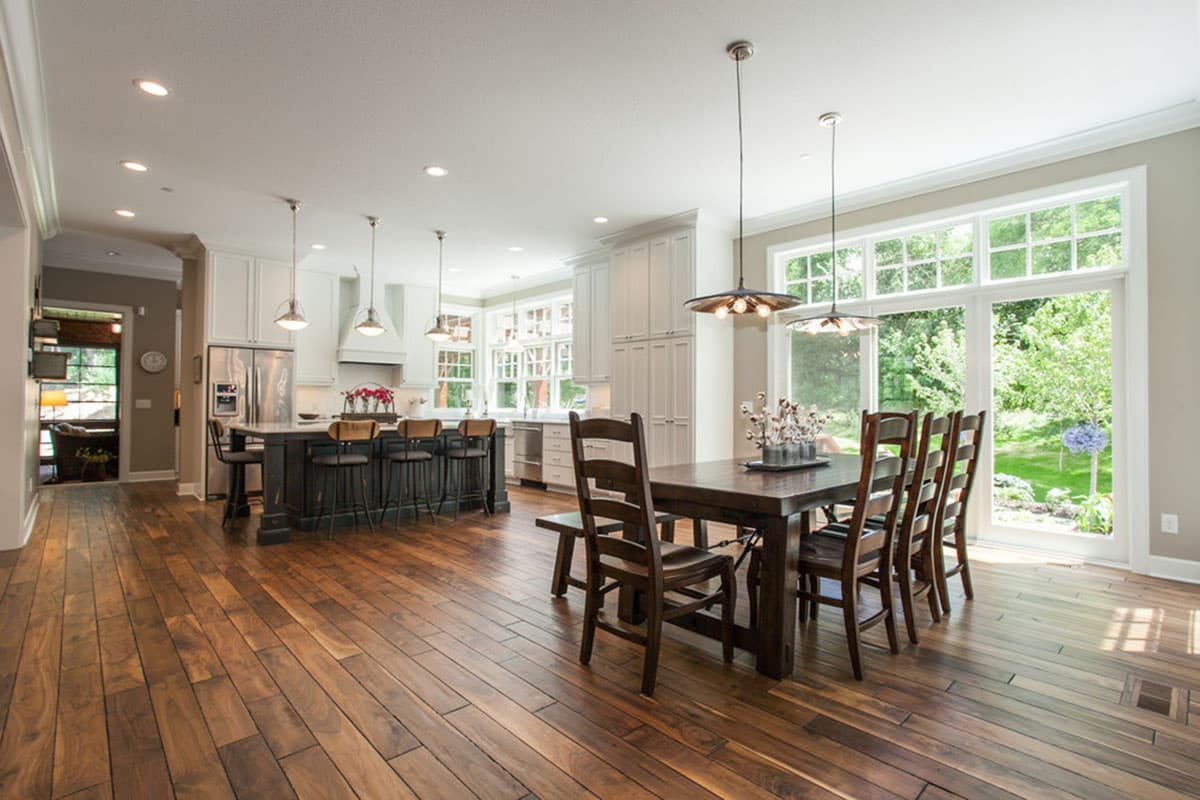

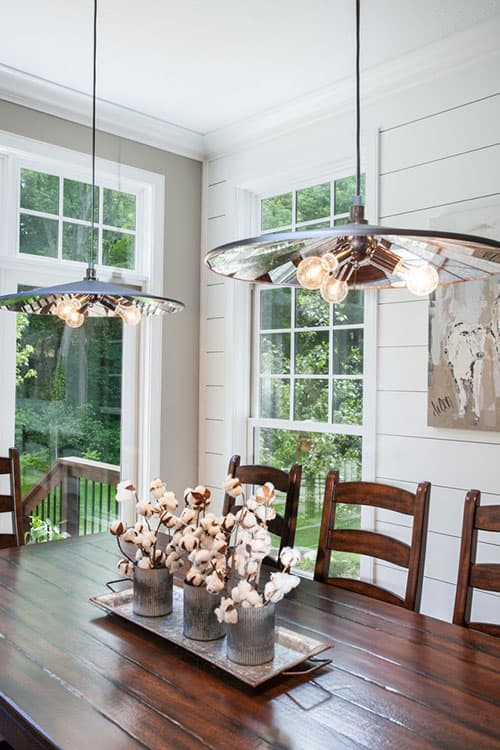

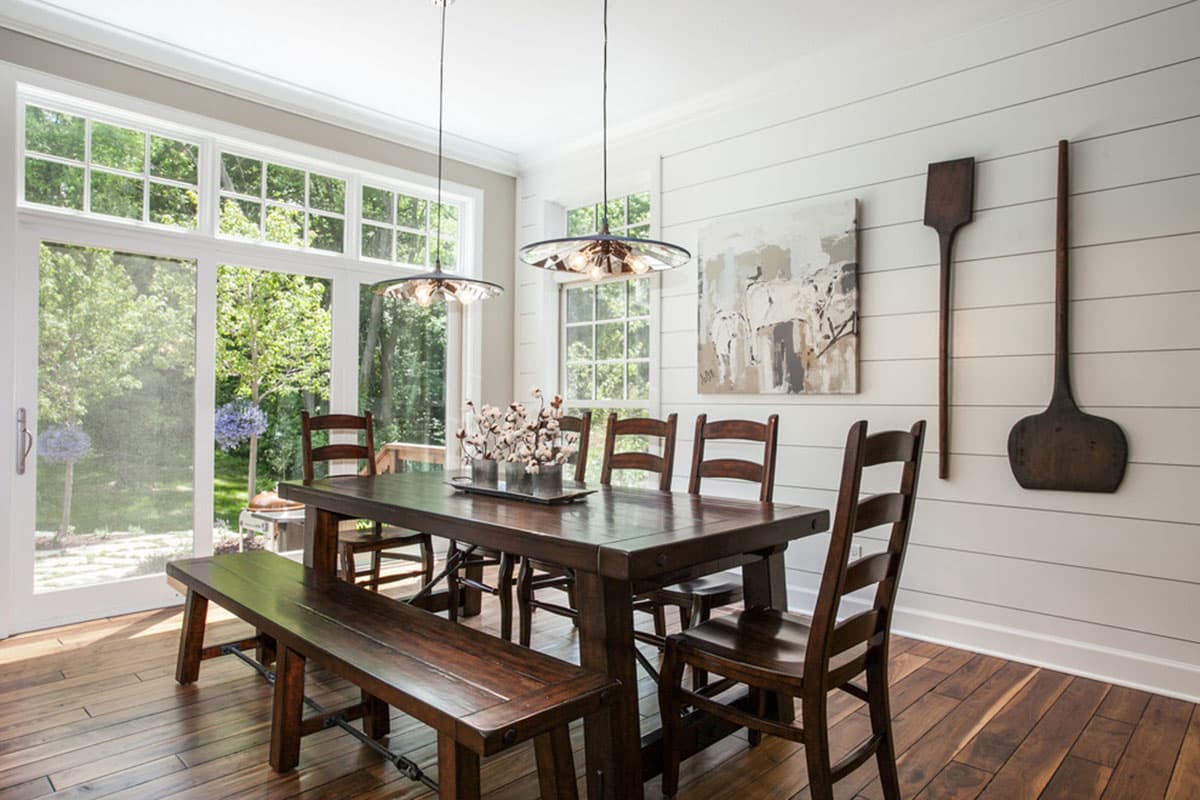

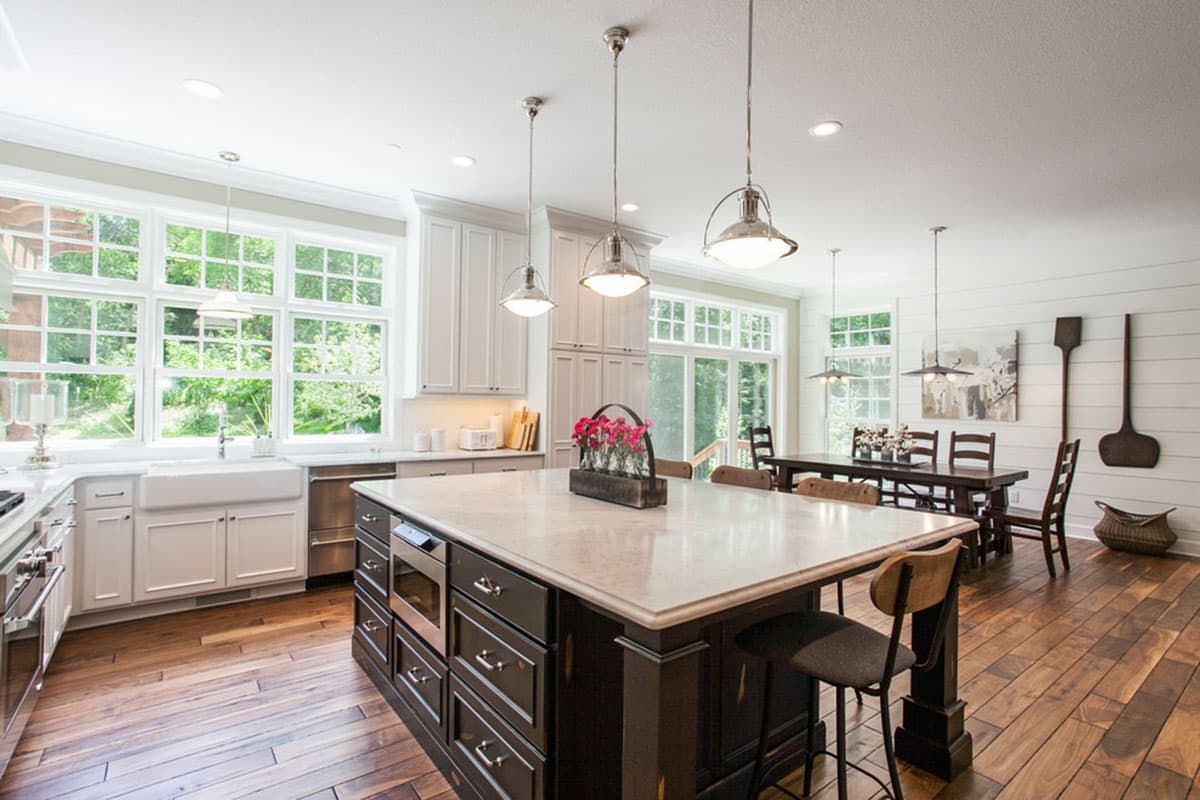

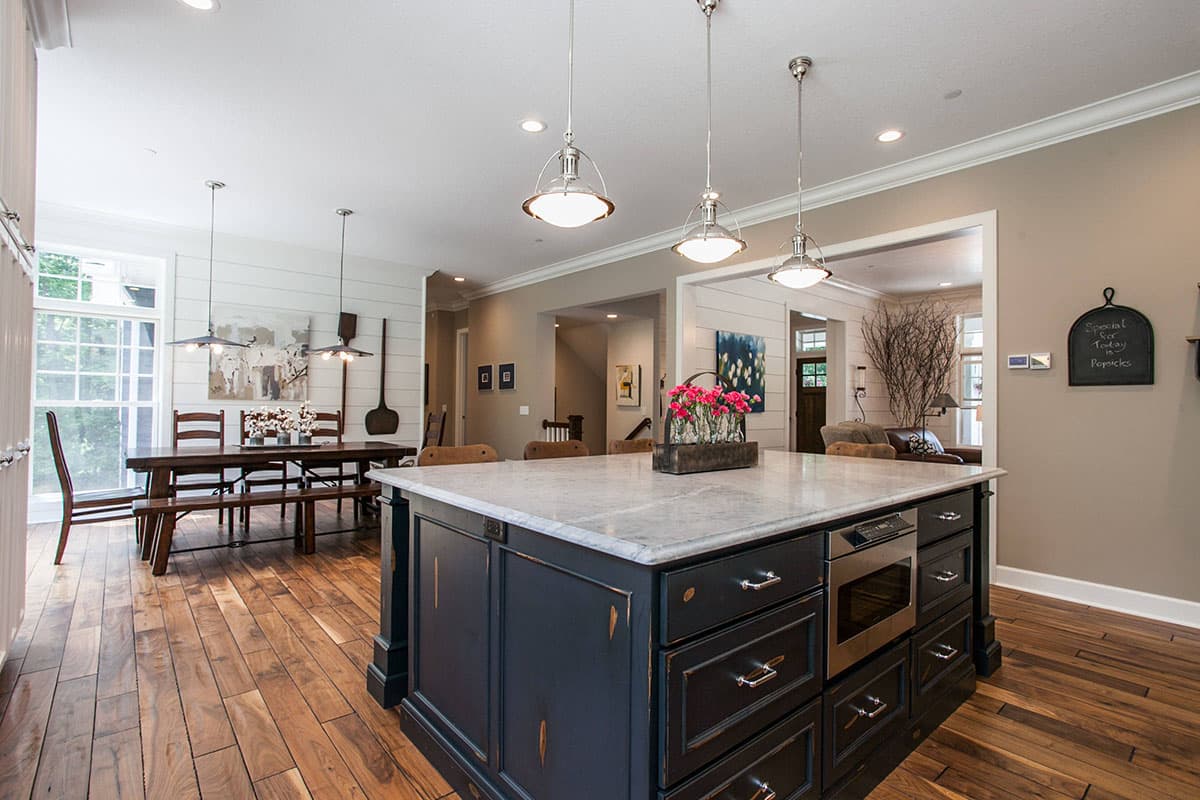

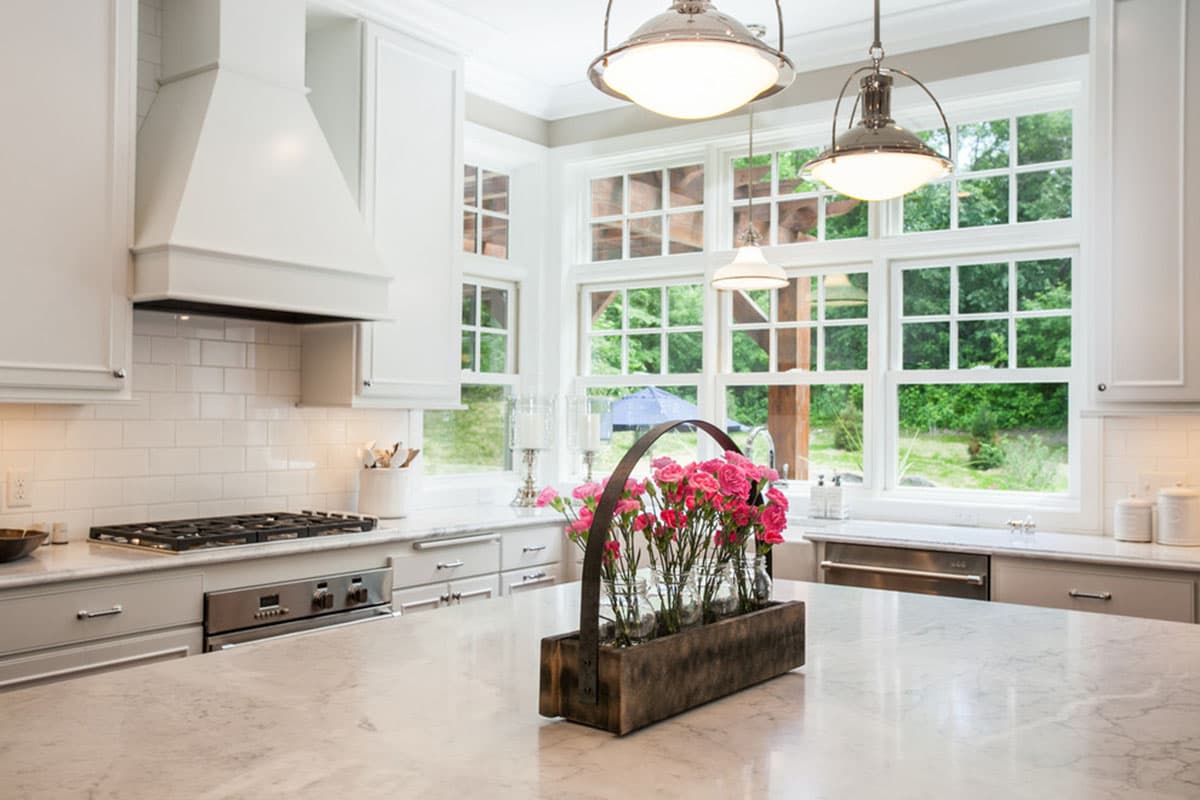

  • There's a huge kitchen island with seating for five, where you can see into the great room and dining room.

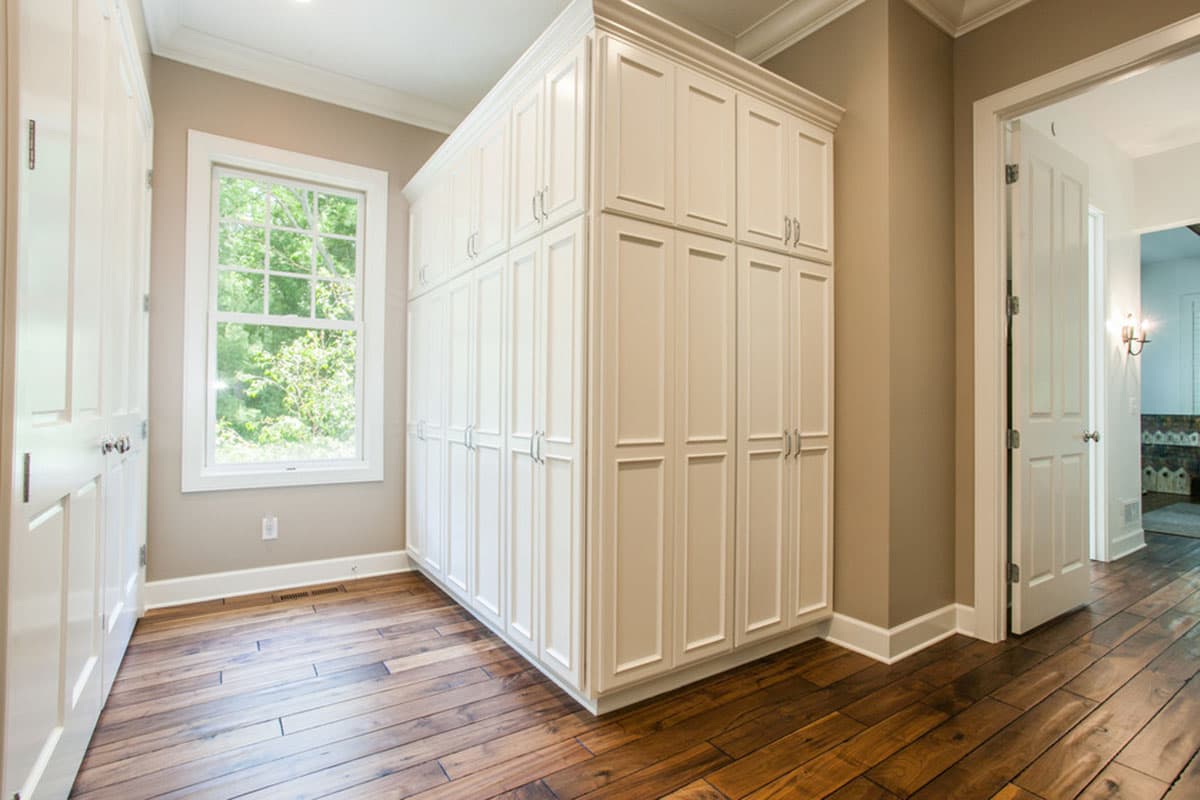

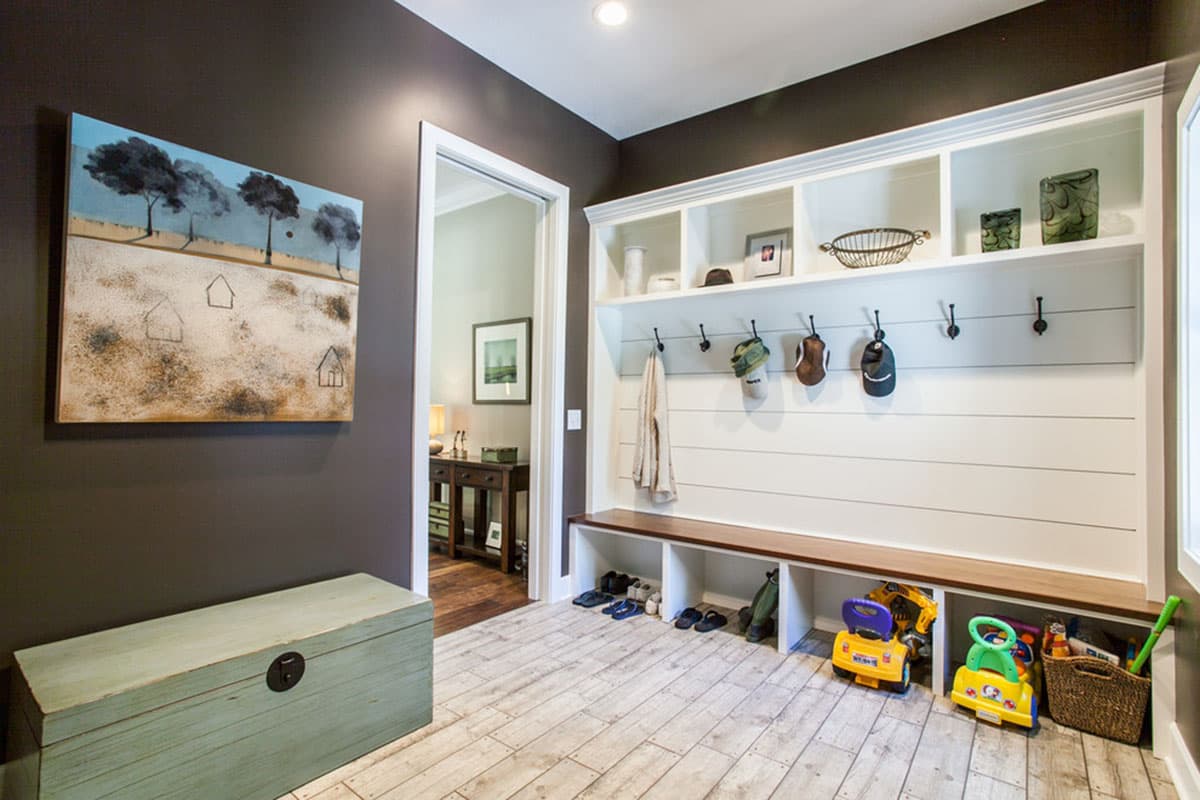

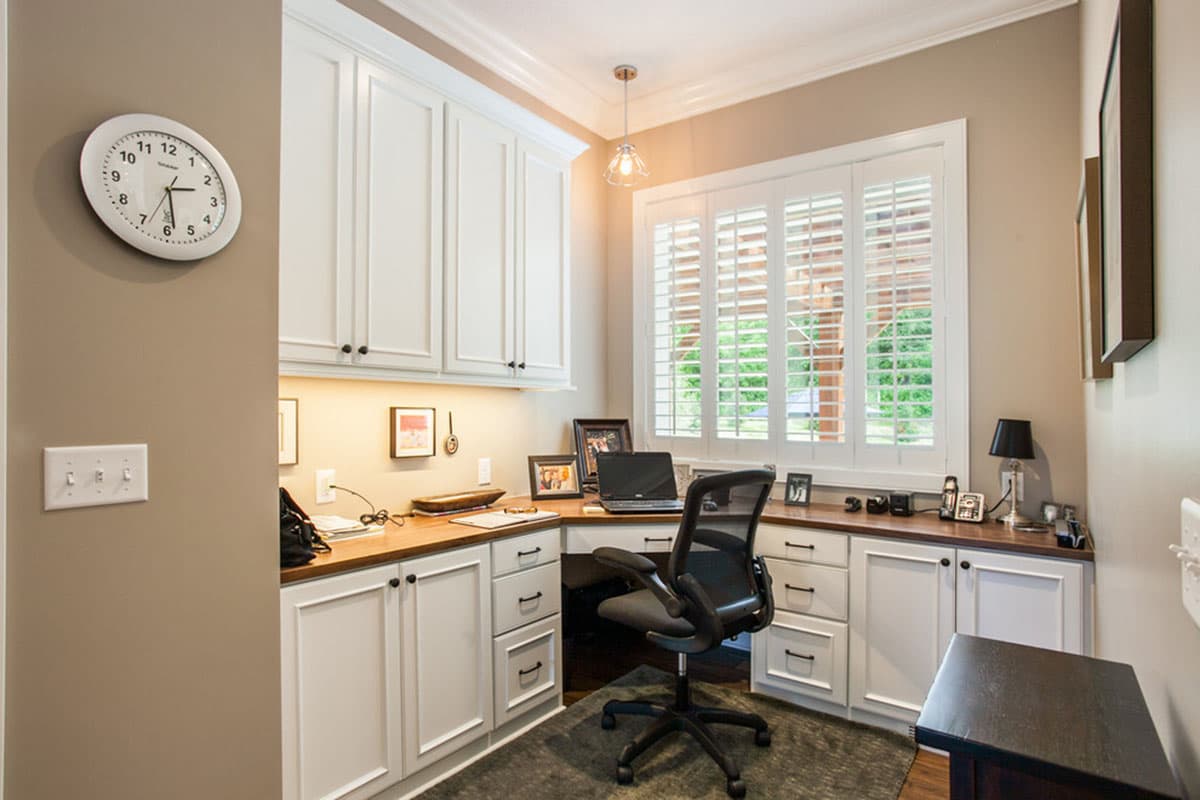

  • A large mud room with a giant walk-in coat closet is perfect for large families and there's a drop area in back with a built-in desk.

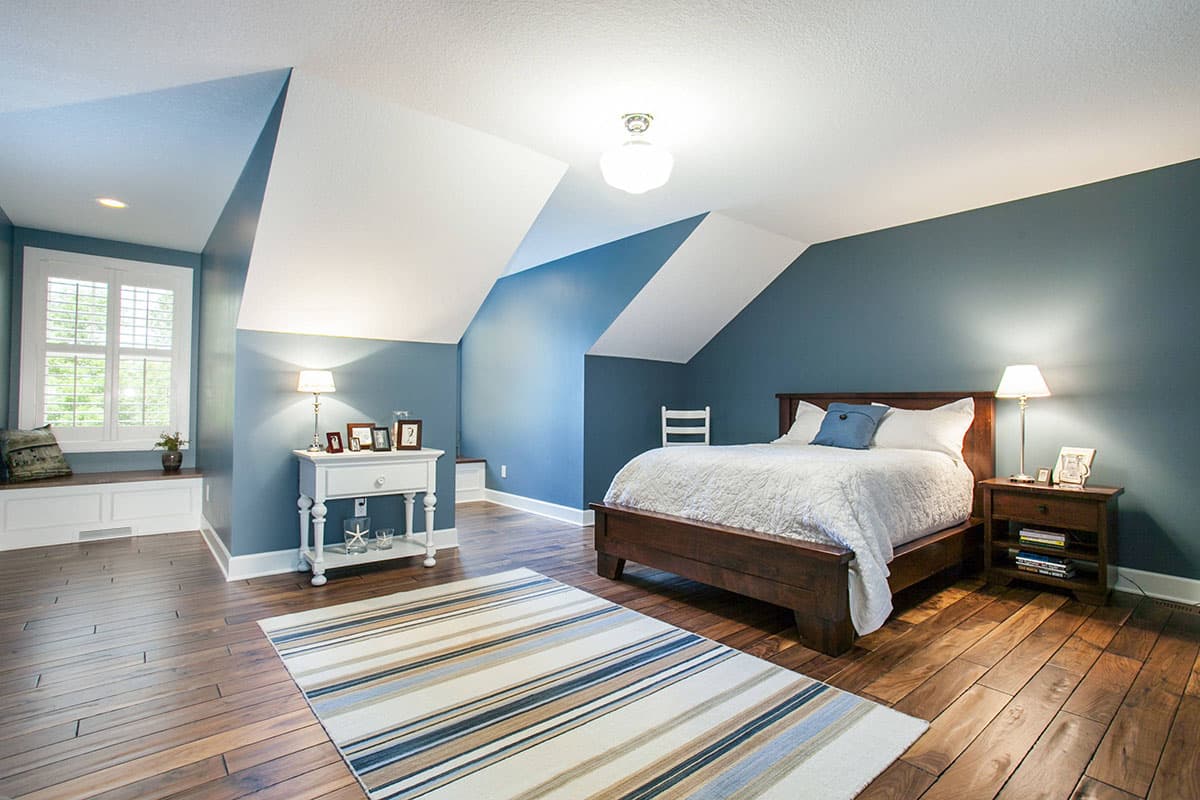

  • Beams top the master bedroom ceiling on the far right side of the home.

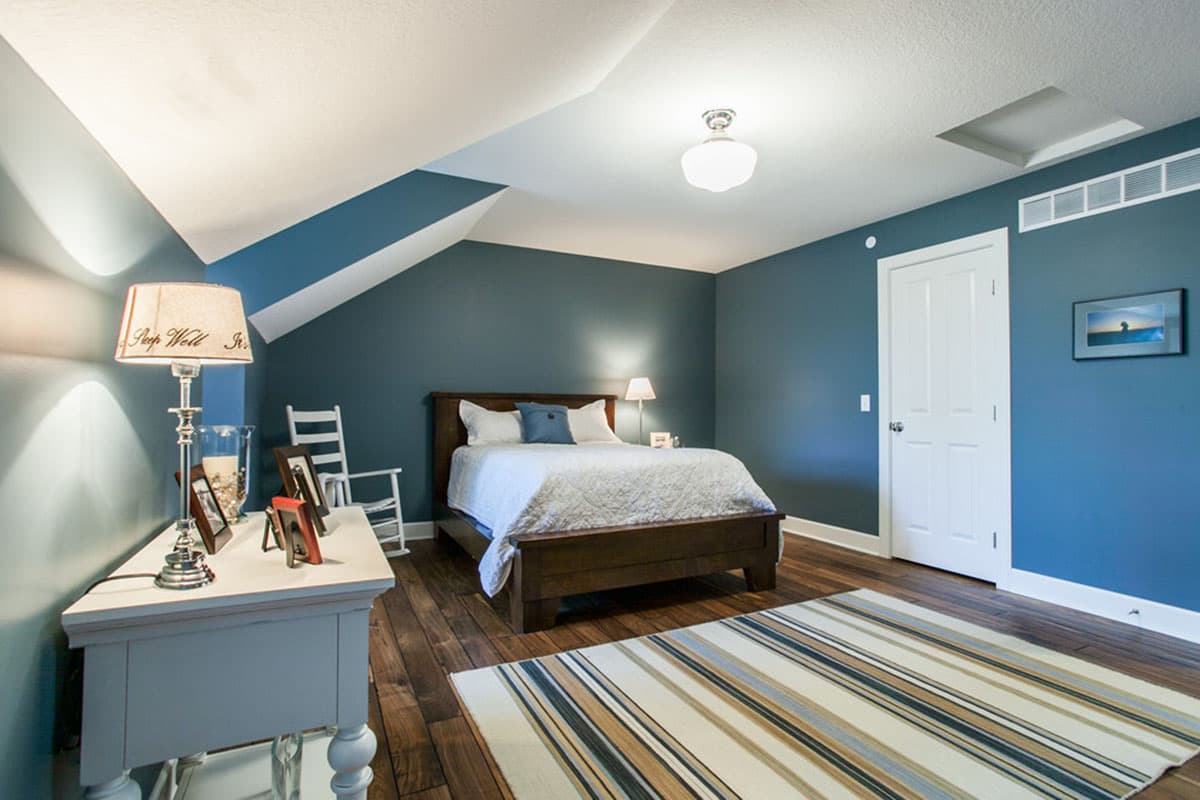

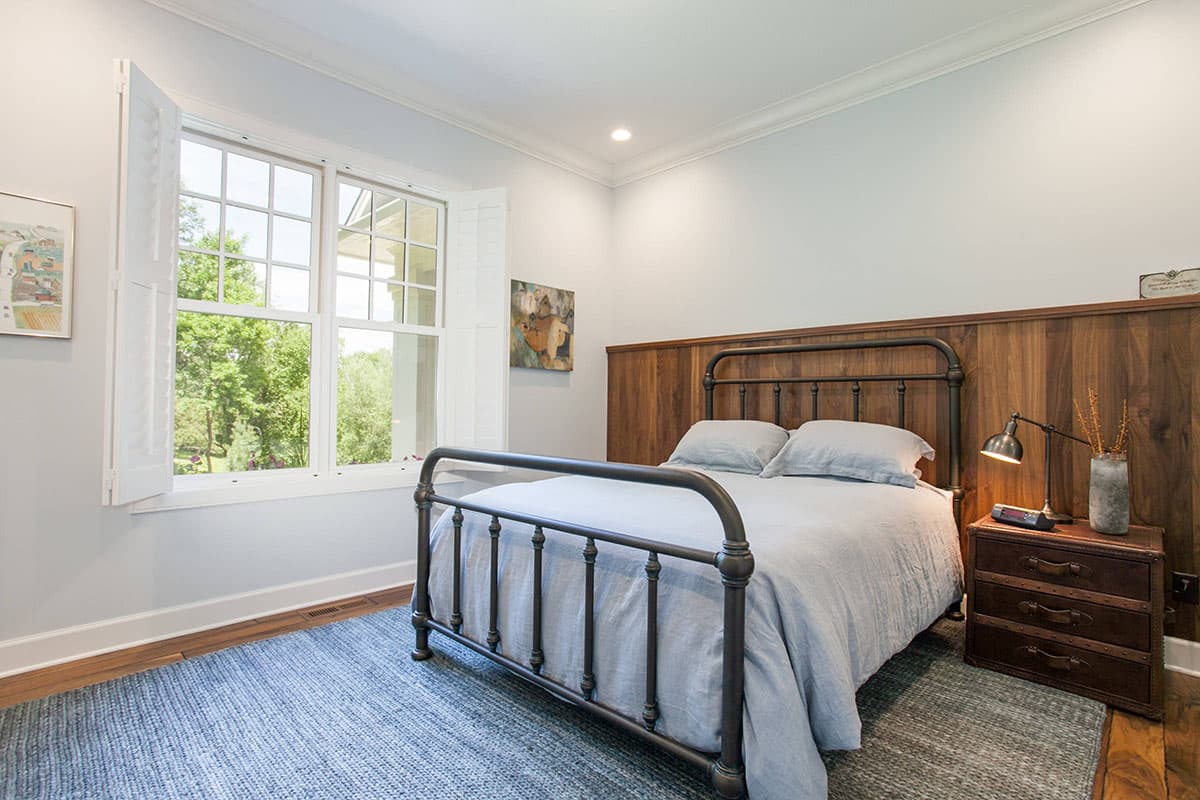

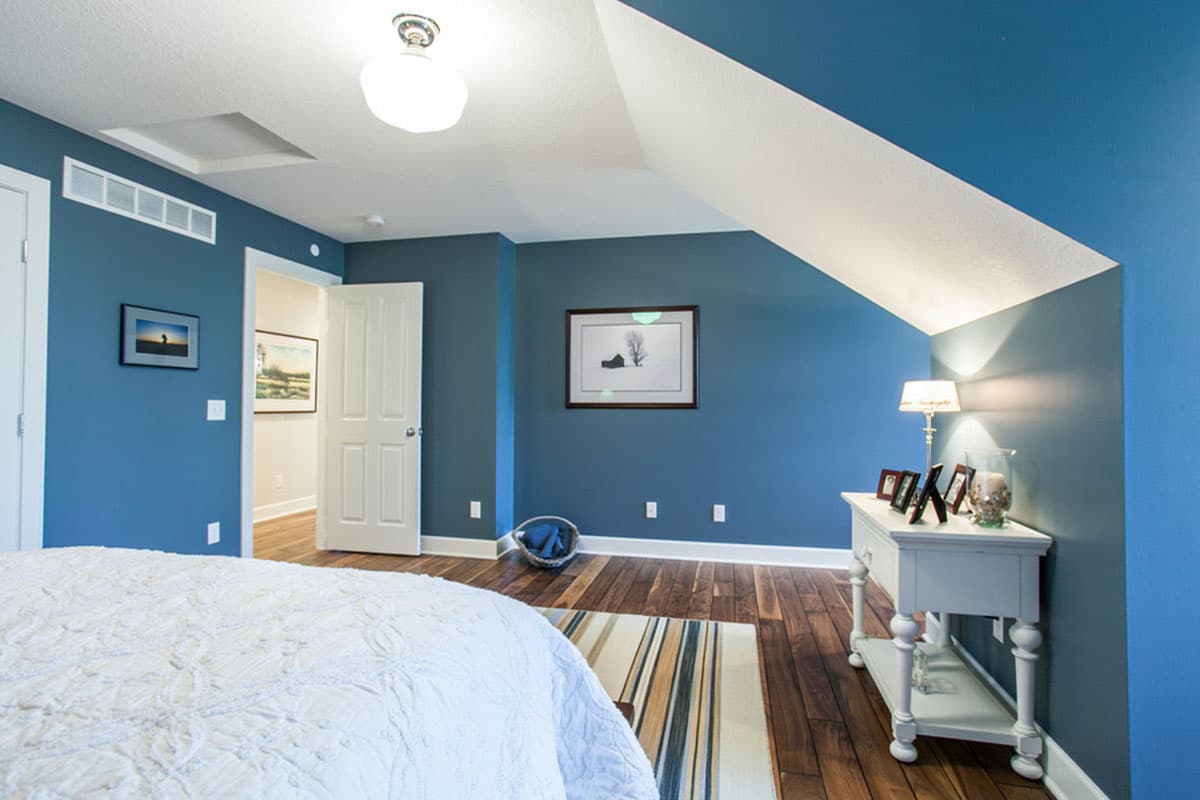

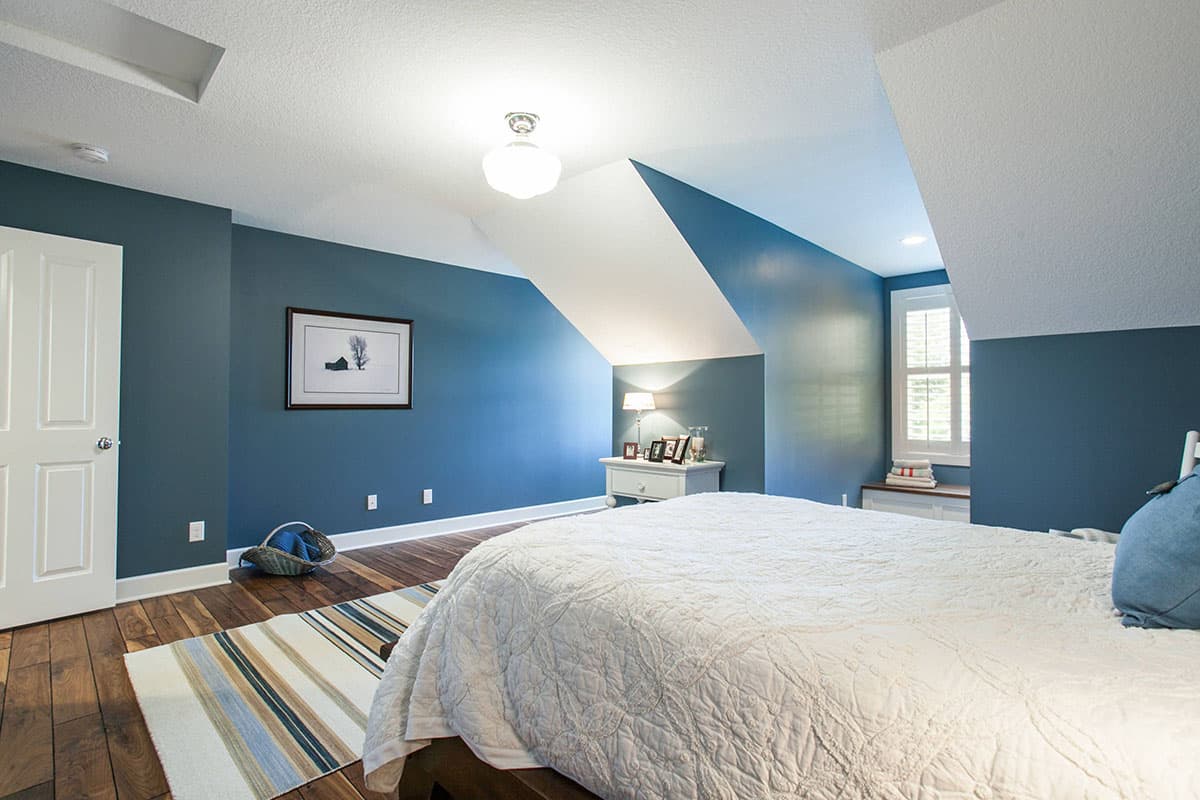

  • A second guest room lies on the main floor while the third bedroom is upstairs with its charming dormer windows with window seats.

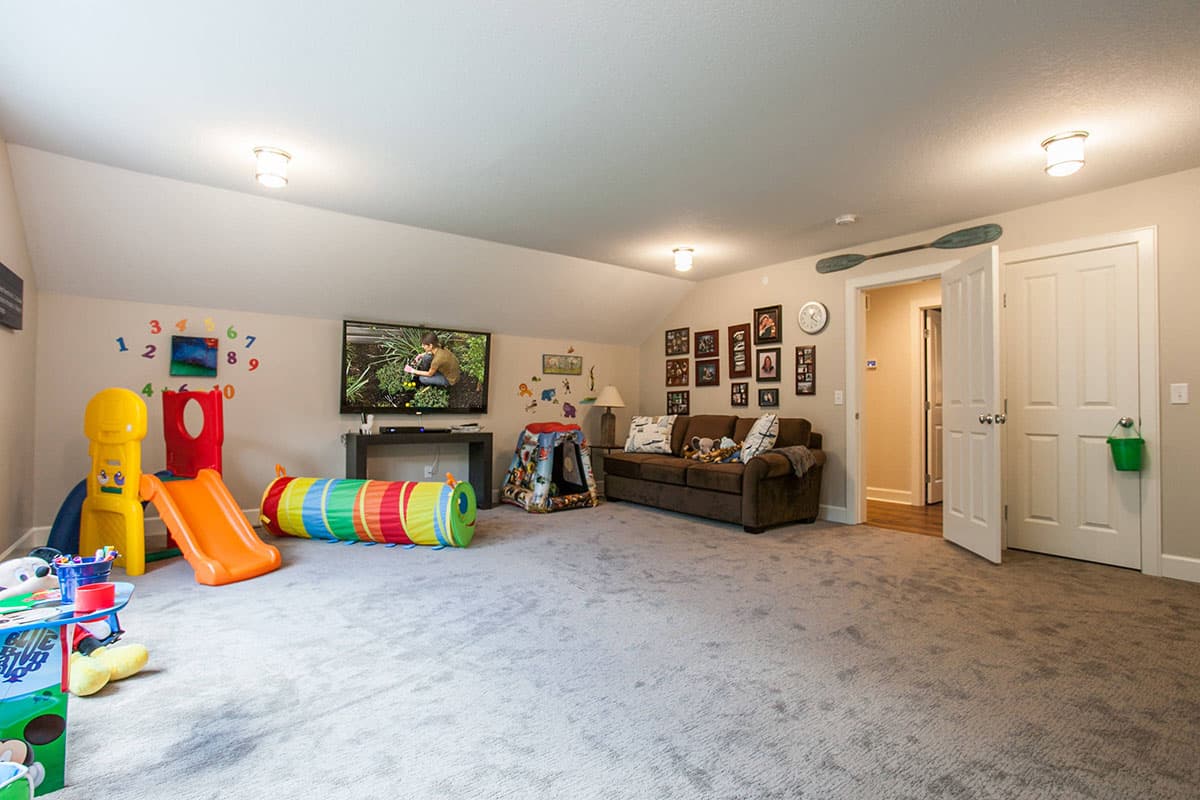

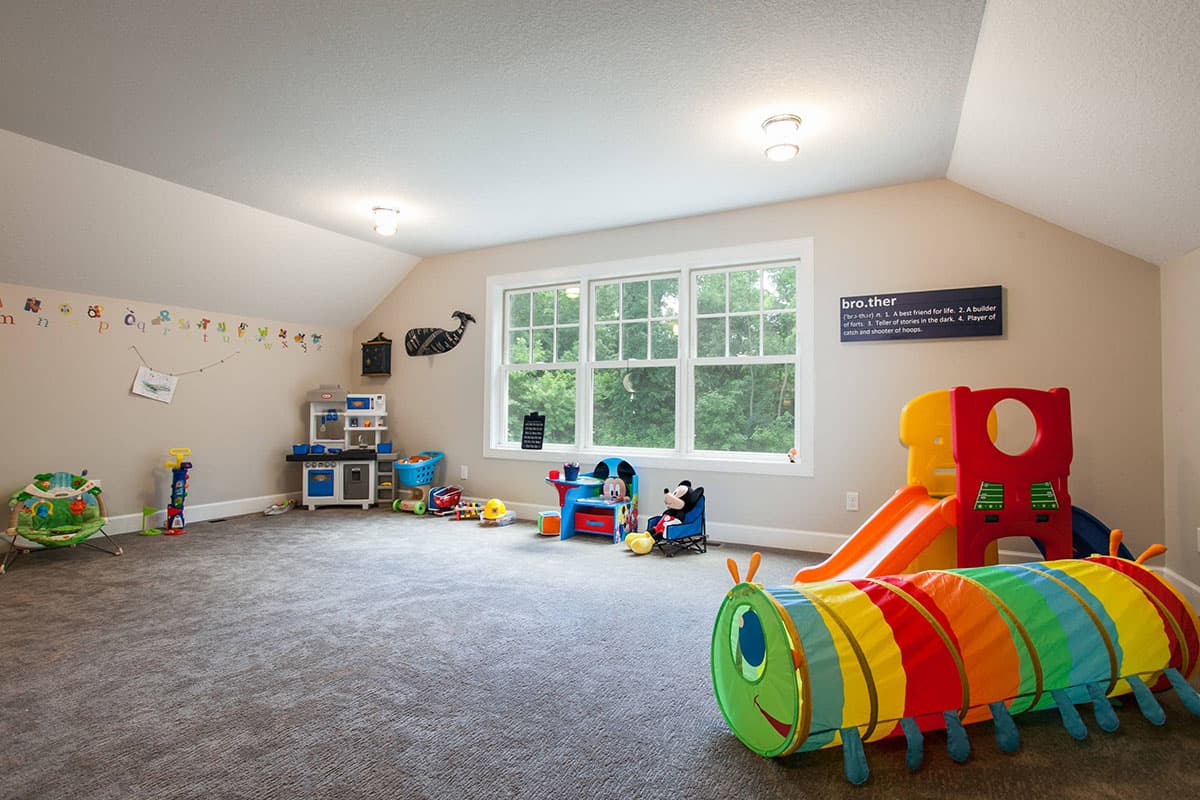

  • Bonus space can be an optional fourth bedroom or a media room.

Each plan includes the following:

Foundation Plan: Complete with dimensions, referenced details, General Notes and Schedules.
Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

Some plans come with an electrical plan.  Please contact us to check for availability.

Floor Plan

Plan details



3 Bedroom Craftsman with Bonus Room

  • 3,507

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,320
  • 8 Sets $1,430
  • PDF - single-use $1,650
  • CAD $1,870
  • View all purchase option online

About This Plan

  • A 10' deep front porch makes a great spot for sitting and relaxing in this Shingle style house plan.
  • Or choose to spend time in the screened porch in back that comes with an outdoor fireplace.
  • Built-in shelves line the foyer hall so you can display your collectibles.
  • There's a huge kitchen island with seating for five, where you can see into the great room and dining room.
  • A large mud room with a giant walk-in coat closet is perfect for large families and there's a drop area in back with a built-in desk.
  • Beams top the master bedroom ceiling on the far right side of the home.
  • A second guest room lies on the main floor while the third bedroom is upstairs with its charming dormer windows with window seats.
  • Bonus space can be an optional fourth bedroom or a media room.

Floor Plans

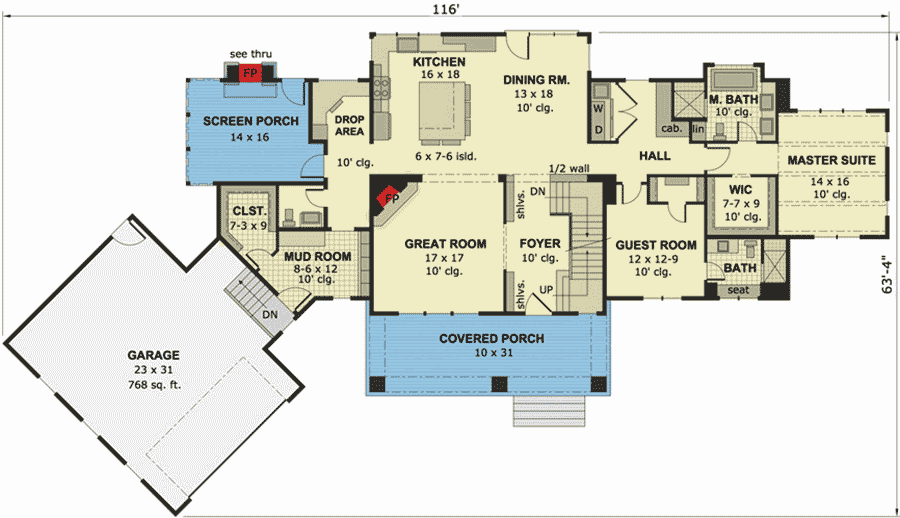

  • Main Level

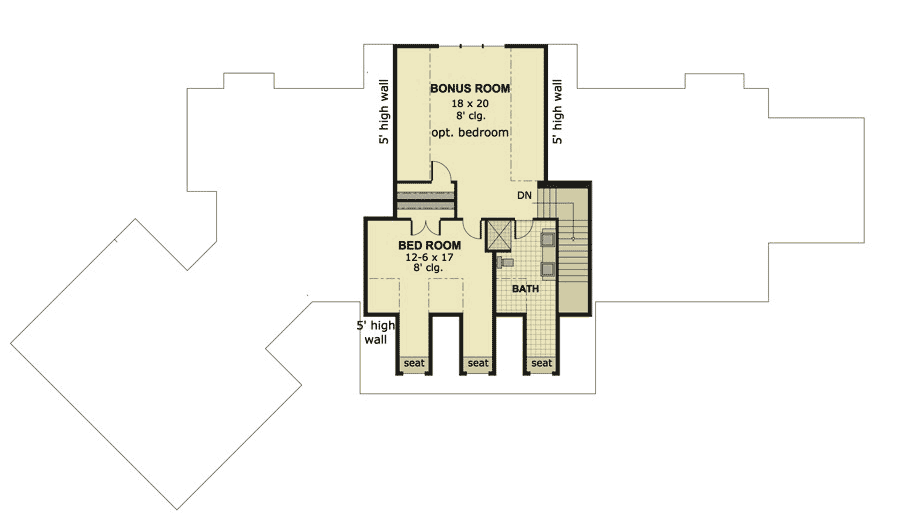

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,507 sq. ft.
  • 1st Floor: 2,445 sq. ft.
  • 2nd Floor: 1,062 sq. ft.
  • Screened Porch: 224 sq. ft.
  • Porch, Front: 310 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 116' 0"
  • Depth: 63' 4"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 768 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Framing Type: Truss
