3-Bedroom Modern Barndominium-Style House Plan under 2000 Square Feet

Plan 490095NAH

  • 1,888

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • This barndominium-style house plan offers a modern look with metal roofs, vertical siding, and stone-base columns to help make this house stand out.
  • This design is great for a vacation home, cabin, start house, or ADU.
  • Upon entering, you'll be welcomed by a vaulted ceiling above the great room room. Nearby is the eat-in kitchen with windows on either side that give way to include the outdoor bar seating
  • The primary bedroom is located just off the kitchen, with a bathroom nearby and walk-in closet.
  • Upstairs, you'll find the loft that overlooks the great room, leading to the 2 bunk rooms with accompanying bathrooms.

Each plan set includes:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

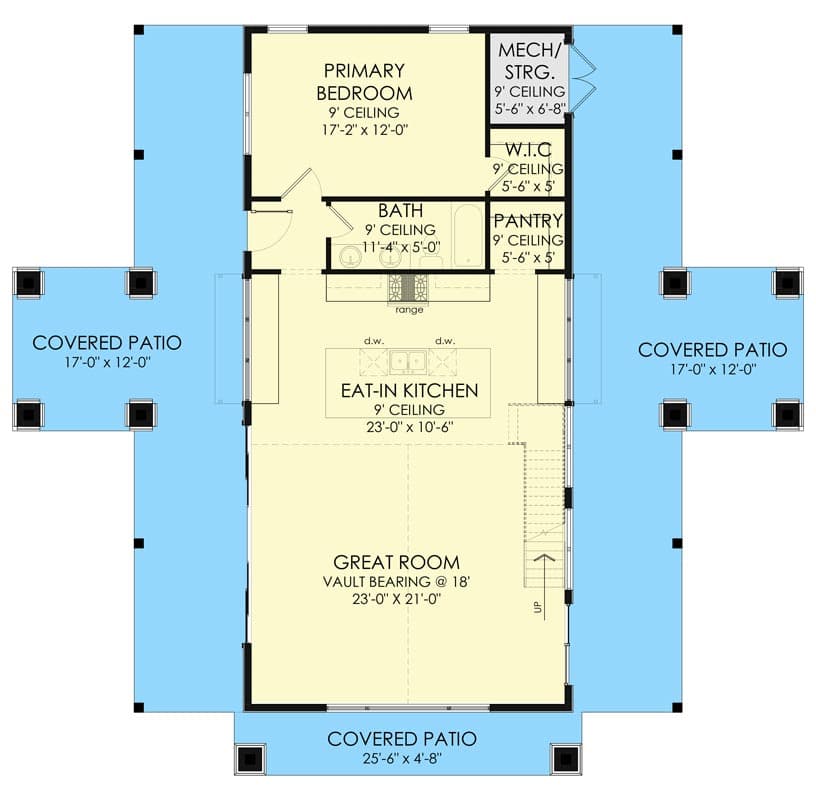

3-Bedroom Modern Barndominium-Style House Plan under 2000 Square Feet - 490095NAH floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

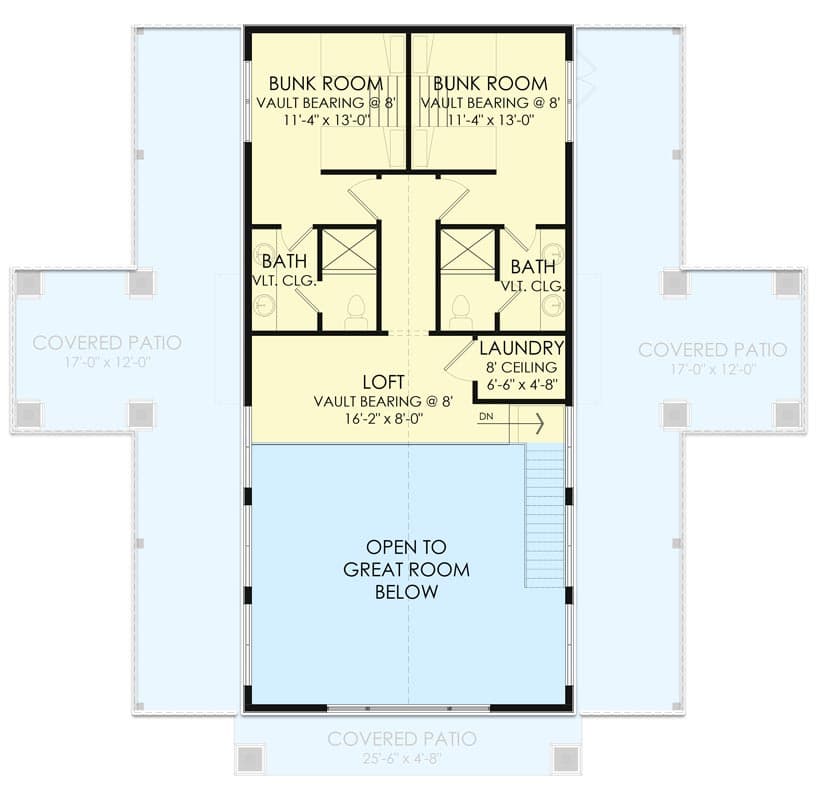

3-Bedroom Modern Barndominium-Style House Plan under 2000 Square Feet - 490095NAH floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,888 sq. ft.
  • 1st Floor: 1,125 sq. ft.
  • 2nd Floor: 763 sq. ft.
  • Covered Patio: 1,148 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 58' 0"
  • Depth: 55' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

3-Bedroom Modern Barndominium-Style House Plan under 2000 Square Feet

  • 1,888

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,200
  • PDF - Unlimited Build $1,900
  • CAD Unlimited + PDF $2,200
  • View all purchase option online
