3 Bedroom Modern Craftsman with Large Bonus Above Angled Garage

Plan 64527SC

  • 2,689

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This home plan is an an angled-garage-Craftsman version of one of this designer's most popular plans, 64506SC. Exposed rafter tails in the covered entry porch add to the curb appeal.
  • The floor plan features an up-front office that could be converted to a dining room. Otherwise, the living space features a very open floor plan.
  • The master suite and owners entries have been reworked as well as the garage has been angled to accommodate a wider variety of lots, plus it gives the home a great street presence and an outstanding bonus space.
  • Related Plan: Get alternate versions with house plans 64506SC, 64502SC and 64503SC.

This plan includes the following details:

  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.
  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

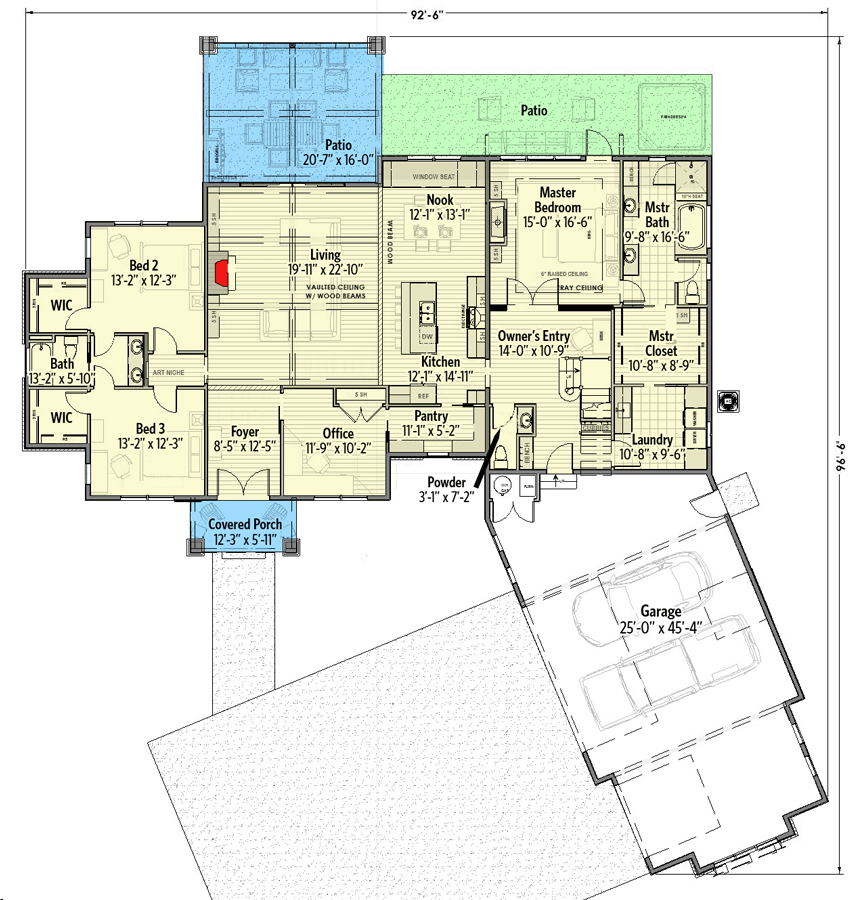

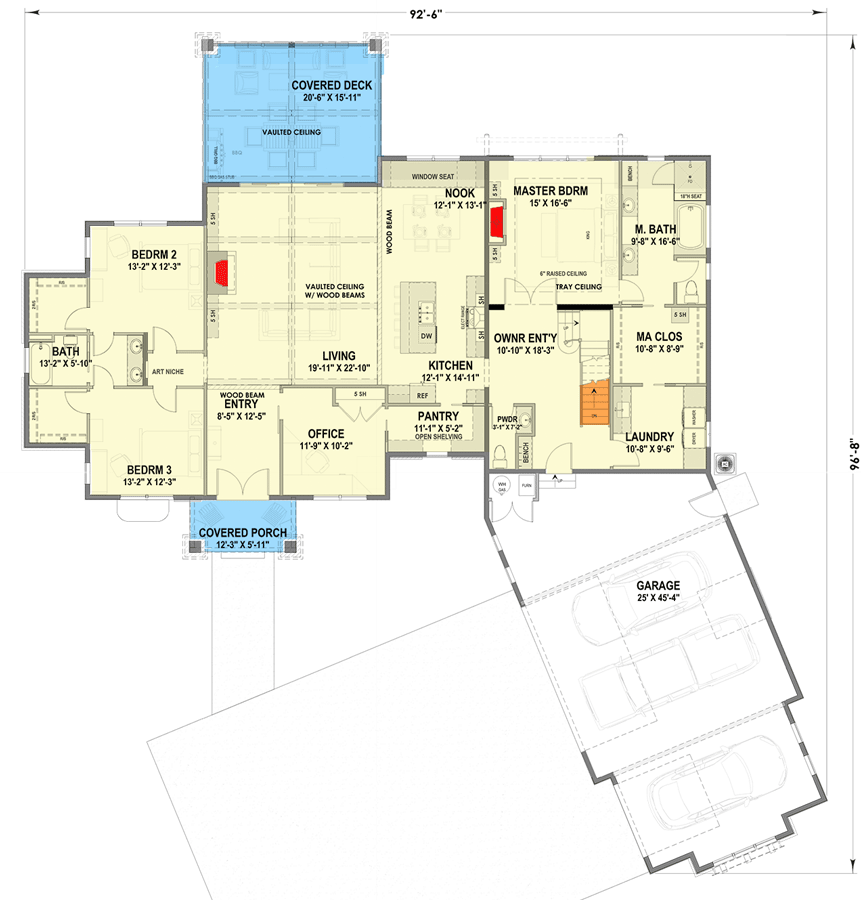

3 Bedroom Modern Craftsman with Large Bonus Above Angled Garage - 64527SC floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

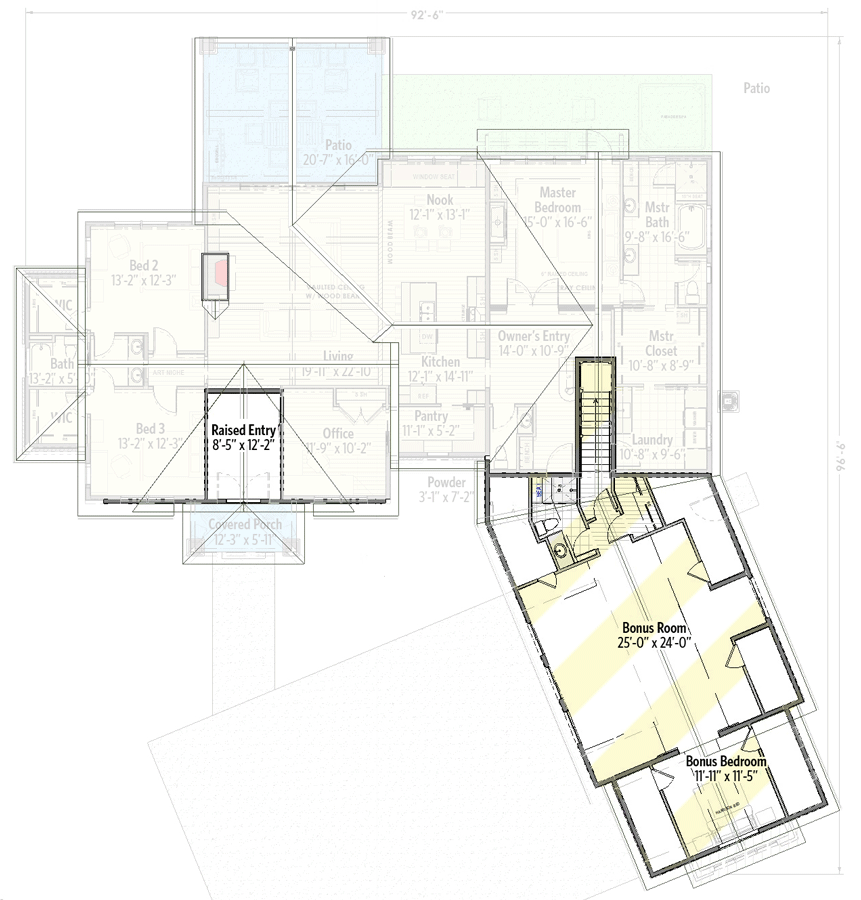

3 Bedroom Modern Craftsman with Large Bonus Above Angled Garage - 64527SC floor plan - 2nd Floor

Main Level - Basement Stair Location

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3 Bedroom Modern Craftsman with Large Bonus Above Angled Garage - 64527SC floor plan - Main Level - Basement Stair Location

Optionally Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

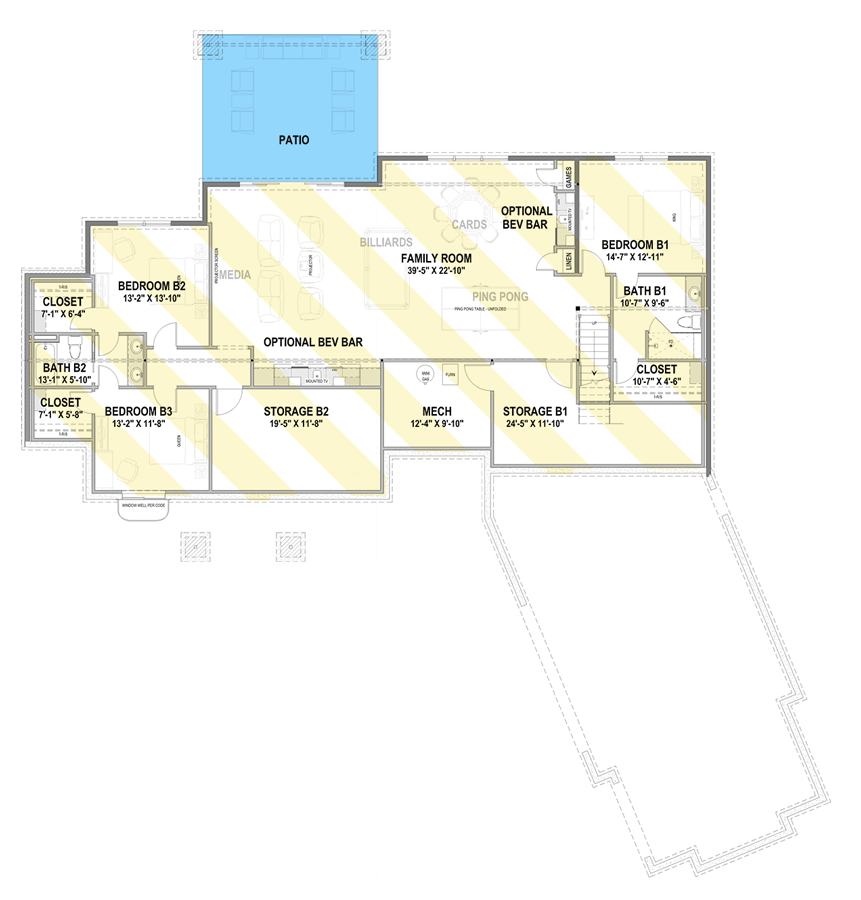

3 Bedroom Modern Craftsman with Large Bonus Above Angled Garage - 64527SC floor plan - Optionally Finished Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,689 sq. ft.
  • 1st Floor: 2,689 sq. ft.
  • Covered Patio: 326 sq. ft.
  • Porch, Rear: 361 sq. ft.
  • Porch, Front: 73 sq. ft.
  • Bonus: 836 sq. ft.
  • Basement Unfinished: 2,530 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Walkout, Basement, Daylight, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 92' 6"
  • Depth: 96' 6"
  • Max ridge height: 25' 9"

Garage

  • Type: Attached
  • Area: 1072 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 1"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

3 Bedroom Modern Craftsman with Large Bonus Above Angled Garage

  • 2,689

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,395
  • PDF - Unlimited Build $1,895
  • CAD + PDF - Single-Build $1,995
  • CAD + PDF - Unlimited Build $2,695
  • View all purchase option online

About This Plan

  • This home plan is an an angled-garage-Craftsman version of one of this designer's most popular plans, 64506SC. Exposed rafter tails in the covered entry porch add to the curb appeal.
  • The floor plan features an up-front office that could be converted to a dining room. Otherwise, the living space features a very open floor plan.
  • The master suite and owners entries have been reworked as well as the garage has been angled to accommodate a wider variety of lots, plus it gives the home a great street presence and an outstanding bonus space.
  • Related Plan: Get alternate versions with house plans 64506SC, 64502SC and 64503SC.

Floor Plans

  • Main Level

  • 2nd Floor

  • Main Level - Basement Stair Location

  • Optionally Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,689 sq. ft.
  • 1st Floor: 2,689 sq. ft.
  • Covered Patio: 326 sq. ft.
  • Porch, Rear: 361 sq. ft.
  • Porch, Front: 73 sq. ft.
  • Bonus: 836 sq. ft.
  • Basement Unfinished: 2,530 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Basement, Daylight, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 92' 6"
  • Depth: 96' 6"
  • Max ridge height: 25' 9"

Garage

  • Type: Attached
  • Area: 1072 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 1"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick And Truss
Plan 64527SC
View this and more for this plan by visiting www.architechtecturaldesigns.com/64527SC
|
