Plan 25916GE

3-Bedroom Modern Ranch Plan with Side Garage and Open Layout

Heated S.F.
1,686
Beds
3
Baths
2
Stories
1
Cars
1

Floor Plan

Plan 25916GE

Main Level
Main Level

Plan 25916GE

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 25916GE: 3-Bedroom Modern Ranch Plan with Side Garage and Open Layout - Floor Plan - Main Level - Ranch, Traditional

Plan Details

  • Experience 1,686 sq. ft. of comfortable living with this charming ranch-style house plan with 3 bedrooms, 2 bathrooms, and an attached 1-car side-entry garage.
  • As you enter, be greeted by an inviting open-concept layout that seamlessly connects the family room, dining area, and kitchen, highlighted by a cozy gas log fireplace.
  • The well-designed kitchen features a work island, an elevated bar, and a convenient butler walk-in pantry, flowing beautifully into the dining area for easy entertaining.
  • The master suite, located on the main floor, offers tranquility with its garden tub and walk-in closet, while the secondary bedrooms are thoughtfully split for privacy.
  • Enjoy outdoor relaxation on the covered front porch or the rear deck, perfect for morning coffee or evening gatherings.
  • Special features include a main-level laundry room and optional dual wall framing for added comfort and efficiency.

What's Included

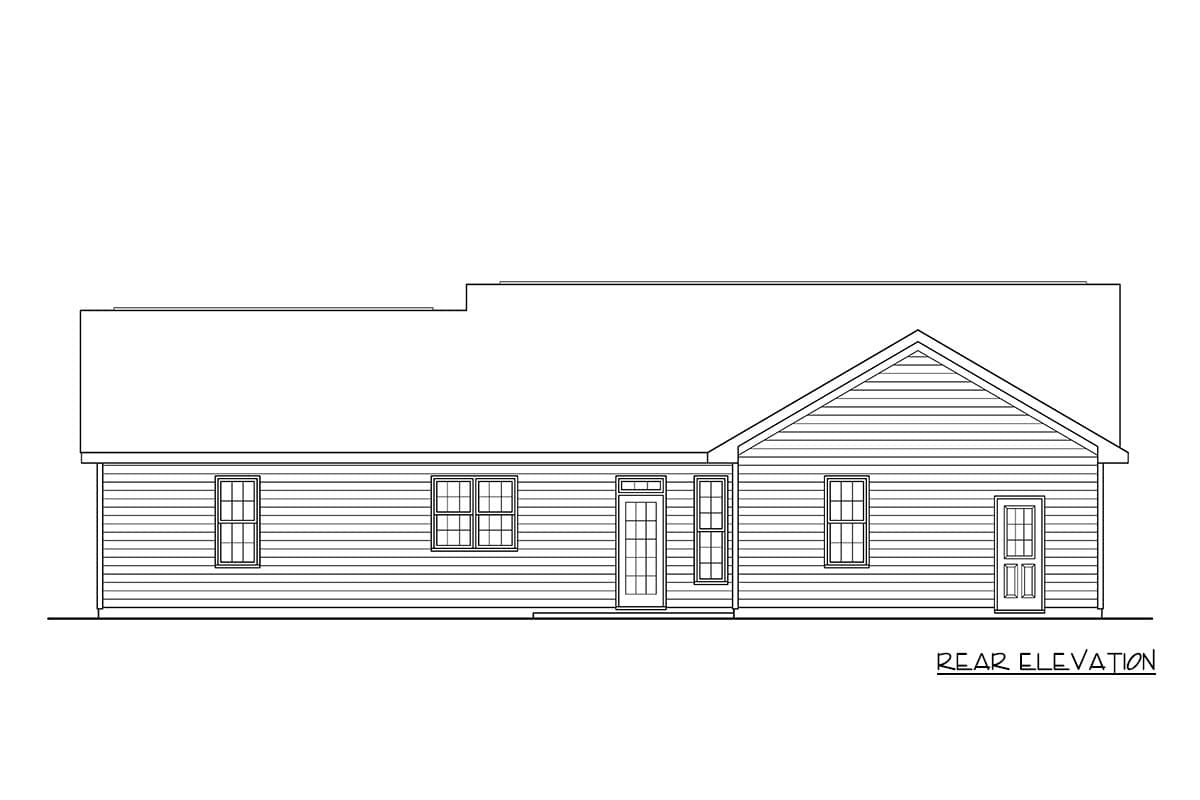

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.

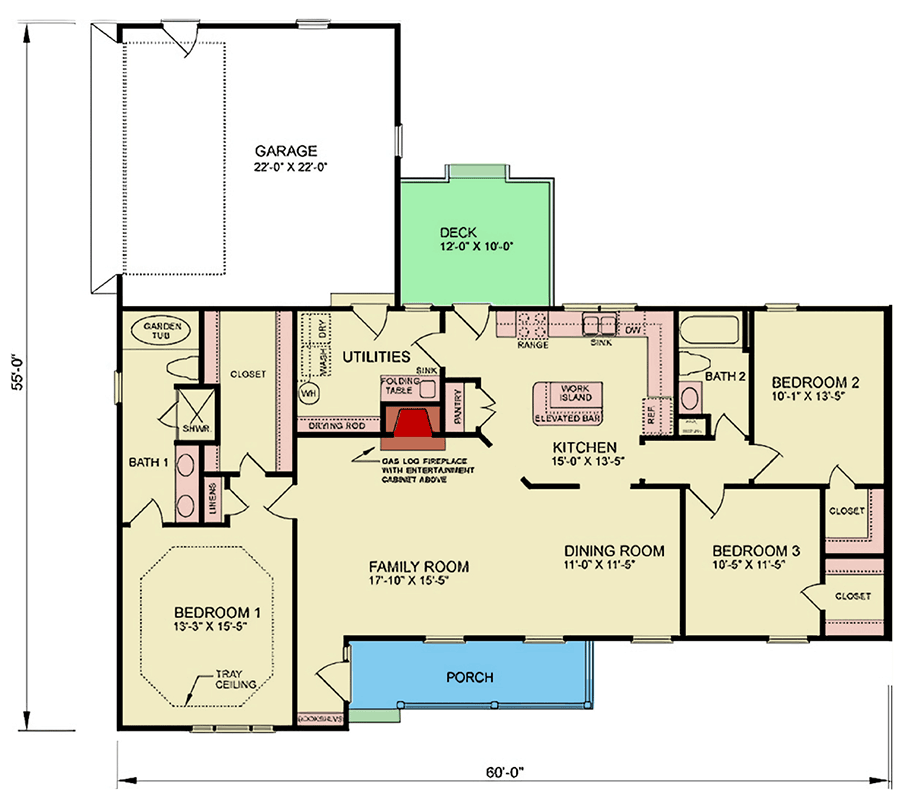

  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,686 sq. ft.

1st Floor

1,686 sq. ft.

Porch, Front

101 sq. ft.

Porch, Rear

120 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

60' 0"

Depth

55' 0"

Max Ridge Height

19' 7"

Garage

Type

Attached

Area

484 sq. ft.

Count

1 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Closed Floor Plans

Square Footage Breakdown

Total Heated Area

1,686 sq. ft.

1st Floor

1,686 sq. ft.

Porch, Front

101 sq. ft.

Porch, Rear

120 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

60' 0"

Depth

55' 0"

Max Ridge Height

19' 7"

Garage

Type

Attached

Area

484 sq. ft.

Count

1 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Closed Floor Plans
