Plan 83605CRW
3-Bedroom Traditional Ranch Home Plan with 2-Car Garage
Heated S.F.
1,780
Beds
3
Baths
2
Stories
1
Cars
2
Plan Details
  • Everything you need is on one level in this 3-bedroom ranch plan, which features a covered front entry and garage space for three vehicles.
  • At the heart of this home, you'll find a spacious vaulted family room and an open-concept kitchen with an airy dinette and backyard access. A kitchen island and roomy pantry make meal prep and entertaining a breeze.
  • A tucked-away master suite offers privacy, a large walk-in closet, and a 5-piece bath.
  • Two additional bedrooms in the front of the home share a full bath.
  • Related Plan: Get a third car garage (located front-right and accessed from the side) with house plan 83601CRW.
What's Included
  • Cover sheet with rendering
  • Foundation plan with details
  • Detailed floor plan(s) (includes window & door sizes, plumbing fixture locations, detail notes, etc.)
  • Roof plan (birds eye view of roof with overhang/truss heel notes)
  • Four exterior views (front, rear, right, left)
  • Building section with Kitchen plan and misc. notes
  • Typical Wall Section
  • Some plans include a suggested electrical layout.
  • Please contact us for a specific plan's sheet index.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require.
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bedroom Traditional Ranch Home Plan with 2-Car Garage

  • 1,780

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

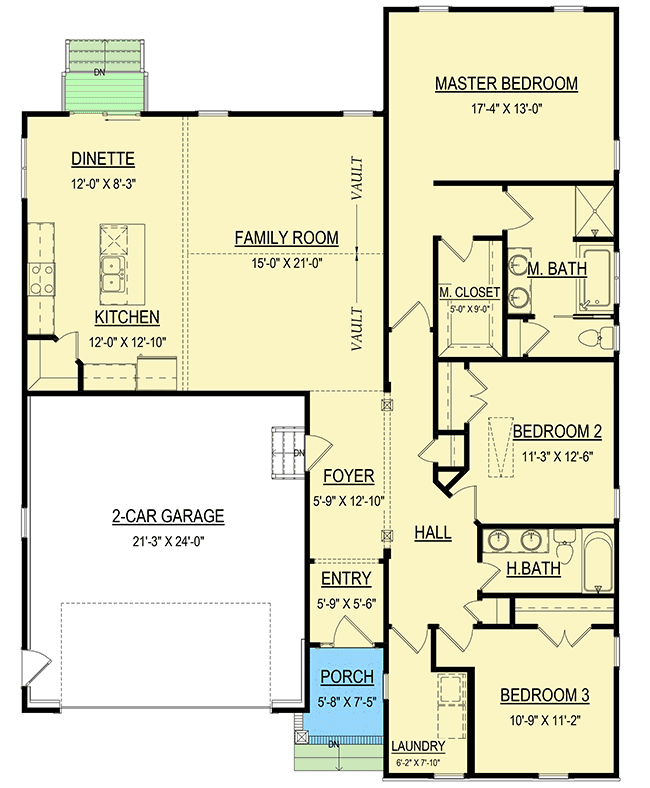

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,780 sq. ft.
  • 1st Floor: 1,780 sq. ft.

Dimensions

  • Width: 45' 8"
  • Depth: 59' 0"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 527 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
