Plan 16940WG

3-Bedroom Two-Story Fourplex with Vaulted Great Room- 1380 Sq Ft Per Unit

Heated S.F.
5,520
Units
4
Width
Depth

Floor Plan

Plan 16940WG

Main Level (Unit 1 & 4)
Main Level (Unit 1 & 4)
2nd Floor - (Unit 1 & 4)
2nd Floor - (Unit 1 & 4)
First Floor Layout
First Floor Layout
Second Floor Layout
Second Floor Layout

Plan 16940WG

M-F 9am-5pm EST |

1-203-761-8500

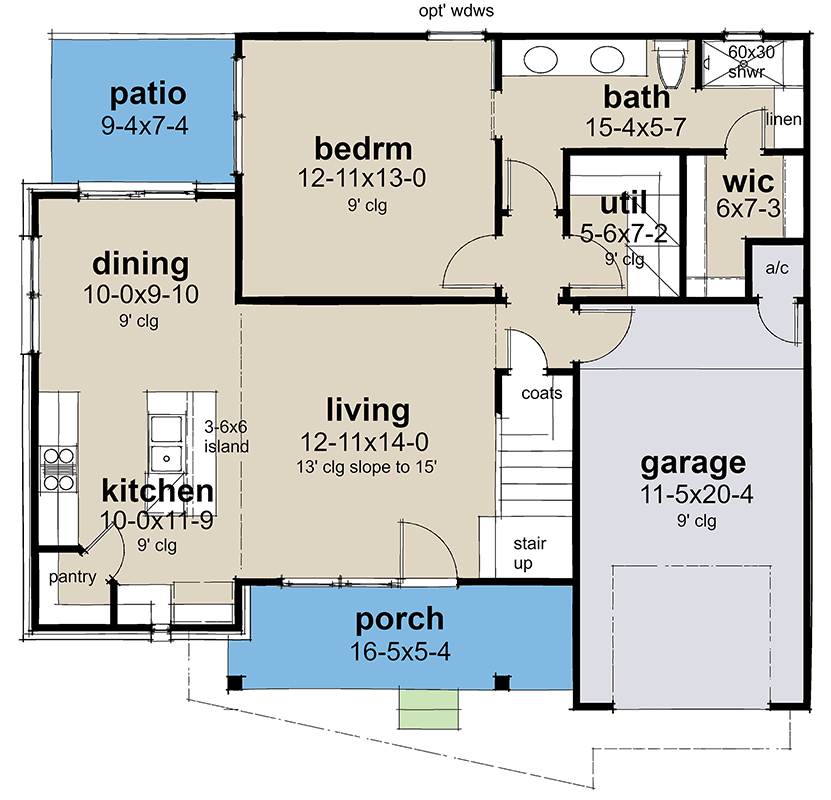

Main Level (Unit 1 & 4)

Plan 16940WG: 3-Bedroom Two-Story Fourplex with Vaulted Great Room- 1380 Sq Ft Per Unit - Floor Plan - Main Level (Unit 1 & 4) - Contemporary

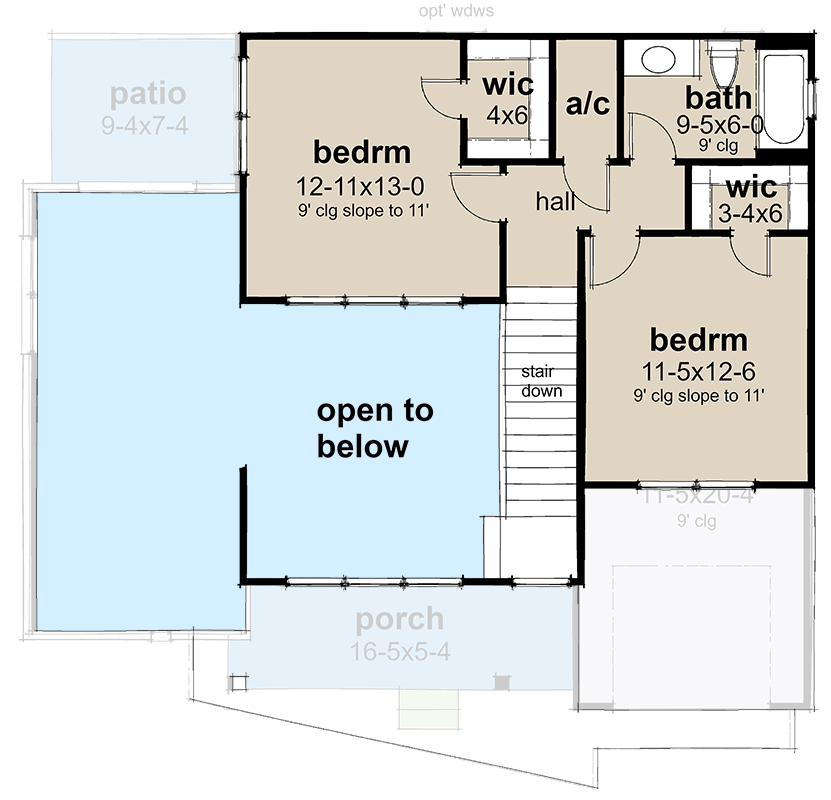

2nd Floor - (Unit 1 & 4)

Plan 16940WG: 3-Bedroom Two-Story Fourplex with Vaulted Great Room- 1380 Sq Ft Per Unit - Floor Plan - 2nd Floor - (Unit 1 & 4) - Contemporary

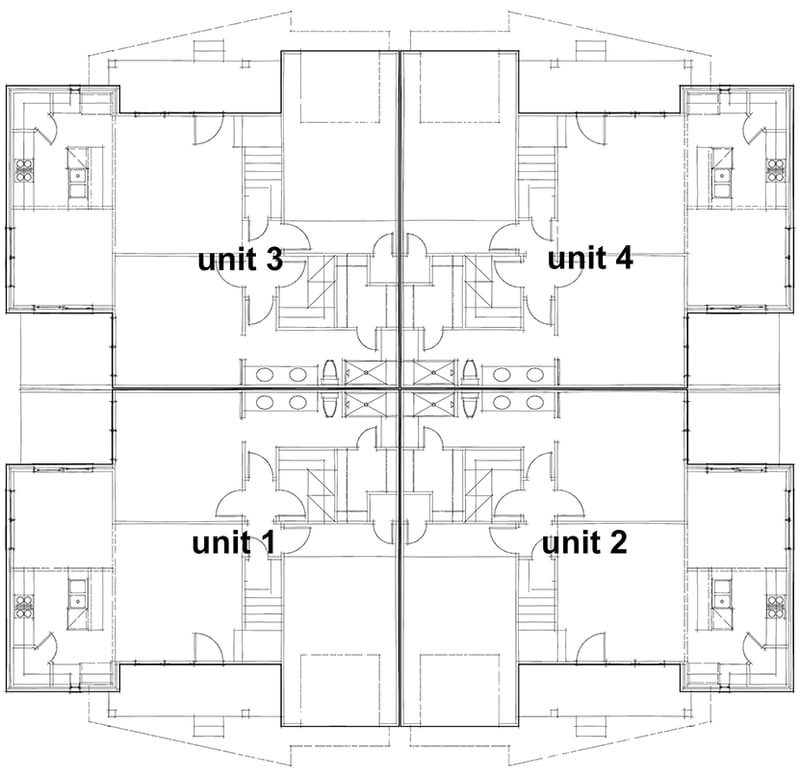

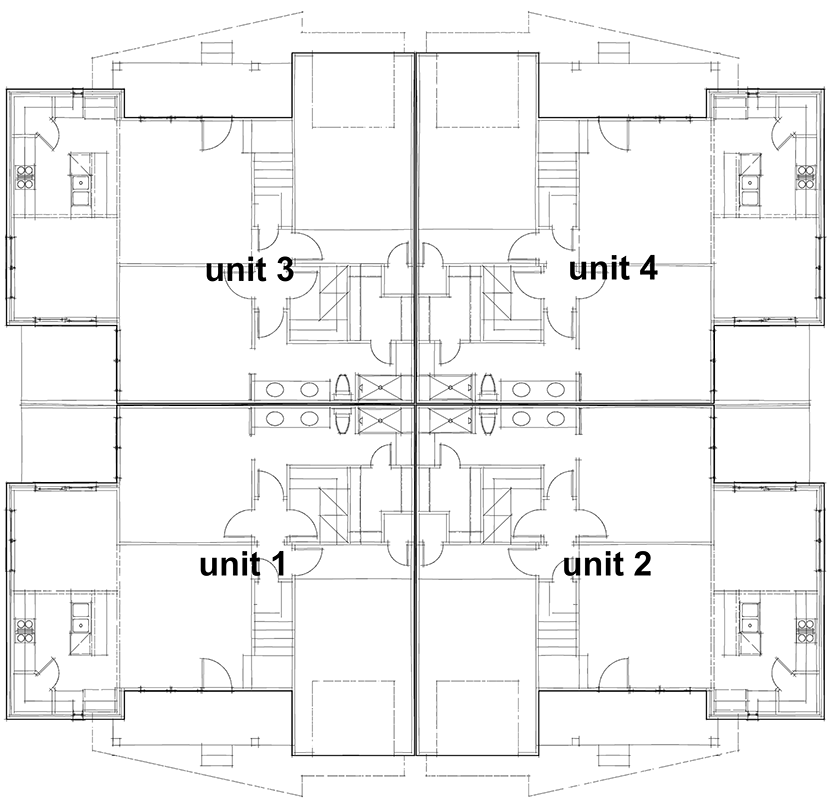

First Floor Layout

Plan 16940WG: 3-Bedroom Two-Story Fourplex with Vaulted Great Room- 1380 Sq Ft Per Unit - Floor Plan - First Floor Layout - Contemporary

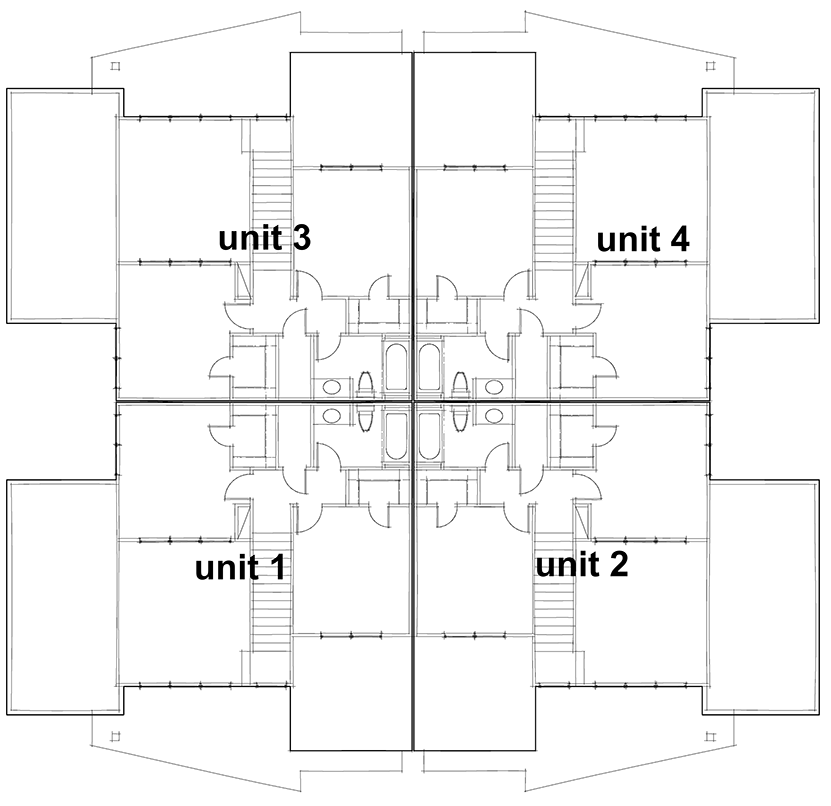

Second Floor Layout

Plan 16940WG: 3-Bedroom Two-Story Fourplex with Vaulted Great Room- 1380 Sq Ft Per Unit - Floor Plan - Second Floor Layout - Contemporary

Plan Details

  • This fourplex mutli-family house plan gives you 4 units each with 1,380 square feet of heated living space (871 sq. ft. on the first floor, 509 sq. ft. on the second floor), 3 beds, 2 baths and a 252 sq. ft. 1-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
This design is a Four-Plex which can also be built as a duplex (plan 1380-2) or even as a single-family dwelling (plan 1380) which are both soon to be available
.
Unit A,B,C,D
Heated Area
1,380Sq. Ft.
871 Sq. Ft. 1st
509 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
Cars
Attached
252 Sq. Ft.
0
Unfinished Areas
92 Sq. Ft. Porch, Front
75 Sq. Ft. Deck
252 Sq. Ft. Garage

What's Included

  • Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
  • Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases.  Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
  • Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home.  Most of this information can usually be determined from the exterior elevations.
  • Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,
  • Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
  • Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns.  Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
  • Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.  Plans do not include circuiting or wire sizing.  Plans will also include specialty items such as hose bibs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

5,520 sq. ft.

1st Floor

3,484 sq. ft.

2nd Floor

2,036 sq. ft.

Porch, Front

368 sq. ft.

Deck

300 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

8

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

80' 1"

Depth

68' 10"

Max Ridge Height

24' 8"

Garage

Type

Attached

Area

1008 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Contemporary

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Square Footage Breakdown

Total Heated Area

5,520 sq. ft.

1st Floor

3,484 sq. ft.

2nd Floor

2,036 sq. ft.

Porch, Front

368 sq. ft.

Deck

300 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

8

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

80' 1"

Depth

68' 10"

Max Ridge Height

24' 8"

Garage

Type

Attached

Area

1008 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Contemporary

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room
