3 Car Carriage House Plan with 3 Dormers

732 1 1 2 3
Pageloader

3 Car Carriage House Plan with 3 Dormers

Plan 36058DK

  • 732

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Stories

  • 3

    Cars

  • This 3 bed carriage house is great as a guest house, an income-producing property or even use as a man cave. Three matching dormers grace the front providing light and room on the upper floor.
  • A man door gives you access off the covered enry and takes you either to the garage or upstairs. A matching covered entry is located in back and there is storage for your tools as well.
  • The upper floor gives you an open area combining a full kitchen with bar seating, a family and dining area. The first dormer gives you space for a great walk-in pantry. A stackable washer and dryer is tucked away next to the coat closet.
  • The bedroom has a walk-in closet and a bath with stand-up shower.
  • The garage doors are each 9' wide and 8' tall.
  • The roof is stick framed with a 12:12 pitch.

This plan includes the following elements:

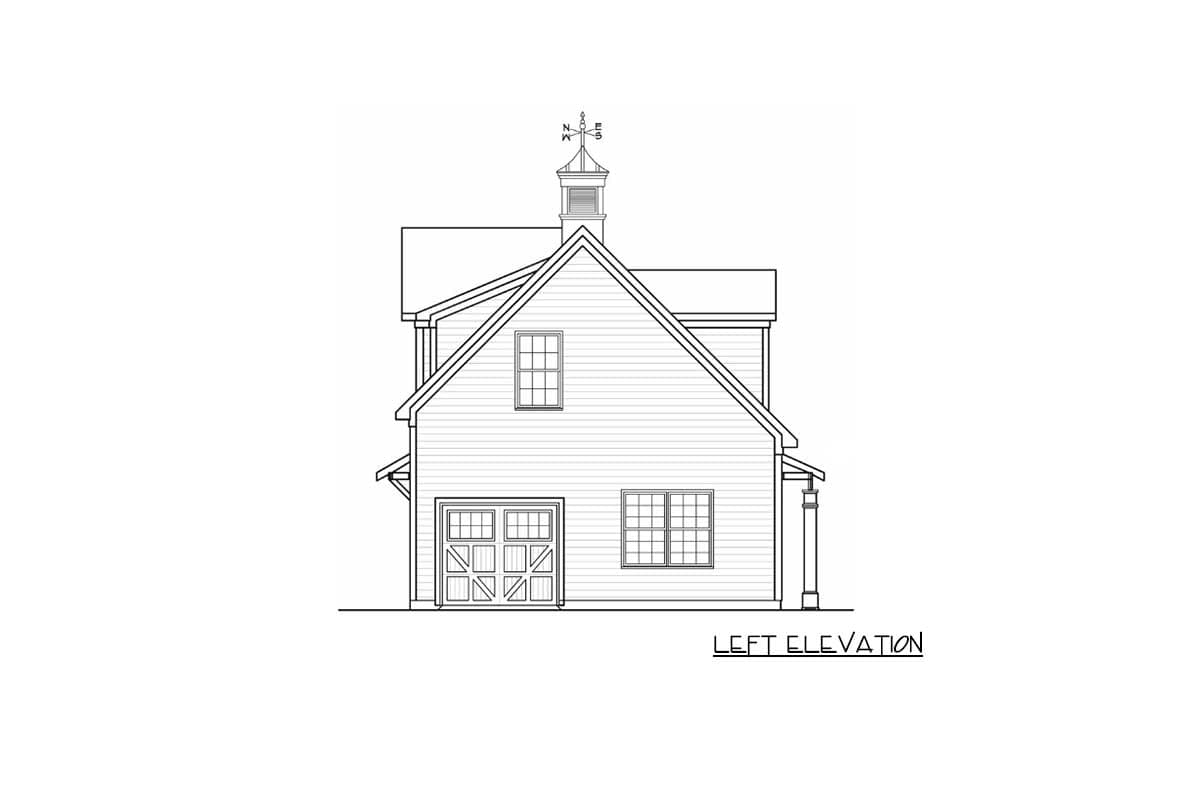

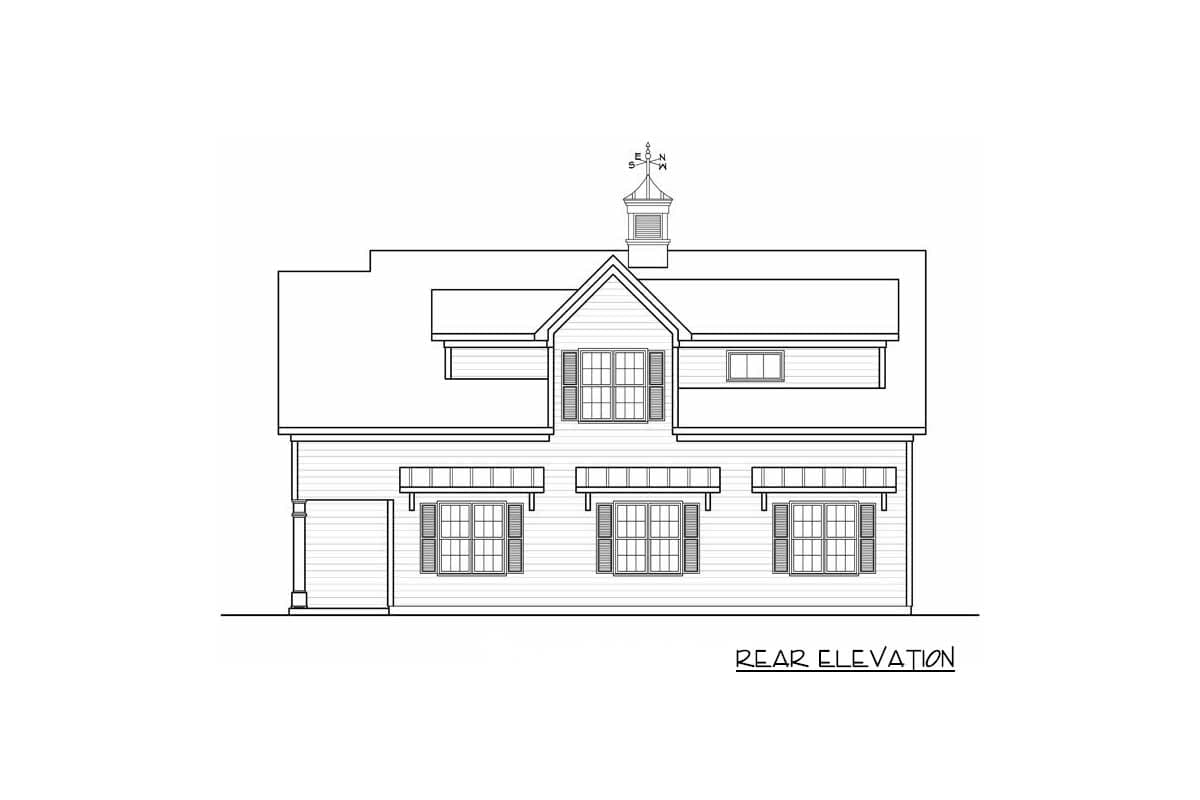

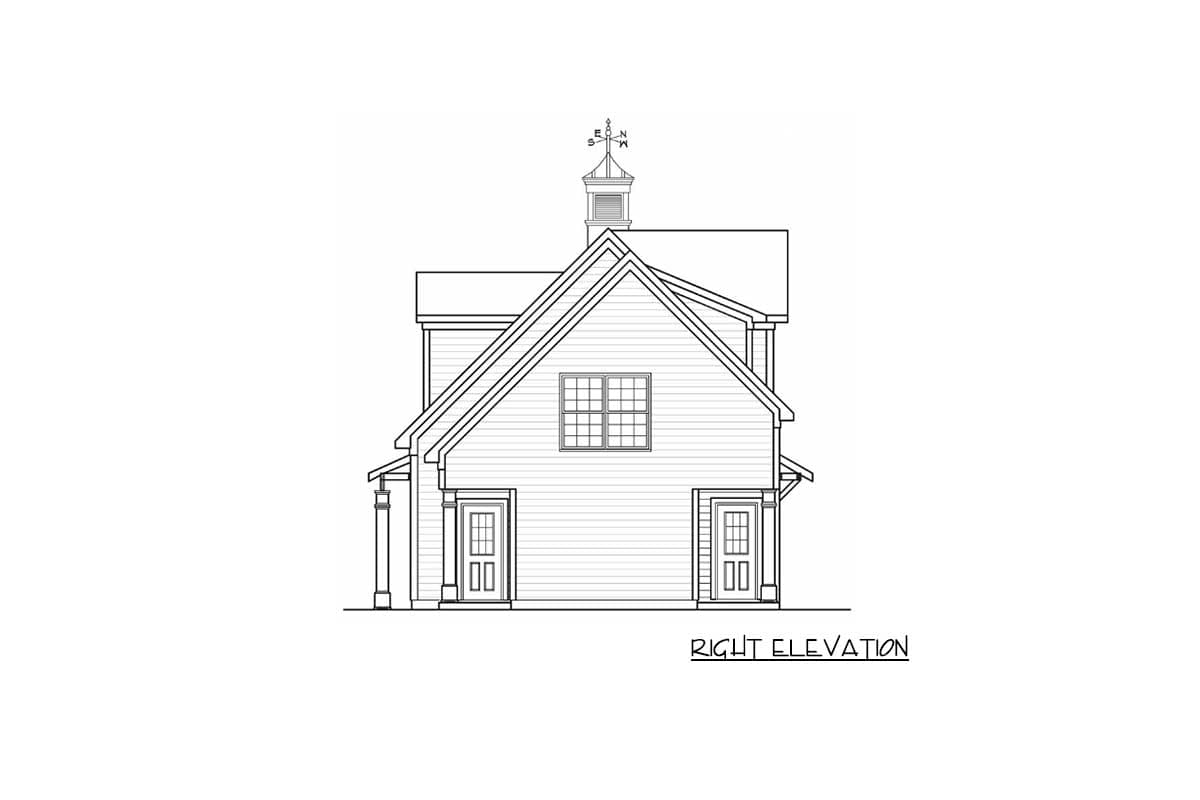

  • Front, Rear, Right Side and Left Side Elevational views with construction specification information
  • Roof Plan Quick View Floor Plans Foundation plan of choice specifying construction information
  • Floor Plan(s) with construction information
  • Electrical Plans
  • Construction Details for walls, Foundation, roof framing.
  • Some plans includes a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

Floor Plan

Plan details

Architectural Style

Plan Collections



3 Car Carriage House Plan with 3 Dormers

  • 732

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $625
  • 8 Sets $775
  • PDF - single-use $950
  • CAD $1,195
  • View all purchase option online

About This Plan

  • This 3 bed carriage house is great as a guest house, an income-producing property or even use as a man cave. Three matching dormers grace the front providing light and room on the upper floor.
  • A man door gives you access off the covered enry and takes you either to the garage or upstairs. A matching covered entry is located in back and there is storage for your tools as well.
  • The upper floor gives you an open area combining a full kitchen with bar seating, a family and dining area. The first dormer gives you space for a great walk-in pantry. A stackable washer and dryer is tucked away next to the coat closet.
  • The bedroom has a walk-in closet and a bath with stand-up shower.
  • The garage doors are each 9' wide and 8' tall.
  • The roof is stick framed with a 12:12 pitch.

Floor Plans

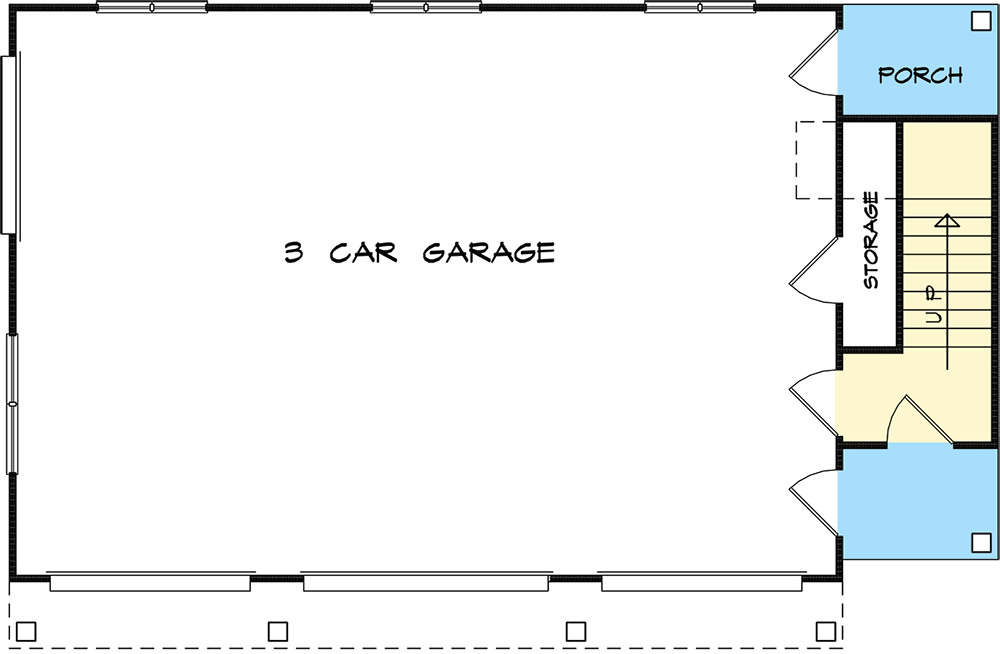

  • Main Level

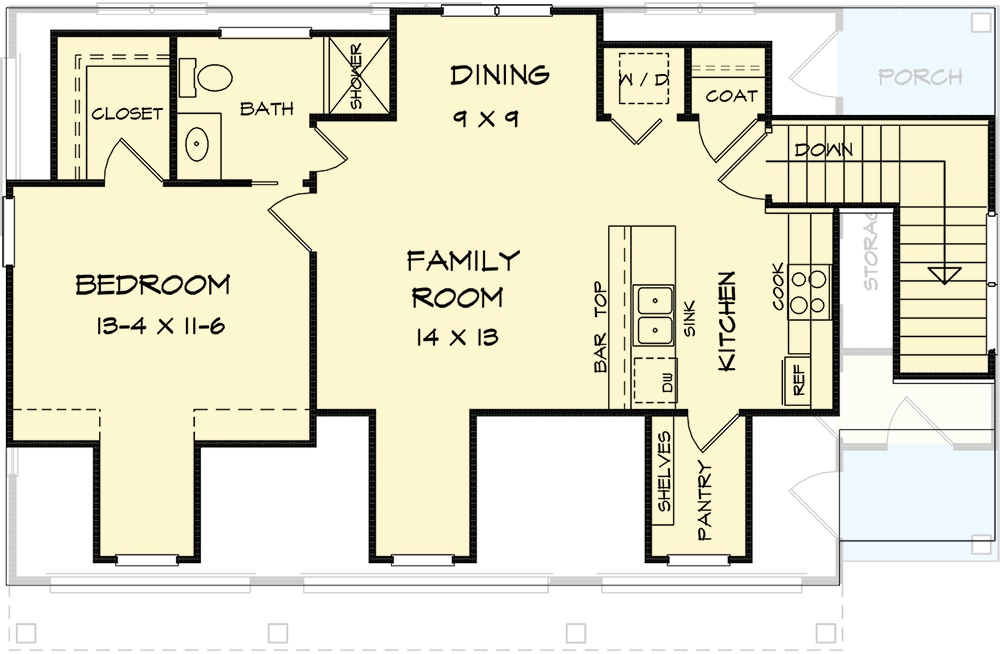

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 732 sq. ft.
  • 1st Floor: 732 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 44' 6"
  • Depth: 29' 0"
  • Max ridge height: 26' 7"

Garage

  • Type: Detached
  • Area: 1080 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

  • Carriage

Special features

  • 2nd Floor Master Suite
  • CAD Available
  • PDF

Plan Collections

  • Photo Gallery
