Plan 81414W

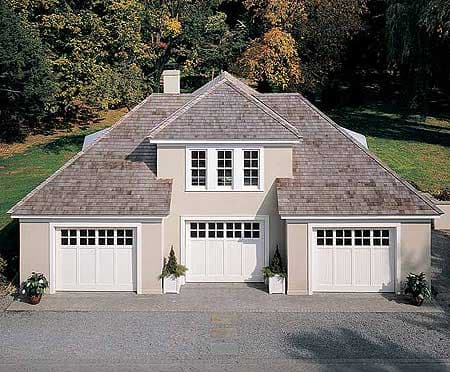

3 Car Detached Garage Outbuilding Plan

Heated S.F.
640
Beds
1
Baths
1
Stories
2
Cars
3

Floor Plan

Plan 81414W

Main Level
Main Level
2nd Floor
2nd Floor

Plan 81414W

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 81414W: 3 Car Detached Garage Outbuilding Plan - Floor Plan - Main Level - Carriage

2nd Floor

Plan 81414W: 3 Car Detached Garage Outbuilding Plan - Floor Plan - 2nd Floor - Carriage

Plan Details

  • This 3 car outbuilding will complement your garageless home. It can serve as an in-law apartment, income-producing rental or a work studio.

What's Included

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

640 sq. ft.

2nd Floor

640 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

44' 0"

Depth

33' 0"

Max Ridge Height

25' 0"

Garage

Type

Detached

Area

1167 sq. ft.

Count

3 Cars

Entry Location

Front

Architectural Style

Carriage

Special Features

Master Suite - Upstairs
