Plan 68706VR

3-car Detached Garage Plan with Guest Room, Bath and Loft

Heated S.F.
1,180
Beds
1
Baths
1
Stories
2
Cars
3

Floor Plan

Plan 68706VR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 68706VR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

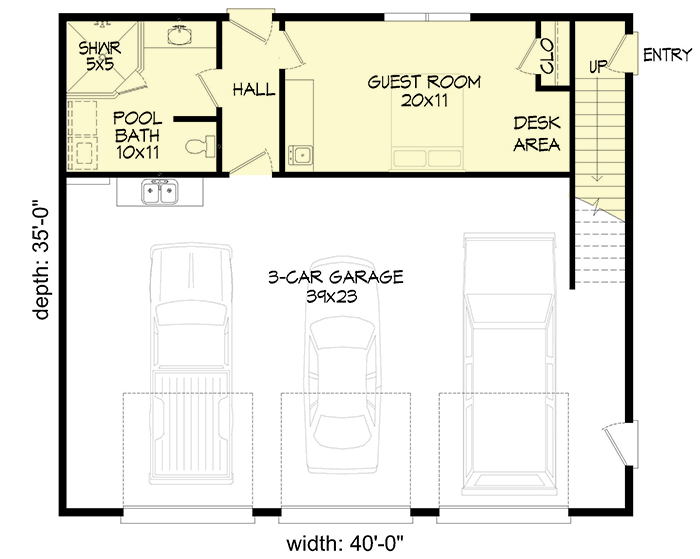

Plan 68706VR: 3-car Detached Garage Plan with Guest Room, Bath and Loft - Floor Plan - Main Level - Carriage

2nd Floor

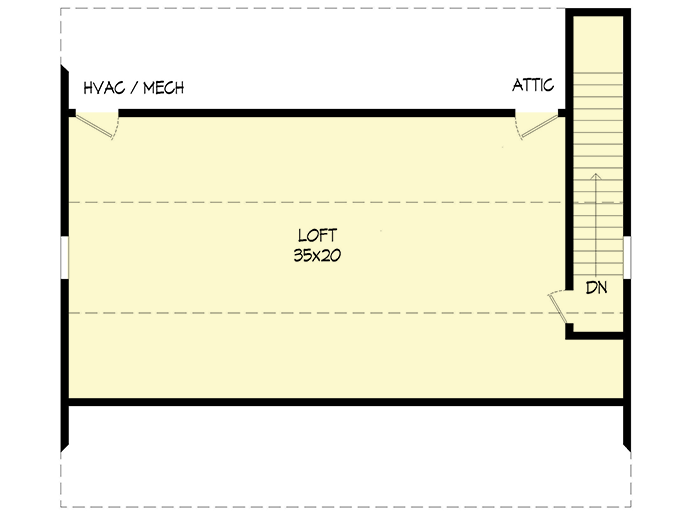

Plan 68706VR: 3-car Detached Garage Plan with Guest Room, Bath and Loft - Floor Plan - 2nd Floor - Carriage

Plan Details

  • This 3-car detached garage plan gives you 3 standard-sized garage bays. In back of the parking area there is a shop sink.
  • A door on the back wall leads to living quarters giving you a bedroom with closet and desk area and a full bath.
  • Stairs along the left side take you to a large open loft spanning the full width of the garage.

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

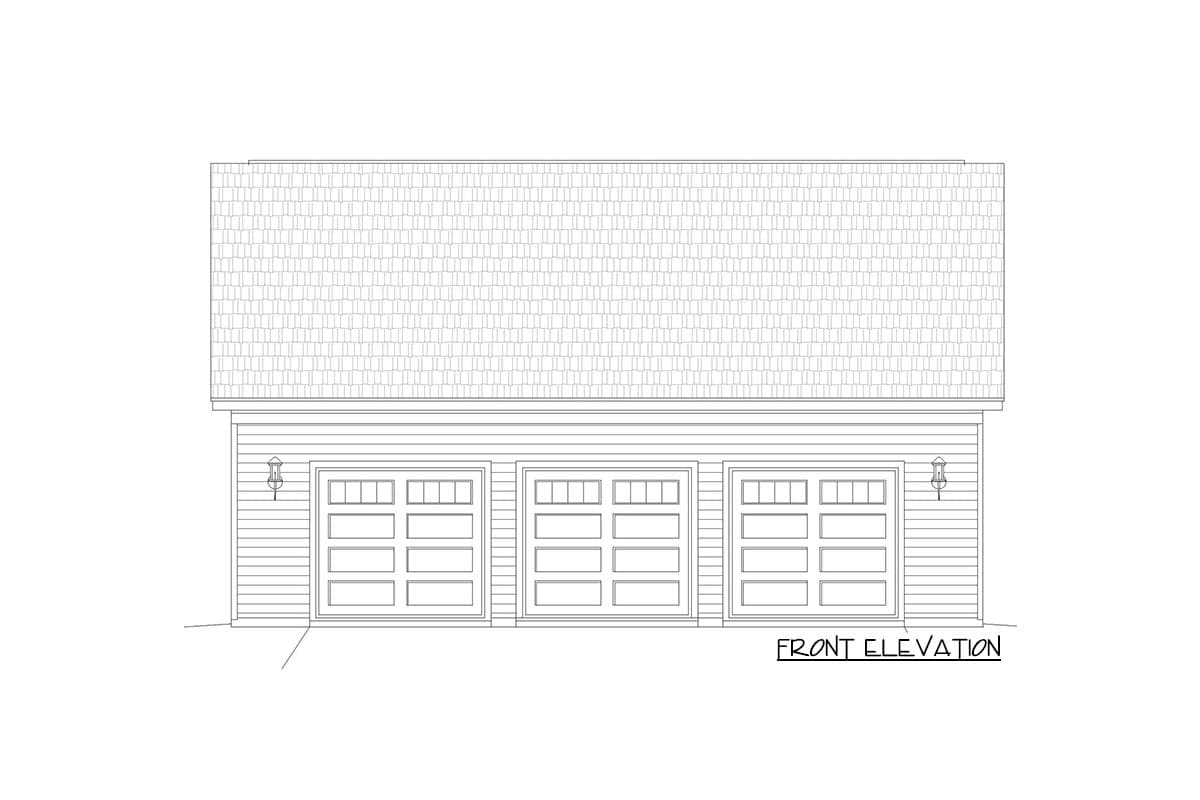

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.
