Plan 68511VR 3-Car Detached Garage With Upstairs Loft

0 0 2 3
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

3-Car Detached Garage With Upstairs Loft

Plan 68511VR

  • 0

    Heated s.f.

  • 0

    Beds

  • 2

    Stories

  • 3

    Cars

  • Park three cars behind 9' by 7' garage doors in this detached garage plan with upstairs loft.
  • Stairs run along the left and take you to a wide-open space above.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

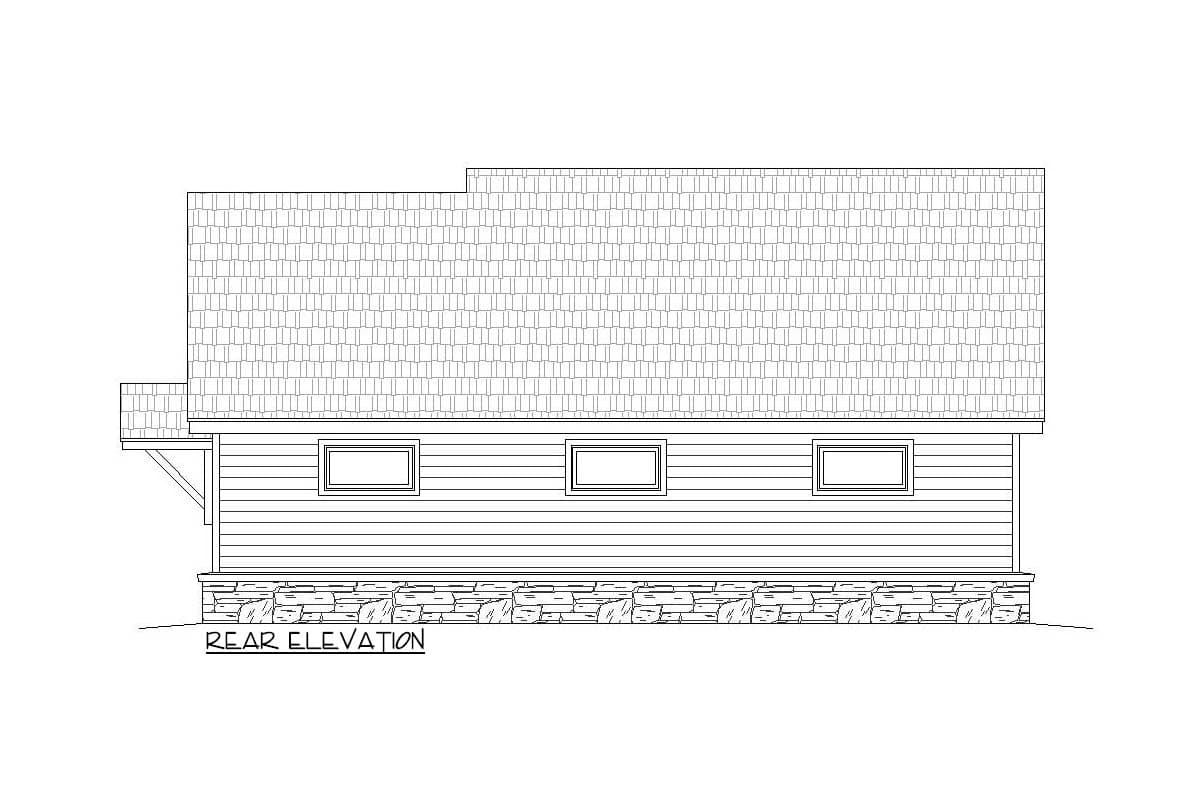

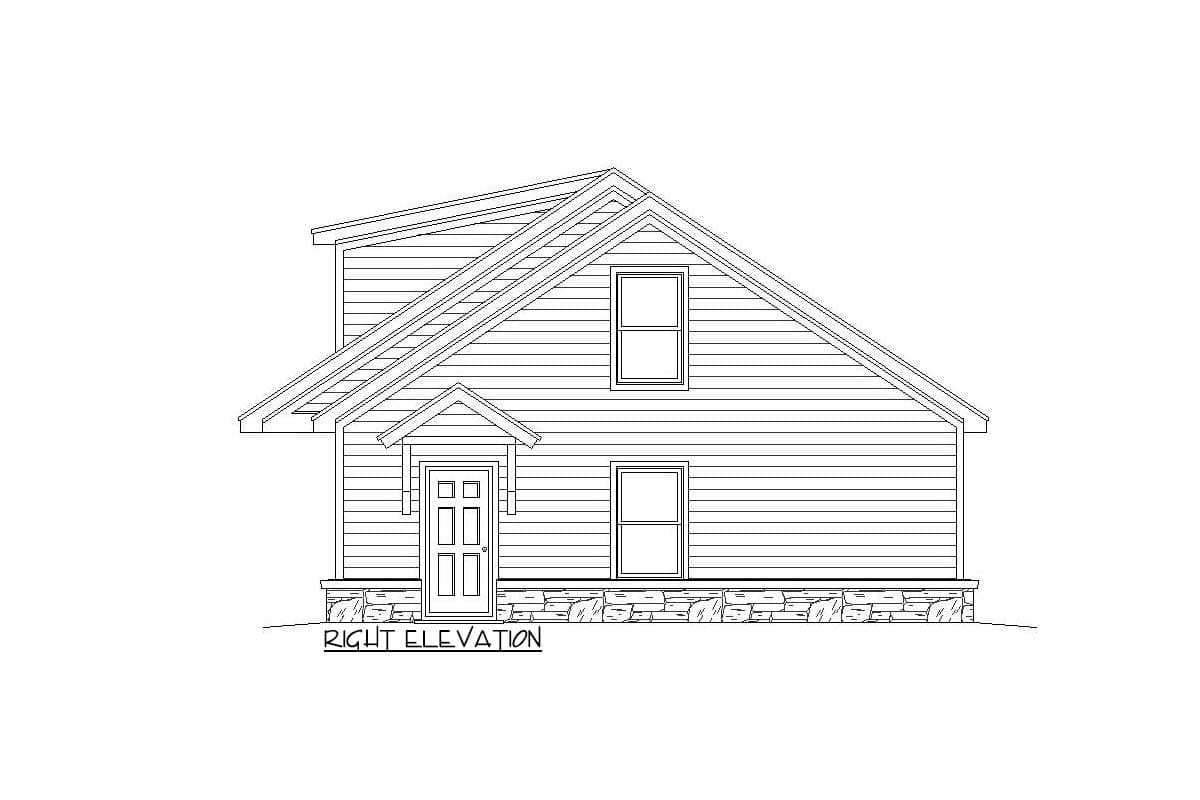

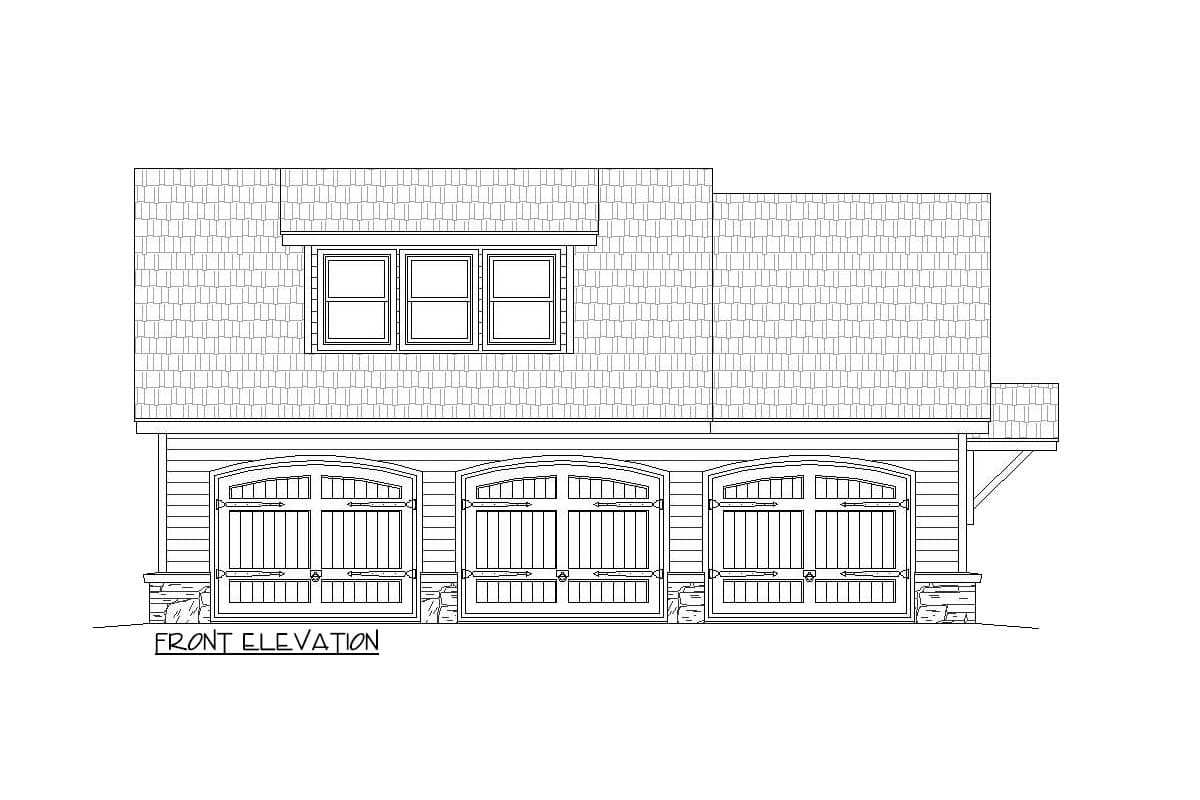

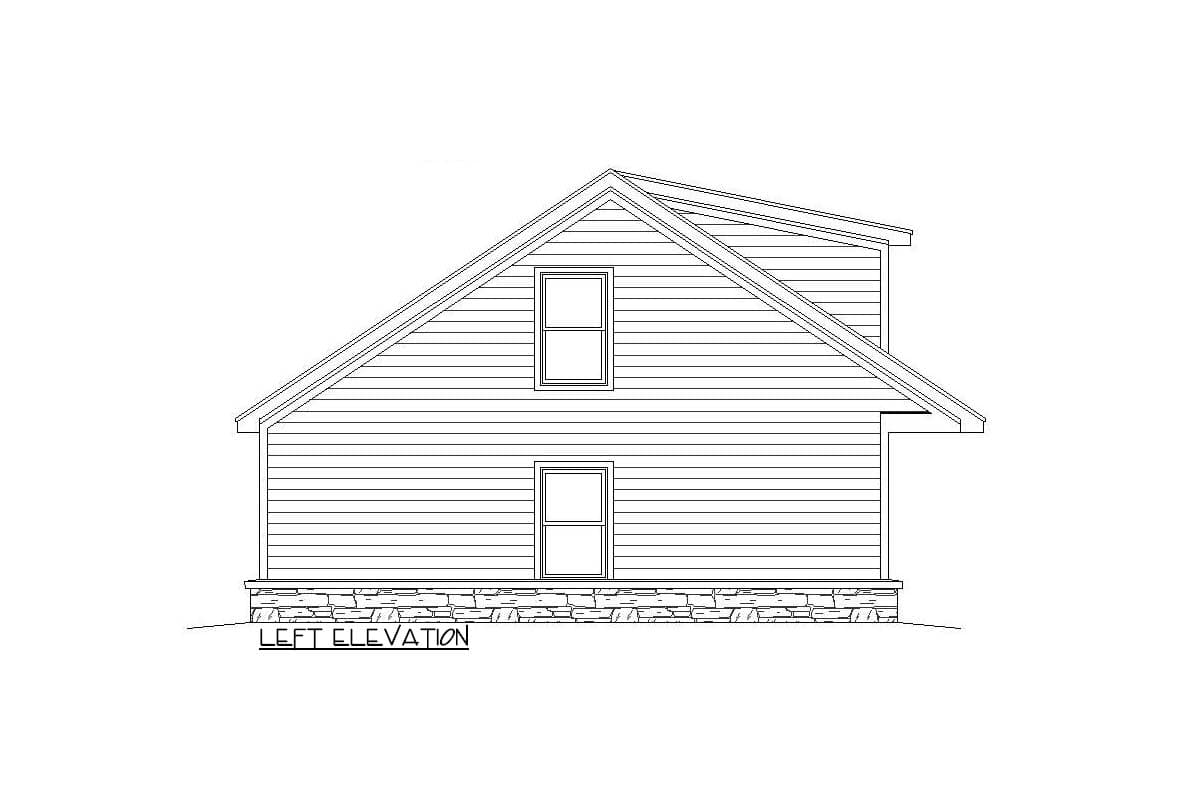

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

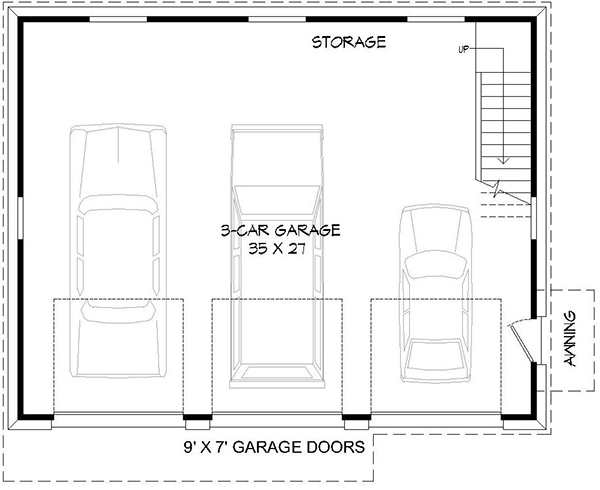

3-Car Detached Garage With Upstairs Loft - 68511VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

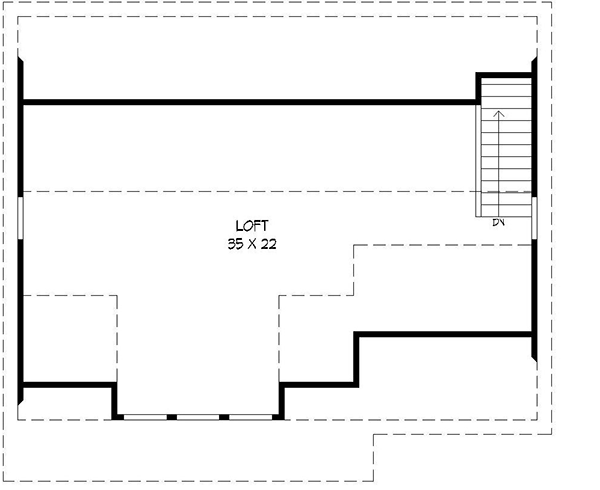

3-Car Detached Garage With Upstairs Loft - 68511VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Loft: 704 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 28' 0"
  • Max ridge height: 20' 0"

Garage

  • Type: Detached
  • Area: 1008 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Stick

Special features

3-Car Detached Garage With Upstairs Loft

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $800
  • 5 Sets $875
  • 5 Sets + PDF $925
  • CAD + PDF - Single-Build $1,100
  • View all purchase option online

About This Plan

  • Park three cars behind 9' by 7' garage doors in this detached garage plan with upstairs loft.
  • Stairs run along the left and take you to a wide-open space above.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Loft: 704 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 28' 0"
  • Max ridge height: 20' 0"

Garage

  • Type: Detached
  • Area: 1008 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
