Plan 61435UT
3 Car Garage Apartment with Over 1000 Sq Ft of Parking and Under 1300 Sq Ft of Living Space
Heated S.F.
1,272
Beds
1
Baths
1
Stories
2
Cars
3
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

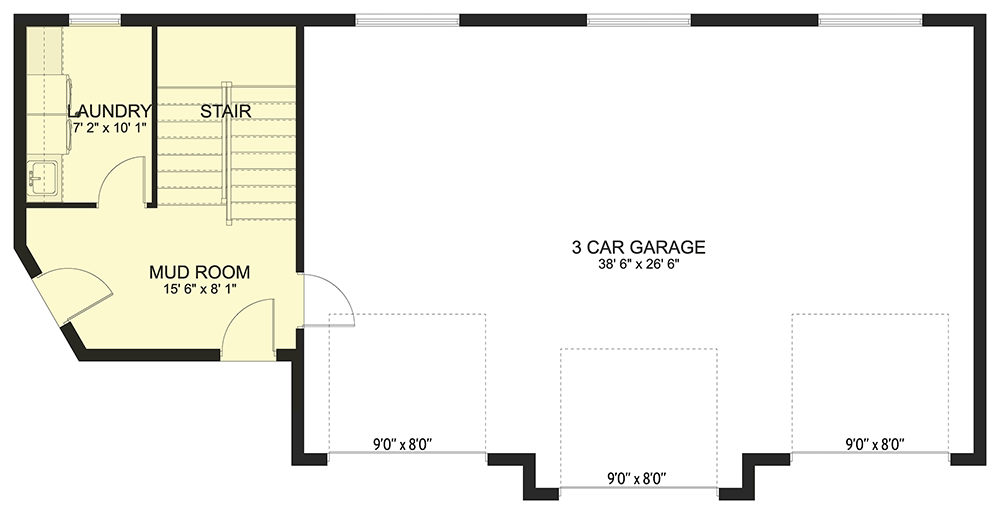

3 Car Garage Apartment with Over 1000 Sq Ft of Parking and Under 1300 Sq Ft of Living Space - 61435UT floor plan - Main Level
2nd Floor
Reverse Floor Plan

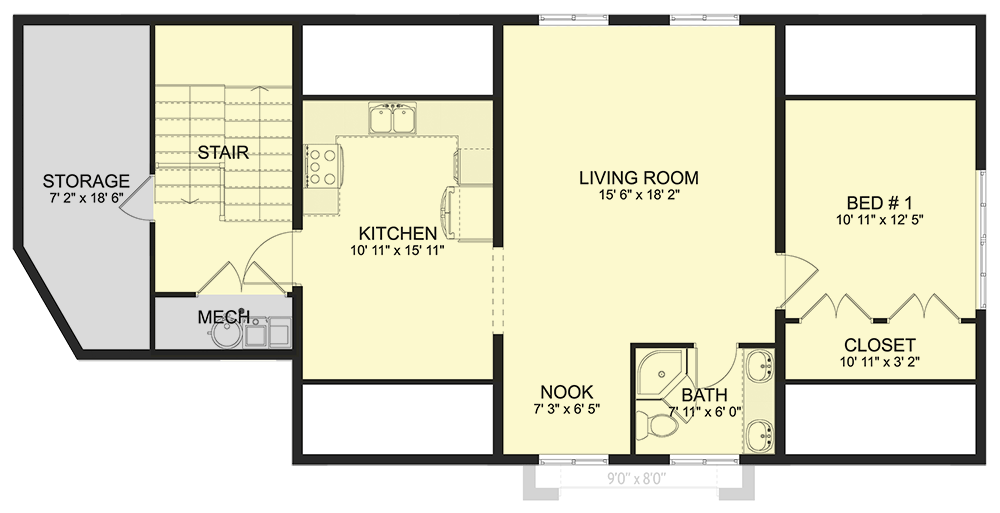

3 Car Garage Apartment with Over 1000 Sq Ft of Parking and Under 1300 Sq Ft of Living Space - 61435UT floor plan - 2nd Floor
Unfinished Lower Level
Reverse Floor Plan

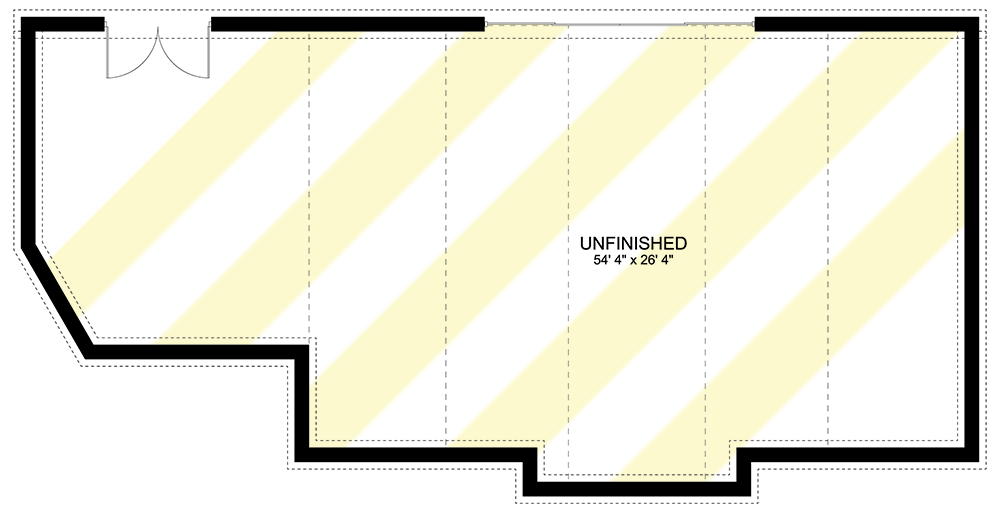

3 Car Garage Apartment with Over 1000 Sq Ft of Parking and Under 1300 Sq Ft of Living Space - 61435UT floor plan - Unfinished Lower Level
Plan Details
  • This house plan has three garage bays on the ground floor - each with a 9' by 8' overhead door - with 1,063 square feet of parking. A mudroom and laundry are separated from the parking area with stairs going to the upstairs living level.
  • A C-shaped kitchen at the top of the stairs opens to a nook and living room that are open front to back.
  • A bedroom at the far end and a bath with two vanities completes the second floor.
  • The lower level gives you 1,374 square feet of expansion space and has access to the outside in back.
What's Included
  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing
  • Elevations
  • Cross sections
  • Electrical plans
  • General details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3 Car Garage Apartment with Over 1000 Sq Ft of Parking and Under 1300 Sq Ft of Living Space

  • 1,272

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Unfinished Lower Level

Plan Details

Square Footage Breakdown

  • Total: 1,272 sq. ft.
  • 1st Floor: 323 sq. ft.
  • 2nd Floor: 948 sq. ft.

Dimensions

  • Width: 56' 0"
  • Depth: 28' 0"
  • Max ridge height: 22' 10"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Garage

  • Type: Attached
  • Area: 1063 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Monolithic Slab, Daylight, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick And Truss
