Plan 360110DK

3-Car Garage with Office and 1-Bed Apartment Above Under 1500 Square Feet

Heated S.F.
1,478
Beds
1
Baths
1.5
Stories
2
Cars
3

Floor Plan

Plan 360110DK

Main Level
Main Level
2nd Floor
2nd Floor

Plan 360110DK

M-F 9am-5pm EST |

1-203-761-8500

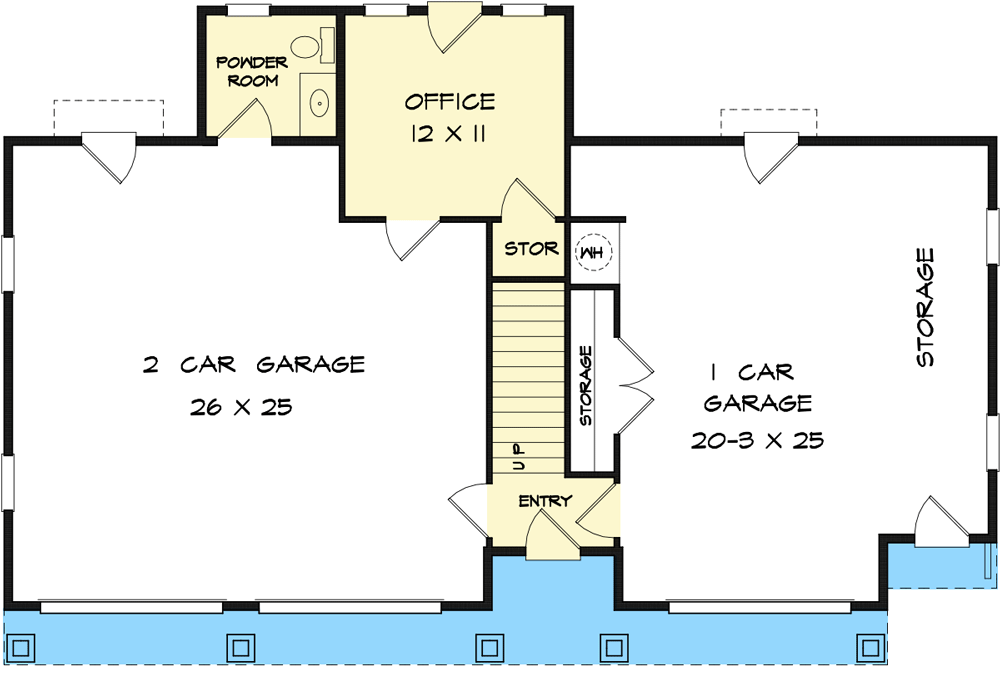

Main Level

Plan 360110DK: 3-Car Garage with Office and 1-Bed Apartment Above Under 1500 Square Feet - Floor Plan - Main Level - Carriage, Cottage, Country, Craftsman, Traditional

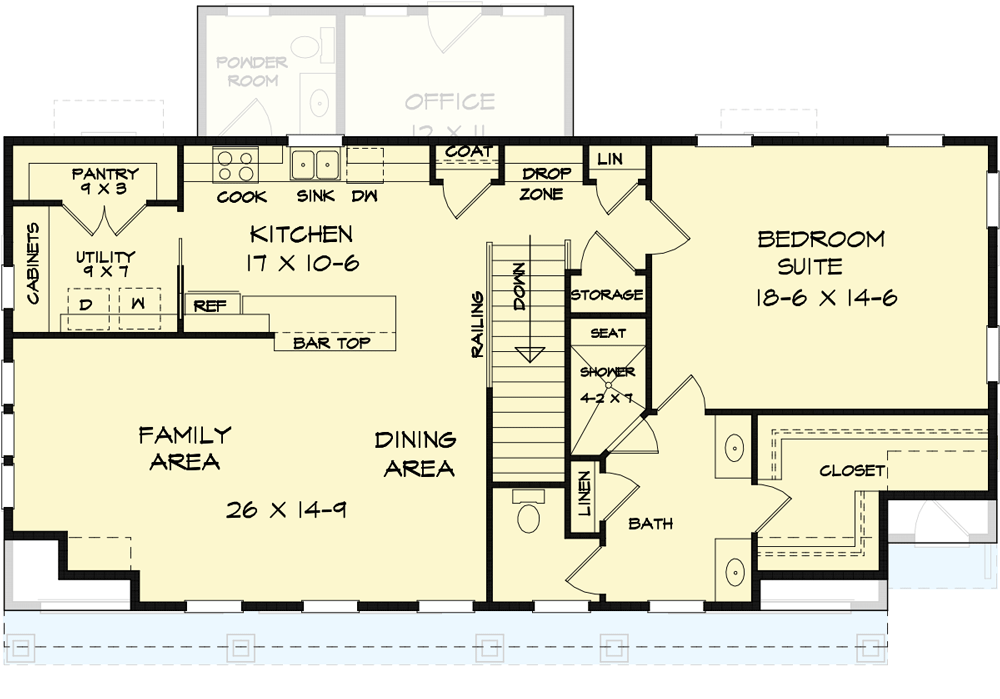

2nd Floor

Plan 360110DK: 3-Car Garage with Office and 1-Bed Apartment Above Under 1500 Square Feet - Floor Plan - 2nd Floor - Carriage, Cottage, Country, Craftsman, Traditional

Plan Details

  • This 3-car garage apartment not only gives you parking for 3 cars but also gives you 2 bedrooms plus a home office. A broad gable adds light and space on the second floor and adds to its curb appeal.
  • The garage doors each measure 9' by 8'. Two man doors get you inside. One on the right takes you into the 1-car portion while the one in the middle takes you into the entry with stairs going up straight ahead.
  • A home office and a powder room line the back of the 2-car portion.
  • The upper floor gives you an open area combining a full kitchen with bar seating, a family and dining area. Laundry is tucked out of the way.
  • On the right, two bedrooms - one with a walk-in closet - share a bath with a walk-in shower.
  • Related Plans: Get an alternate 2-bedroom version with house plan 360078DK

What's Included

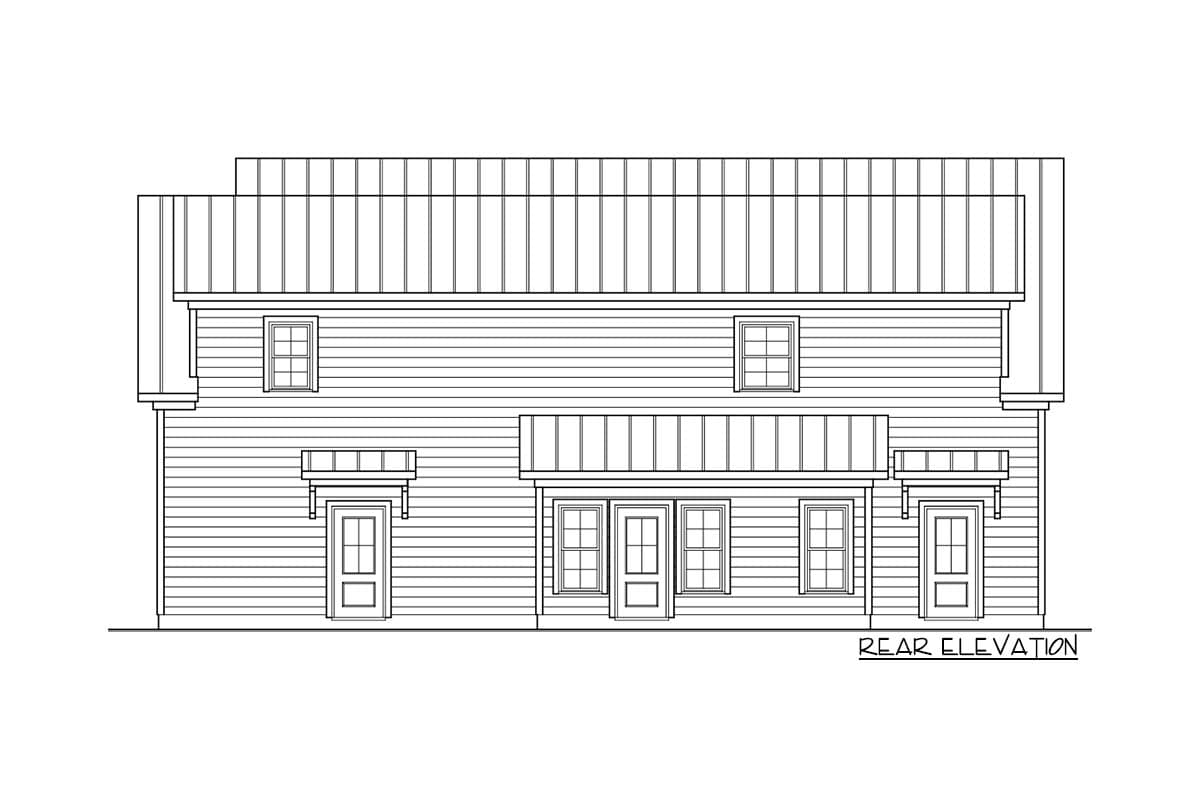

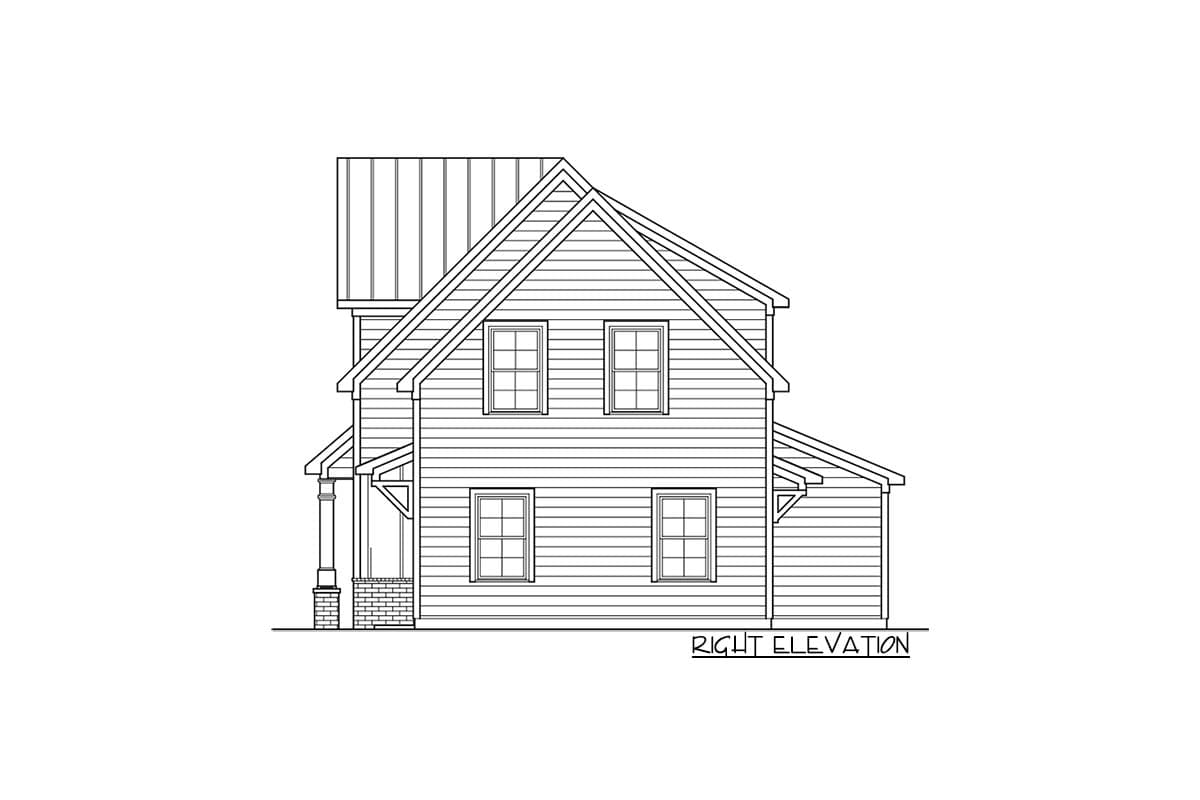

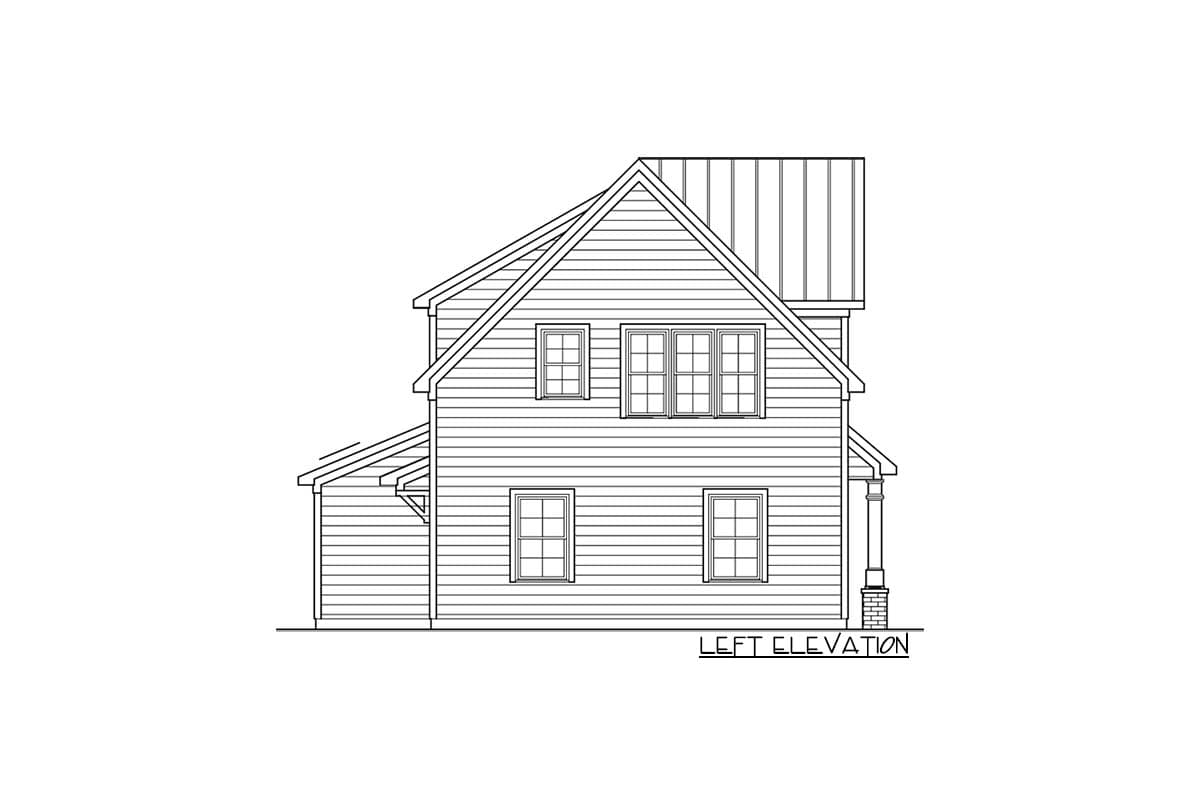

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,478 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 6"

Depth

36' 2"

Max Ridge Height

28' 5"

Garage

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Carriage

Cottage

Country

Craftsman

Traditional

Special Features

Home Office

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Plan Collections

ADU

Home Office

Square Footage Breakdown

Total Heated Area

1,478 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 6"

Depth

36' 2"

Max Ridge Height

28' 5"

Garage

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Carriage

Cottage

Country

Craftsman

Traditional

Special Features

Home Office

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Plan Collections

ADU

Home Office
