Plan 21691DR

3-Car Garage with Storage

0 0 1 1-2 3
Pageloader

3-Car Garage with Storage

Plan 21691DR

  • 0

    Heated s.f.

  • 0

    Beds

  • 1

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • This 3-car garage has 1,112 sq. ft. of storage above the garage stalls. With a bathroom on the main level (1,156 sq. ft.), this is perfect for a workshop or even a playroom or artist's studio.
  • This garage plan has three 9' x 7' garage doors and the second floorknee wall is 4'8" high with 8' ceilings both upstairs and down
  • Free Bonus: these plans come with complementary materials list showing you everything needed to build this structure.

Each plan includes the following:

  • 4 Elevations
  •  Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Truss Diagrams & Building Section
  •  Construction Details
  • Typical Wall Section
Please note that electrical plans are not included.

Floor Plan

Plan details

Special features

Plan Collections



3-Car Garage with Storage

  • 0

    Heated s.f.

  • 0

    Beds

  • 1

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • Reproducible Set $475
  • PDF - single-use $475
  • 5 Sets $475
  • CAD $695
  • View all purchase option online

About This Plan

  • This 3-car garage has 1,112 sq. ft. of storage above the garage stalls. With a bathroom on the main level (1,156 sq. ft.), this is perfect for a workshop or even a playroom or artist's studio.
  • This garage plan has three 9' x 7' garage doors and the second floorknee wall is 4'8" high with 8' ceilings both upstairs and down
  • Free Bonus: these plans come with complementary materials list showing you everything needed to build this structure.

Floor Plans

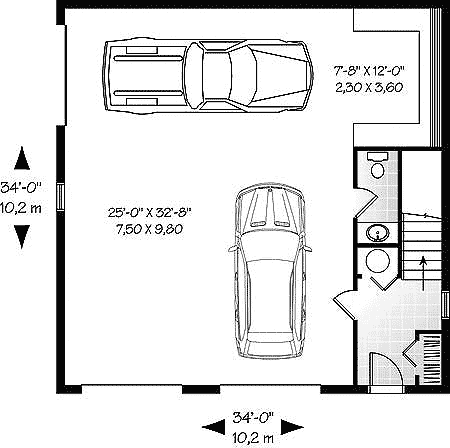

  • Main Level

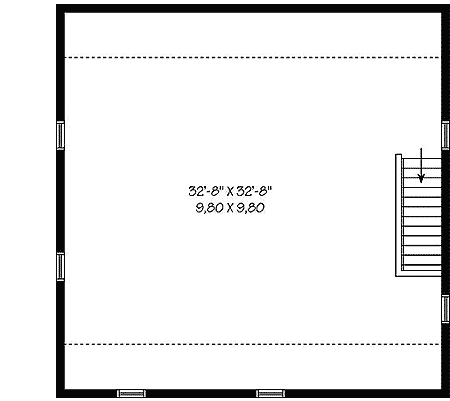

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Bonus: 1,112 sq. ft.

Beds/Baths

  • Bedrooms: 0
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 34' 0"
  • Depth: 34' 0"
  • Max ridge height: 29' 10"

Garage

  • Type: Detached
  • Area: 1156 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Special features

  • Bonus Room
  • CAD Available
  • PDF

Plan Collections

  • Canadian
  • Metric
