3 Family Home Plan

Plan 80587PM

This plan plants 3 trees

3,369
Heated s.f.
3
Units
32' 0"
Width
50' 0"
Depth

Each floor of this multi-family home plan gives you 1,123 square feet of living space which includes 2 bedrooms, 1 full and 1 half bath.

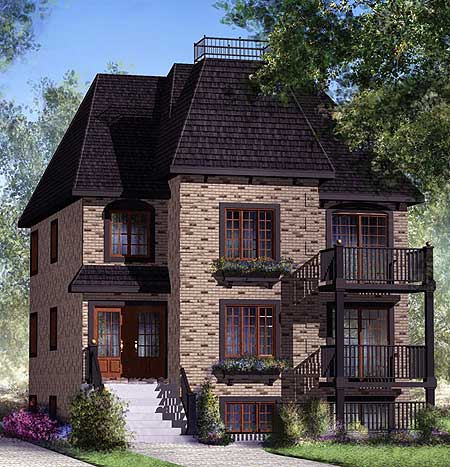

The two upper floors have a balcony giving them more space to enjoy while the bottom unit has a covered terrace that opens with sliding glass doors.

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Basement

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

3 Family Home Plan - 80587PM floor plan - Basement

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

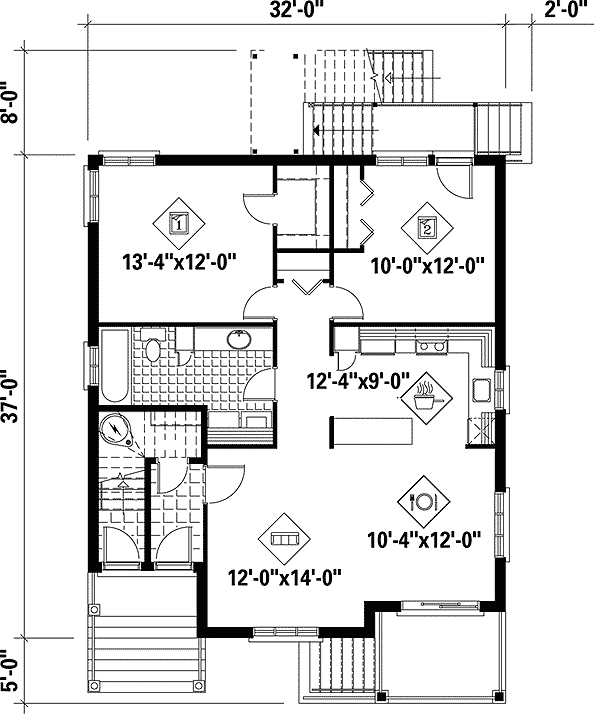

3 Family Home Plan - 80587PM floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

3 Family Home Plan - 80587PM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 3,369 sq. ft.
Lower Level: 1,123 sq. ft.
1st Floor: 1,123 sq. ft.
2nd Floor: 1,123 sq. ft.

Beds/Baths

Bedrooms: 6

Full bathrooms: 3

Foundation Type

Standard Foundations: Daylight

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 32' 0"
Depth: 50' 0"
Max ridge height: 40' 0"

Ceiling Heights

Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

Framing Type: Truss

Special features
