Plan 85116MS

Exclusive

3 Level Row House with Bonus Level

Heated S.F.
2,141
Beds
3 - 4
Baths
2.5 - 3.5
Stories
2-3
Cars
2

Floor Plan

Plan 85116MS

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor

Plan 85116MS

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 85116MS: 3 Level Row House with Bonus Level - Floor Plan - Main Level - Craftsman, Northwest

2nd Floor

Plan 85116MS: 3 Level Row House with Bonus Level - Floor Plan - 2nd Floor - Craftsman, Northwest

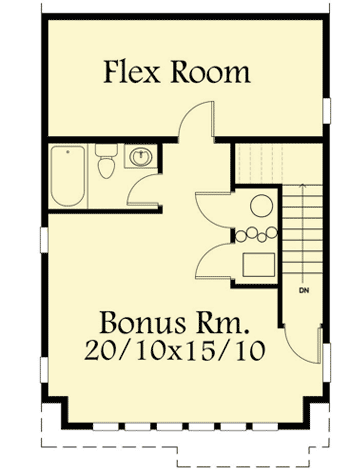

3rd Floor

Plan 85116MS: 3 Level Row House with Bonus Level - Floor Plan - 3rd Floor - Craftsman, Northwest

Plan Details

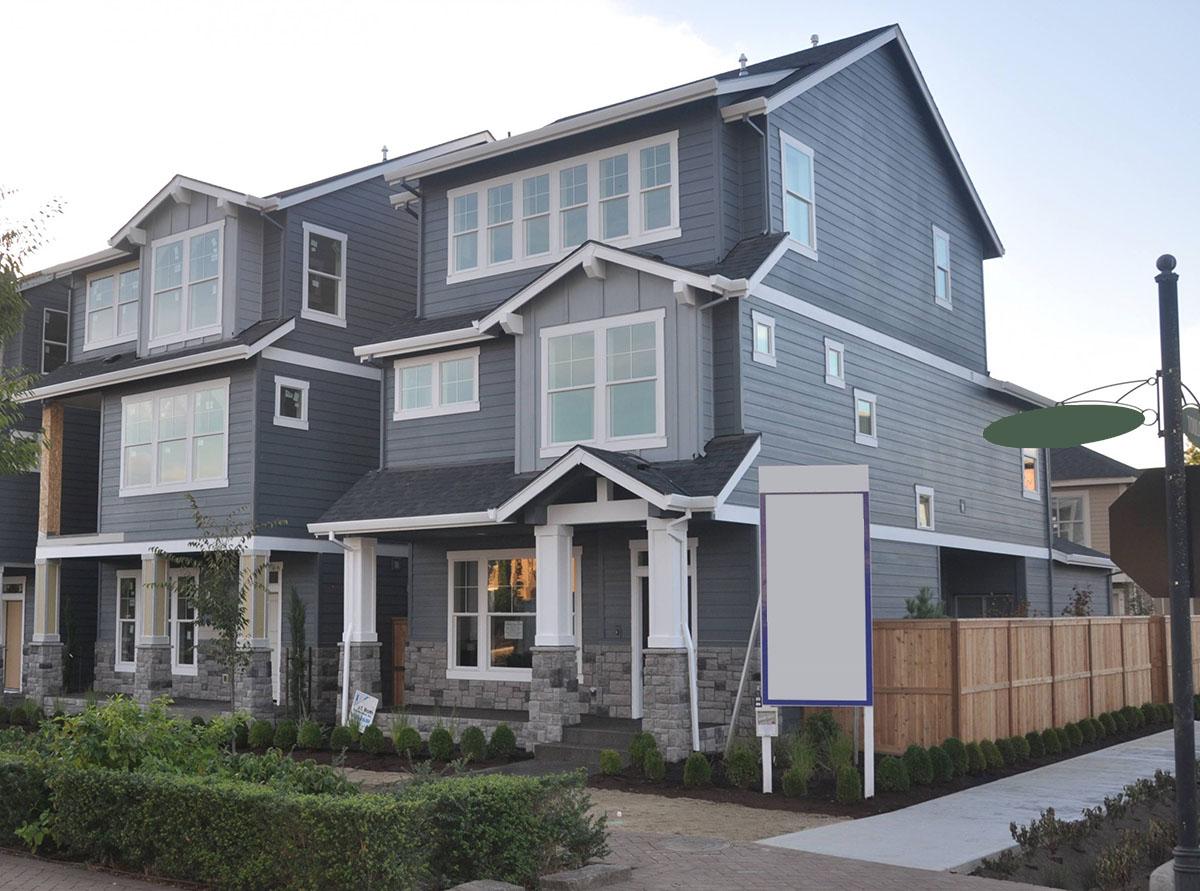

  • Enjoy three floors of living in this row house design with a Craftsman exterior and an alley access garage.

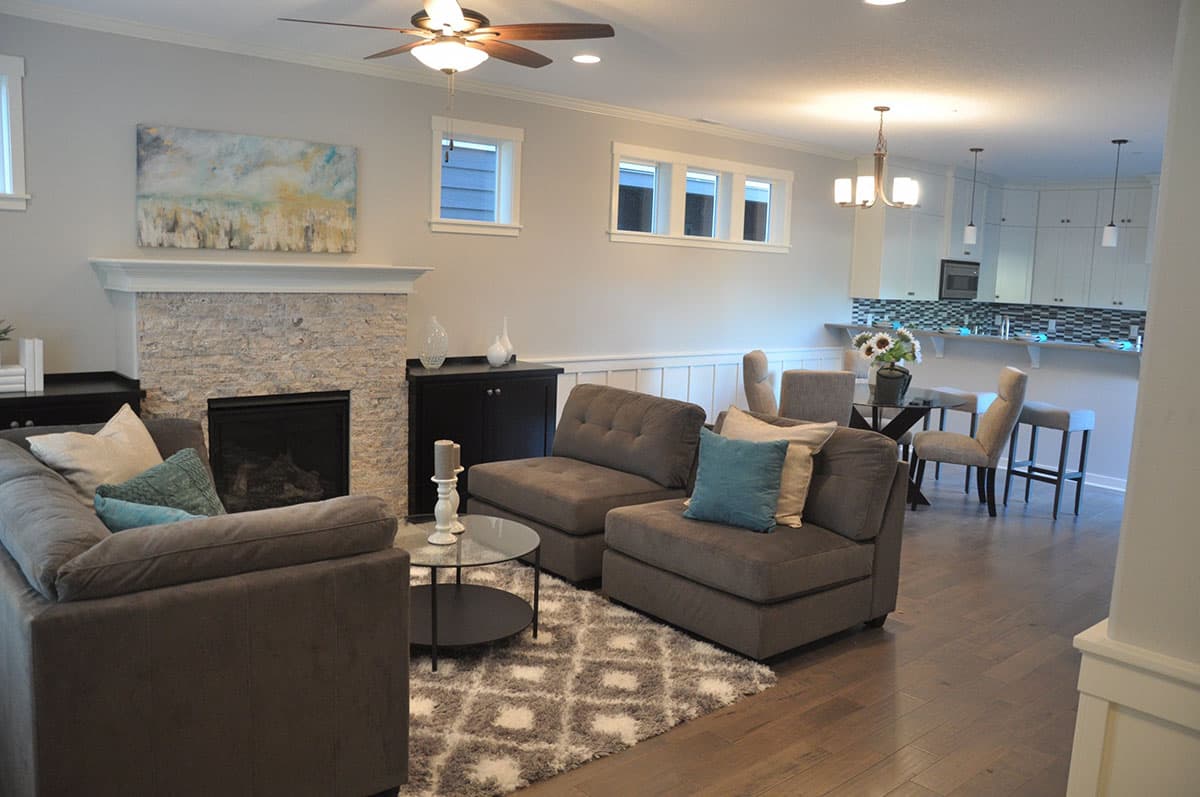

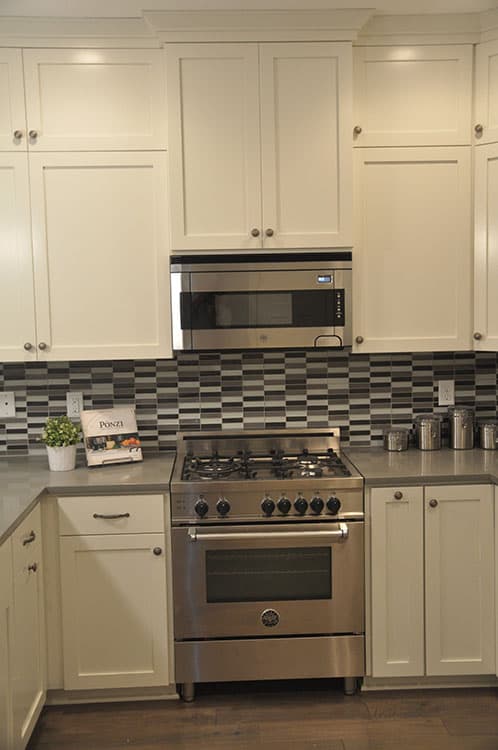

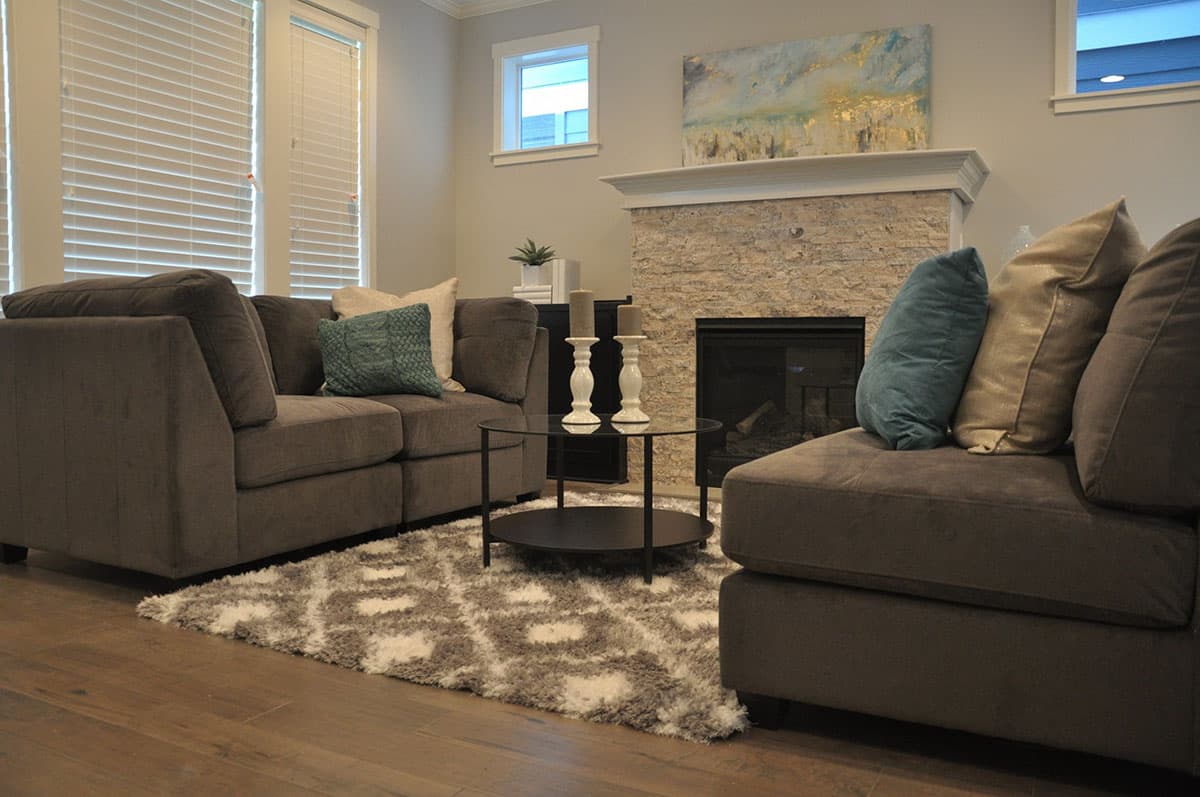

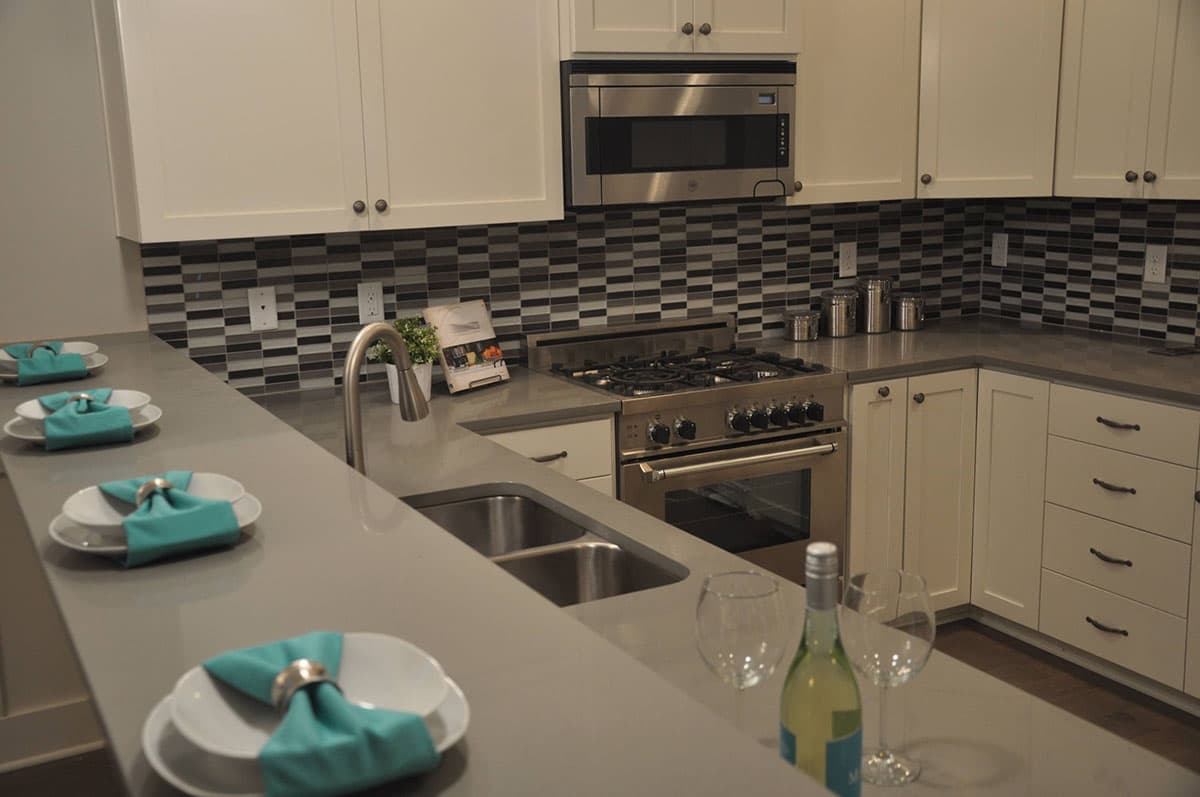

  • The kitchen and living room are on the main floor as is the dining area and a side patio.
  • Three beds including the master are on the second floor. The master has a private covered balcony and a large walk-in closet.
  • The top floor gives you a bonus room and a flex or storage room. This floor is figured into the total living area.
  • Related Plan: Gain a small balcony off the second floor master suite with house plan 85113MS.

What's Included

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,141 sq. ft.

1st Floor

714 sq. ft.

2nd Floor

1,005 sq. ft.

3rd Floor

422 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

22' 0"

Depth

64' 0"

Garage

Type

Attached

Area

416 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Master Bedroom

Tray

0' 0''

Architectural Style

Craftsman

Northwest

Special Features

Master Suite - Upstairs

Optionally Finished Bonus Room

Plan Collections

Exclusive

Photo Gallery
