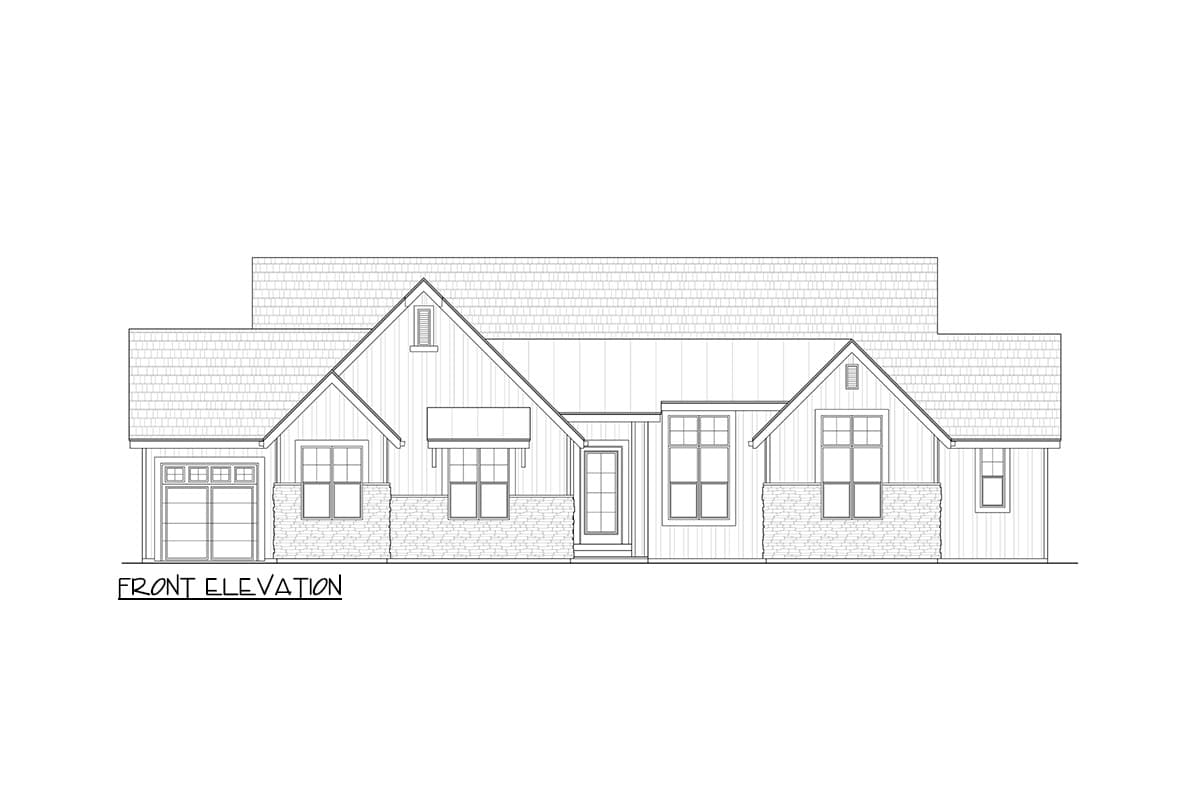

Front elevation house plan with asymmetrical gables, stone skirting, multiple windows, and attached garage.

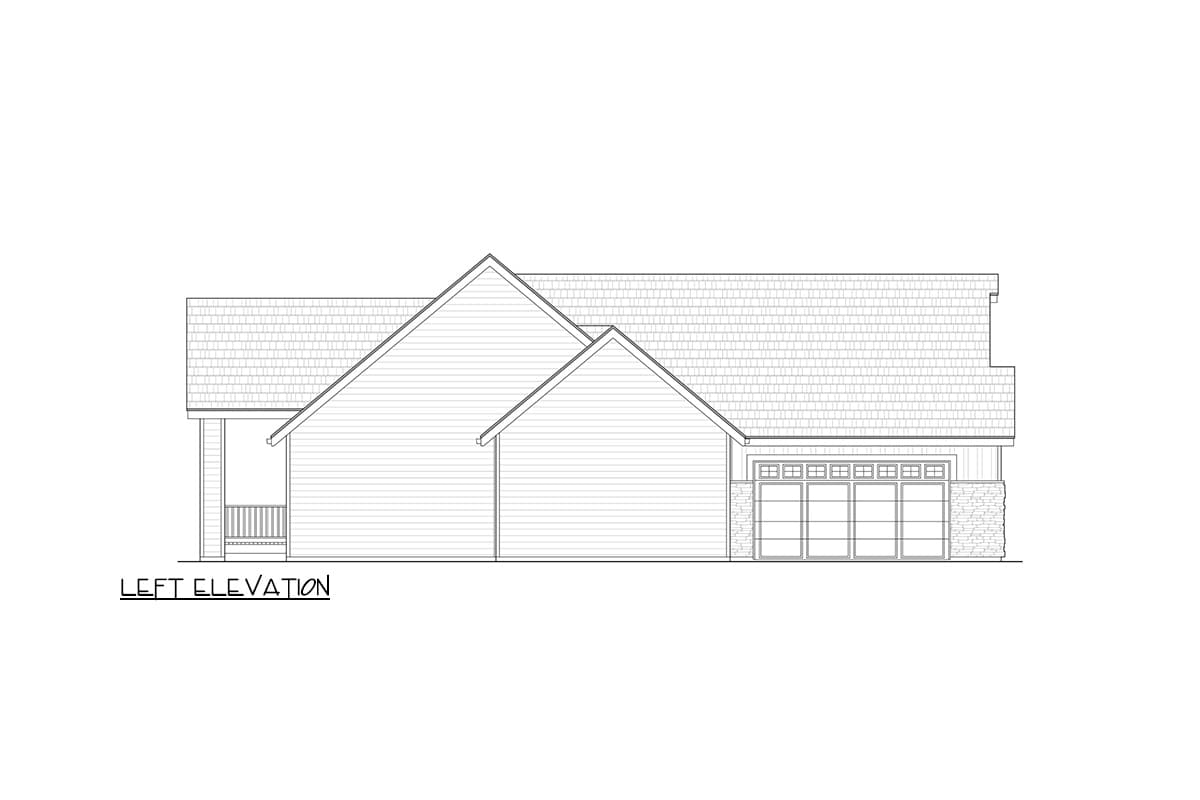

Left elevation house plan showing a gable roofline, covered porch, and attached garage with stone base.

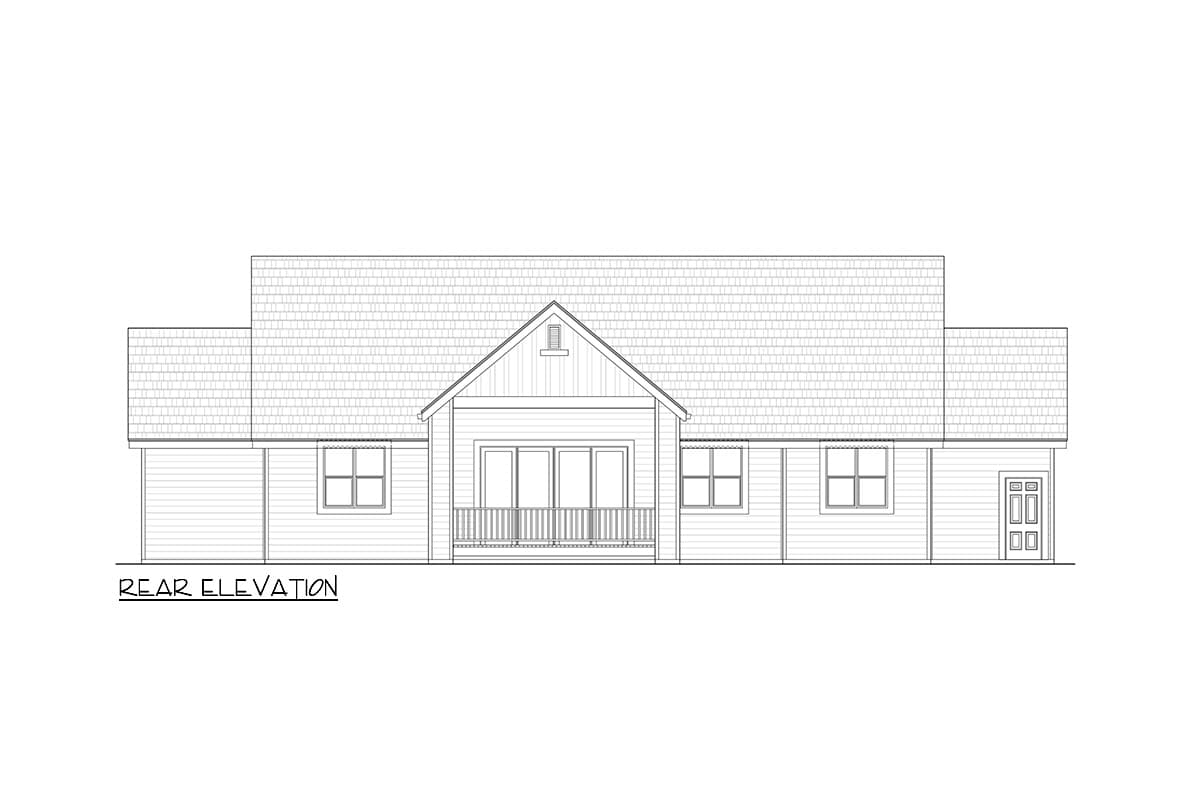

Rear elevation drawing of a one-story house plan with a central gable, porch, multiple windows, and an attached garage.

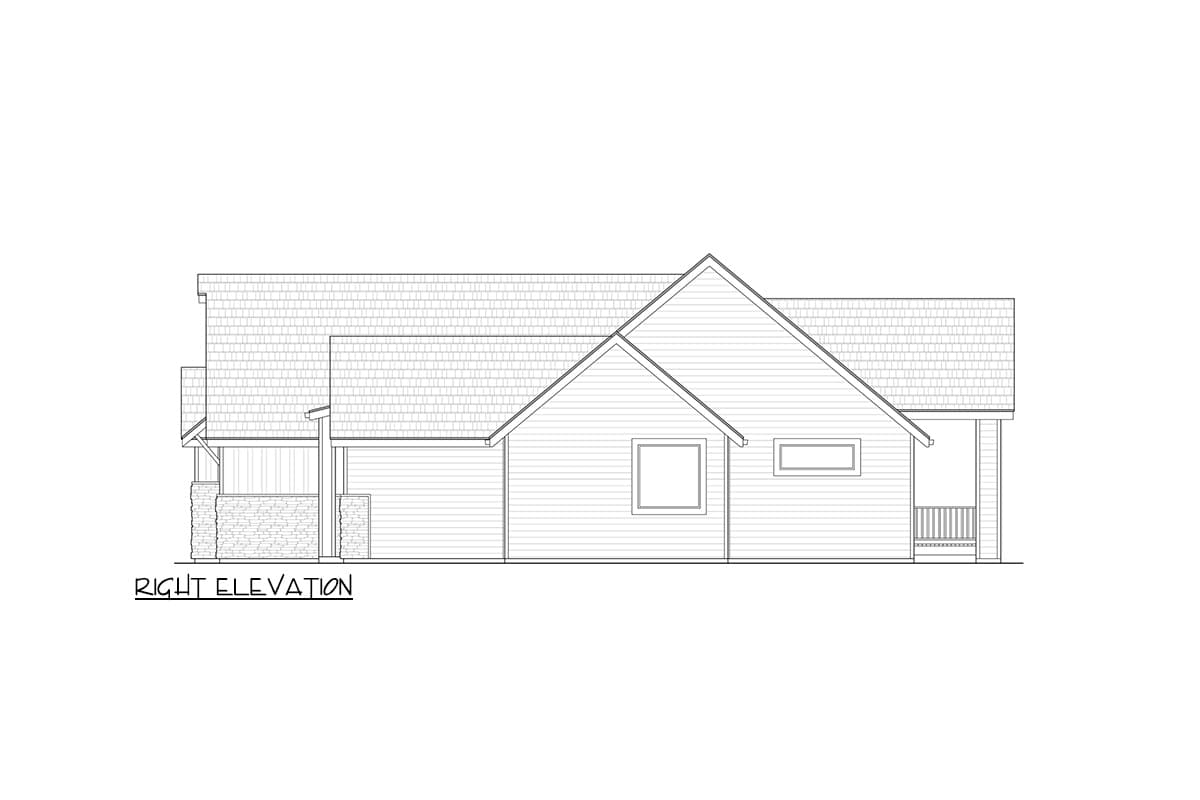

Right elevation drawing of a single-story house with gabled roof, stone accents, covered porch, and garage.

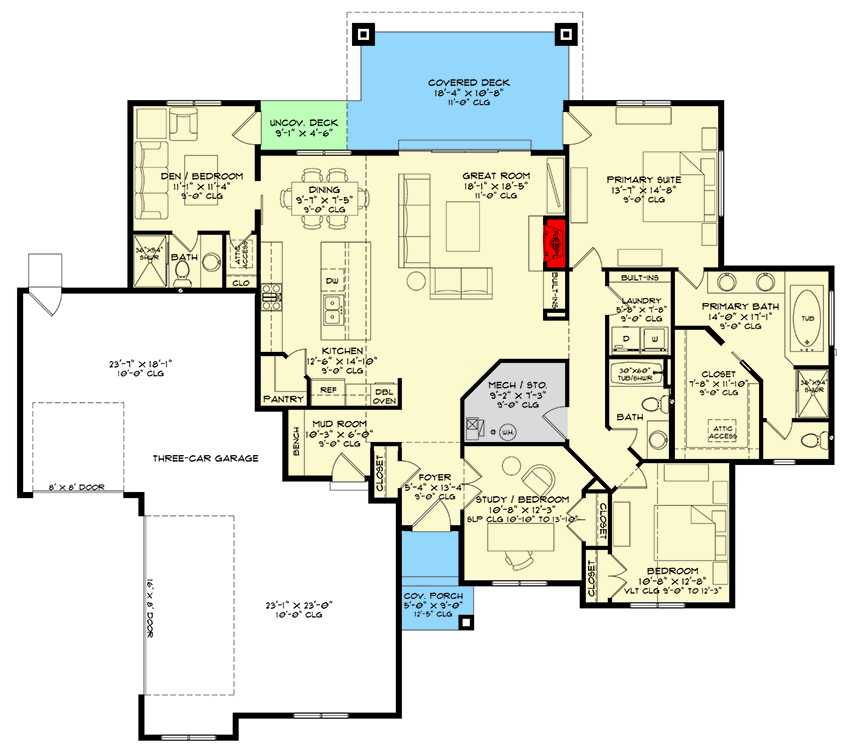

Plan 520034RKY: 3 or 4 Bed Mountain Ranch House Plan with Den and Study - 2007 Sq Ft - Floor Plan - Main Level - Craftsman, Mountain, New American, Ranch

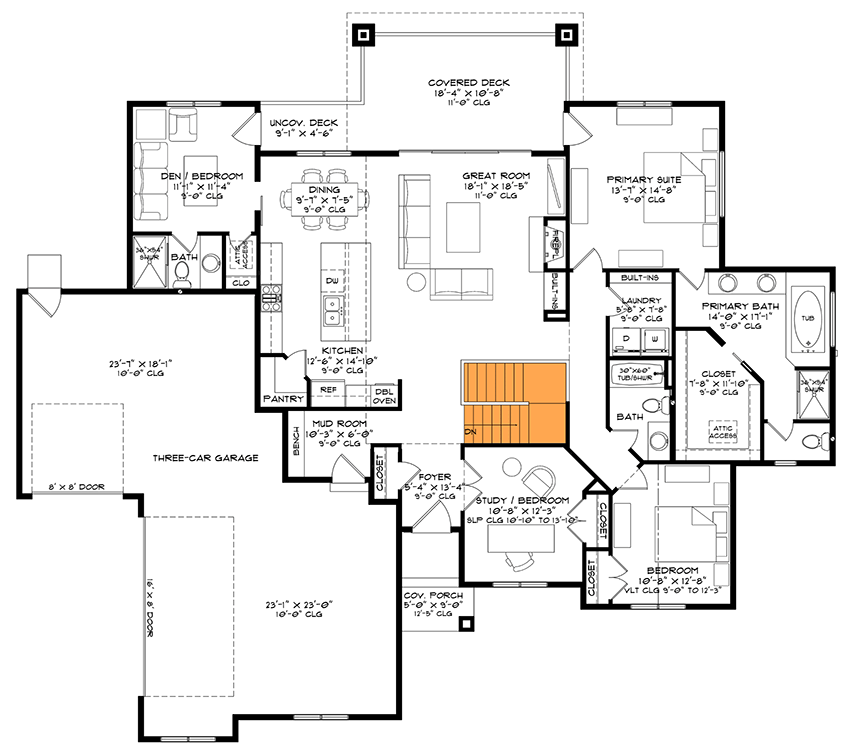

Plan 520034RKY: 3 or 4 Bed Mountain Ranch House Plan with Den and Study - 2007 Sq Ft - Floor Plan - Basement Stairs Location - Craftsman, Mountain, New American, Ranch

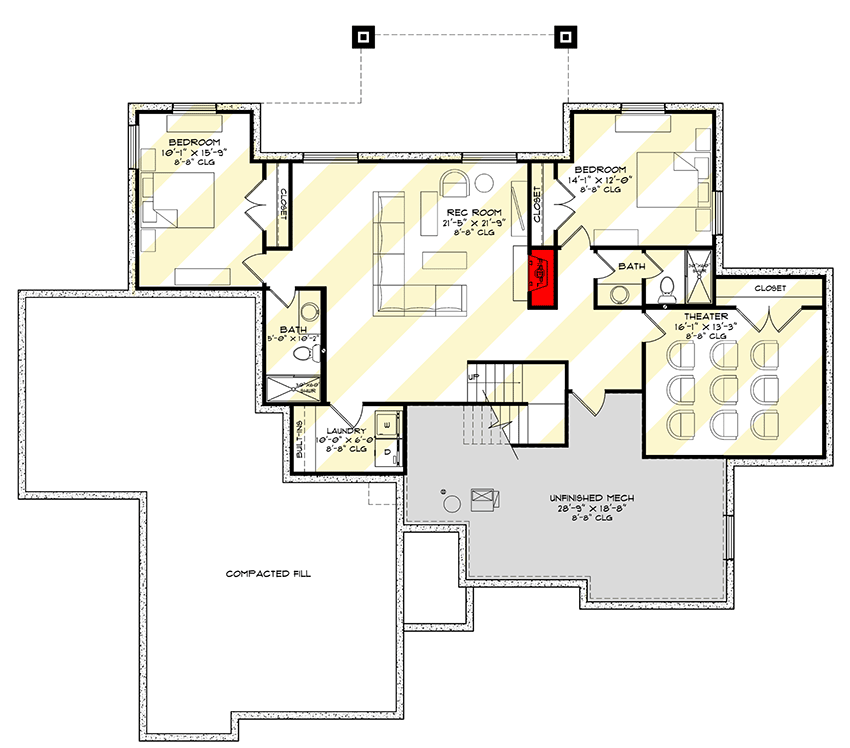

Plan 520034RKY: 3 or 4 Bed Mountain Ranch House Plan with Den and Study - 2007 Sq Ft - Floor Plan - Optionally Finished Lower Level - Craftsman, Mountain, New American, Ranch

House plan exterior with board and batten siding, gable roof, and a single-car garage. Windows have black trim and there is a front entry awning.

Front elevation house plan with asymmetrical gables, stone skirting, multiple windows, and attached garage.

Left elevation house plan showing a gable roofline, covered porch, and attached garage with stone base.

Rear elevation drawing of a one-story house plan with a central gable, porch, multiple windows, and an attached garage.

Right elevation drawing of a single-story house with gabled roof, stone accents, covered porch, and garage.

Plan 520034RKY: 3 or 4 Bed Mountain Ranch House Plan with Den and Study - 2007 Sq Ft - Floor Plan - Main Level - Craftsman, Mountain, New American, Ranch

Plan 520034RKY: 3 or 4 Bed Mountain Ranch House Plan with Den and Study - 2007 Sq Ft - Floor Plan - Basement Stairs Location - Craftsman, Mountain, New American, Ranch

Plan 520034RKY: 3 or 4 Bed Mountain Ranch House Plan with Den and Study - 2007 Sq Ft - Floor Plan - Optionally Finished Lower Level - Craftsman, Mountain, New American, Ranch

Plan 520034RKY

3 or 4 Bed Mountain Ranch House Plan with Den and Study - 2007 Sq Ft

Heated S.F.

2,007

Beds

4 - 6

Baths

3 - 5

Stories

1

Cars

3

Floor Plan

Main Level

Plan 520034RKY: 3 or 4 Bed Mountain Ranch House Plan with Den and Study - 2007 Sq Ft - Floor Plan - Main Level - Craftsman, Mountain, New American, Ranch

Basement Stairs Location

Plan 520034RKY: 3 or 4 Bed Mountain Ranch House Plan with Den and Study - 2007 Sq Ft - Floor Plan - Basement Stairs Location - Craftsman, Mountain, New American, Ranch

Optionally Finished Lower Level

Plan 520034RKY: 3 or 4 Bed Mountain Ranch House Plan with Den and Study - 2007 Sq Ft - Floor Plan - Optionally Finished Lower Level - Craftsman, Mountain, New American, Ranch

Plan Details

This mountain ranch house plan boasts 2,007 sq. ft. of living space with 4 bedrooms and 6 bathrooms, including a versatile study and den.
Step into an open layout featuring a great room with a vaulted ceiling and built-ins, seamlessly connecting to the kitchen and dining area.
The main level’s primary suite offers a spa-like bath, expansive walk-in closet, and private deck access.
Unique spaces include a mudroom, a three-car garage, and a covered porch ideal for relaxation.
An optional daylight basement adds 1,631 sq. ft., providing 2 additional bedrooms, a rec room with fireplace, media room, and laundry.

What's Included

Cover Sheet
Specifications
Foundation Layout Plan
Floor Plans
Sections
Elevations
Roof Ridge Plan
Details sheet(s)
Electrical Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Plumbing & Electrical plans
Mechanical Drawings (location of heating and air equipment and duct work)
Framing layouts with beam sizes and locations
Renderings, photography, or marketing imagery
Energy calculations - handled locally when required

Starting at

Loading...

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee

What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,007 sq. ft.

1st Floor

2,007 sq. ft.

Basement Unfinished

444 sq. ft.

Optional Lower Level

1,631 sq. ft.

Porch, Front

50 sq. ft.

Covered Deck

241 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

3, 4, or 5

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

74' 0"

Depth

65' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

928 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

8' 8"

First Floor

9'

Room

Ceiling Type

Height

Great Room

11' 0''

Primary Bedroom

9' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Architectural Style

Special Features

Bedrooms - Clustered

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,007 sq. ft.

1st Floor

2,007 sq. ft.

Basement Unfinished

444 sq. ft.

Optional Lower Level

1,631 sq. ft.

Porch, Front

50 sq. ft.

Covered Deck

241 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

3, 4, or 5

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

74' 0"

Depth

65' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

928 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

8' 8"

First Floor

9'

Room

Ceiling Type

Height

Great Room

11' 0''

Primary Bedroom

9' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Architectural Style

Special Features

Bedrooms - Clustered

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor
