Plan 36446TX 3 or 4 Bed Tudor for Narrow Lot

2,598 3-4 3 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

3 or 4 Bed Tudor for Narrow Lot

Plan 36446TX

  • 2,598

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Stories

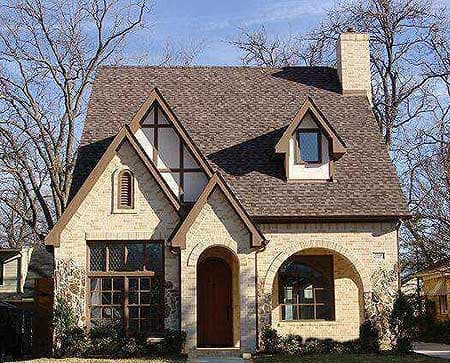

  • This lovely European home plan is perfect for a narrow lot and features peaks, arches, stone, brick, and interesting windows.
  • An arched, covered porch leads into the front of the home.
  • A study with large walk-in closet and access to a full bath sits at the front of the home.
  • Adjacent to the study is the living room with fireplace which opensinto the elegant dining room.
  • Entry from the dining room into the kitchen allows for easy access while serving family and guests.
  • The gourmet kitchen has a large, freestanding, granite eating bar that acts as separation from the family room and breakfast area.
  • The family room has a corner fireplace and access to the patio.
  • Upstairs, two bedrooms share a Jack and Jill bath with separate vanities and large walk-in closets.
  • The master suite offers a luxurious master bath with his and her vanities, separate shower and tub with glass block, and a large wardrobe with built-ins.
  • A utility room and attic also share space on the second floor.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3 or 4 Bed Tudor for Narrow Lot - 36446TX floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

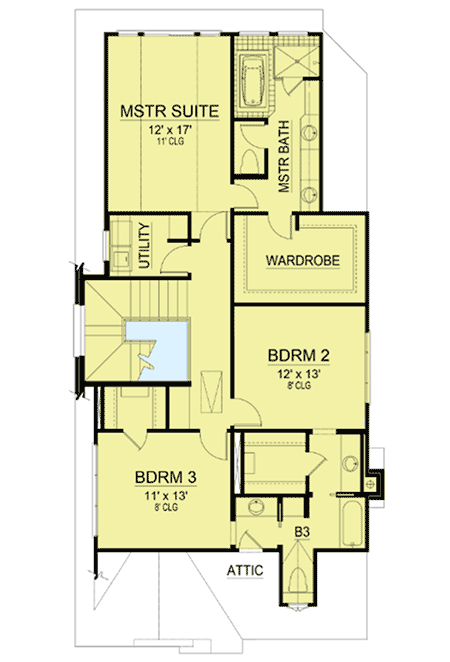

3 or 4 Bed Tudor for Narrow Lot - 36446TX floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,598 sq. ft.
  • 1st Floor: 1,450 sq. ft.
  • 2nd Floor: 1,148 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 30' 0"
  • Depth: 63' 0"
  • Max ridge height: 33' 0"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Architectural Style

Special features

Plan Collections

3 or 4 Bed Tudor for Narrow Lot

  • 2,598

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,075
  • 5 Sets $1,275
  • CAD + PDF - Single Build $1,620
  • View all purchase option online

About This Plan

  • This lovely European home plan is perfect for a narrow lot and features peaks, arches, stone, brick, and interesting windows.
  • An arched, covered porch leads into the front of the home.
  • A study with large walk-in closet and access to a full bath sits at the front of the home.
  • Adjacent to the study is the living room with fireplace which opensinto the elegant dining room.
  • Entry from the dining room into the kitchen allows for easy access while serving family and guests.
  • The gourmet kitchen has a large, freestanding, granite eating bar that acts as separation from the family room and breakfast area.
  • The family room has a corner fireplace and access to the patio.
  • Upstairs, two bedrooms share a Jack and Jill bath with separate vanities and large walk-in closets.
  • The master suite offers a luxurious master bath with his and her vanities, separate shower and tub with glass block, and a large wardrobe with built-ins.
  • A utility room and attic also share space on the second floor.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,598 sq. ft.
  • 1st Floor: 1,450 sq. ft.
  • 2nd Floor: 1,148 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 30' 0"
  • Depth: 63' 0"
  • Max ridge height: 33' 0"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"
Plan 36446TX
View this and more for this plan by visiting www.architechtecturaldesigns.com/36446TX
|
Need Help? 800-854-7852
|
