Plan 33112ZR

3 or 4 Bedroom Energy Saving House Plan

2,460 3-4 3 1 2
Pageloader

3 or 4 Bedroom Energy Saving House Plan

Plan 33112ZR

  • 2,460

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • Designed as part of our Net Zero Ready house plan collection, this home will save you up to 50% of the energy costs when compared with traditionally designed home plans.
  • Choose from 3 bedrooms and a den or 4 bedrooms with this flexible floor plan.
  • Tray ceilings throughout the house add elegance.
  • The big covered lanai in back gives you plenty of room for relaxing or entertaining outdoors.
  • Related Plans: Get alternate elevations with house plan 33111ZR and 33112ZR.

COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.



WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.

FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.

SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.

ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.

REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.



EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.



CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)



ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details

Floor Plan

Plan details



3 or 4 Bedroom Energy Saving House Plan

  • 2,460

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,535
  • 5 Sets $1,635
  • CAD $1,995
  • View all purchase option online

About This Plan

  • Designed as part of our Net Zero Ready house plan collection, this home will save you up to 50% of the energy costs when compared with traditionally designed home plans.
  • Choose from 3 bedrooms and a den or 4 bedrooms with this flexible floor plan.
  • Tray ceilings throughout the house add elegance.
  • The big covered lanai in back gives you plenty of room for relaxing or entertaining outdoors.
  • Related Plans: Get alternate elevations with house plan 33111ZR and 33112ZR.

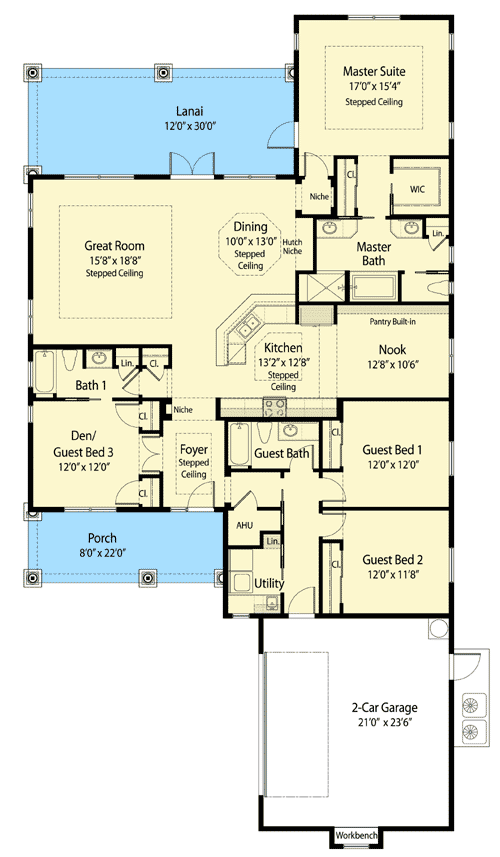

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,460 sq. ft.
  • 1st Floor: 2,460 sq. ft.
  • Porch, Front: 176 sq. ft.
  • Porch, Rear: 360 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Stem Wall

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 48' 0"
  • Depth: 94' 0"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 494 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Framing Type: Truss

Architectural Style

  • European
  • French Country

Special features

  • 1st Floor Master Suite
  • CAD Available
  • Den-Office-Library-Study
  • PDF

Plan Collections

  • Net Zero Ready
