Plan 710417BTZ 3-story Craftsman with Open Floor Plan

3-story Craftsman with Open Floor Plan

Plan 710417BTZ

  • 2,602

    Heated s.f.

  • 3-5

    Beds

  • 3 - 4

    Baths

  • 2-3

    Stories

  • 2

    Cars

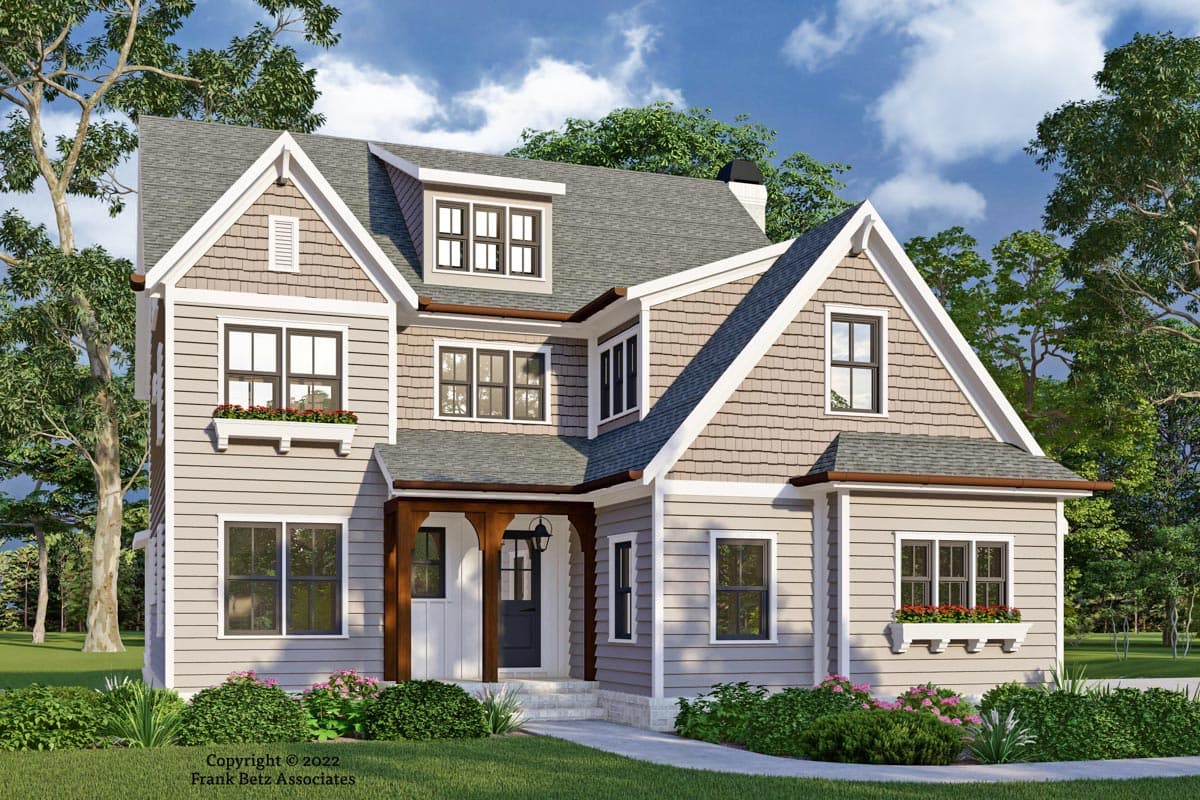

  • This charming Craftsman cottage has an exterior with a combination of horizontal lap siding, shakes and a touch of board-and-batten. Window sashes and timber columns add to the character of the home.
  • Inside, the main floor is open concept with the entire rear of the home completely open and light-filled and the kitchen, dining and living spaces perfectly blend for easy living.
  • The main level bedroom is just right for guests or a work-from-home occupant.
  • In back, the covered porch features a vaulted ceiling and built-in grilling station.
  • The upper level houses the owner's suite and two additional bedrooms. The family sized laundry space is on the upper level and has a folding area and utility sink.
  • The optional bonus room can have many uses, recreation space or a fifth bedroom.
  • The design is literally topped off by an optional third level with another bedroom, bath and game room.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

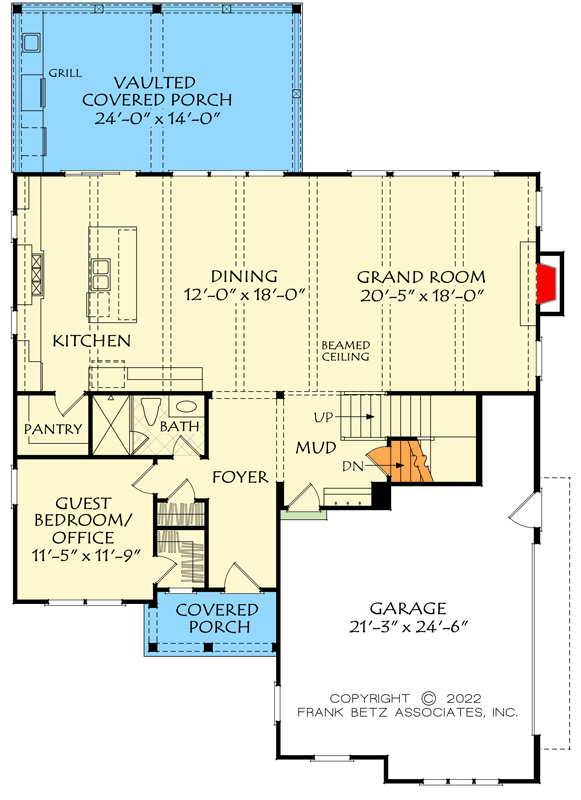

3-story Craftsman with Open Floor Plan - 710417BTZ floor plan - Main Level

Second Floor with Optionally Finished Bonus Room

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

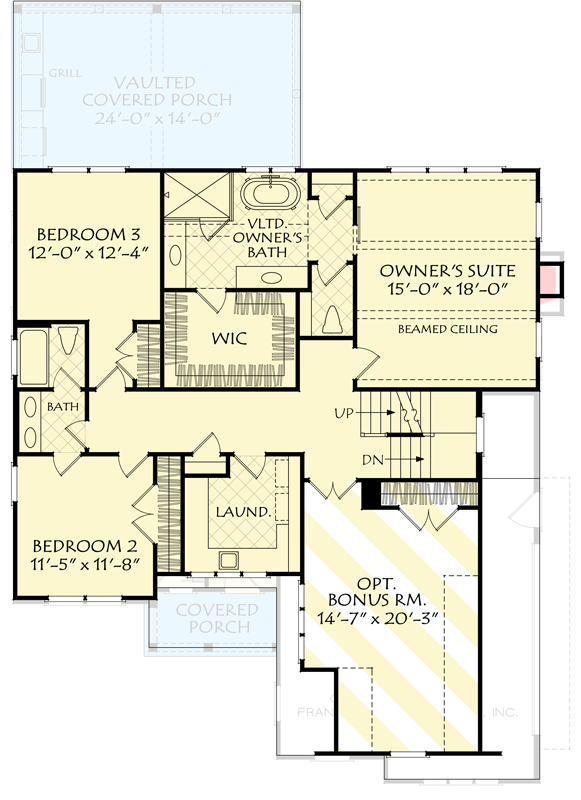

3-story Craftsman with Open Floor Plan - 710417BTZ floor plan - Second Floor with Optionally Finished Bonus Room

Optionally Finished Third Floor

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

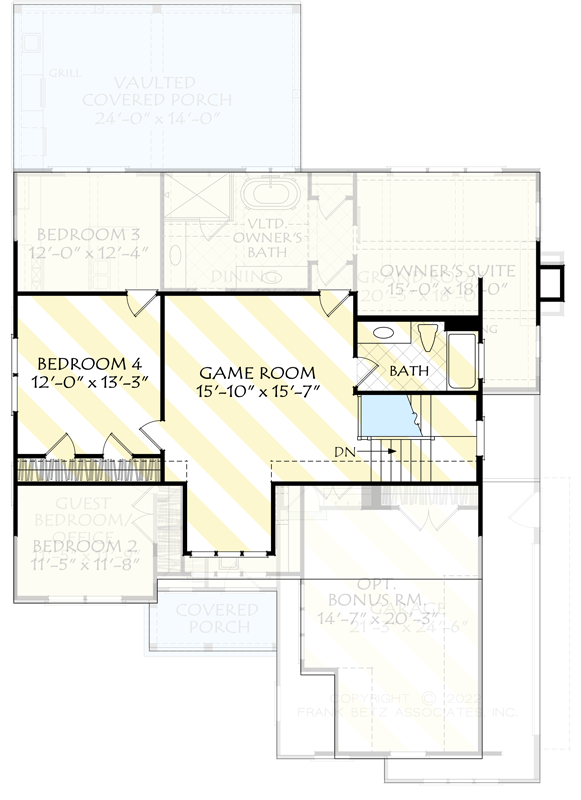

3-story Craftsman with Open Floor Plan - 710417BTZ floor plan - Optionally Finished Third Floor

Plan details

3-story Craftsman with Open Floor Plan

  • 2,602

    Heated s.f.

  • 3-5

    Beds

  • 3 - 4

    Baths

  • 2-3

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,095
  • PDF - Unlimited Build $2,295
  • 5 Sets + PDF $2,375
  • PDF - Unlimited Build + 5-sets $2,575
  • CAD - Unlimited Build $4,145
  • View all purchase option online

About This Plan

  • This charming Craftsman cottage has an exterior with a combination of horizontal lap siding, shakes and a touch of board-and-batten. Window sashes and timber columns add to the character of the home.
  • Inside, the main floor is open concept with the entire rear of the home completely open and light-filled and the kitchen, dining and living spaces perfectly blend for easy living.
  • The main level bedroom is just right for guests or a work-from-home occupant.
  • In back, the covered porch features a vaulted ceiling and built-in grilling station.
  • The upper level houses the owner's suite and two additional bedrooms. The family sized laundry space is on the upper level and has a folding area and utility sink.
  • The optional bonus room can have many uses, recreation space or a fifth bedroom.
  • The design is literally topped off by an optional third level with another bedroom, bath and game room.

Floor Plans

  • Main Level

  • Second Floor with Optionally Finished Bonus Room

  • Optionally Finished Third Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,602 sq. ft.
  • 1st Floor: 1,340 sq. ft.
  • 2nd Floor: 1,262 sq. ft.
  • Porch, Rear: 336 sq. ft.
  • Porch, Front: 53 sq. ft.
  • Bonus: 326 sq. ft.
  • Basement Unfinished: 1,340 sq. ft.
  • Third Floor: 654 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3 or 4

Foundation Type

    • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 46' 0"
  • Depth: 65' 0"
  • Max ridge height: 35' 4"

Garage

  • Type: Attached
  • Area: 546 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0" Opt 3rd 8' 0"

Roof

  • Primary Pitch: 12 on 10
  • Framing Type: Stick
