3-Story Modern House Plan with Two Master Suites

Name: Plan 85292MS: 3-Story Modern House Plan with Two Master Suites
Brand: Architectural Designs
SKU: 85292MS
Price: 1085.45 USD
Availability: InStock

Heated S.F.

2,165

Beds

Baths

Stories

Cars

Floor Plan

Main Level

2nd Floor

Lower Level

Plan Details

Dramatic roof lines and expansive windows set the stage for this 3-story, modern house plan with a lower-level, studio complete with a full bathroom, bar, and bedroom.

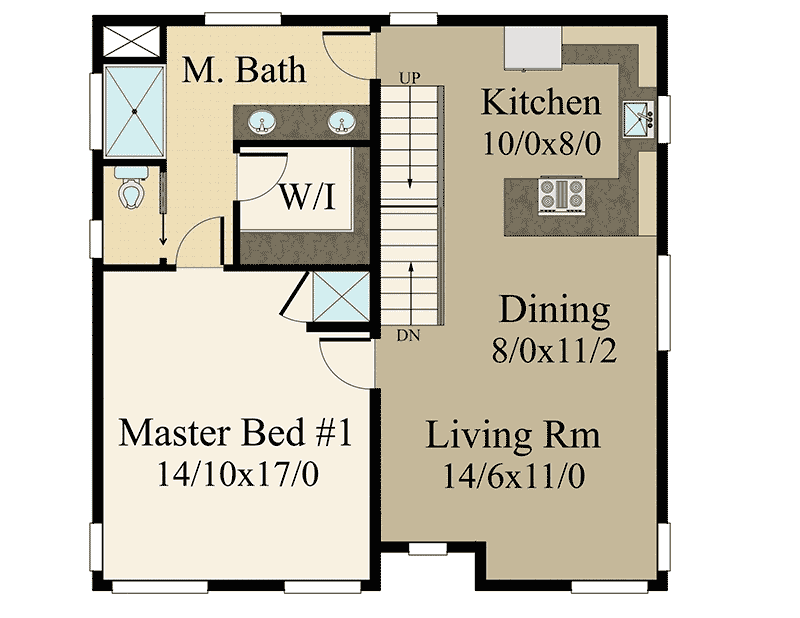

The main level is home to the first master suite, kitchen, dining room, and living room. The master suite on this floor has two entry points, one leading to the bathroom and one to the bedroom.
The U-shaped kitchen offers plenty of counter space and opens to the dining and living room.
The third and topmost floor houses the second master suite and third bedroom, both with vaulted ceilings. The second master suite has a sliding door into the bathroom, and a lengthy walk-in closet.
Rounding out the third floor is a deck off the staircase with side and rearward views.

What's Included

Elevations: Front, Right, Rear, Left
Fully Dimensioned Floor Plans (window and door sizes called out at openings)
Foundation Plan with notes
Roof Framing Plan with notes
Section Views
Electrical Layout

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
