Plan 100319GHR
EXCLUSIVE
3-Story Modern Townhouse Plan with Flex Room - 1965 Sq Ft
Heated S.F.
1,965
Beds
2-3
Baths
3.5
Stories
3
Cars
2
What's Included
Plan Details
  • This 3-story modern townhouse plan has a flex room, a narrow 28-foot-wide footprint and gives you 1,965 square feet of heated living.

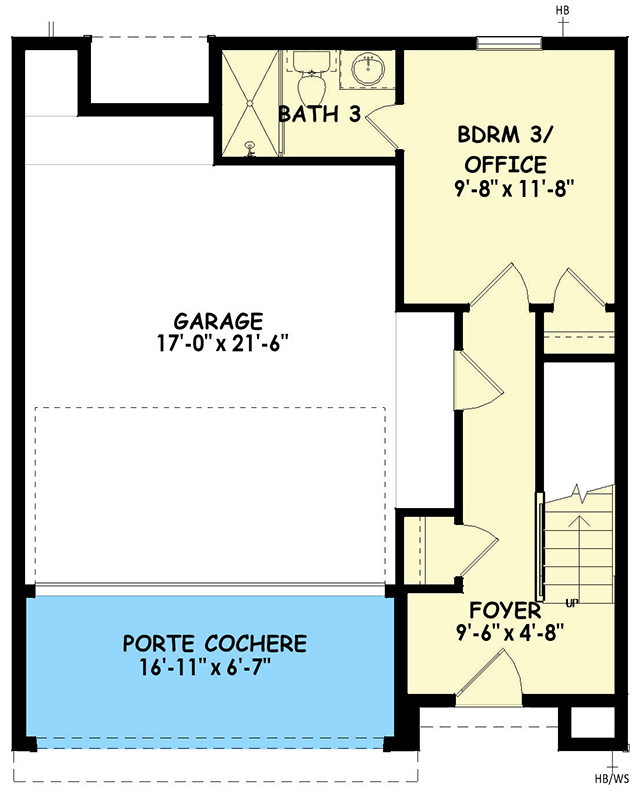

  • A flex room on the ground floor can be used as a bedroom or as a home office.

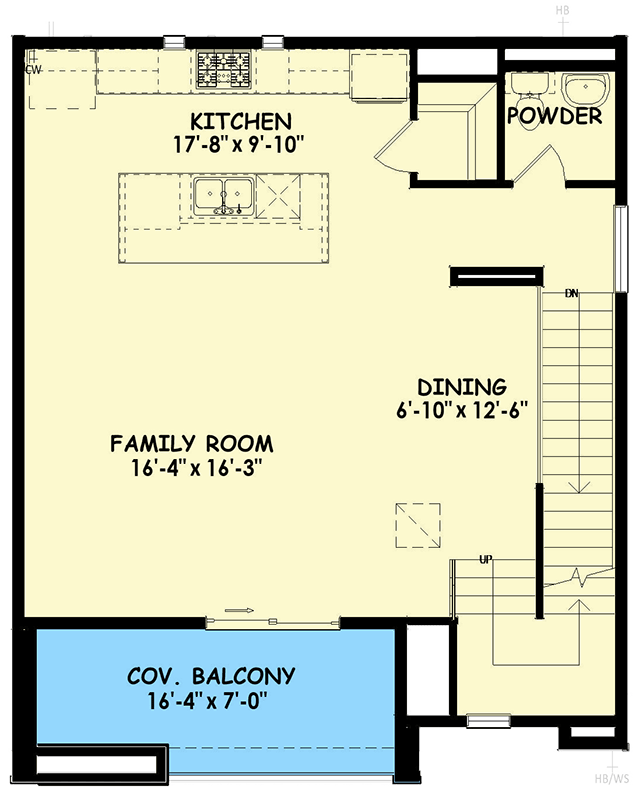

  • The second floor is open concept and has a 125 square feet covered balcony accessible through sliding doors in the family room.

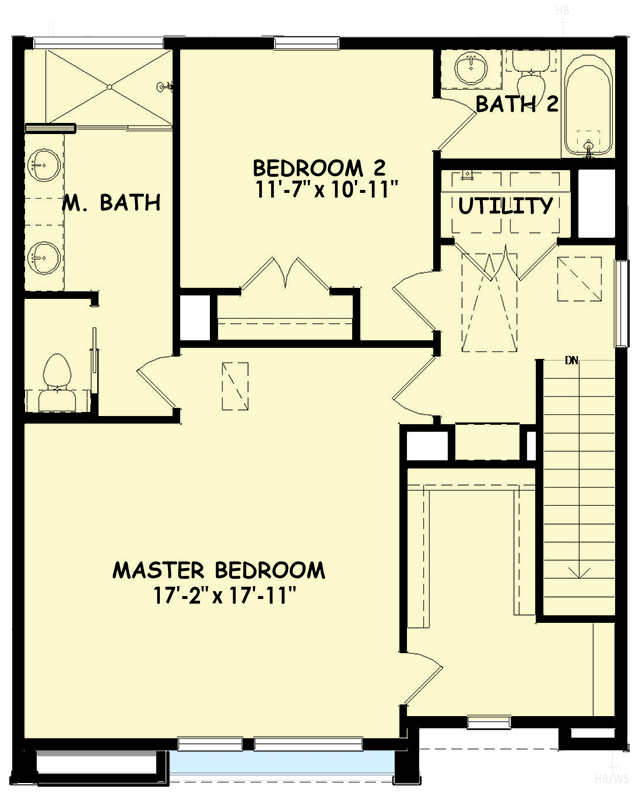

  • The third floor is dedicated to the master suite in front and Bed 2 in back. Both bedrooms have their own bathrooms and laundry is conveniently located behind bi-fold doors in the landing area at the top of the stairs.

What's Included
  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details
  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Story Modern Townhouse Plan with Flex Room - 1965 Sq Ft

  • 1,965

    Heated s.f.

  • 2-3

    Beds

  • 3.5

    Baths

  • 3

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,965 sq. ft.
  • 1st Floor: 344 sq. ft.
  • 2nd Floor: 776 sq. ft.
  • 3rd Floor: 845 sq. ft.

Dimensions

  • Width: 28' 0"
  • Depth: 32' 6"
  • Max ridge height: 38' 9"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 405 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 1" Second Floor / 10' 1" Third Floor 10' 1"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site
