Plan 710022BTZ

3-Story Traditional House Plan with Bonus Over Garage

3-Story Traditional House Plan with Bonus Over Garage

Plan 710022BTZ

  • 1,505

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This traditional two-story house plan gives you three upstairs bedroom, leaving the main floor for family time.
  • A columned porch leads to an open foyer and family room complete with a fireplace.
  • A dining room with a sliding glass door is thoughtfully placed between the family room and kitchen.
  • A bayed breakfast nook works well with the roomy kitchen.
  • On the second level, a large master suite features a tray ceiling, detailed bath and a space-efficient, walk-in closet.
  • Two family bedrooms, a hall bath and convenient laundry center round out the plan.
  • A bonus room over the garage gives you expansion space.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.


Floor Plan

Plan details



3-Story Traditional House Plan with Bonus Over Garage

  • 1,505

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,035
  • 8 Sets $1,090
  • PDF - multi-use $1,125
  • Reproducible Set $1,180
  • CAD - multi-use $2,150
  • View all purchase option online

About This Plan

  • This traditional two-story house plan gives you three upstairs bedroom, leaving the main floor for family time.
  • A columned porch leads to an open foyer and family room complete with a fireplace.
  • A dining room with a sliding glass door is thoughtfully placed between the family room and kitchen.
  • A bayed breakfast nook works well with the roomy kitchen.
  • On the second level, a large master suite features a tray ceiling, detailed bath and a space-efficient, walk-in closet.
  • Two family bedrooms, a hall bath and convenient laundry center round out the plan.
  • A bonus room over the garage gives you expansion space.

Floor Plans

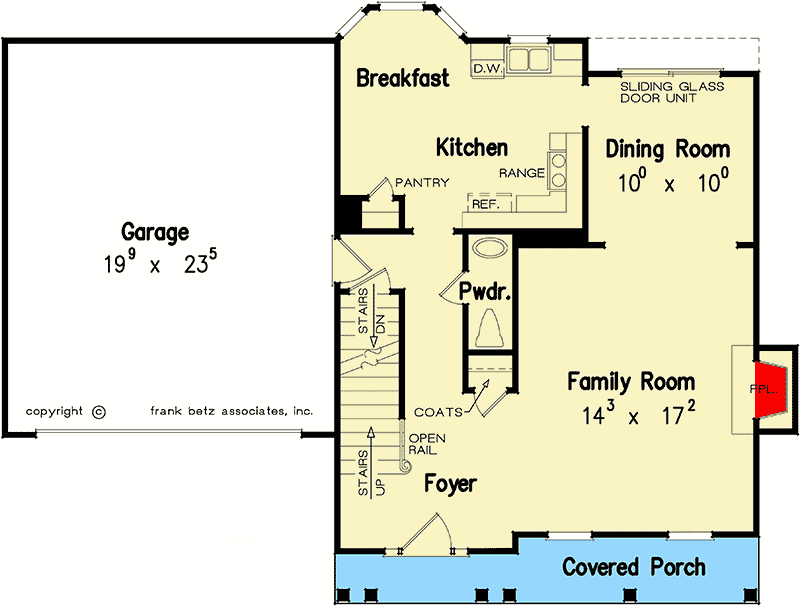

  • Main Level

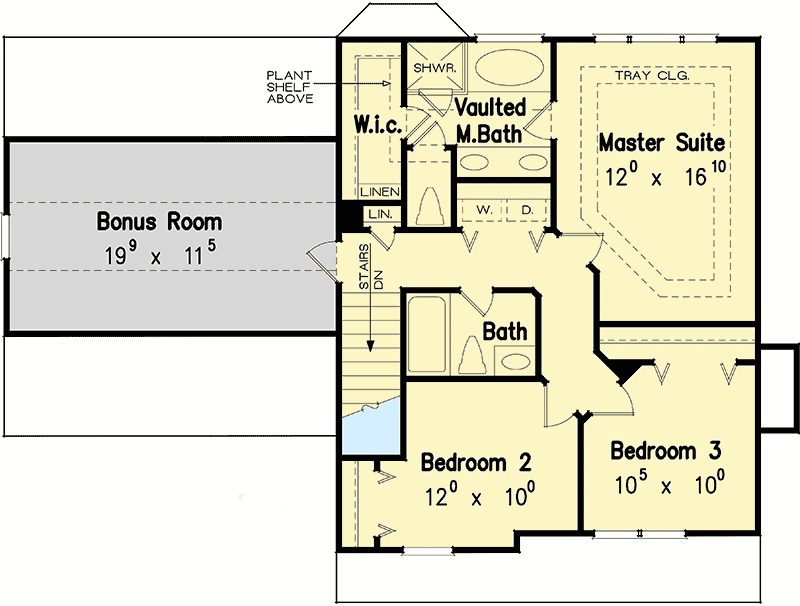

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,505 sq. ft.
  • 1st Floor: 767 sq. ft.
  • 2nd Floor: 738 sq. ft.
  • Bonus: 240 sq. ft.
  • Basement Unfinished: 756 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 47' 10"
  • Depth: 36' 0"
  • Max ridge height: 29' 6"

Garage

  • Type: Attached
  • Area: 480 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
