Plan 8587MS

Exclusive

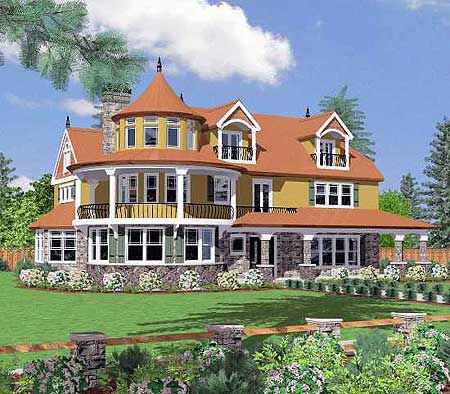

3-Story Victorian House Plan with Circular Kitchen - 7337 Ssq Ft

Heated S.F.
7,337
Beds
4
Baths
5
Stories
3
Cars
3

Floor Plan

Plan 8587MS

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor

Plan 8587MS

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 8587MS: 3-Story Victorian House Plan with Circular Kitchen - 7337 Ssq Ft - Floor Plan - Main Level - Victorian

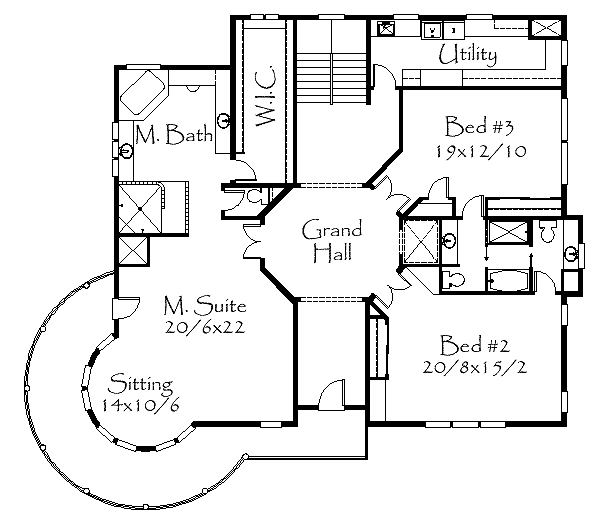

2nd Floor

Plan 8587MS: 3-Story Victorian House Plan with Circular Kitchen - 7337 Ssq Ft - Floor Plan - 2nd Floor - Victorian

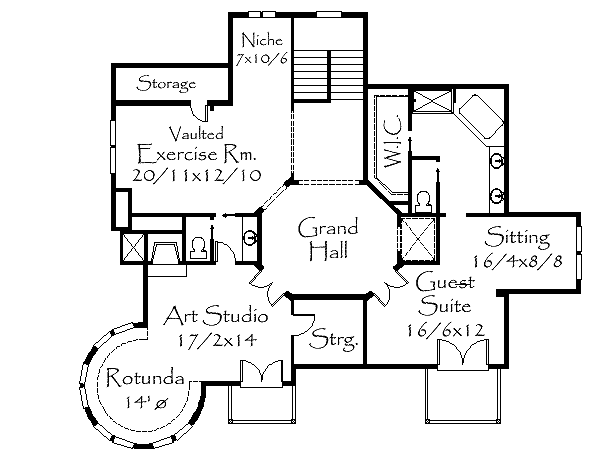

3rd Floor

Plan 8587MS: 3-Story Victorian House Plan with Circular Kitchen - 7337 Ssq Ft - Floor Plan - 3rd Floor - Victorian

Plan Details

  • This 3-story Victorian house plan gives you 4 beds, 5 baths and 7,337 square feet of heated living space.
  • Architectural Designs primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

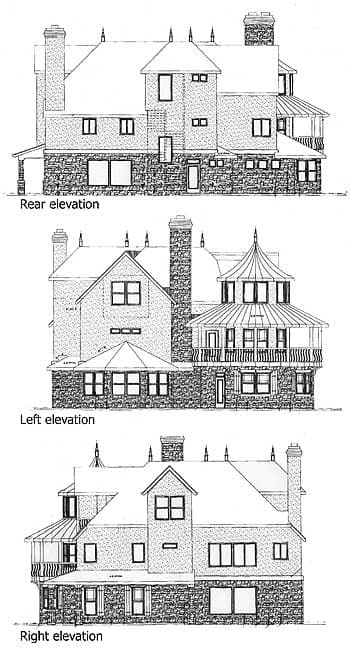

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

7,337 sq. ft.

1st Floor

2,981 sq. ft.

2nd Floor

2,533 sq. ft.

3rd Floor

1,823 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

5

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

70' 0"

Depth

57' 0"

Max Ridge Height

35' 6"

Garage

Type

Detached

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Architectural Style

Victorian

Special Features

Breakfast Nook

Elevator

Formal Dining

Game/Rec Room

Jack & Jill Bath

Laundry - Upstairs

Master Suite - Sitting Area

Master Suite - Upstairs

Wrap Around Porch

Plan Collections

Exclusive

Luxury

Square Footage Breakdown

Total Heated Area

7,337 sq. ft.

1st Floor

2,981 sq. ft.

2nd Floor

2,533 sq. ft.

3rd Floor

1,823 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

5

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

70' 0"

Depth

57' 0"

Max Ridge Height

35' 6"

Garage

Type

Detached

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Architectural Style

Victorian

Special Features

Breakfast Nook

Elevator

Formal Dining

Game/Rec Room

Jack & Jill Bath

Laundry - Upstairs

Master Suite - Sitting Area

Master Suite - Upstairs

Wrap Around Porch

Plan Collections

Exclusive

Luxury
