Plan 36455TX

3 Story Wall of Windows

Pageloader

3 Story Wall of Windows

Plan 36455TX

  • 7,721

    Heated s.f.

  • 4

    Beds

  • 5.5+

    Baths

  • 2

    Stories

  • 3

    Cars

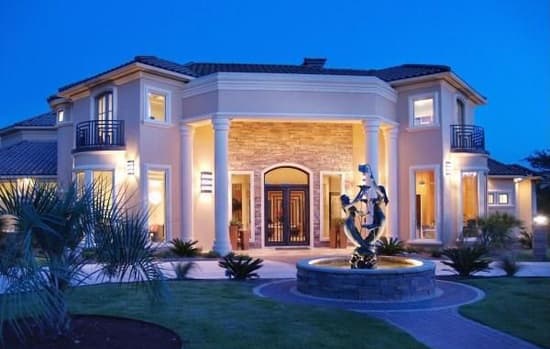

  • This Mediterranean-style luxury house plan offers stunning views, walls of windows, balconies, and beautiful trim and ceiling features. The stucco exterior with arched windows and doors is topped with a clay tile roof.

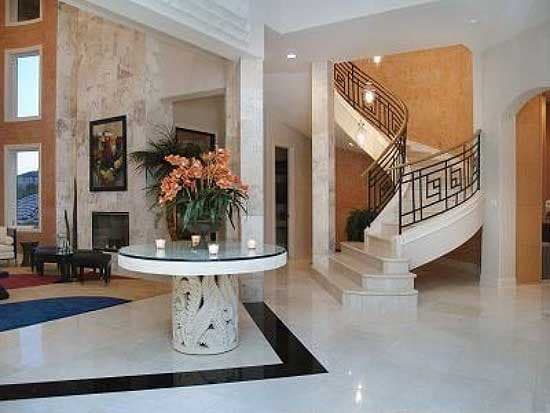

  • The three-story entryway has a symmetrical design. The covered entry is supported by large decorative columns and welcomes you into the grand foyer flanked by the study and the formal dining room with trey ceilings. A work area is tucked under the spiral staircase.
  • The octagonal master suite has trey ceilings and a warming fireplace and boasts a luxurious master bath with his and hers vanities, separate shower and garden tub, an exercise room, and a his and hers wardrobe.

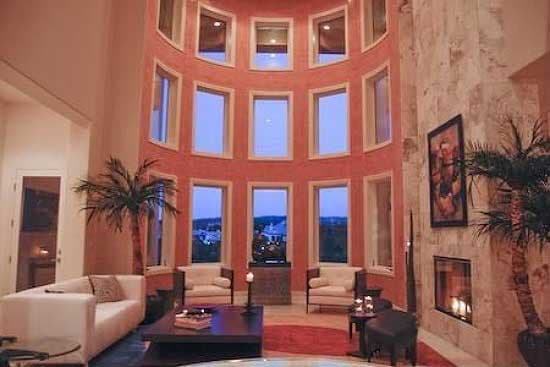

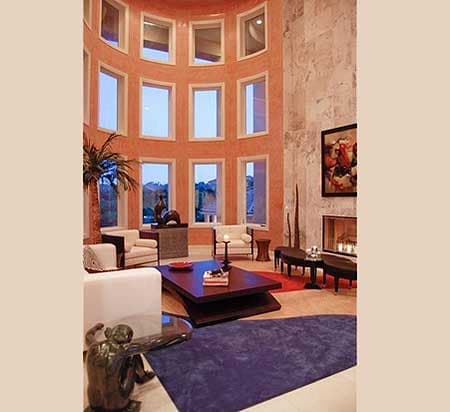

  • The living room is centrally located and has a 25-foot ceiling and a 3-story wall of windows.
  • Next to the formal dining room is a wine room where you can show off your glasses and goblets.

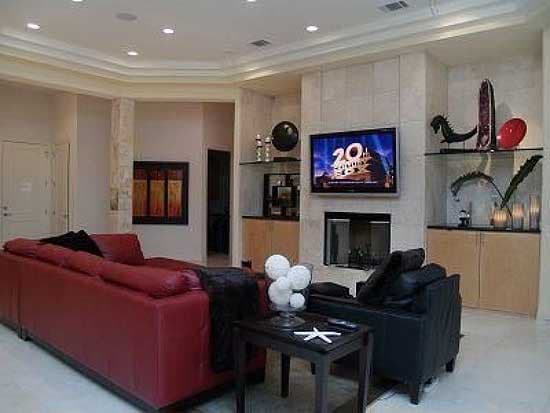

  • The left wing of the home has a family room with a fireplace and built-ins, a gourmet kitchen with butlery, pantry, two dishwashers, plenty of counter space and a free-standing center island.

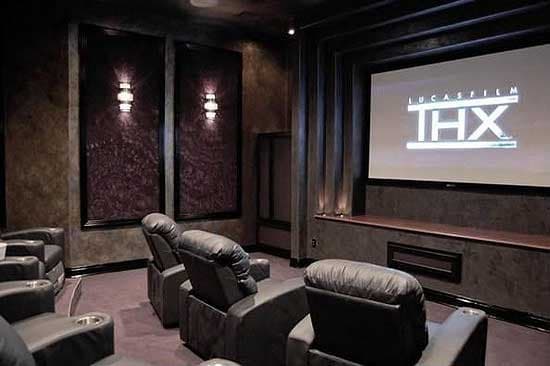

  • Adjacent to the family room is a large media room with wet bar and powder room. A utility room, family bedroom with bath and walk-in closet complete the main floor.
  • Upstairs a game room with full bath and walk-in closet shares a balcony with a family bedroom with its full bath and walk-in closet. There are dynamic views to the first floor below and a guest suite with a private guest bath.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

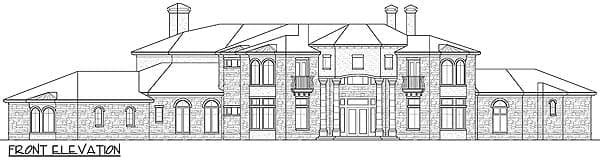

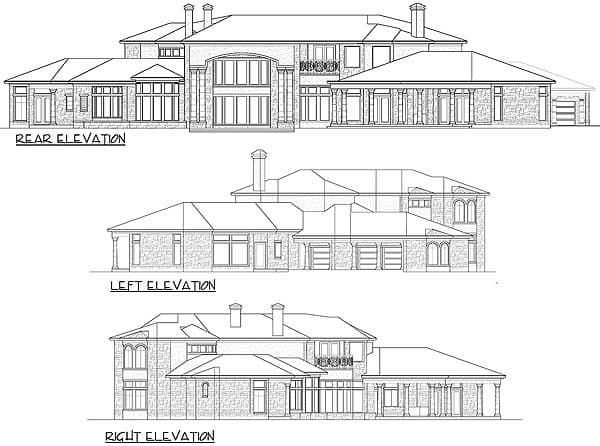

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page - NOT all of our house plans include sections because they may not have been required with the original design.

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Floor Plan

Plan details



3 Story Wall of Windows

  • 7,721

    Heated s.f.

  • 4

    Beds

  • 7

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $3,295
  • 5 Sets $3,495
  • CAD $4,950
  • View all purchase option online

About This Plan

  • This Mediterranean-style luxury house plan offers stunning views, walls of windows, balconies, and beautiful trim and ceiling features. The stucco exterior with arched windows and doors is topped with a clay tile roof.
  • The three-story entryway has a symmetrical design. The covered entry is supported by large decorative columns and welcomes you into the grand foyer flanked by the study and the formal dining room with trey ceilings. A work area is tucked under the spiral staircase.
  • The octagonal master suite has trey ceilings and a warming fireplace and boasts a luxurious master bath with his and hers vanities, separate shower and garden tub, an exercise room, and a his and hers wardrobe.
  • The living room is centrally located and has a 25-foot ceiling and a 3-story wall of windows.
  • Next to the formal dining room is a wine room where you can show off your glasses and goblets.
  • The left wing of the home has a family room with a fireplace and built-ins, a gourmet kitchen with butlery, pantry, two dishwashers, plenty of counter space and a free-standing center island.
  • Adjacent to the family room is a large media room with wet bar and powder room. A utility room, family bedroom with bath and walk-in closet complete the main floor.
  • Upstairs a game room with full bath and walk-in closet shares a balcony with a family bedroom with its full bath and walk-in closet. There are dynamic views to the first floor below and a guest suite with a private guest bath.

Floor Plans

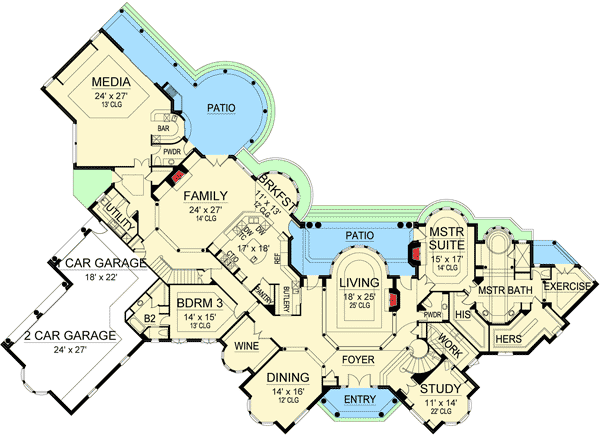

  • Main Level

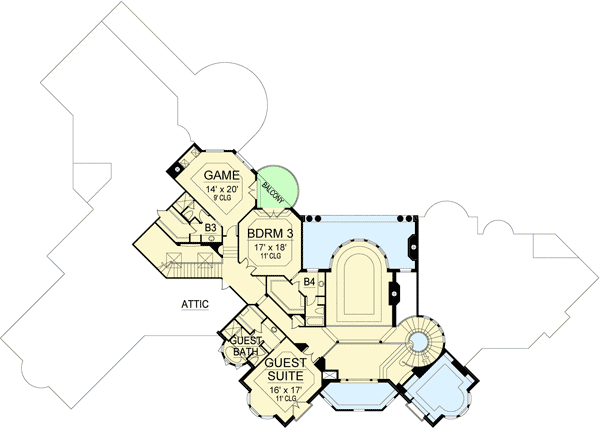

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 7,721 sq. ft.
  • 1st Floor: 5,985 sq. ft.
  • 2nd Floor: 1,736 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 162' 0"
  • Depth: 57' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 1084 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 9' 0"
