Plan 62552DJ 30'-Wide House Plan with Upstairs Laundry

30'-Wide House Plan with Upstairs Laundry

Plan 62552DJ

  • 2,307

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • At only 30' wide, this narrow lot house plan features thoughtful room arrangements and an abundance of amenities. The home's gabled front porch opens into an entry area that offers immediate views to the family room, dining room and kitchen. The kitchen features a breakfast island and pantry, which is accessed through the Mom's Room with built-in desk
  • A rear-load, two-car garage stays in line with the home's streamlined design, and accesses the living areas through a practical mud room, complete with bench, closet and powder bath.
  • On the second level, the master suite boasts a Cathedral Ceiling and an abundance of natural light. Its bath area includes a soaking tub, shower, dual sinks, compartmented toilet and walk-in closet. Bedrooms 2 and 3 both have walk-in closets and share a bath. An upstairs common area is highlighted by a naturally lit recessed area with built-in desk.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
30'-Wide House Plan with Upstairs Laundry - 62552DJ floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

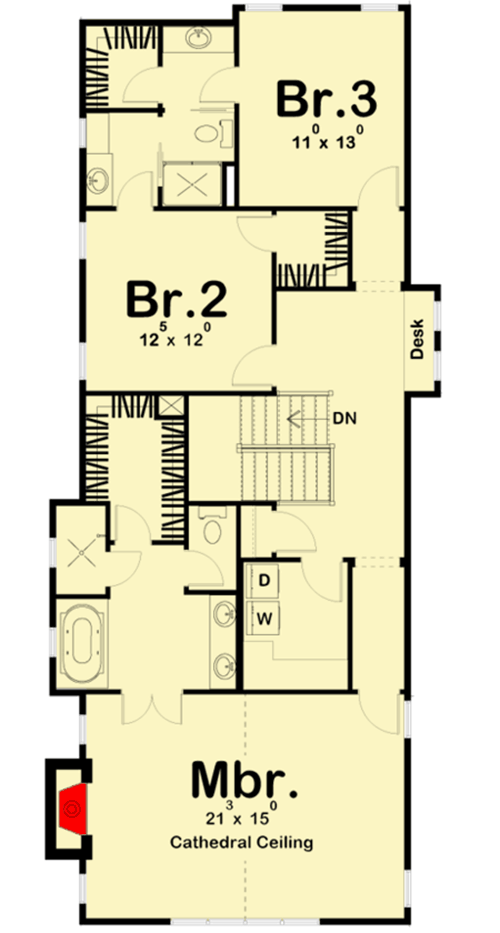

30'-Wide House Plan with Upstairs Laundry - 62552DJ floor plan - 2nd Floor

Plan details

30'-Wide House Plan with Upstairs Laundry

  • 2,307

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,200
  • 5 Sets + PDF $1,450
  • PDF - Unlimited Build $1,700
  • CAD - Single-Build $1,700
  • CAD - Unlimited Build $2,200
  • View all purchase option online

About This Plan

  • At only 30' wide, this narrow lot house plan features thoughtful room arrangements and an abundance of amenities. The home's gabled front porch opens into an entry area that offers immediate views to the family room, dining room and kitchen. The kitchen features a breakfast island and pantry, which is accessed through the Mom's Room with built-in desk
  • A rear-load, two-car garage stays in line with the home's streamlined design, and accesses the living areas through a practical mud room, complete with bench, closet and powder bath.
  • On the second level, the master suite boasts a Cathedral Ceiling and an abundance of natural light. Its bath area includes a soaking tub, shower, dual sinks, compartmented toilet and walk-in closet. Bedrooms 2 and 3 both have walk-in closets and share a bath. An upstairs common area is highlighted by a naturally lit recessed area with built-in desk.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,307 sq. ft.
  • 1st Floor: 993 sq. ft.
  • 2nd Floor: 1,314 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 30' 0"
  • Depth: 74' 0"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 468 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
