3000 Sq. Ft. Rustic Craftsman Ranch House Plan with Home Office and 3-Bedrooms

Plan 85389MS

  • 3,010

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Long and low, this rustic Mountain home plan has an L-shape due to the side-load garage.
  • Wonderful views await you as soon as you step into the foyer, where you can see straight back through the great room to the covered patio beyond.
  • The vaulted ceiling soar upward for a majestic feel.
  • There are no walls to block views in the nook, kitchen, great room or dining room.
  • Off to one side by itself, the master suite gives you quiet seclusion.
  • Each of the other two bedrooms has a private bathroom.

Each plan set is drawn to 1/4" scale and includes the following:

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

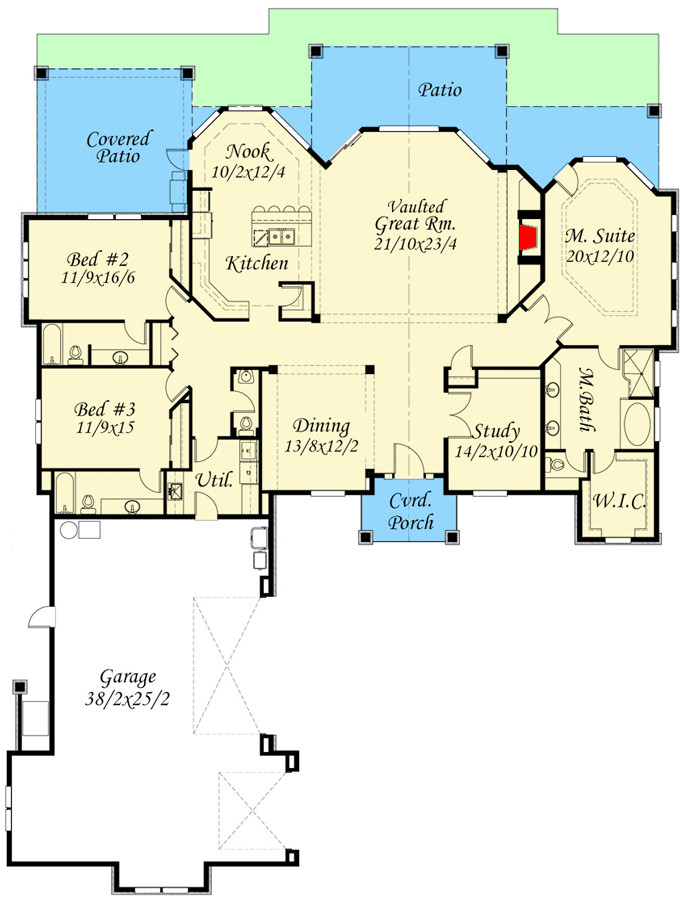

3000 Sq. Ft. Rustic Craftsman Ranch House Plan with Home Office and 3-Bedrooms - 85389MS floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,010 sq. ft.
  • 1st Floor: 3,010 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 78' 4"
  • Depth: 99' 0"
  • Max ridge height: 30' 0"

Garage

  • Area: 961 sq. ft.
  • Count: 3 Cars

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

3000 Sq. Ft. Rustic Craftsman Ranch House Plan with Home Office and 3-Bedrooms

  • 3,010

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,107
  • 6 Sets + PDF $2,408
  • CAD + PDF - Single-Build $3,461
  • View all purchase option online

About This Plan

  • Long and low, this rustic Mountain home plan has an L-shape due to the side-load garage.
  • Wonderful views await you as soon as you step into the foyer, where you can see straight back through the great room to the covered patio beyond.
  • The vaulted ceiling soar upward for a majestic feel.
  • There are no walls to block views in the nook, kitchen, great room or dining room.
  • Off to one side by itself, the master suite gives you quiet seclusion.
  • Each of the other two bedrooms has a private bathroom.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,010 sq. ft.
  • 1st Floor: 3,010 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 78' 4"
  • Depth: 99' 0"
  • Max ridge height: 30' 0"

Garage

  • Area: 961 sq. ft.
  • Count: 3 Cars

Roof

  • Framing Type: Truss
