3000 Square Foot Craftsman Home Plan with Study and Wraparound Porch

Plan 623162DJ

  • 3,008

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Three tapered pillars support the charming front porch of this Craftsman home plan that delivers 4 bedrooms and 3.5 baths; a total of 3,008 square feet.
  • An entryway with a built-in bench and coat closet provides a drop zone for family and friends, while a few steps further, a study resides behind pocket doors.
  • Exposed beams define the great room and dining area that flows freely into the island kitchen. Enjoy cooking again in this gourmet kitchen with its large range, expansive workspace, and walk-in pantry.
  • Four bedrooms reside upstairs, each with a walk-in closet. The master bedroom features a tray ceiling and the nearby laundry room ensures all residents will pitch in to help with the chore.
  • A mudroom and powder bath frame the entry from the double garage to make coming and going that much easier.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

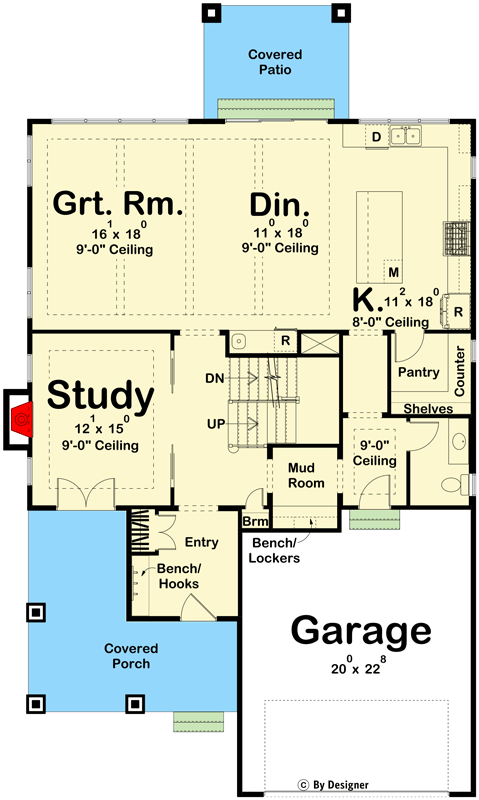

3000 Square Foot Craftsman Home Plan with Study and Wraparound Porch - 623162DJ floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

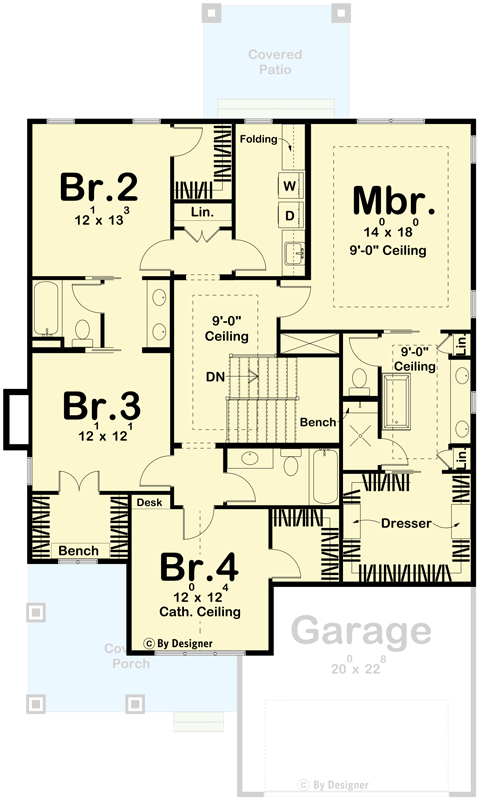

3000 Square Foot Craftsman Home Plan with Study and Wraparound Porch - 623162DJ floor plan - 2nd Floor

3000 Square Foot Craftsman Home Plan with Study and Wraparound Porch

  • 3,008

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,008 sq. ft.
  • 1st Floor: 1,444 sq. ft.
  • 2nd Floor: 1,564 sq. ft.

Dimensions

  • Width: 41' 0"
  • Depth: 69' 0"
  • Max ridge height: 35' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 496 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 On 12; 6 On 12; 12 on
  • Framing Type: Truss
