3047 Square Foot 4 Bed New American House Plan with Upstairs Beds and Laundry
Heated S.F.
3,047
Beds
4-5
Baths
3.5 - 4.5
Stories
2
Cars
2
What's Included
Floor Plan
PRINT PLANS

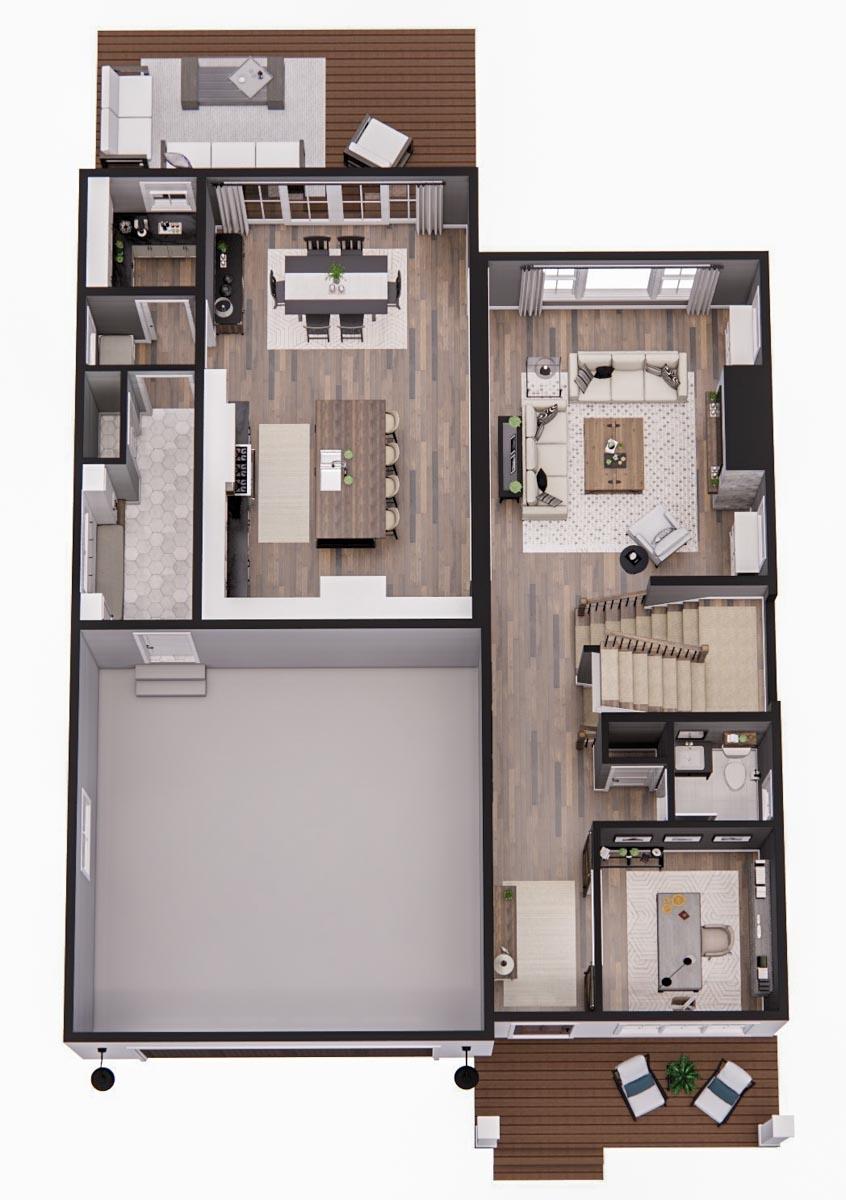

Main Level
Reverse Floor Plan

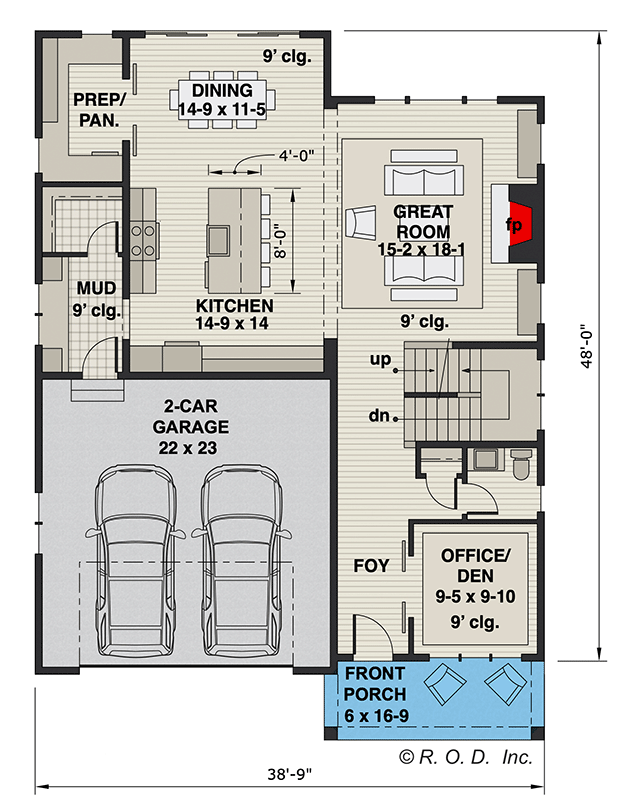

3047 Square Foot 4 Bed New American House Plan with Upstairs Beds and Laundry - 14782RK floor plan - Main Level

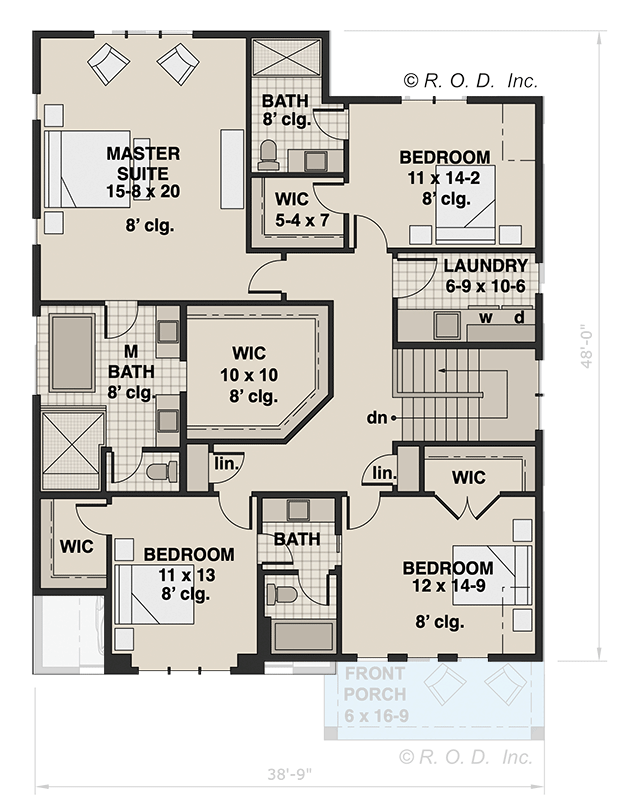

2nd Floor
Reverse Floor Plan

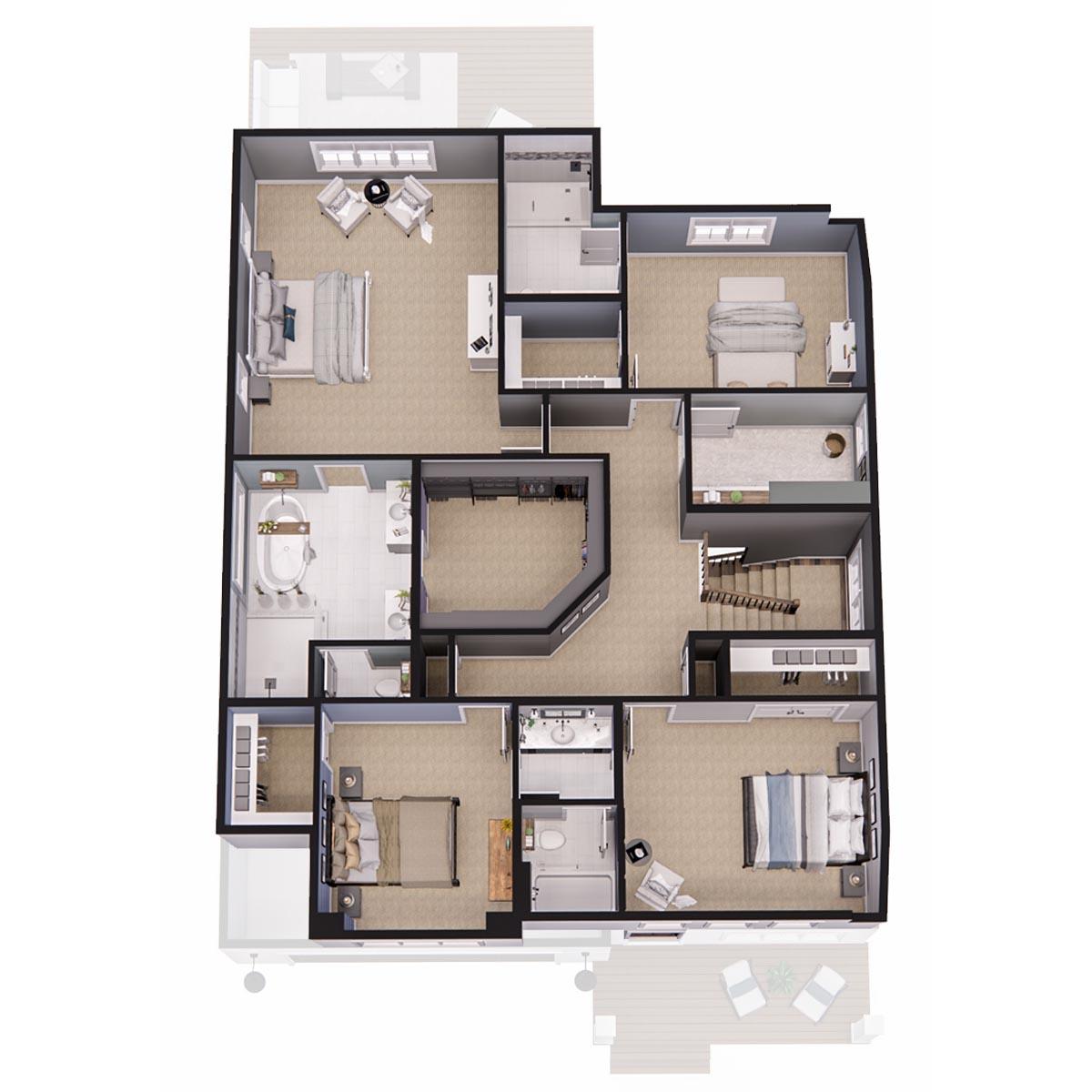

3047 Square Foot 4 Bed New American House Plan with Upstairs Beds and Laundry - 14782RK floor plan - 2nd Floor

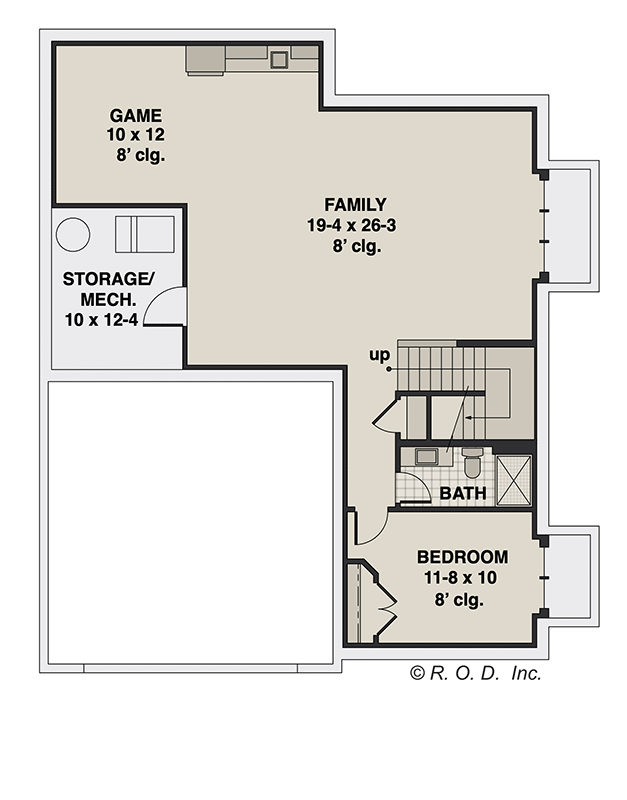

Optional Lower Level
Reverse Floor Plan
3047 Square Foot 4 Bed New American House Plan with Upstairs Beds and Laundry - 14782RK floor plan - Optional Lower Level
Plan Details
  • This 2-story, 3,047 square foot New American house plan gives you 4 bedrooms, 3.5 bathrooms, and a 2-car 506 square foot garage.
  • Upon entering the covered front porch, a stately foyer leads to a den/office on the right and sightlines through the great room. The spacious great room features multiple windows, a cozy fireplace flanked by built-ins, and inviting views.
  • The expansive eat-in kitchen accommodates family cooking and dining. The 4' by 8'  island with a built-in sink and dishwasher seats 4. Ample storage is provided by numerous cabinets and a generous walk-in prep pantry. Sliding doors lead from the dining room to the back yard.
  • The upper-level master suite has a sitting area, en suite bathroom with two vanities vanities, soaking tub, oversized shower, and a spacious walk-in closet with built-ins. Three additional upper-level bedrooms feature walk-in closets. Two share a Jack and Jill bathroom, while the third has an en suite bathroom.
  • Other features include a laundry room with built-in cabinets and a central utility sink, plus a mudroom with built-in lockers for organized entry from the garage.
  • Order the basement version and get a fifth bedroom with bath, a family and game room with wet bar and additional storage space.
What's Included
  • Foundation Plan: Complete with dimensions, referenced details, general notes and schedules.
  • Elevations: Four completed elevations with dimensions and notes.
  • Floor Plan(s): Complete with dimensions and notes.
  • Roof Plan: Complete with roof pitches overhangs and notes.
  • Building Sections
  • General Details


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
IMPORTANT NOTE:  NOT all plans come with a lighting layout.  Please contact us to check for availability.
