Plan 72363DA

3100 Square Foot Craftsman Mountain Lodge House Plan with Vaulted Great Room

Name: Plan 72363DA: 3100 Square Foot Craftsman Mountain Lodge House Plan with Vaulted Great Room
Brand: Architectural Designs
SKU: 72363DA
Price: 3780.0 USD
Availability: InStock

Heated S.F.

3,169

Beds

Baths

3.5

Stories

Cars

Floor Plan

Main Level

2nd Floor

Plan Details

This 4-bed, 3169 square foot Craftsman lodge house plan is designed for those who enjoy outdoor living. From the tapered stone columns, the porch transitions to a partially covered deck that continues to wrap around three sides of the home. The largest section is in line with the great room allowing the space to open to the outdoors on warm summer days.
Inside the 2-story design, the first floor is filled with a spacious great room that boasts a cozy fireplace and soaring vaulted ceilings. Additional first floor features includes the owners' suite with direct access to the wrap-around deck.
A den offers homeowners' the flexibility of adding a fifth bedroom, guest room, home office, or whatever else suites. Rounding out the first floor is the mud hall which provides access to the laundry room and attached two car garage.
Upstairs a loft with stepped ceiling overlooks the living room. Three additional bedrooms are upstairs insuring good separation of space between the secondary bedrooms and the master suite. One of the bedrooms on the second floor could serve as a second master if desired. This room boasts vaulted ceilings, a private covered deck, a walk-in closet and private full bathroom.
Related Plans: Get similar versions in reverse orientation with 72214DA (2,726 sq. ft.) and a larger version with 72449DA (3,031 sq. ft.).

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

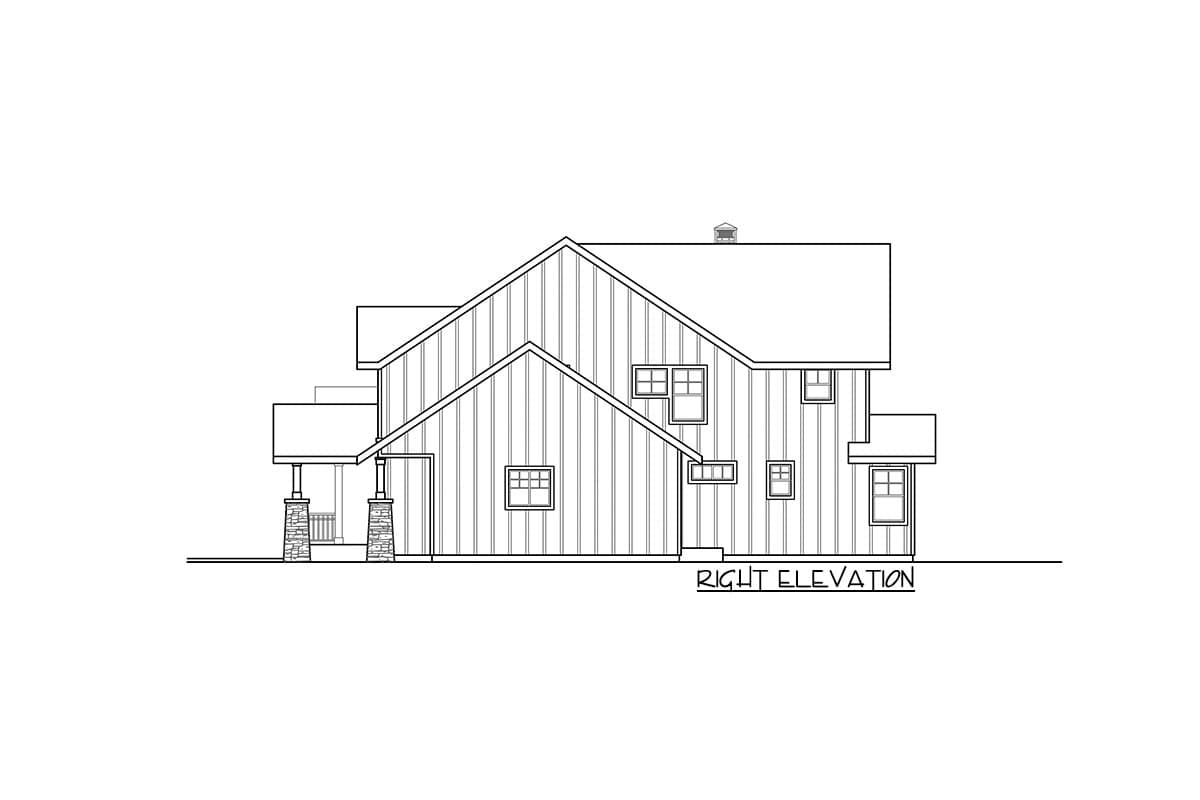

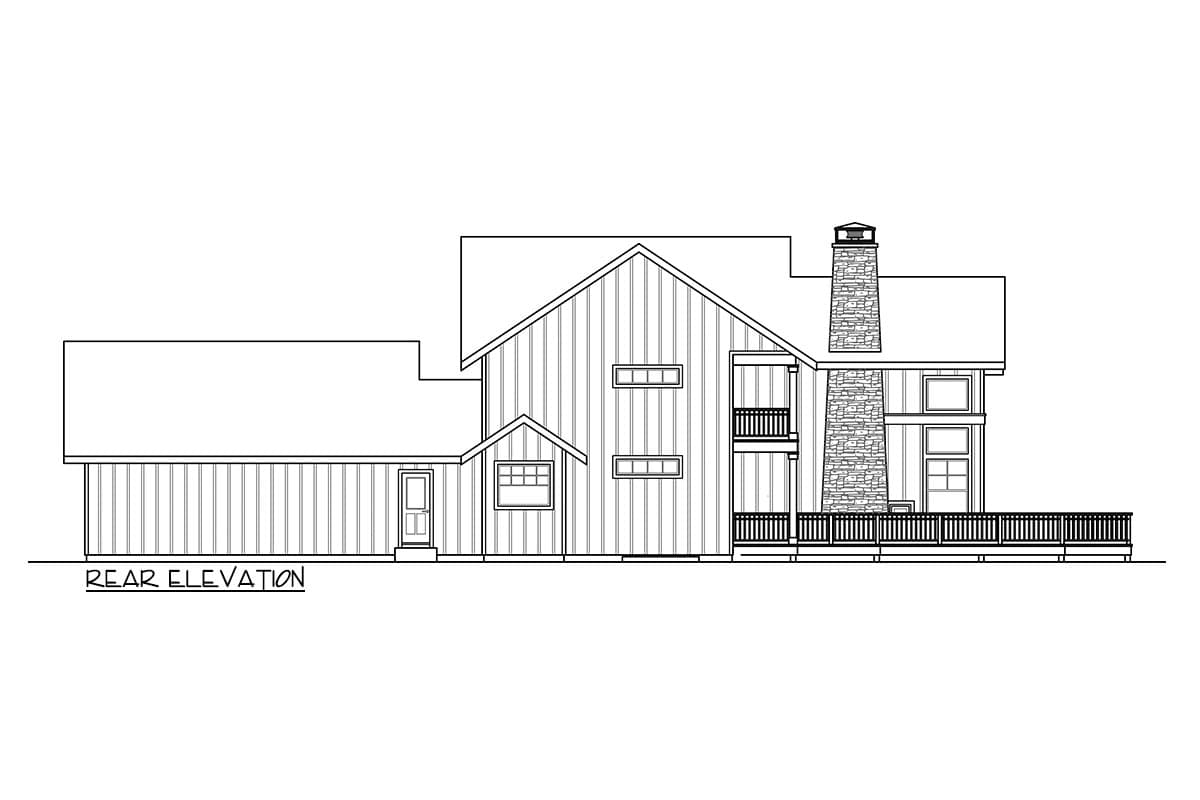

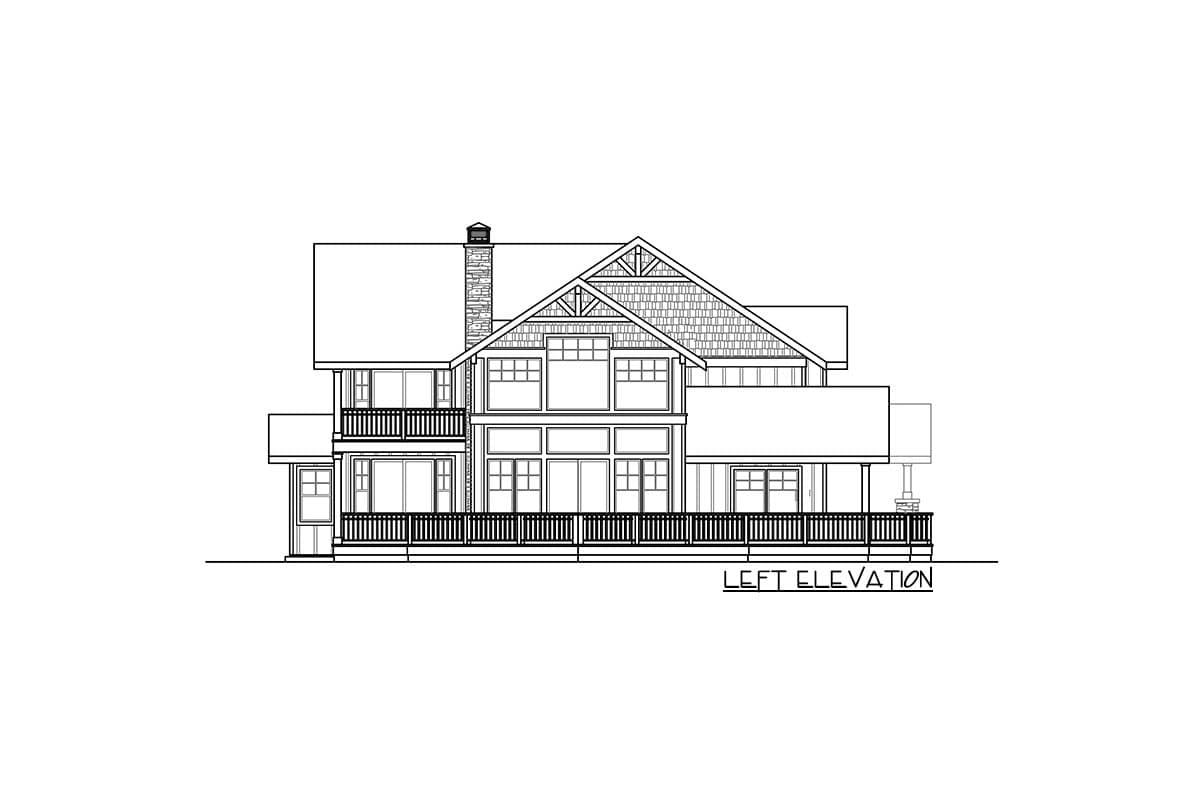

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

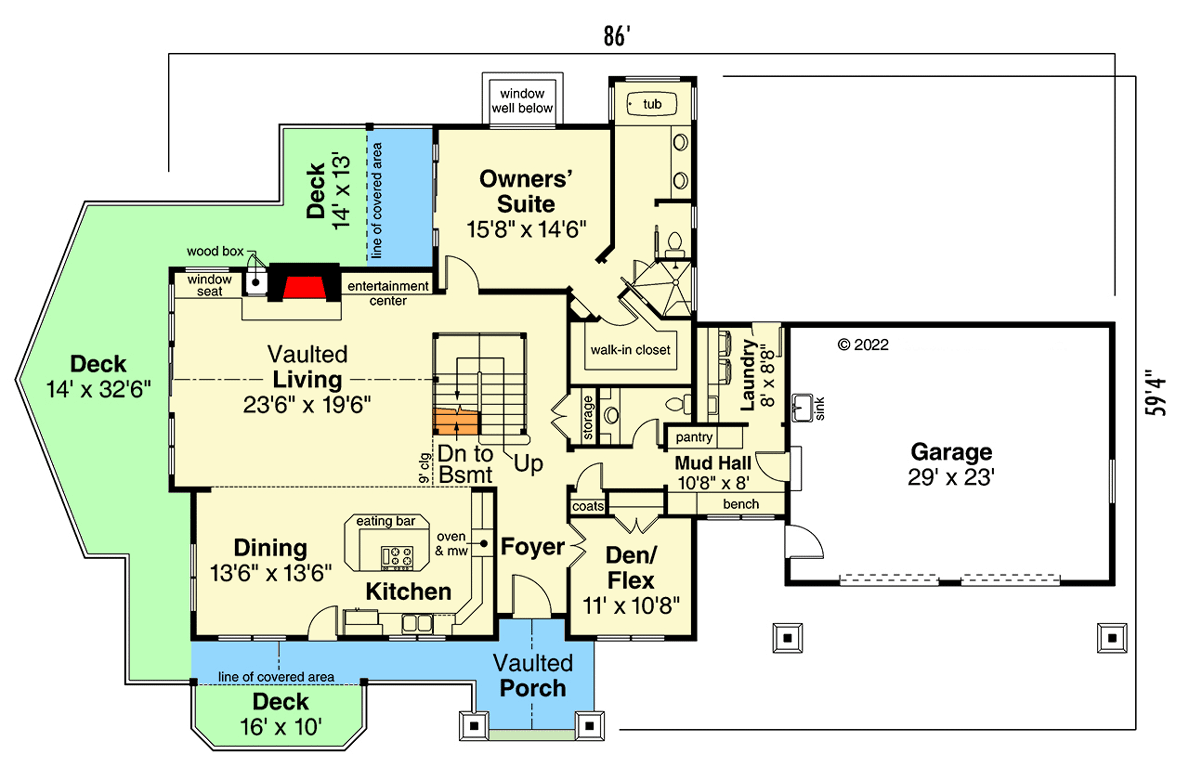

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

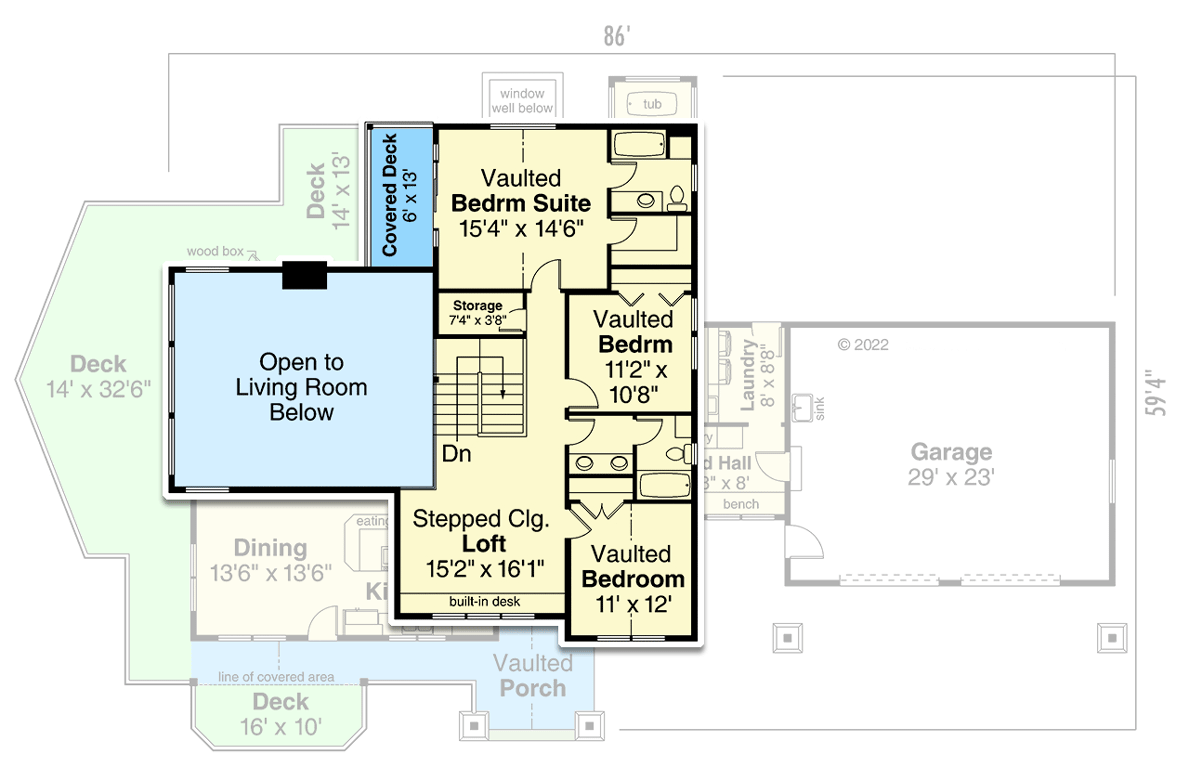

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
