3138 Square Foot New American House Plan with Upstairs Suite

Plan 14775RK

  • 3,138

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 4.5

    Baths

  • 2

    Stories

  • 2-3

    Cars

  • This New American house plan gives you 3138 square feet of heated living space with 3 bedrooms, 3.5 bathrooms, and a 3-car garage. The exterior has a mixture of wood, stone, and metal.
  • Entering, you're greeted by an expansive great room with a fireplace and built-ins, creating warmth. The open and airy design provides space for relaxation and entertainment.
  • The standout kitchen boasts a large island seating four, complemented by a walk-through pantry for easy grocery unloading. The dining area flows seamlessly, catering to both casual and formal dining.
  • The main level hosts a luxurious master suite and a guest bedroom with a private bathroom. Upstairs, an additional bedroom and a generous bonus room offer versatility and storage.
  • Enjoy fresh air spaces on the 7'3"-deep front porch and the rear grill deck (10'-deep) and back porch (10'2"-deep).Additional features include covered front and rear porches for shelter and a grill deck with kitchen access for outdoor cooking.
  • Stairs take you to the second floor (798 square feet) with a bonus room over the garage and a bedroom suite with walk-in closet.
  • Delivery Delay: Please allow up to 7 business days for plan delivery.
  • Related Plan: Eliminate the upstairs and get a smaller home with house plan 14774RK (2,176 sq. ft.).

Each plan includes the following:


Foundation Plan: Complete with dimensions, referenced details, general notes and schedules.
Elevations: Four completed elevations with dimensions and notes.
Floor Plan(s): Complete with dimensions and notes.
Roof Plan: Complete with roof pitches overhangs and notes.
Building Sections
General Details

IMPORTANT NOTE:  NOT all plans come with a lighting layout.  Please contact us to check for availability.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

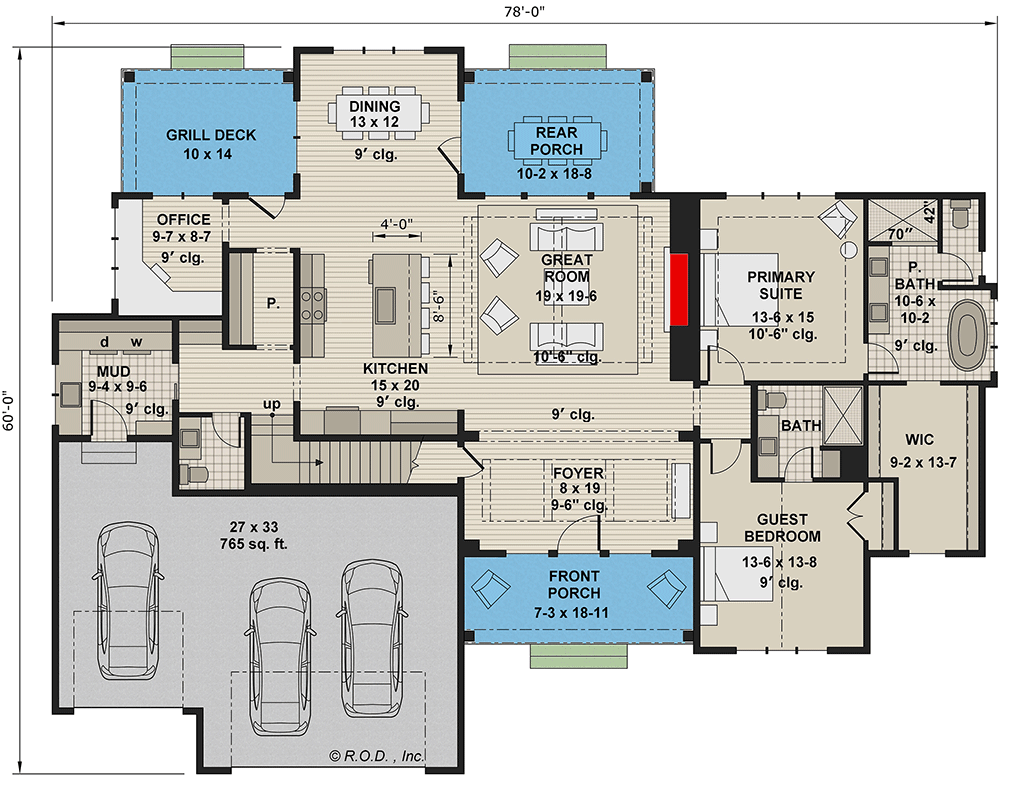

3138 Square Foot New American House Plan with Upstairs Suite - 14775RK floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

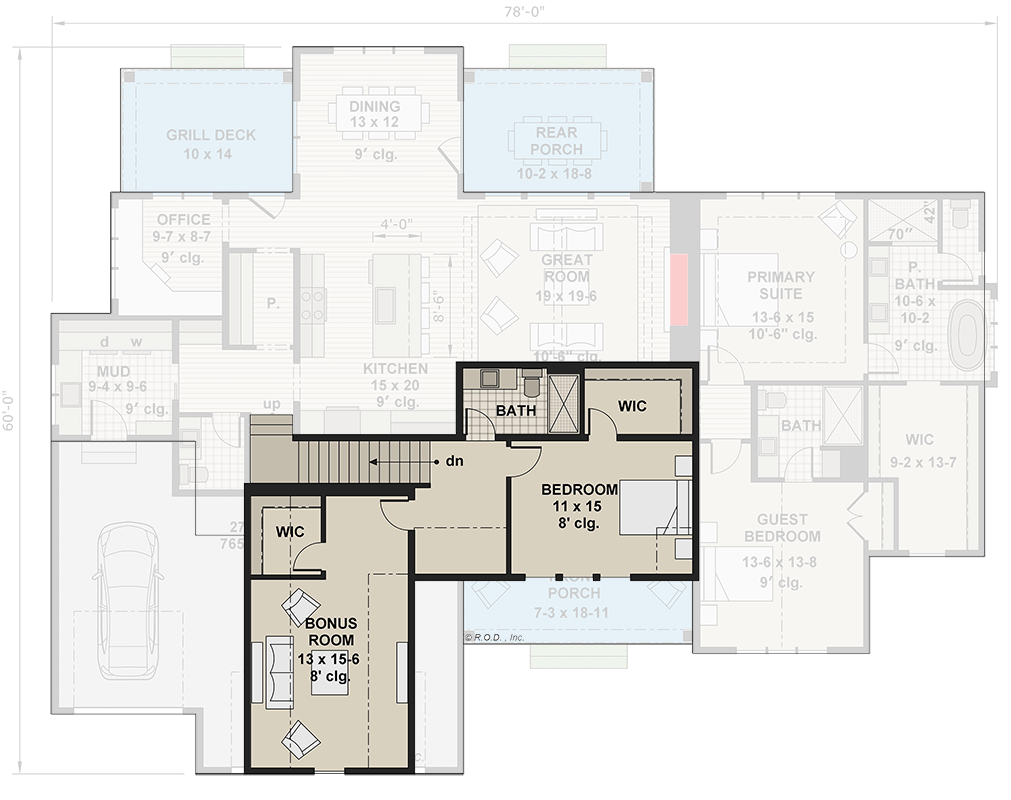

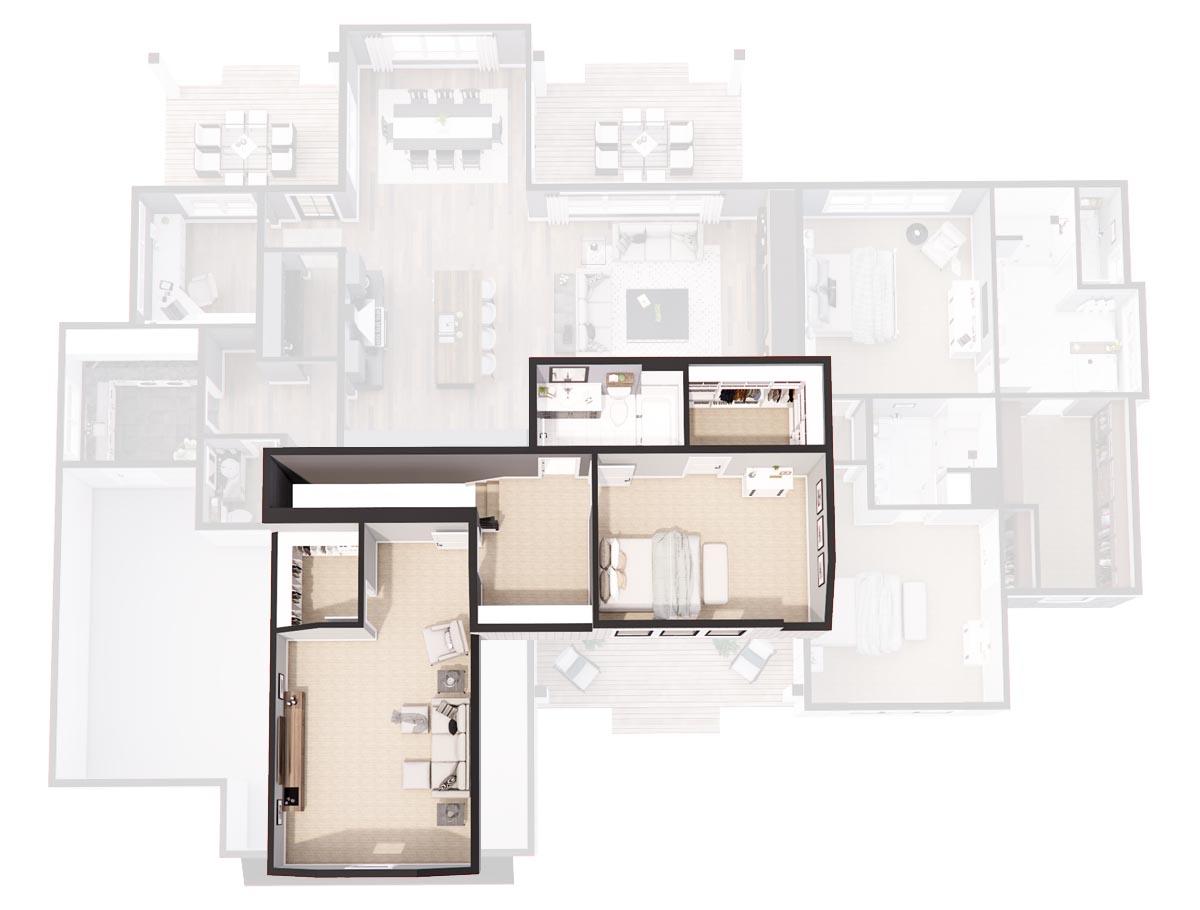

3138 Square Foot New American House Plan with Upstairs Suite - 14775RK floor plan - 2nd Floor

3138 Square Foot New American House Plan with Upstairs Suite

  • 3,138

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 4.5

    Baths

  • 2

    Floors

  • 2 - 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,138 sq. ft.
  • 1st Floor: 2,340 sq. ft.
  • 2nd Floor: 798 sq. ft.

Dimensions

  • Width: 78' 0"
  • Depth: 60' 0"
  • Max ridge height: 28' 3"

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 765 sq. ft.
  • Count: 2 or 3 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Daylight, Walkout, Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
