3200 Square Foot One-Story Craftsman House Plan Designed for Rear Views

Name: Plan 444354GDN: 3200 Square Foot One-Story Craftsman House Plan Designed for Rear Views
Brand: Architectural Designs
SKU: 444354GDN
Price: 2486.25 USD
Availability: InStock

Heated S.F.

3,200

Beds

3 - 4

Baths

Stories

Cars

Floor Plan

Main Level

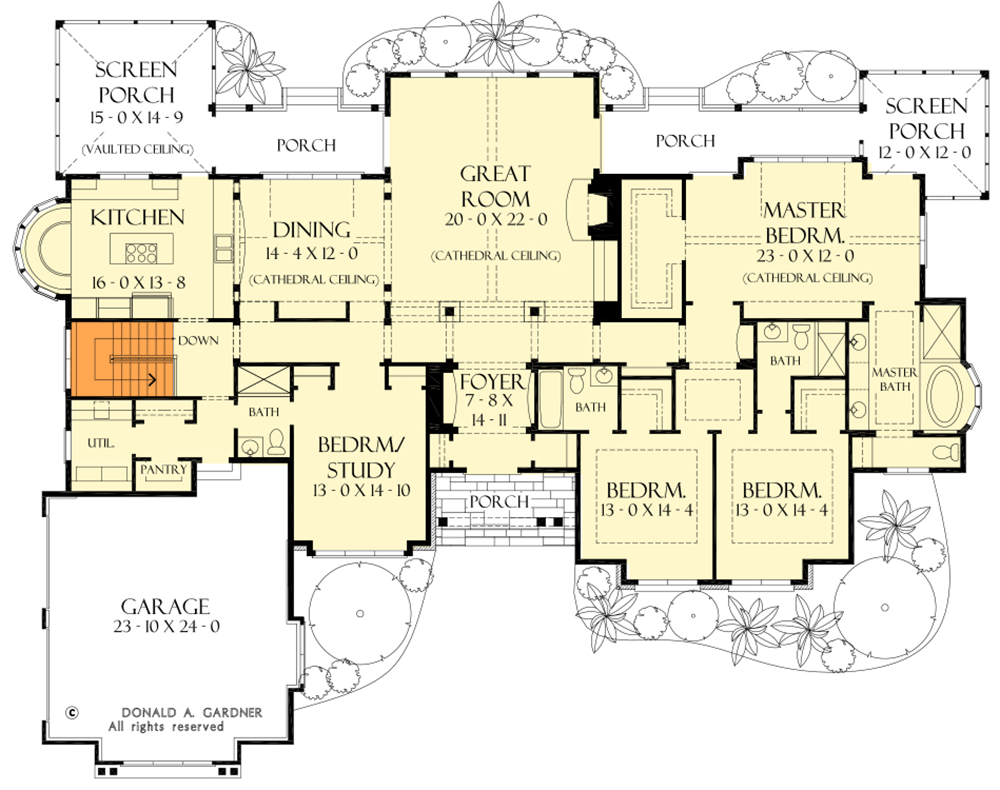

Main Level - Basement Stairs Location

Plan Details

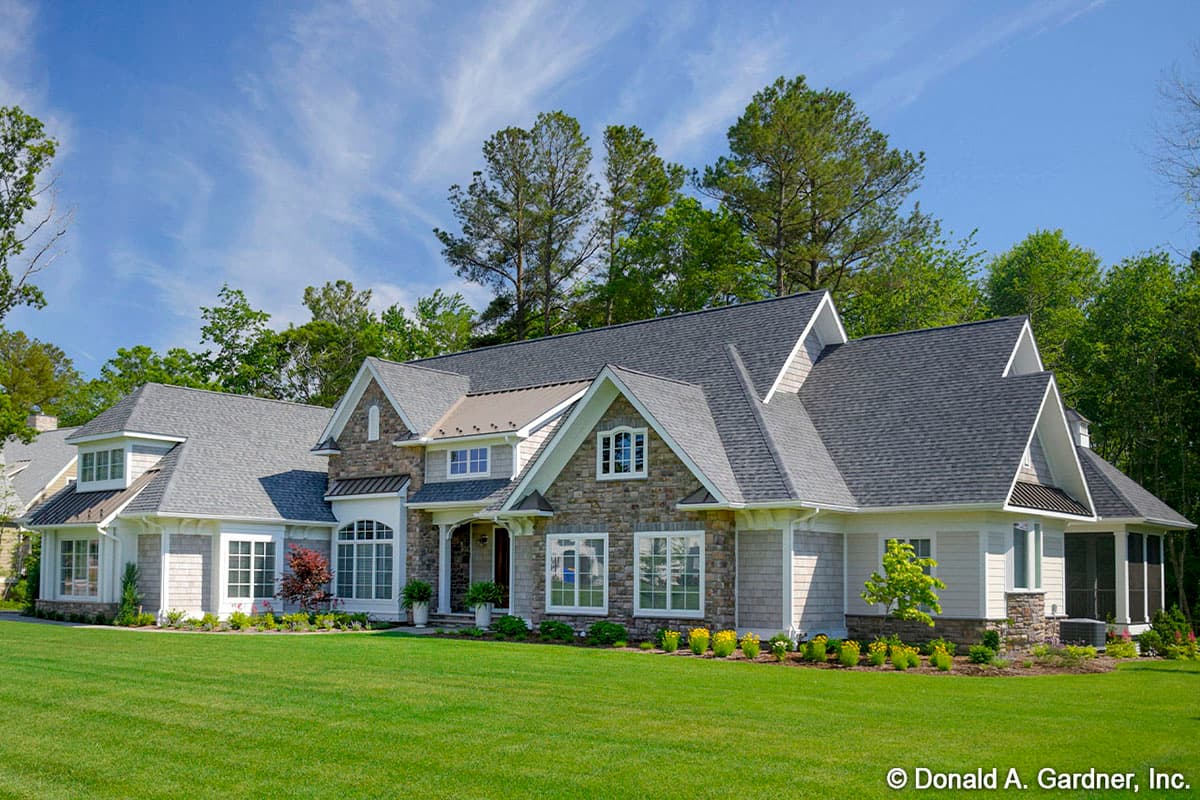

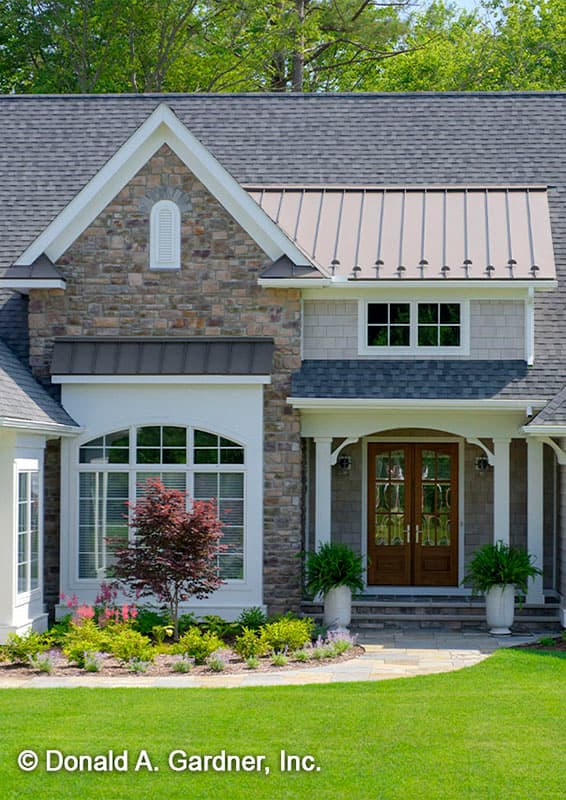

This one-story 3200 square foot Craftsman-style house plan has lots of glass to help you take in the views. Stone and cedar shake gives this home plan seem a warm and natural feel.

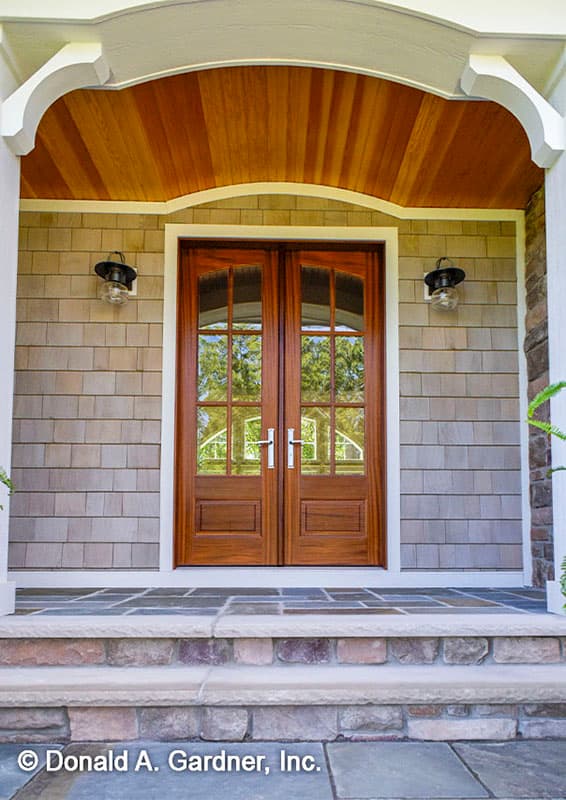

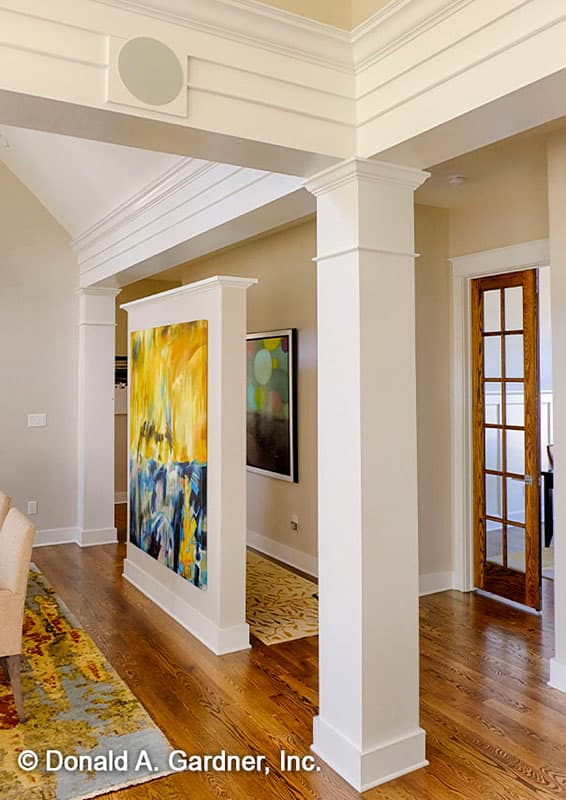

An impressive barrel-vault entryway leads into an equally impressive interior. Exposed wood beams and columns bring the outdoors inside.

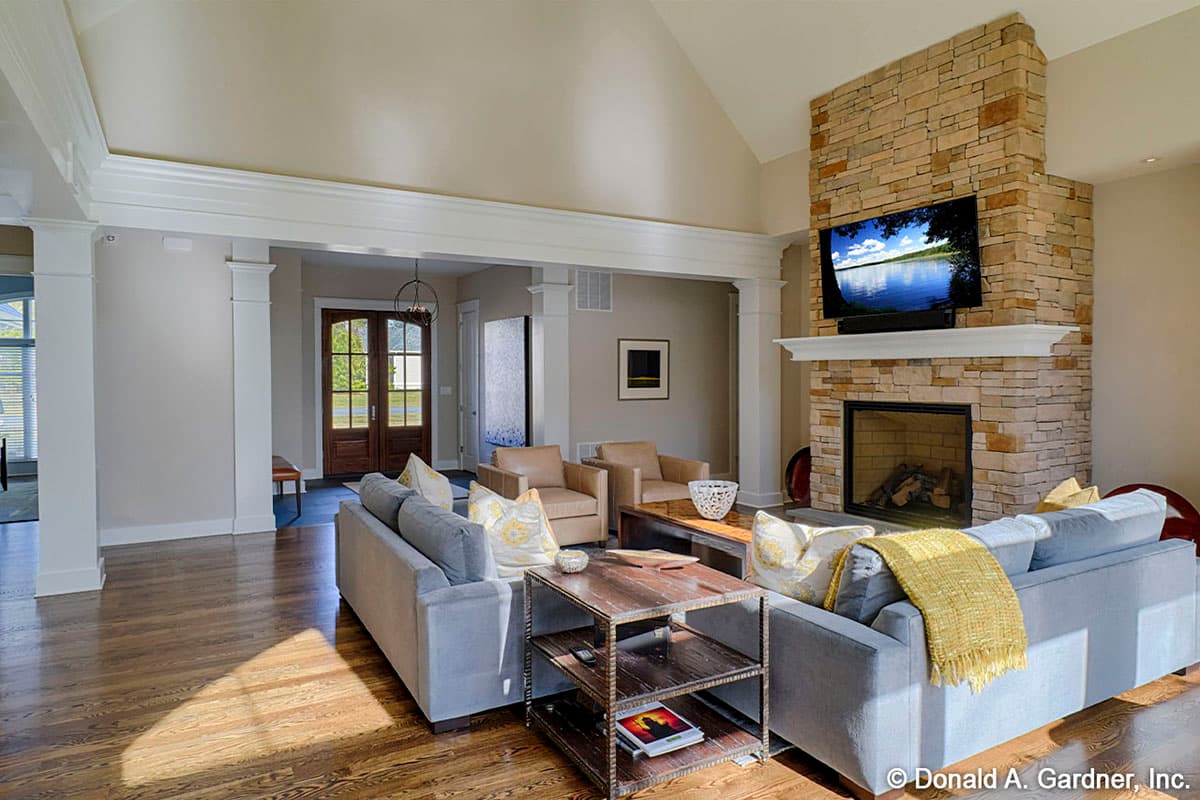

Flanking closets and art niches lead from the foyer to an open hall and great room with 22'8" cathedral ceiling.

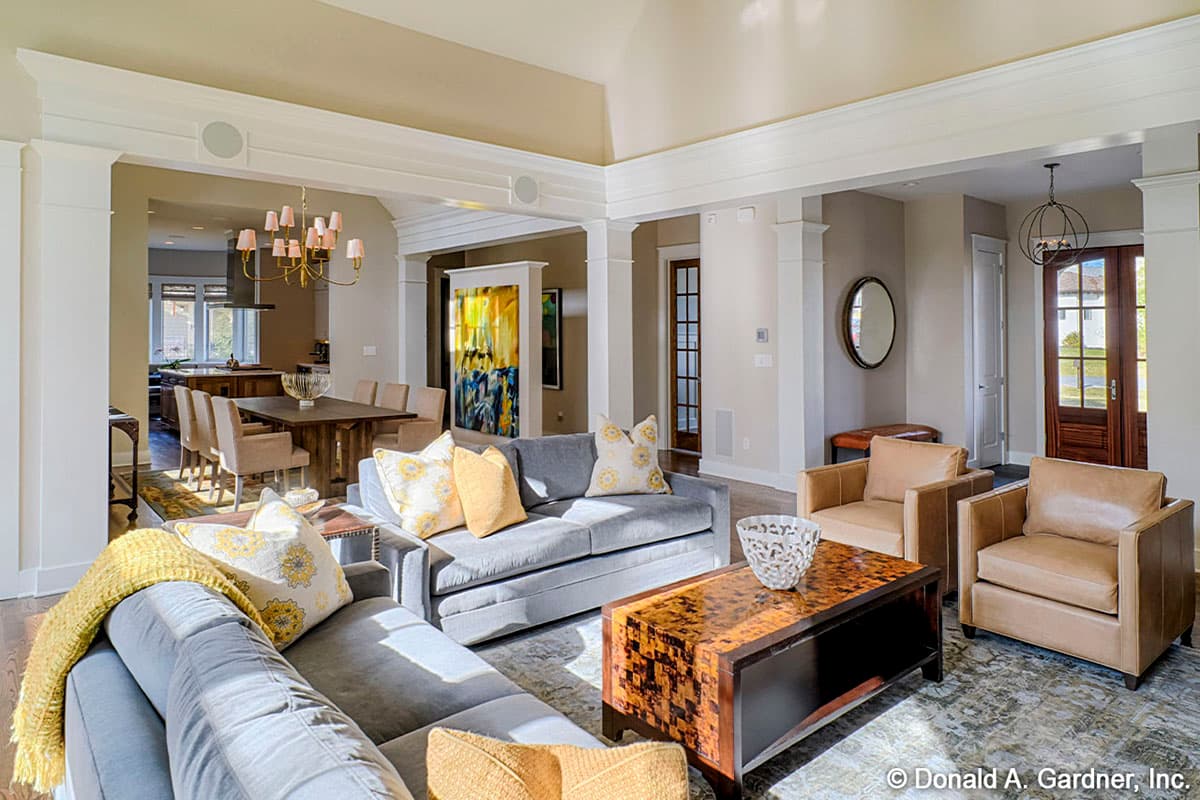

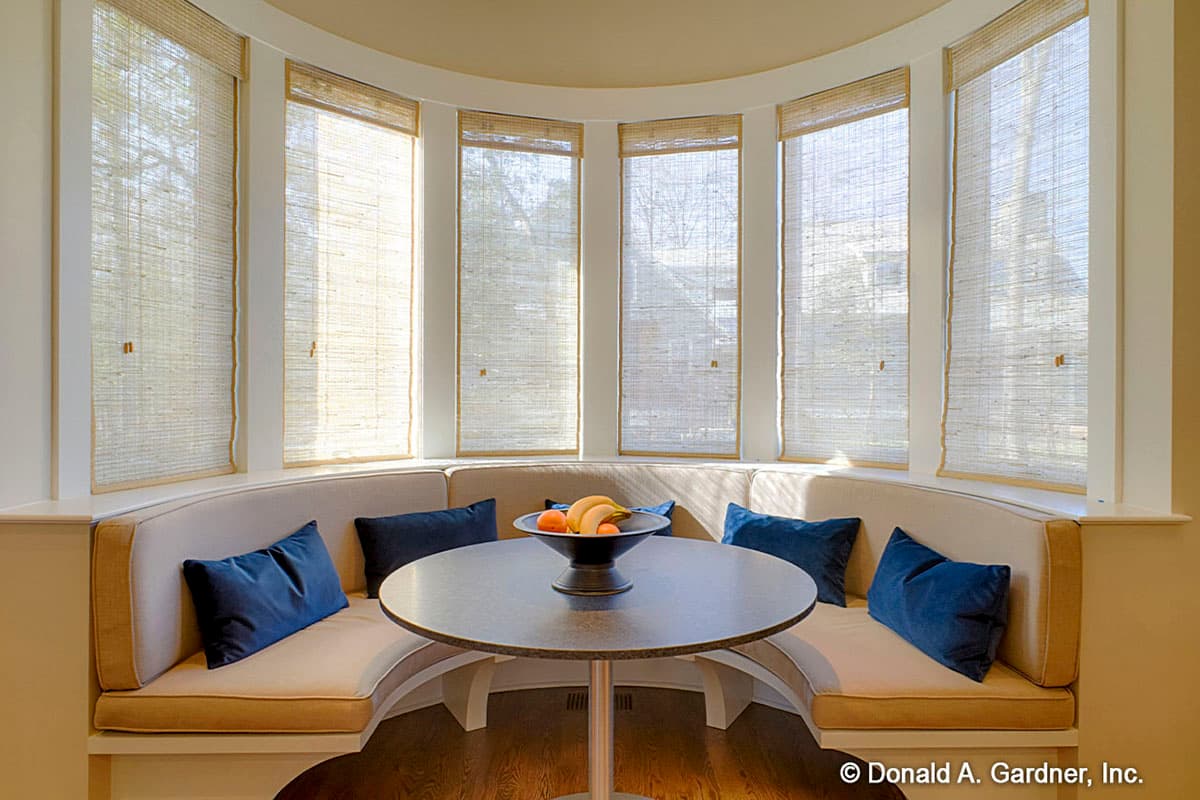

The dining room with 16'1" cathedral ceiling connects to the kitchen by a pass-thru and a bowed breakfast nook features a built-in banquette.
Screened porches and open porches take living outside.
The sleeping quarters are located on one side of the house, separate from the gathering rooms, and aside from the versatile bedroom/study, the master bedroom - with 16'1" cathedral ceiling with beams - and secondary bedrooms have their own private baths and walk-in closets.

What's Included

Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

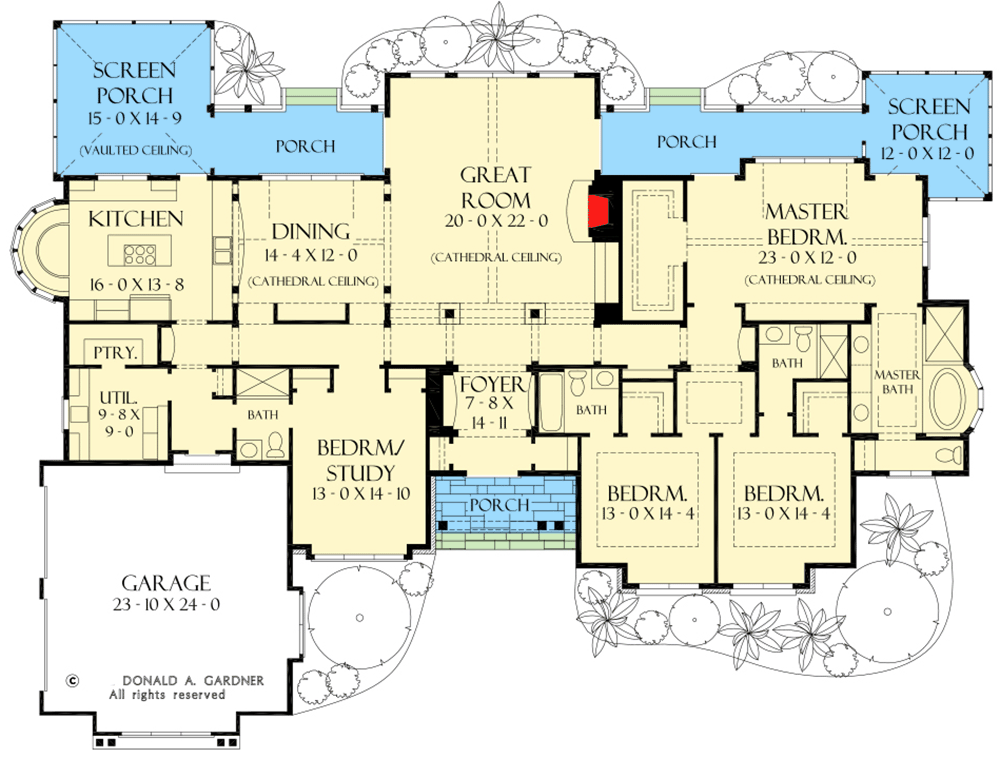

Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
