Plan 623284DJ
3240 Square Foot Contemporary Tudor-Style House Plan with Vaulted Interior
Heated S.F.
3,240
Beds
4 - 6
Baths
3.5 - 4.5
Stories
2
Cars
2
Tour
Floor Plan

Plan 623284DJ

Main Level
slide image 0
2nd Floor
slide image 1
Finished Lower Level Option (+$$$)
slide image 2

Plan 623284DJ

1-800-854-7852

1-262-521-4596

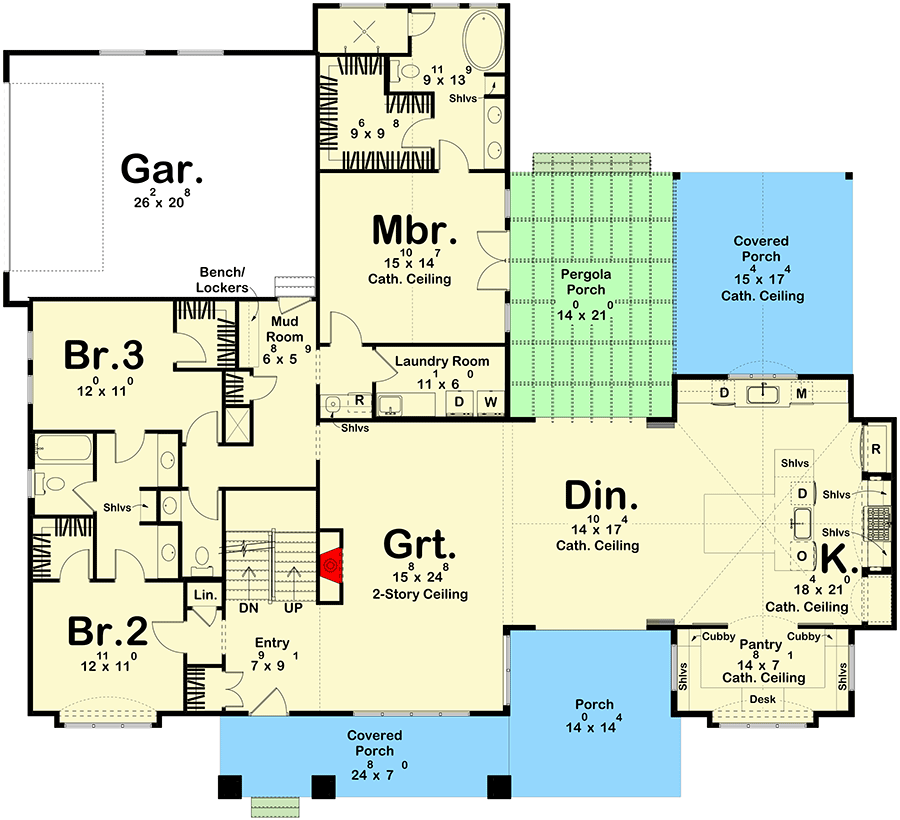

Main Level
floor plan image Main Level

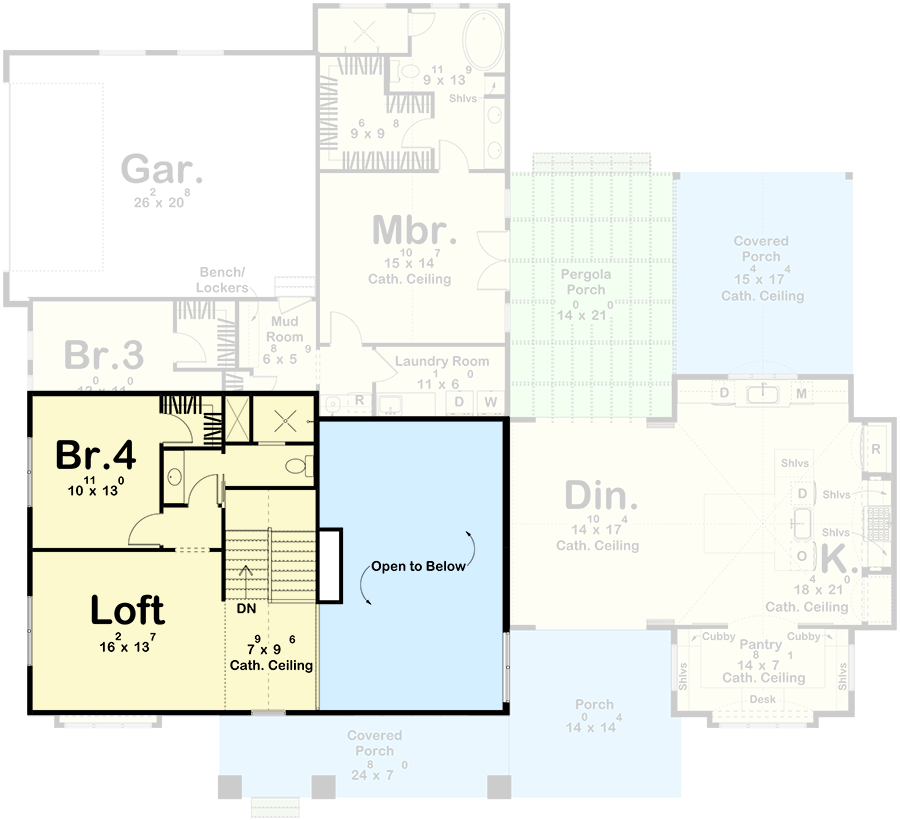

2nd Floor
floor plan image 2nd Floor

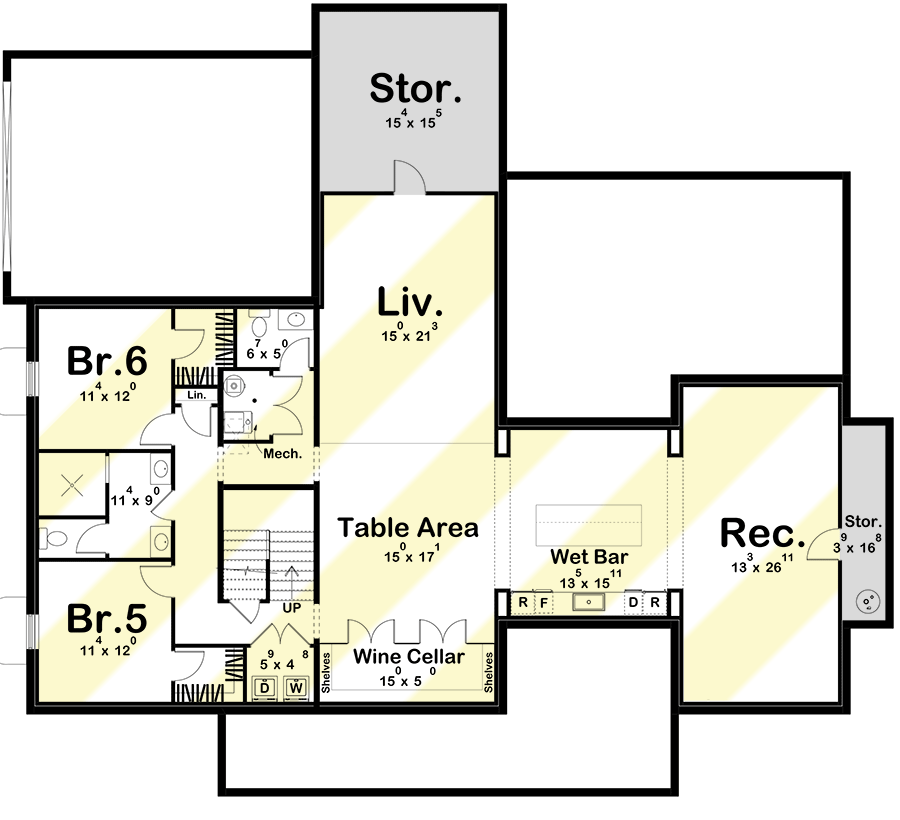

Finished Lower Level Option (+$$$)
floor plan image Finished Lower Level Option (+$$$)
Plan Details
  • This 2-story contemporary Tudor-style house plan gives you 3,240 square feet of heated living with four bedrooms and four bathrooms and with the addition of the Finished Lower Level option (+$250) gives you two more bedrooms plus rec space. Its 2-car garage provides convenient parking.
  • Upon entering, you'll be welcomed into a spacious and inviting great room, where the boundaries between the dining area, kitchen, and living space seamlessly blend into one another.
  • The great room has a 2-story ceiling with with a fireplace as the focal point. The dining room has a cathedral ceiling adding even more room to this spacious design. The kitchen has ample counter space, a large island and a groin vault ceiling. There is a covered pergola area and a covered porch in the rear of the home.
  • The master suite is situated toward the rear of the house. The master bathroom is a spa-like retreat with a soaking tub, a walk-in shower, and dual vanities. Two additional bedrooms share a Jack and Jill bathroom, perfect for family members or guests. These bedrooms are generously sized and offer comfortable living spaces with plenty of natural light.
  • Upstairs, a fourth bedroom has its own bathroom and a loft area can serve as a private retreat, home office, or even a playroom.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,240 sq. ft.

1st Floor

2,638 sq. ft.

2nd Floor

602 sq. ft.

Porch, Combined

133 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

3 or 4

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

76' 0"

Depth

67' 8"

Max Ridge Height

34' 6"

Garage

Type

Attached

Area

558 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

14 on 12

Architectural Style

European

Square Footage Breakdown

Total Heated Area

3,240 sq. ft.

1st Floor

2,638 sq. ft.

2nd Floor

602 sq. ft.

Porch, Combined

133 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

3 or 4

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

76' 0"

Depth

67' 8"

Max Ridge Height

34' 6"

Garage

Type

Attached

Area

558 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

14 on 12
