3300 Square Foot Split Bedroom Modern Farmhouse with 3-Car Garage and Bonus Expansion

Plan 56529SM

  • 3,346

    Heated s.f.

  • 4

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This 3,346 square foot modern farmhouse plan gives you four beds in a split bedroom layout with a 3-car side load garage with and 734 square foot bonus room with bath above. Gables flank the 8'4"-deep front porch. A classic gabled dormer - for aesthetic purposes - is centered over the front French doors that welcome you inside. Board and batten siding helps give it great curb appeal.
  • Vaulted ceilings in the great room are visible from the foyer. Step into the room and you'll find a fireplace on the left wall with built-ins to either side and views that extend across the rear porch and to the kitchen. A 16' slider door unit gets you to the back porch with outdoor fireplace and kitchen.
  • The gourmet kitchen features a walk-in pantry, large prep island with seating for four, and a nearby formal dining room with 11' tray ceiling. For warmer months, enjoy the grilling porch just outside the kitchen.
  • The restful master bedroom is quietly situated on the right side of the home and boasts vaulted ceilings, outdoor access, a spacious bathroom with a large walk-in closet, and a  separate tub and shower.
  • The three secondary bedrooms are located on the opposite side of the home, each with its own bath. If you need a home office, consider converting Bed 2 for use as a work from home space.
  • The rear porch has access to a powder room. Across the home, a 3-car garage has a storage closet and access to the mudroom as well as to the back yard.
  • Related Plans: Get an alternate layout with house plan 56521SM (3,127 sq. ft.) and a smaller version with house plans 56539SM (2,951 sq. ft.) and 56478SM (2,400 sq. ft.).

Each plan set includes the following:


  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.

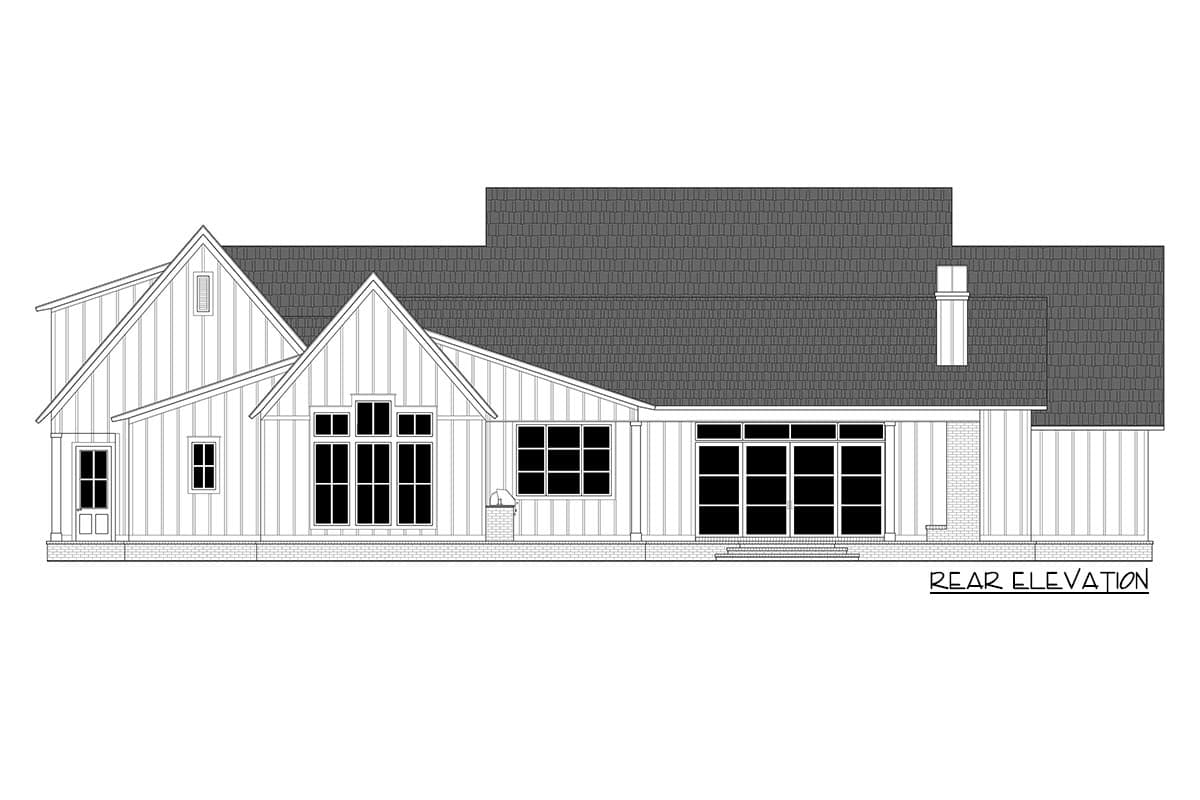

  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

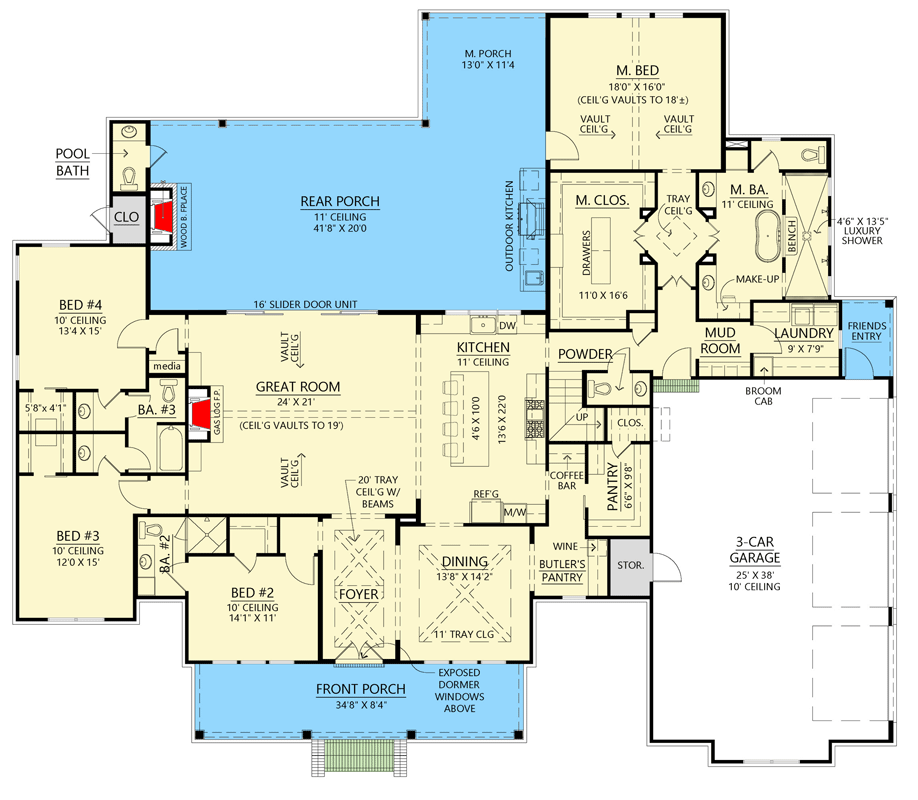

3300 Square Foot Split Bedroom Modern Farmhouse with 3-Car Garage and Bonus Expansion - 56529SM floor plan - Main Level

Optionally Finished Bonus Room

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

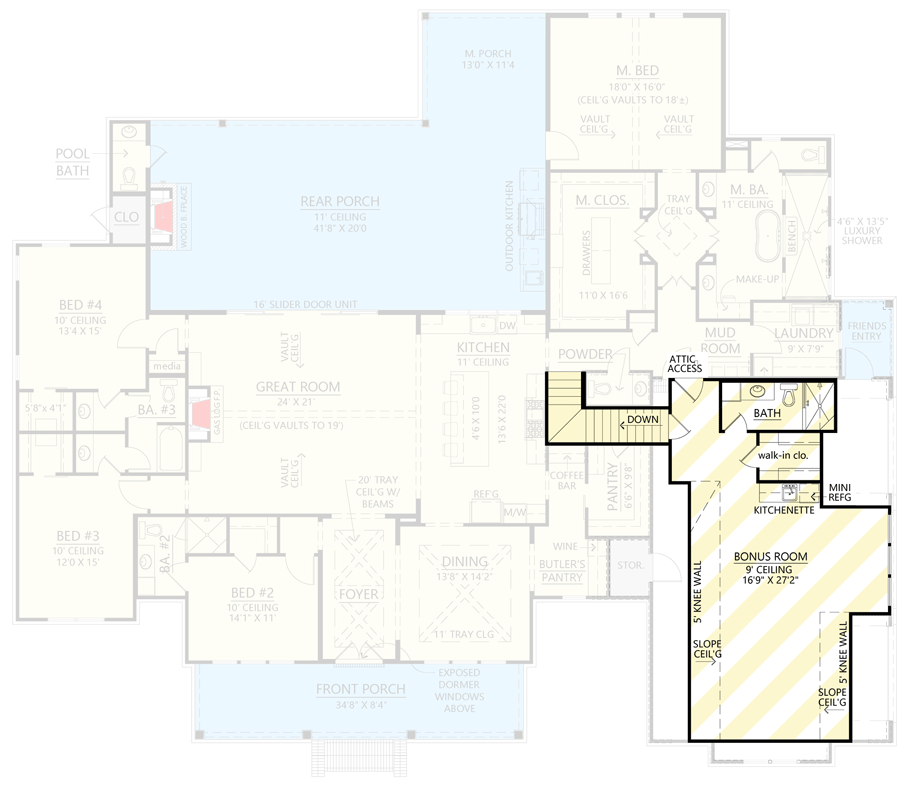

3300 Square Foot Split Bedroom Modern Farmhouse with 3-Car Garage and Bonus Expansion - 56529SM floor plan - Optionally Finished Bonus Room

Basement Stairs Location

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

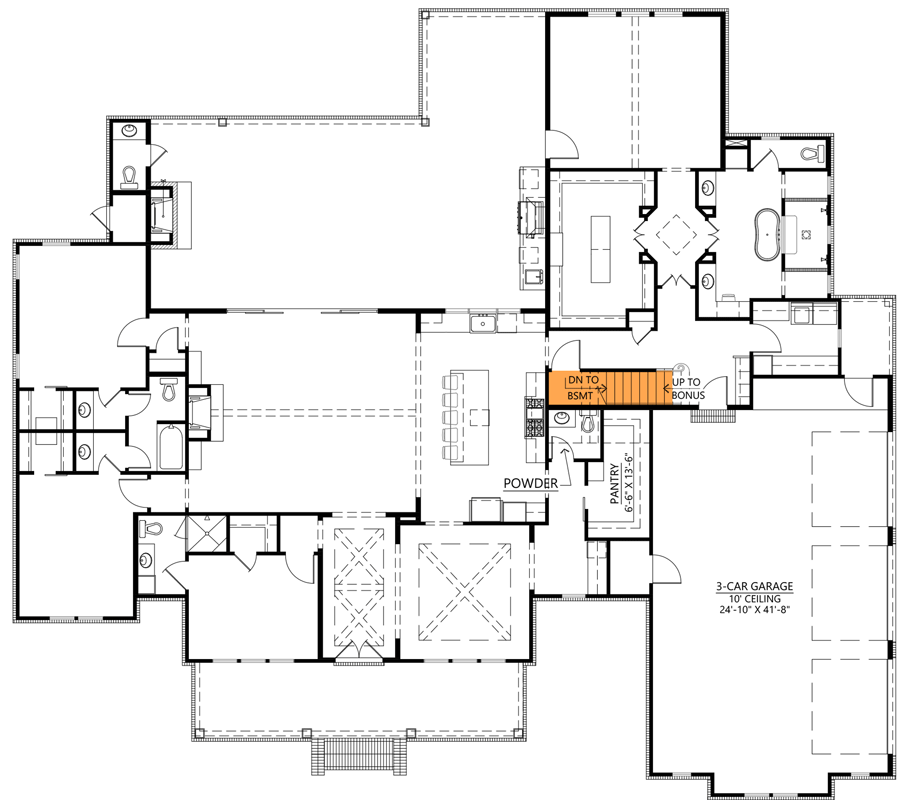

3300 Square Foot Split Bedroom Modern Farmhouse with 3-Car Garage and Bonus Expansion - 56529SM floor plan - Basement Stairs Location

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,346 sq. ft.
  • 1st Floor: 3,346 sq. ft.
  • Porch, Combined: 1,308 sq. ft.
  • Porch, Rear: 987 sq. ft.
  • Porch, Front: 277 sq. ft.
  • Bonus: 734 sq. ft.
  • Friends' Entry: 44 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 93' 3"
  • Depth: 79' 10"
  • Max ridge height: 29' 6"

Garage

  • Type: Attached
  • Area: 1034 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Bonus Room 9' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Framing Type: Stick

Architectural Style

Special features

3300 Square Foot Split Bedroom Modern Farmhouse with 3-Car Garage and Bonus Expansion

  • 3,346

    Heated s.f.

  • 4

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,345
  • 5 Sets $1,445
  • 5 Sets + PDF $1,645
  • PDF - Unlimited Build $2,045
  • CAD Unlimited + PDF $2,845
  • View all purchase option online

About This Plan

  • This 3,346 square foot modern farmhouse plan gives you four beds in a split bedroom layout with a 3-car side load garage with and 734 square foot bonus room with bath above. Gables flank the 8'4"-deep front porch. A classic gabled dormer - for aesthetic purposes - is centered over the front French doors that welcome you inside. Board and batten siding helps give it great curb appeal.
  • Vaulted ceilings in the great room are visible from the foyer. Step into the room and you'll find a fireplace on the left wall with built-ins to either side and views that extend across the rear porch and to the kitchen. A 16' slider door unit gets you to the back porch with outdoor fireplace and kitchen.
  • The gourmet kitchen features a walk-in pantry, large prep island with seating for four, and a nearby formal dining room with 11' tray ceiling. For warmer months, enjoy the grilling porch just outside the kitchen.
  • The restful master bedroom is quietly situated on the right side of the home and boasts vaulted ceilings, outdoor access, a spacious bathroom with a large walk-in closet, and a  separate tub and shower.
  • The three secondary bedrooms are located on the opposite side of the home, each with its own bath. If you need a home office, consider converting Bed 2 for use as a work from home space.
  • The rear porch has access to a powder room. Across the home, a 3-car garage has a storage closet and access to the mudroom as well as to the back yard.
  • Related Plans: Get an alternate layout with house plan 56521SM (3,127 sq. ft.) and a smaller version with house plans 56539SM (2,951 sq. ft.) and 56478SM (2,400 sq. ft.).
