3315 Square Foot Walkout Ranch House Plan with Formal Dining Room

Plan 29898RL

  • 2,235

    Heated s.f.

  • 2-3

    Beds

  • 2 - 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • This one-story house plan gives you 3,315 square feet of heated living space with 2 bedrooms on the main floor and one on the walkout basement level. The exterior has an attractive mix of clapboard, shingles and decorative trusses in the covered front porch and the gable peaks.
  • From the foyer, you are drawn to the vaulted with fireplace and outdoor access through sliding doors on the back wall. The great room is open to the kitchen and to the vaulted breakfast room which has screen porch access. The formal dining room has a tray ceiling and views out the front.
  • The master suite occupies the entire left side of the home and has a vaulted ceiling and private access to the screen porch with fireplace. There are two walk-in closets in front of the vaulted master bath with private toilet, two vanities, shower and spa tub. Across the home, Bed 2 has its own ensuite bath.
  • The walkout basement gives you expansion space, storage, plus a bedroom suite, a rec room with fireplace and a home office.

Each plan set includes the following:

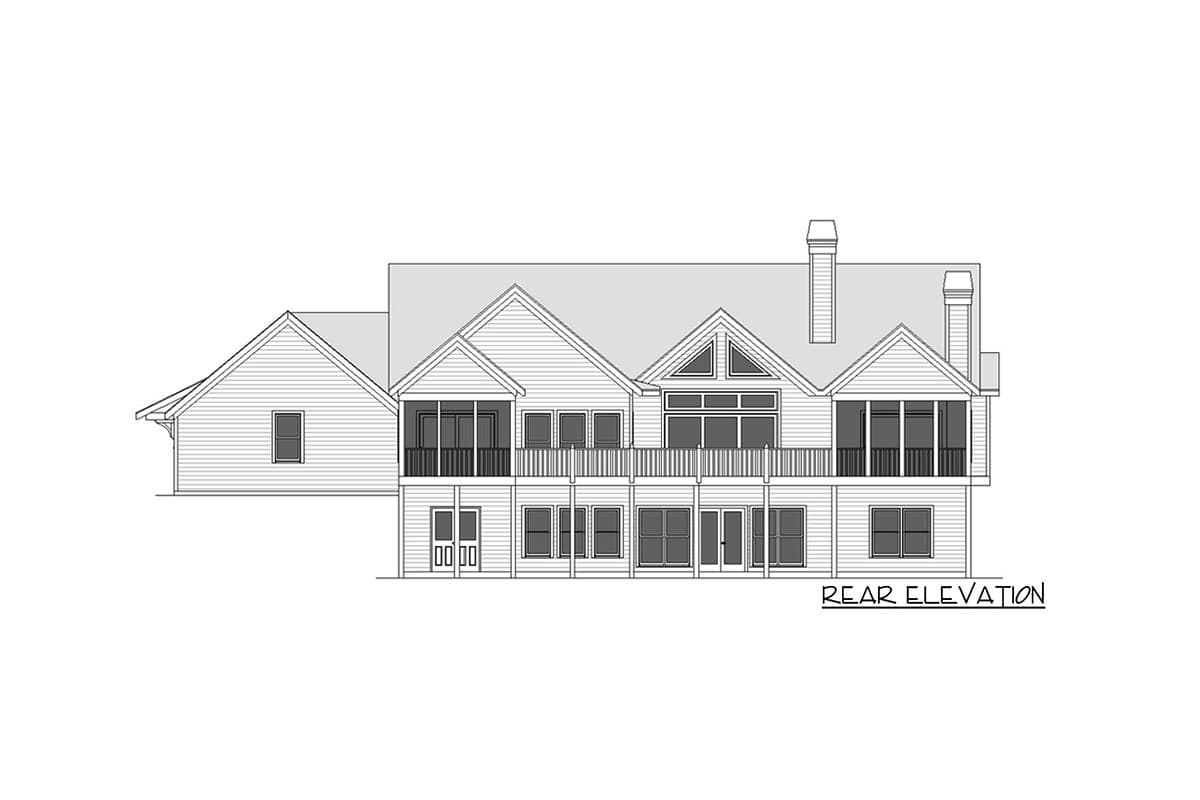

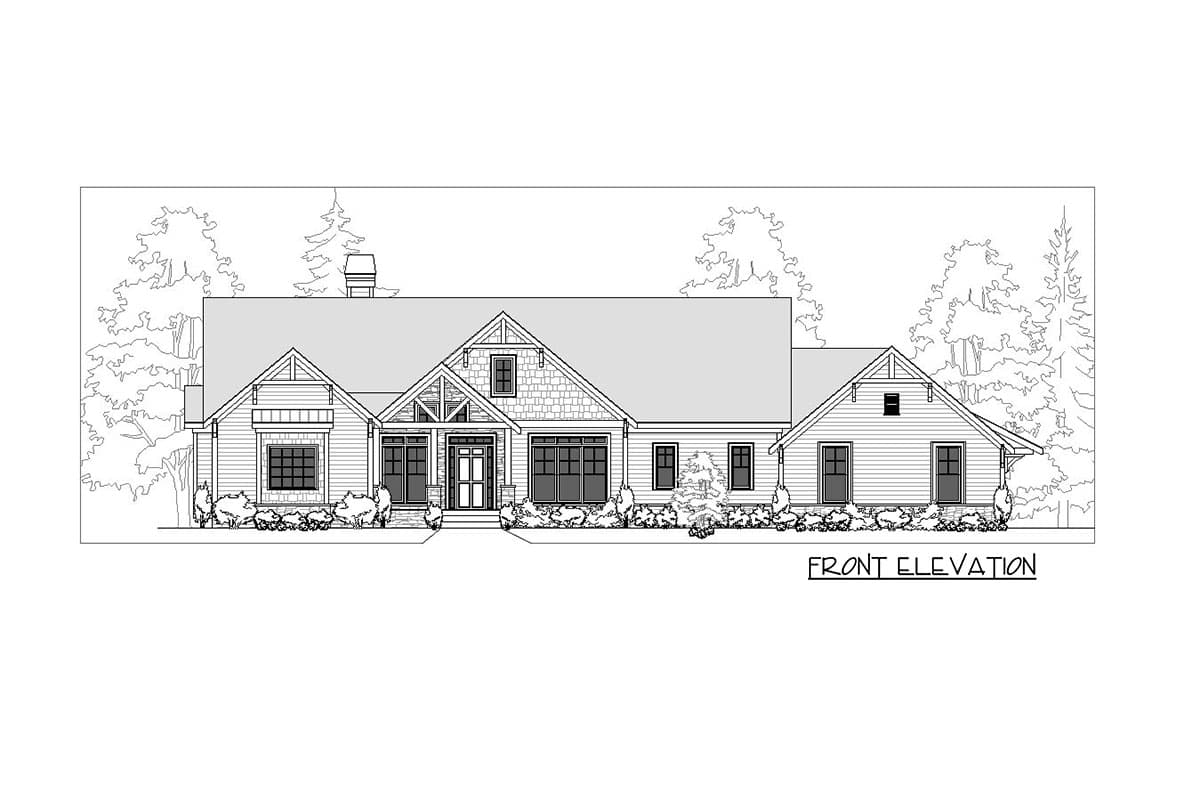

  • All 4 elevations (front, rear, left, right)
  • 2D Roof overview
  • 3D Roof overview
  • Main Level Layout
  • Basement Level Layout
  • Cross-Section
  • Typical Details
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

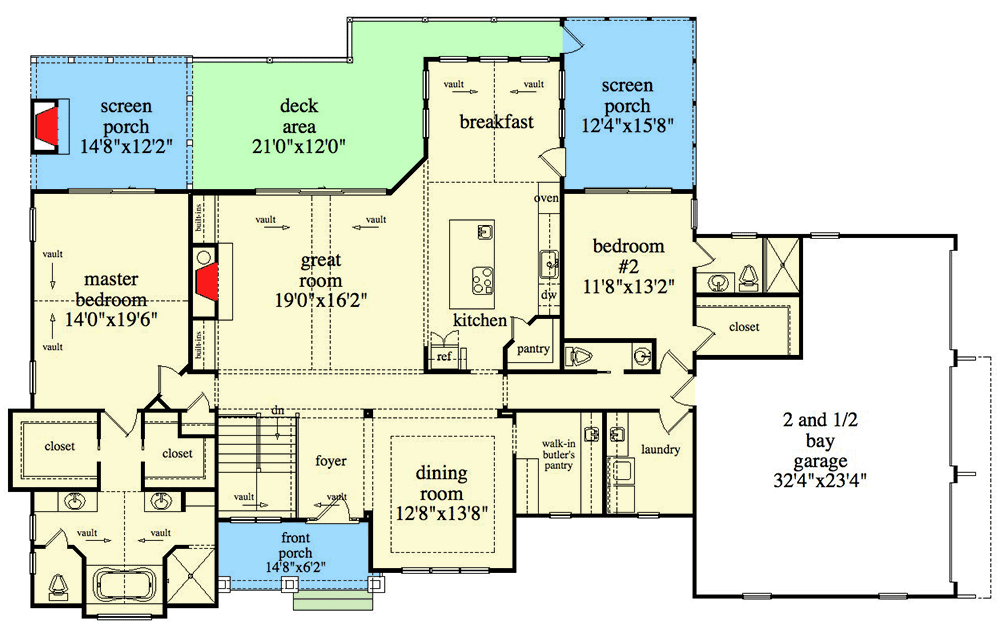

3315 Square Foot Walkout Ranch House Plan with Formal Dining Room - 29898RL floor plan - Main Level

Optionally Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

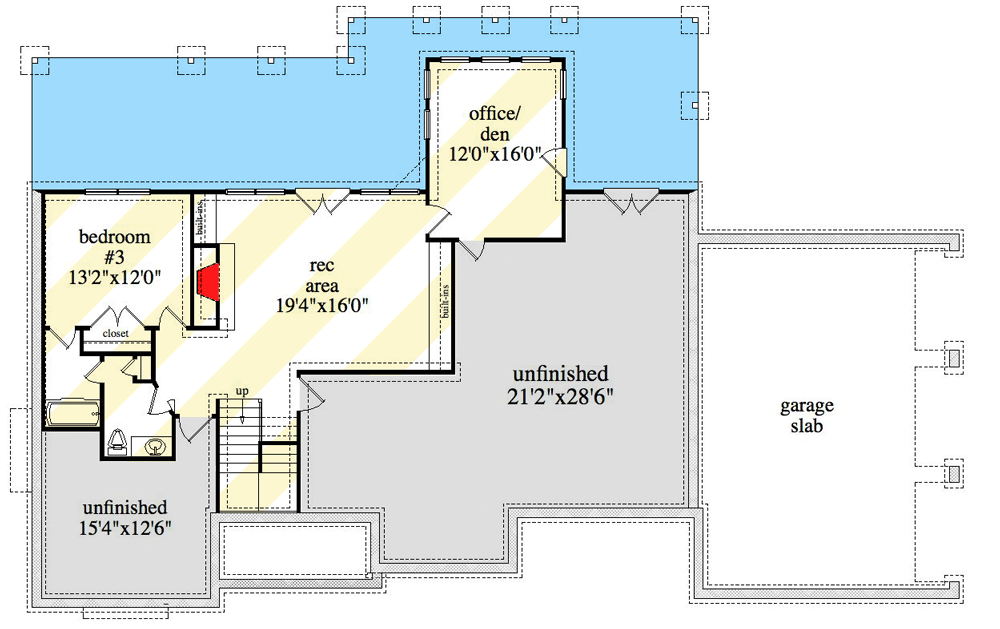

3315 Square Foot Walkout Ranch House Plan with Formal Dining Room - 29898RL floor plan - Optionally Finished Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,235 sq. ft.
  • 1st Floor: 2,235 sq. ft.
  • Deck: 315 sq. ft.
  • Screened Porch: 365 sq. ft.
  • Porch, Front: 85 sq. ft.
  • Optional Lower Level: 1,080 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2 or 3

Foundation Type

  • Standard Foundations: Basement, Daylight
  • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 84' 0"
  • Depth: 49' 10"
  • Max ridge height: 21' 0"

Garage

  • Type: Attached
  • Area: 660 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 1" First Floor / 9' 1"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick Or Truss

Architectural Style

Special features

3315 Square Foot Walkout Ranch House Plan with Formal Dining Room

  • 2,235

    Heated s.f.

  • 2-3

    Beds

  • 2 - 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,334
  • 5 Sets $1,584
  • PDF - Unlimited Build $1,934
  • CAD - Single-Build $2,668
  • View all purchase option online

About This Plan

  • This one-story house plan gives you 3,315 square feet of heated living space with 2 bedrooms on the main floor and one on the walkout basement level. The exterior has an attractive mix of clapboard, shingles and decorative trusses in the covered front porch and the gable peaks.
  • From the foyer, you are drawn to the vaulted with fireplace and outdoor access through sliding doors on the back wall. The great room is open to the kitchen and to the vaulted breakfast room which has screen porch access. The formal dining room has a tray ceiling and views out the front.
  • The master suite occupies the entire left side of the home and has a vaulted ceiling and private access to the screen porch with fireplace. There are two walk-in closets in front of the vaulted master bath with private toilet, two vanities, shower and spa tub. Across the home, Bed 2 has its own ensuite bath.
  • The walkout basement gives you expansion space, storage, plus a bedroom suite, a rec room with fireplace and a home office.

Floor Plans

  • Main Level

  • Optionally Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,235 sq. ft.
  • 1st Floor: 2,235 sq. ft.
  • Deck: 315 sq. ft.
  • Screened Porch: 365 sq. ft.
  • Porch, Front: 85 sq. ft.
  • Optional Lower Level: 1,080 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2 or 3

Foundation Type

    • Standard Foundations: Basement, Daylight
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 84' 0"
  • Depth: 49' 10"
  • Max ridge height: 21' 0"

Garage

  • Type: Attached
  • Area: 660 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 1" First Floor / 9' 1"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick Or Truss
Plan 29898RL
View this and more for this plan by visiting www.architechtecturaldesigns.com/29898RL
|
Need Help? 800-854-7852
|
