Plan 500050VV
EXCLUSIVE

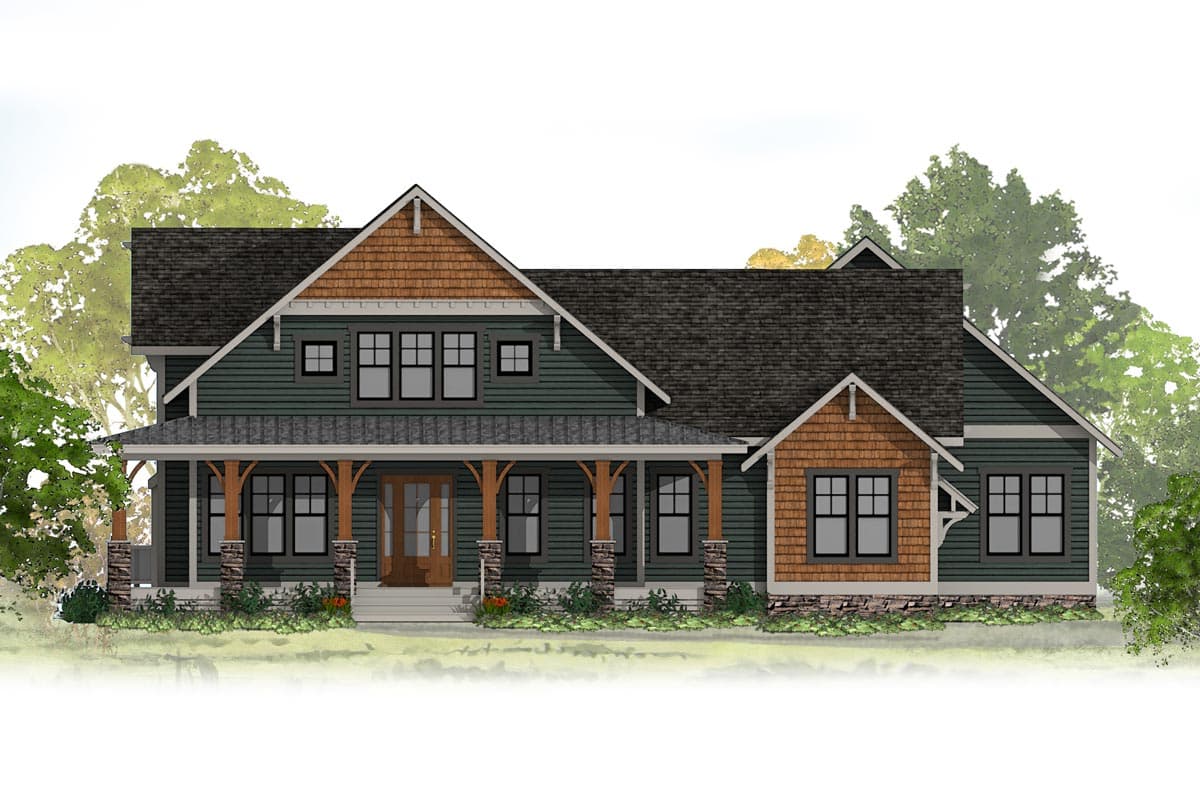

3500 Square Foot Craftsman House Plan with Main Level Guest Room - 3518 Sq Ft
Heated S.F.
3,518
Beds
3-6
Baths
3.5 - 4.5
Stories
2
Cars
2
Floor Plan
Optional Lower Level
Reverse Floor Plan

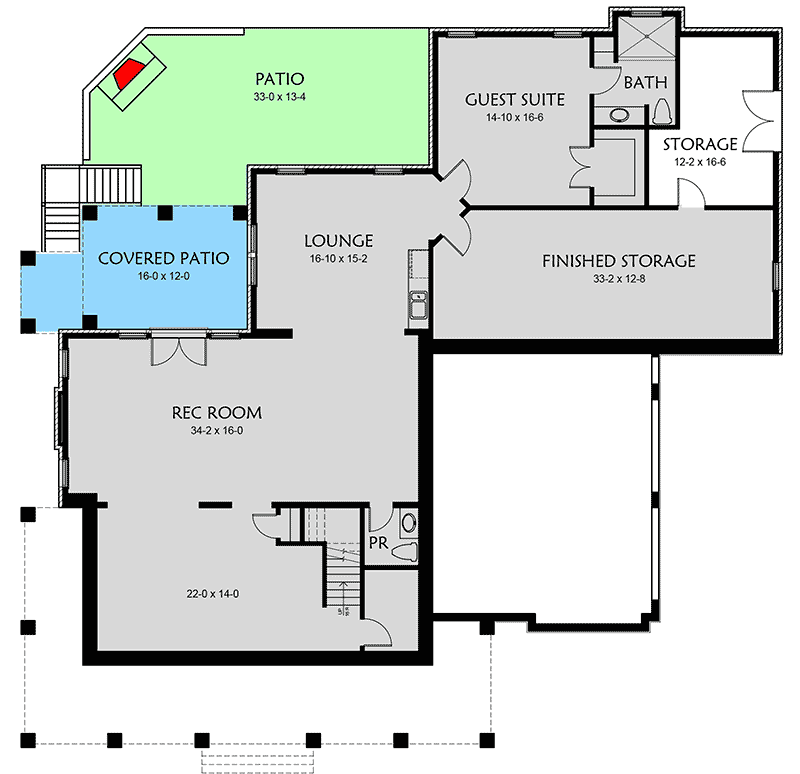

3500 Square Foot Craftsman House Plan with Main Level Guest Room - 3518 Sq Ft - 500050VV floor plan - Optional Lower Level
Plan Details
  • Get a modern spin on a Craftsman-style design with this flexible house plan that gives you up to six bedrooms when the bonus room and lower level are finished out.

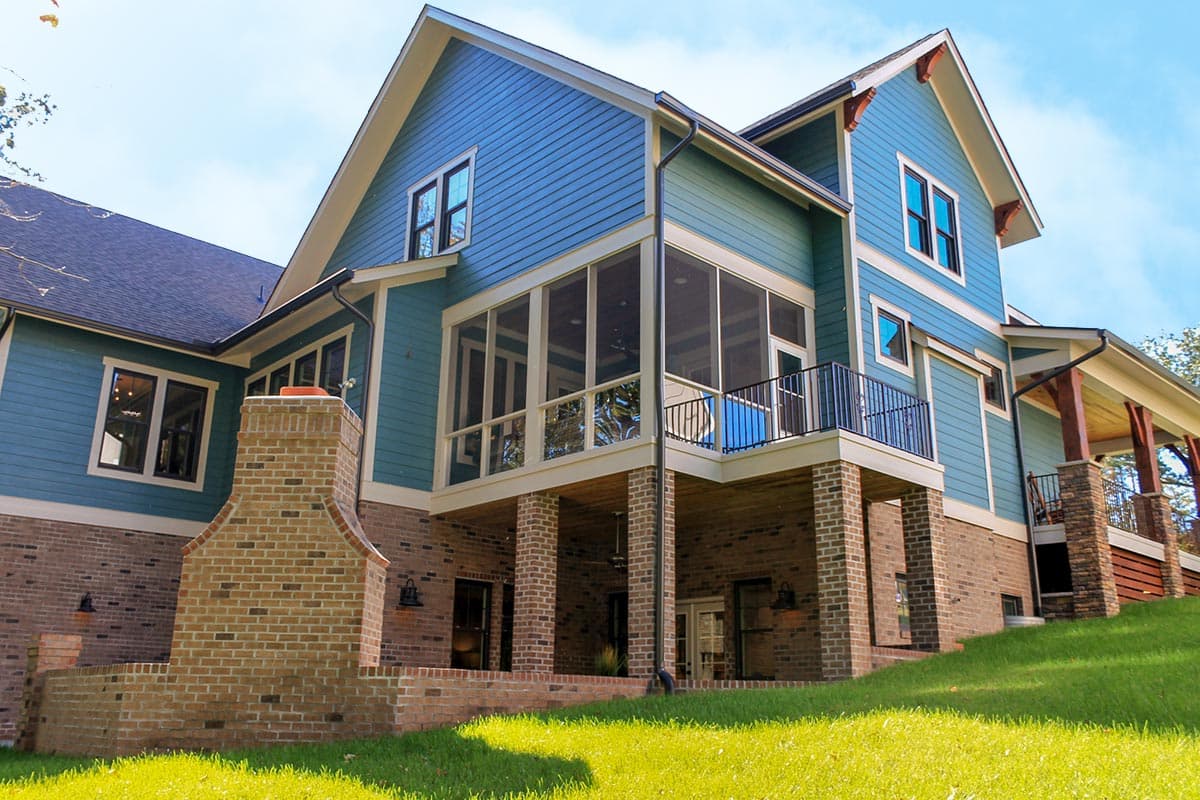

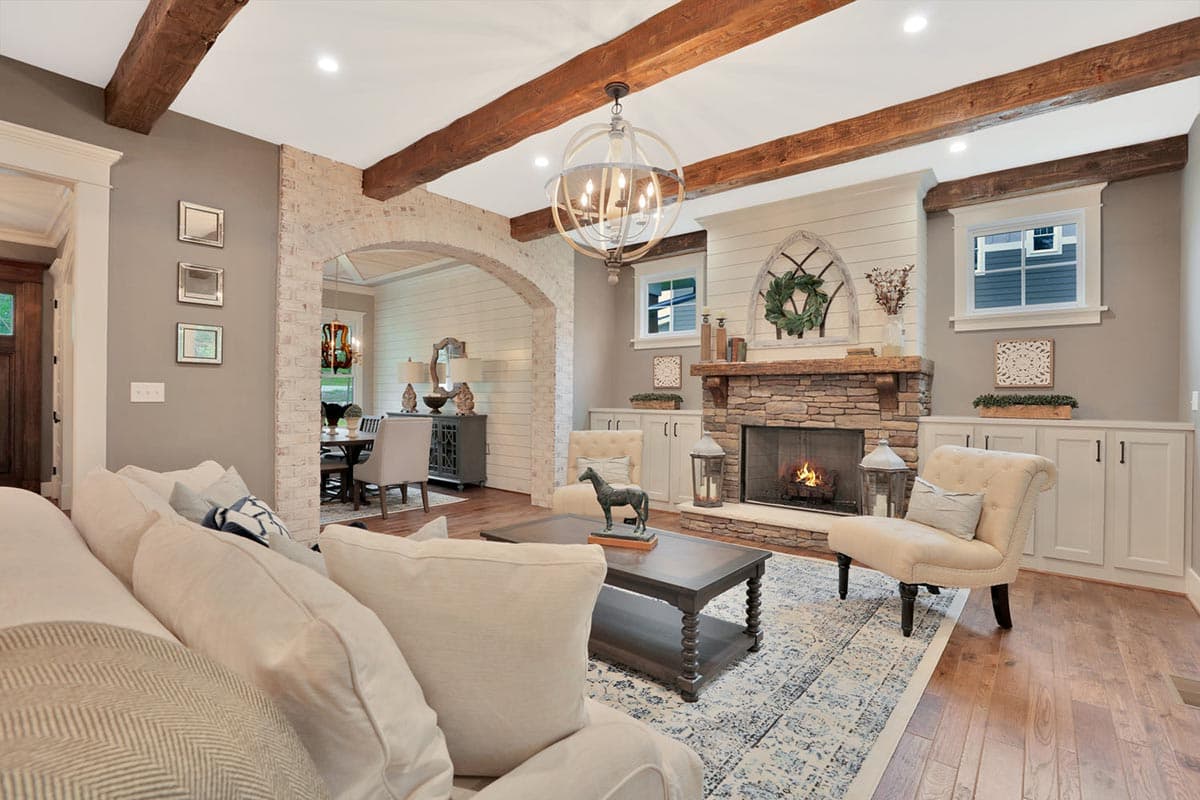

  • The great room opens to a large screened porch that is also accessible from the morning room.The morning room is perfect for casual meals while the dining room can accommodate more formal dinners.
  • With its own full bath, the study can also be used as a guest room or 4th bedroom.
  • The first floor master suite has a large bath and walk-in closet and is conveniently located near the laundry.
  • The upper floor loft area serves as extra living space for the kids, while the storage area can be finished to make room for a growing family.
  • Related Plans: Get a smaller version with house plans 500067VV (2,984 sq. ft.) and 500080VV(2,677sq. ft.) and an even smaller one without the garage with house plan 500015VV (2,525 sq. ft.).
What's Included
  • Cover sheet with notes
  • Foundation
  • Floor plans

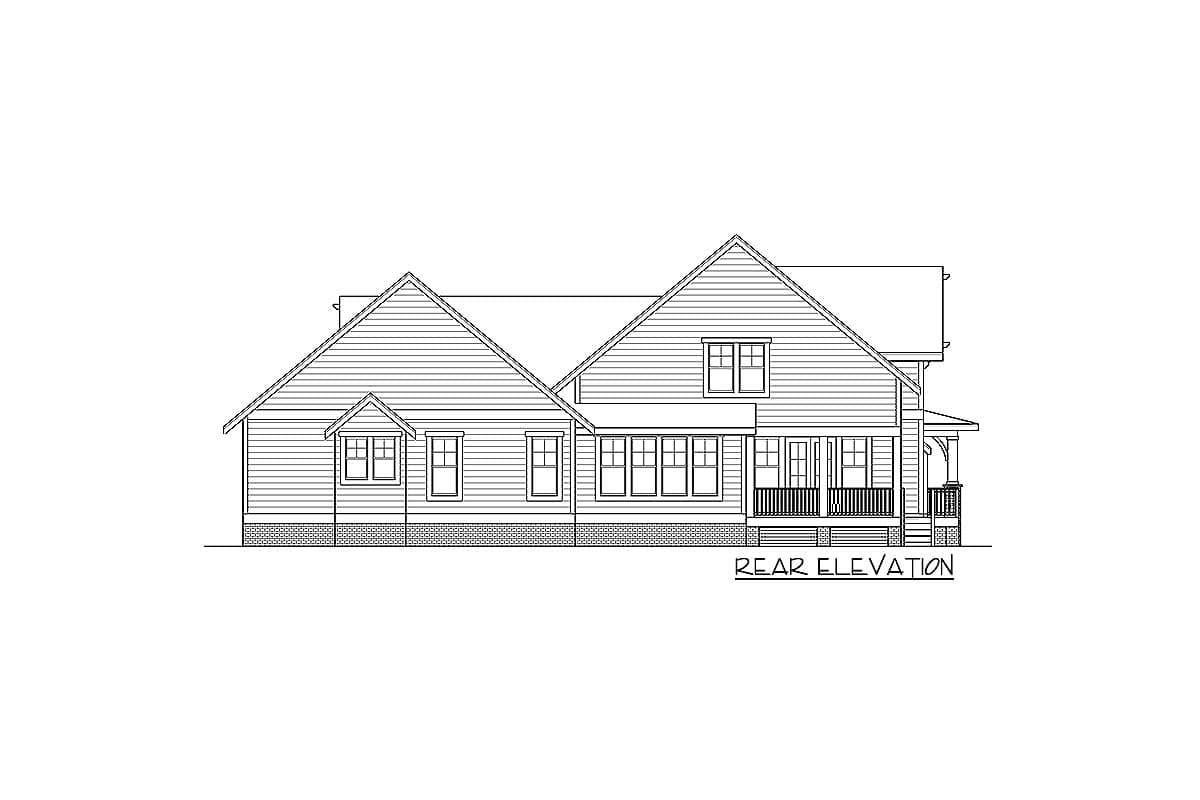

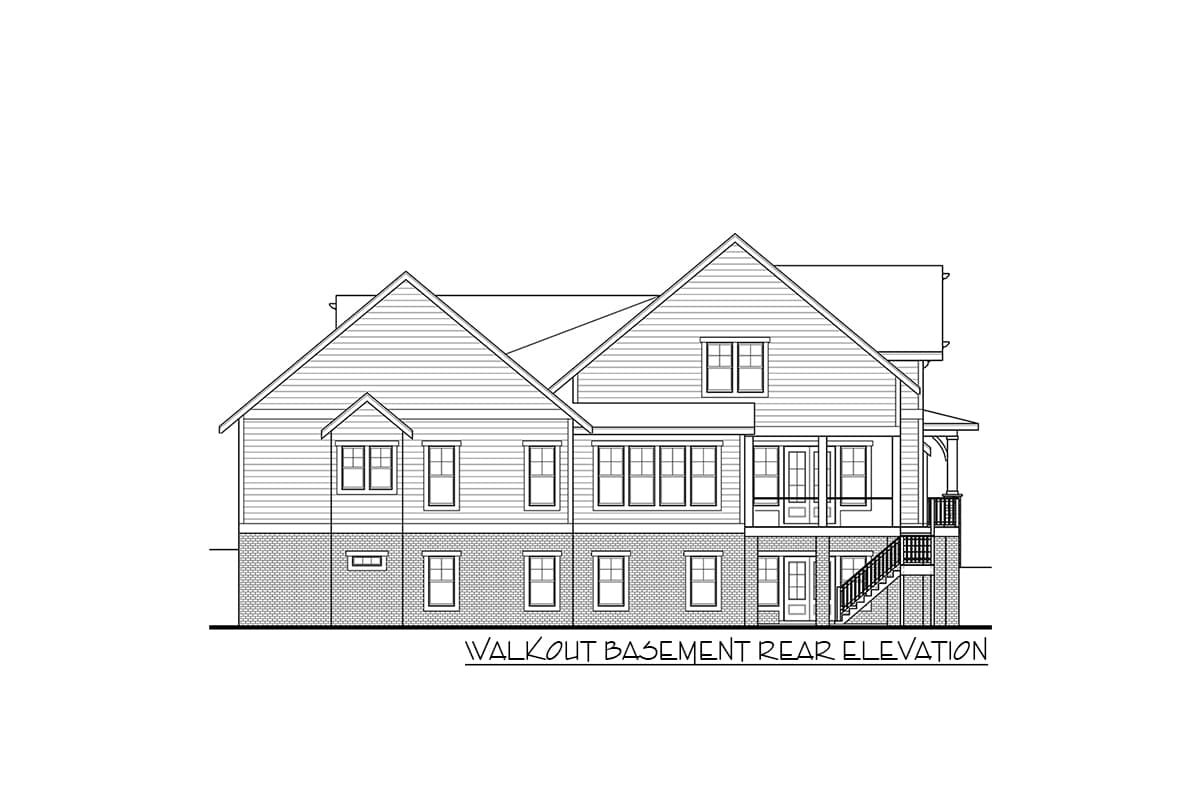

  • Elevations
  • Sections
  • Framing plans
  • Electrical plans
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3500 Square Foot Craftsman House Plan with Main Level Guest Room - 3518 Sq Ft

  • 3,518

    Heated s.f.

  • 3-6

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

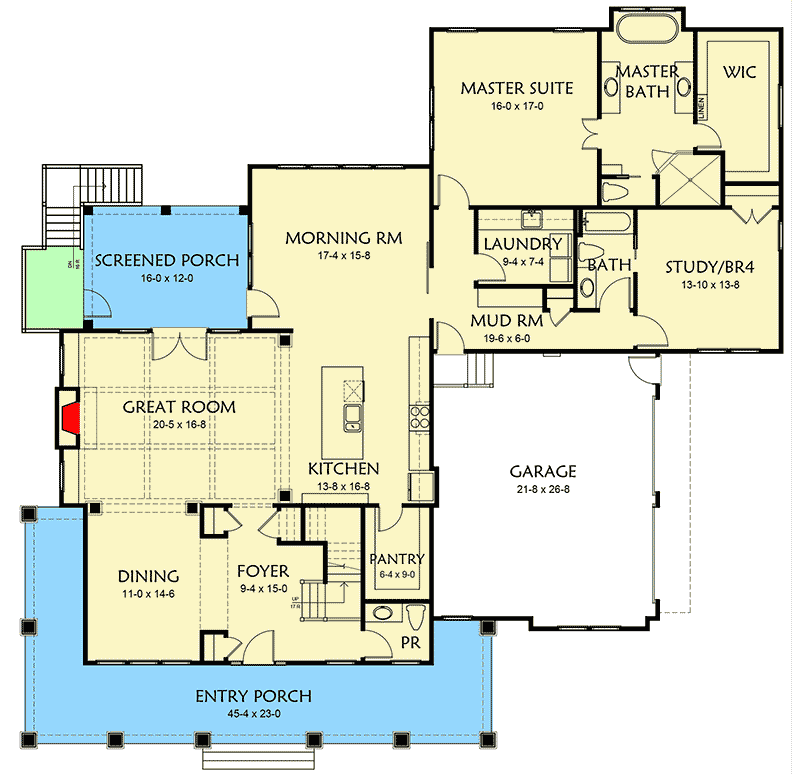

  • Main Level

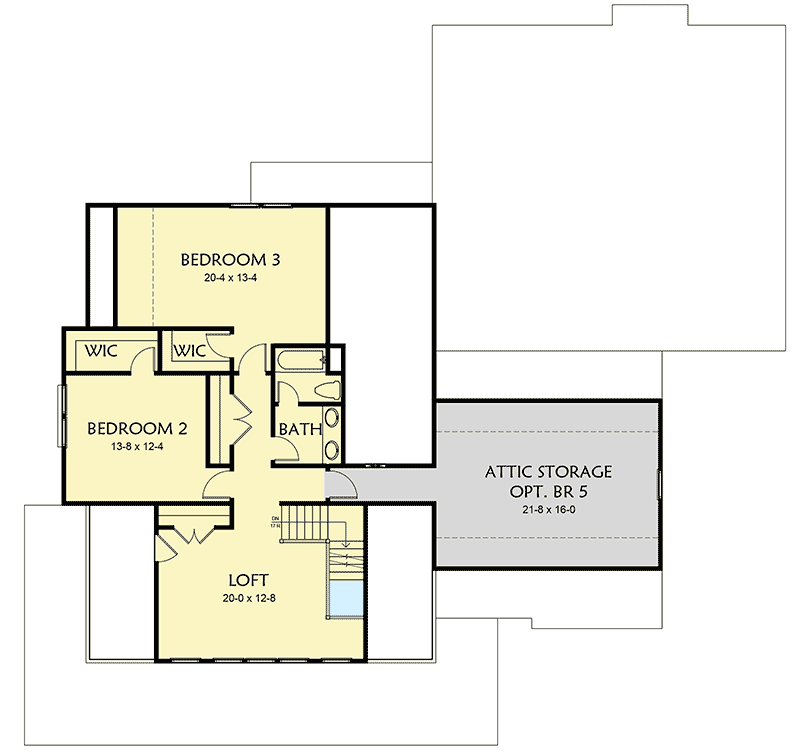

  • Second Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,518 sq. ft.
  • 1st Floor: 2,535 sq. ft.
  • 2nd Floor: 986 sq. ft.

Dimensions

  • Width: 74' 0"
  • Depth: 72' 0"
  • Max ridge height: 32' 0"

Beds/Baths

  • Bedrooms: 3, 4, 5, or 6
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 585 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Walkout
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick And Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

3500 Square Foot Craftsman House Plan with Main Level Guest Room - 3518 Sq Ft

  • 3,518

    Heated s.f.

  • 3-6

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

3500 Square Foot Craftsman House Plan with Main Level Guest Room - 3518 Sq Ft

  • 3,518

    Heated s.f.

  • 3-6

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 3,518 sq. ft.
  • 1st Floor: 2,535 sq. ft.
  • 2nd Floor: 986 sq. ft.

Dimensions

  • Width: 74' 0"
  • Depth: 72' 0"
  • Max ridge height: 32' 0"

Beds/Baths

  • Bedrooms: 3, 4, 5, or 6
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 585 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Walkout
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick And Truss
