Plan 623283DJ

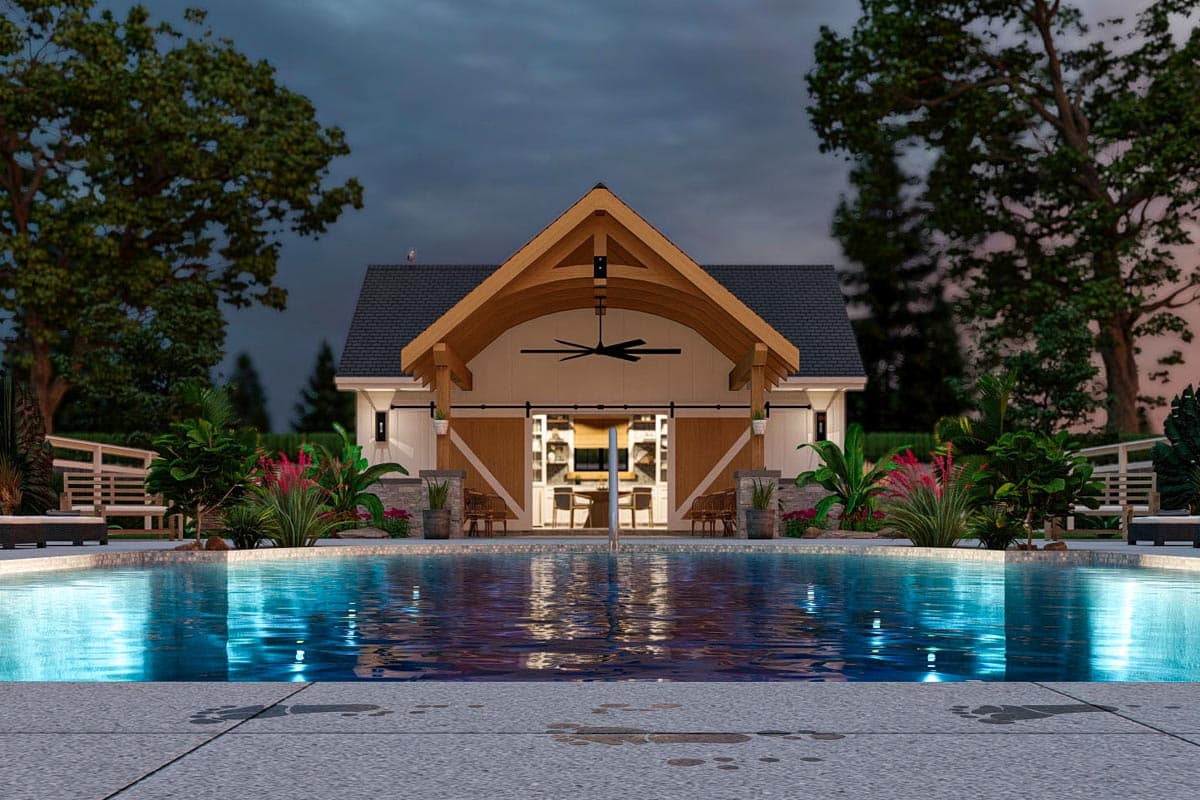

362 Sq Ft Pool House with Covered Patio Outside and a Wet Bar - and More - Inside

Heated S.F.
362
Beds
0
Baths
1
Stories
1

Floor Plan

Plan 623283DJ

Main Level
Main Level

Plan 623283DJ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

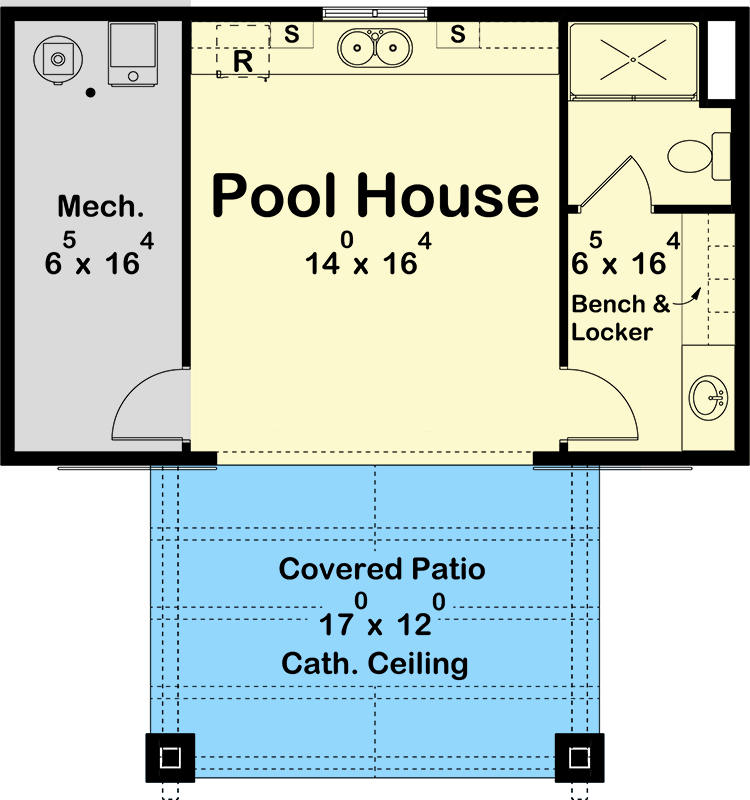

Plan 623283DJ: 362 Sq Ft Pool House with Covered Patio Outside and a Wet Bar - and More - Inside - Floor Plan - Main Level - Craftsman, New American

Plan Details

  • This 362 square foot poolhouse gives you 362 square feet of covered space and makes the perfect space to unwind and entertain when not in the pool.

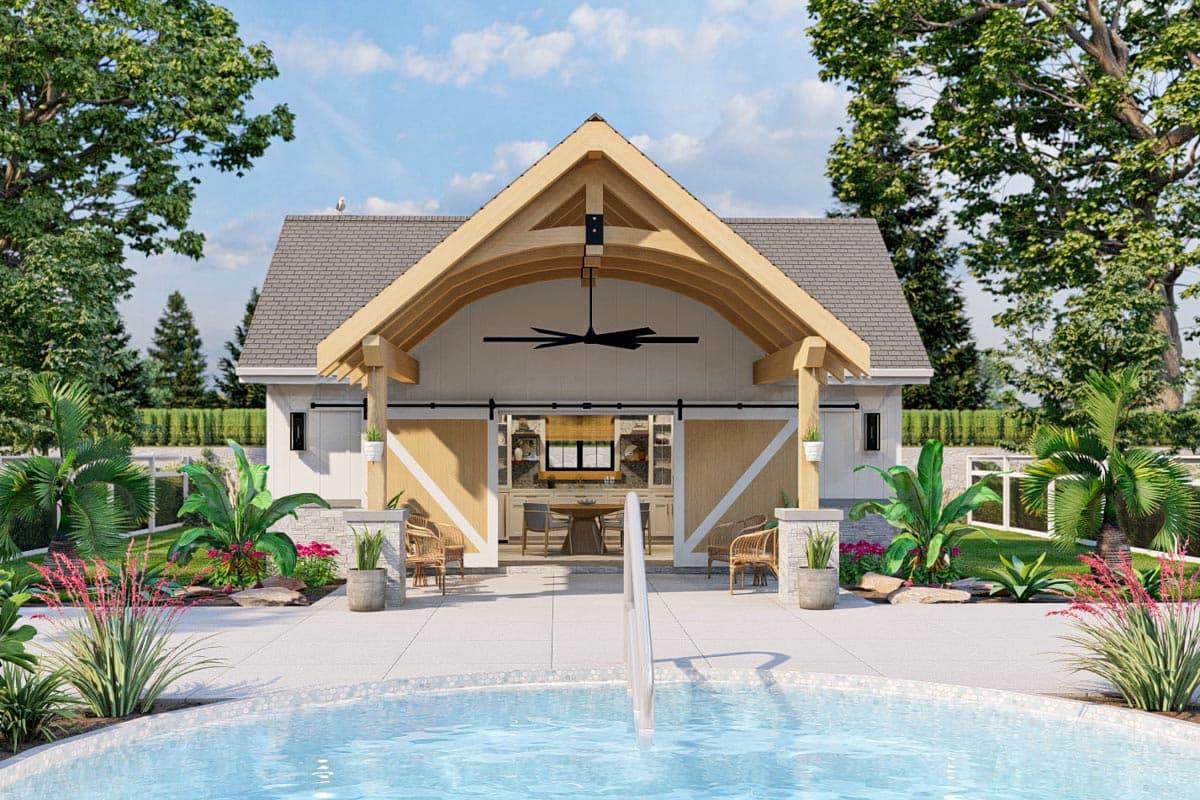

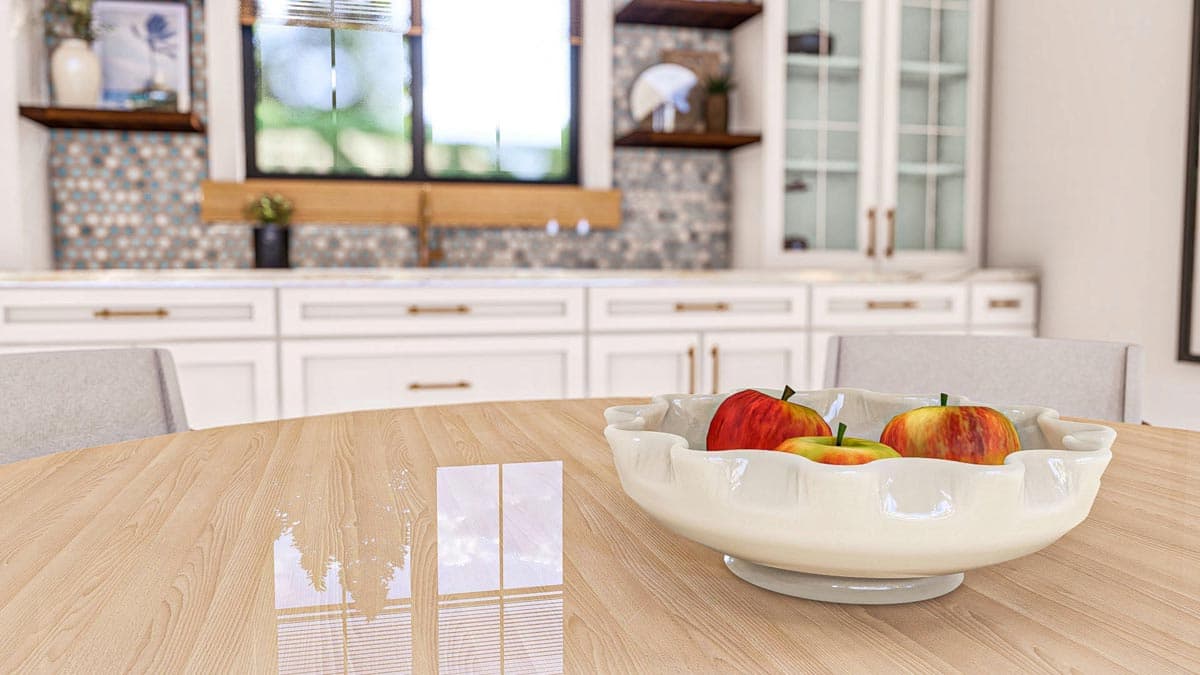

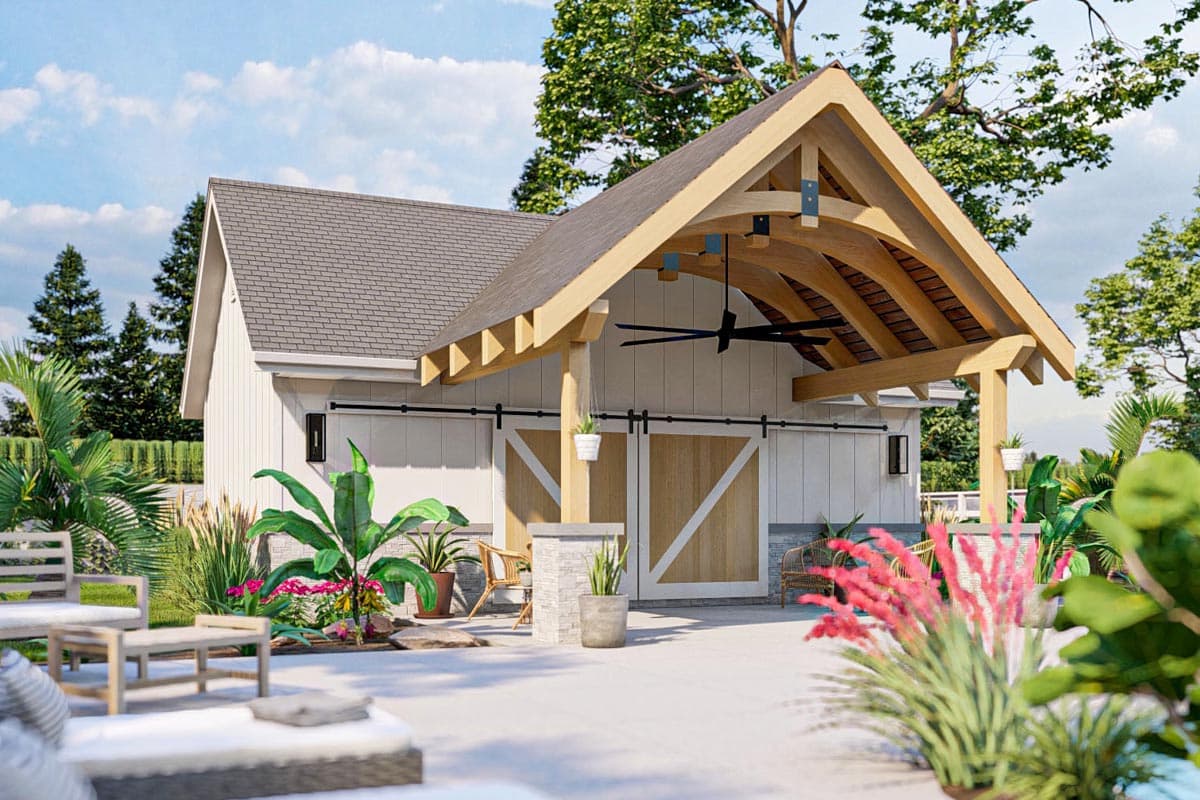

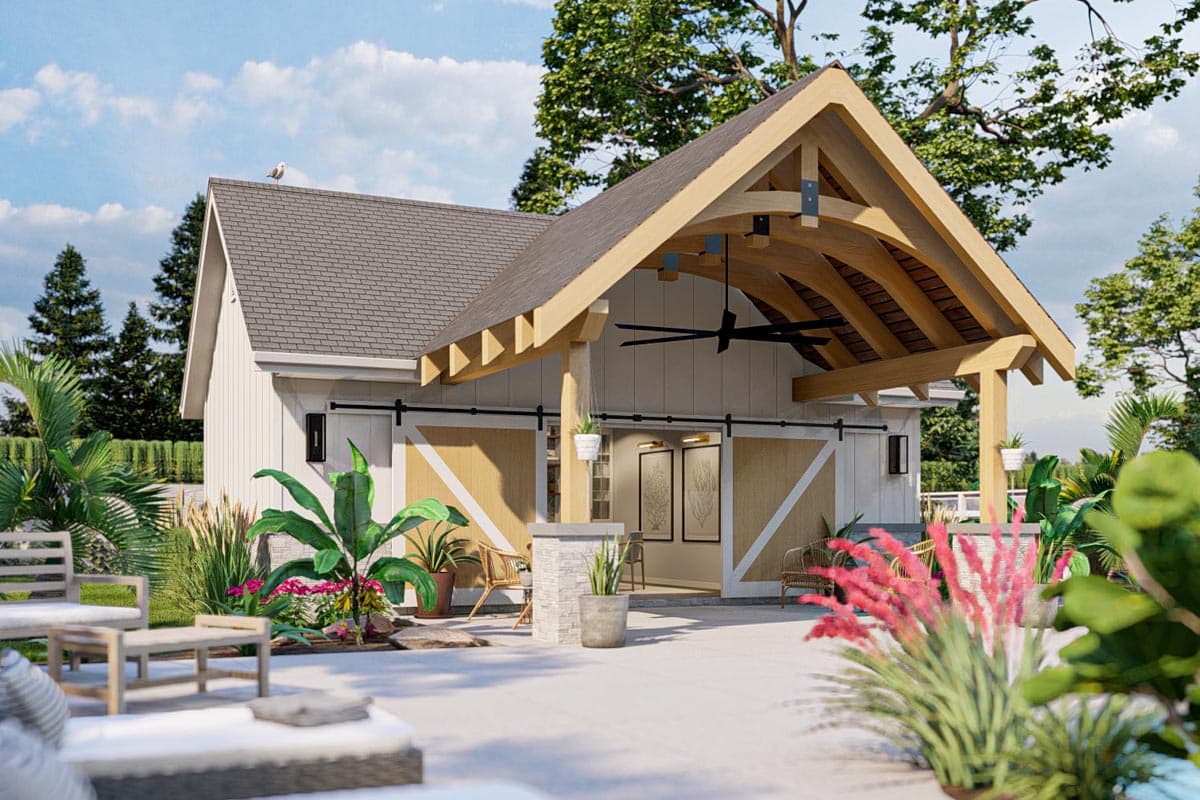

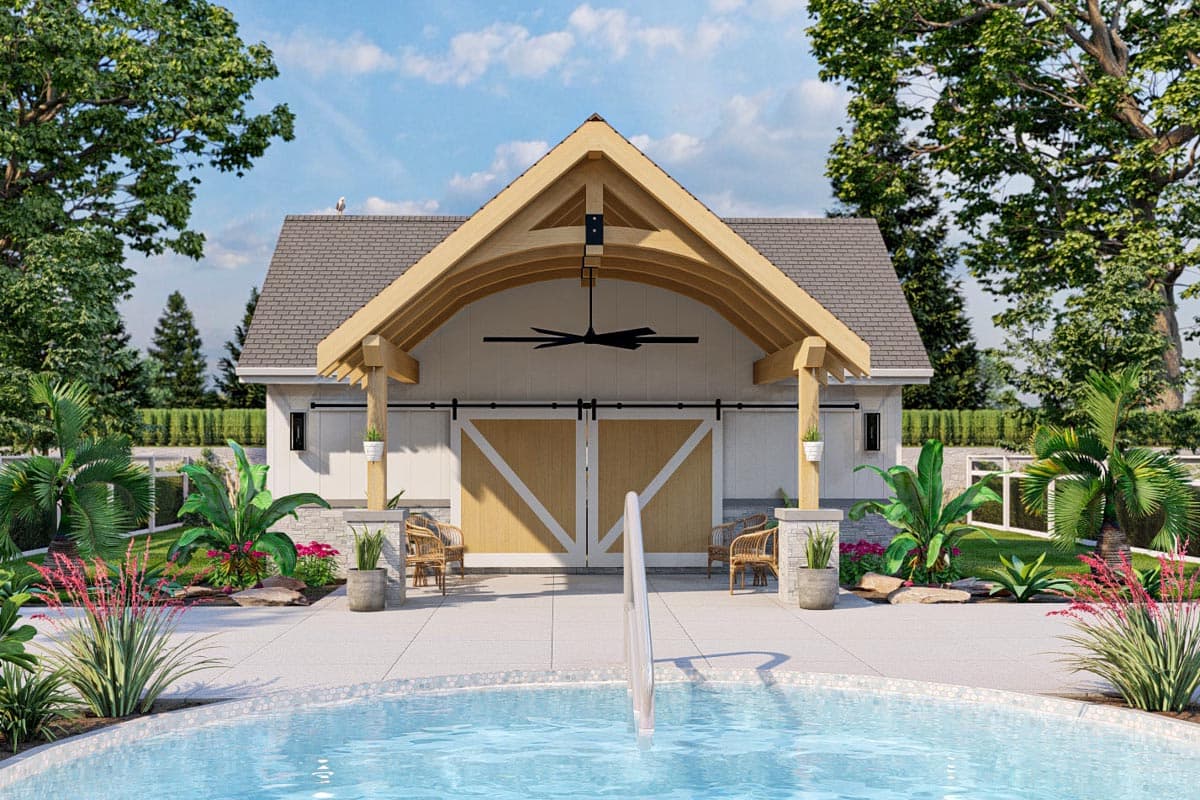

  • In front, a 193 square foot covered patio with an exposed beam ceiling provides shelter from the sun in style. Two sliding barn doors open to get you inside where you'll find an open space to relax in and a well-appointed wet bar space with built-in cabinets, a sink and refrigerator.
  • The bulk of the pool house is a spacious open area that provides a comfortable spot to relax in.

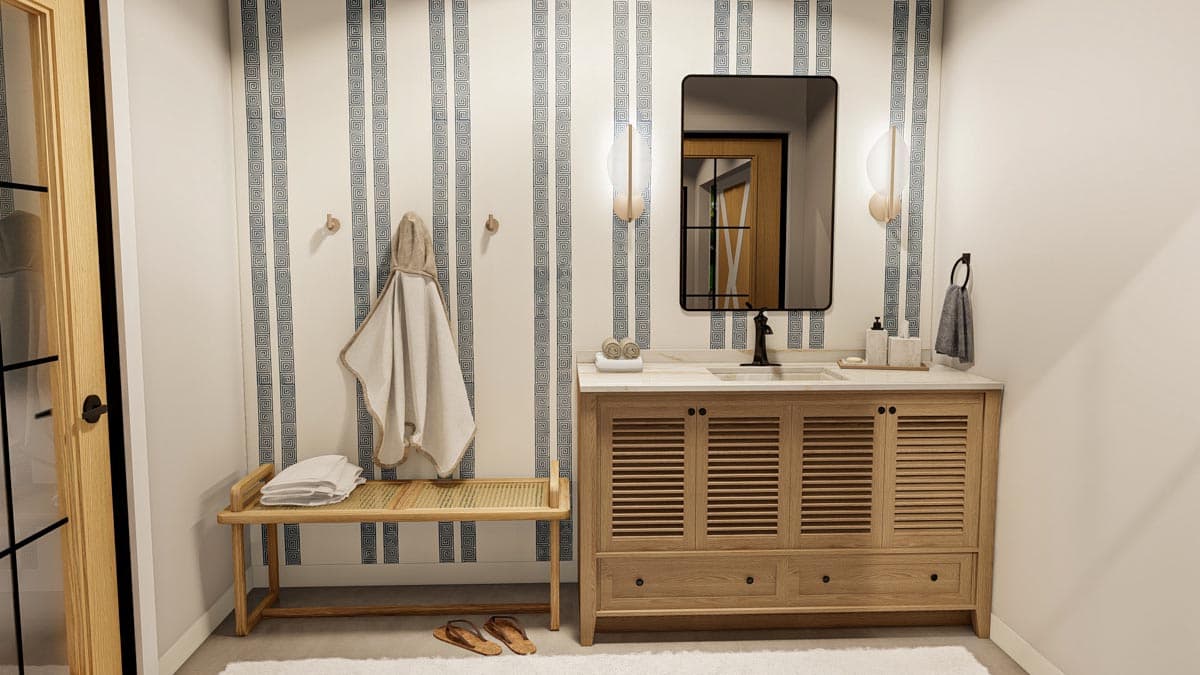

  • A full bath features a shower and toilet room. There's also bench seating and lockers, perfect for stowing away swim gear and towels.
  • On the opposite side of the pool house, a dedicated mechanical space houses all the essential pool equipment out of sight.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

362 sq. ft.

1st Floor

362 sq. ft.

Porch, Combined

193 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

28' 0"

Depth

29' 0"

Max Ridge Height

17' 2"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Craftsman

New American

Special Features

Wet Bar

Plan Collections

Pool House

Square Footage Breakdown

Total Heated Area

362 sq. ft.

1st Floor

362 sq. ft.

Porch, Combined

193 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

28' 0"

Depth

29' 0"

Max Ridge Height

17' 2"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Craftsman

New American

Special Features

Wet Bar

Plan Collections

Pool House
