4 Bed 2800 Square Foot Rustic Farmhouse with Bonus Expansion and Large Rear Porch

Plan 444372GDN

  • 2,813

    Heated s.f.

  • 4-5

    Beds

  • 3 - 4

    Baths

  • 1

    Stories

  • 3

    Cars

  • This 2813 square foot rustic farmhouse plan features a board-and-batten facade complemented by brick and stone. Decorative trusses adorn the gables and metal roofing tops the center dormer and front porch (9'8" wide and 13' deep) with a 14'9" ceiling peak.
  • Inside, the floor plan is thoughtfully designed with open common areas and a split bedroom layout. Find skylights in the kitchen and master bathroom while sun tunnels bring natural light into the master closet and utility room. Prioritize organization with a pantry, a drop zone, and an abundance of closet space throughout.
  • The great room and two bedrooms in back have access to the back porch (31' wide and 8' deep).
  • The divided garage offers space for a third vehicle or a separate workshop. An optional bonus room above with a full bathroom and a walk-in closet can be used as a fifth bedroom and gives you 524 square feet of expansion space.
  • Please allow 20 to 25 days for delivery if it includes the basement foundation option.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

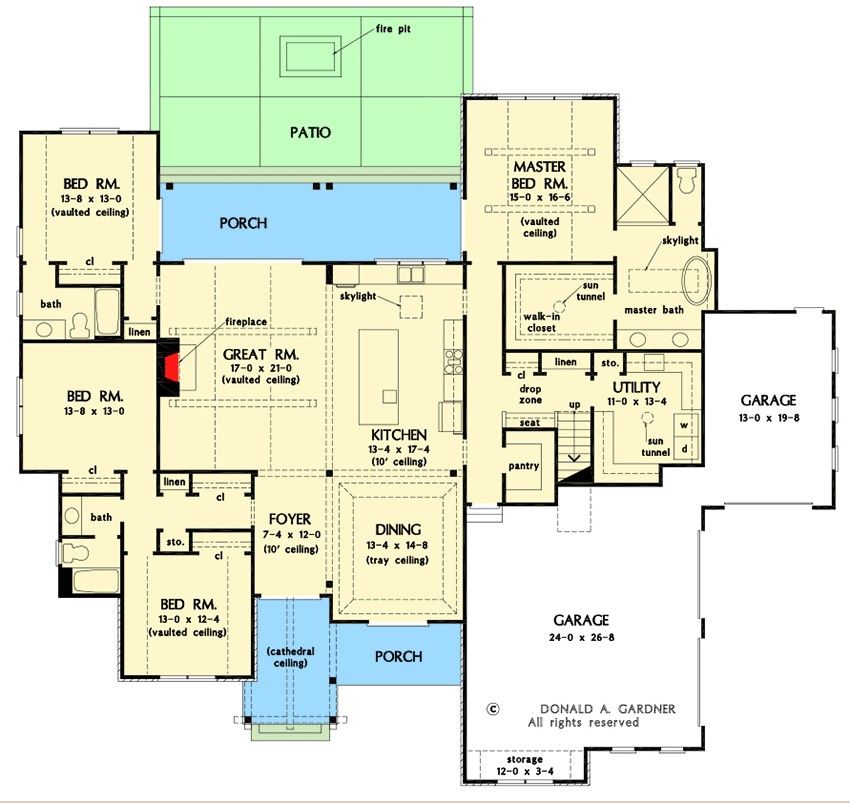

4 Bed 2800 Square Foot Rustic Farmhouse with Bonus Expansion and Large Rear Porch - 444372GDN floor plan - Main Level

Bonus Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

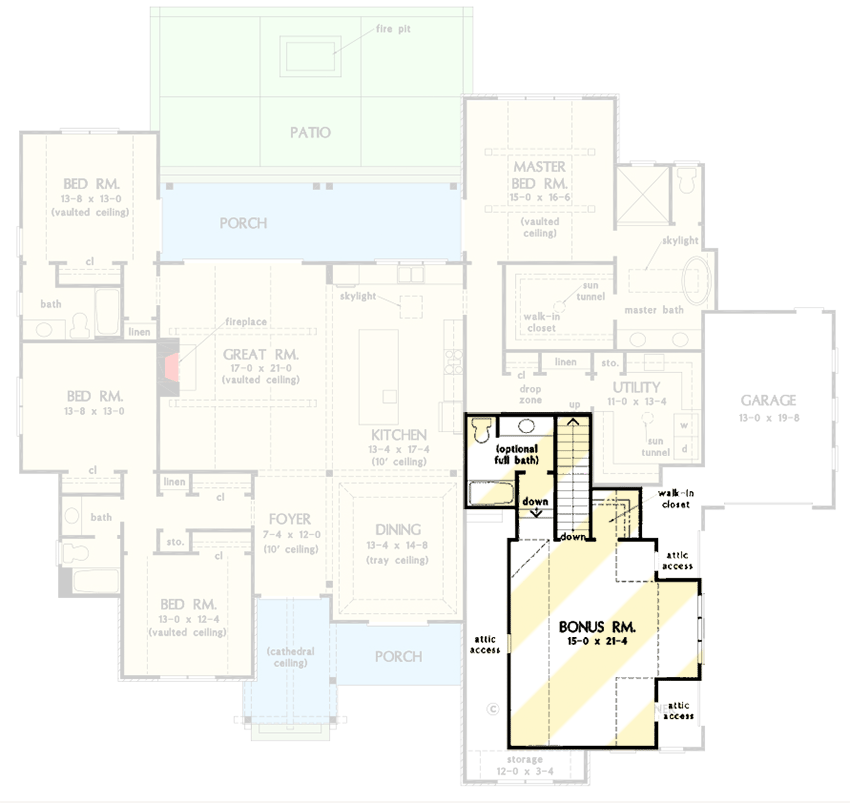

4 Bed 2800 Square Foot Rustic Farmhouse with Bonus Expansion and Large Rear Porch - 444372GDN floor plan - Bonus Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,813 sq. ft.
  • 1st Floor: 2,813 sq. ft.
  • Porch, Rear: 248 sq. ft.
  • Porch, Front: 195 sq. ft.
  • Bonus: 524 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3 or 4

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 83' 4"
  • Depth: 70' 2"
  • Max ridge height: 29' 10"

Garage

  • Type: Attached
  • Area: 964 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

4 Bed 2800 Square Foot Rustic Farmhouse with Bonus Expansion and Large Rear Porch

  • 2,813

    Heated s.f.

  • 4-5

    Beds

  • 3 - 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set - Digital $1,550
  • PDF - Single-Build $1,750
  • CAD Unlimited + PDF $3,075
  • View all purchase option online

About This Plan

  • This 2813 square foot rustic farmhouse plan features a board-and-batten facade complemented by brick and stone. Decorative trusses adorn the gables and metal roofing tops the center dormer and front porch (9'8" wide and 13' deep) with a 14'9" ceiling peak.
  • Inside, the floor plan is thoughtfully designed with open common areas and a split bedroom layout. Find skylights in the kitchen and master bathroom while sun tunnels bring natural light into the master closet and utility room. Prioritize organization with a pantry, a drop zone, and an abundance of closet space throughout.
  • The great room and two bedrooms in back have access to the back porch (31' wide and 8' deep).
  • The divided garage offers space for a third vehicle or a separate workshop. An optional bonus room above with a full bathroom and a walk-in closet can be used as a fifth bedroom and gives you 524 square feet of expansion space.
  • Please allow 20 to 25 days for delivery if it includes the basement foundation option.
