4-Bed Acadian House Plan

Plan 56407SM

  • 2,512

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • This spacious 4-bedroom Acadian house plan has a large open kitchen with pine beams and an arched opening into the family room.
  • The oversized island, and ample counterspace are great for entertaining.
  • The spacious laundry room will be especially handy for washing and drying clothes and quick access to the side entry and rear garage.
  • Bedrooms 2 and 3 are nicely-sized with the popular Jack and Jill bathroom access from both rooms as well as walk-in closets.
  • The 4th bedroom has a walk-in closet and could easily be converted to a study or office if needed.
  • The master suite features a pedestal tub, large walk-in shower and separate vanities.
  • There is a large bonus room above the garage.
  • NOTE: Please allow a 5 to 10 day delay for 2x6 option to be completed.

Each plan set includes the following:


  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

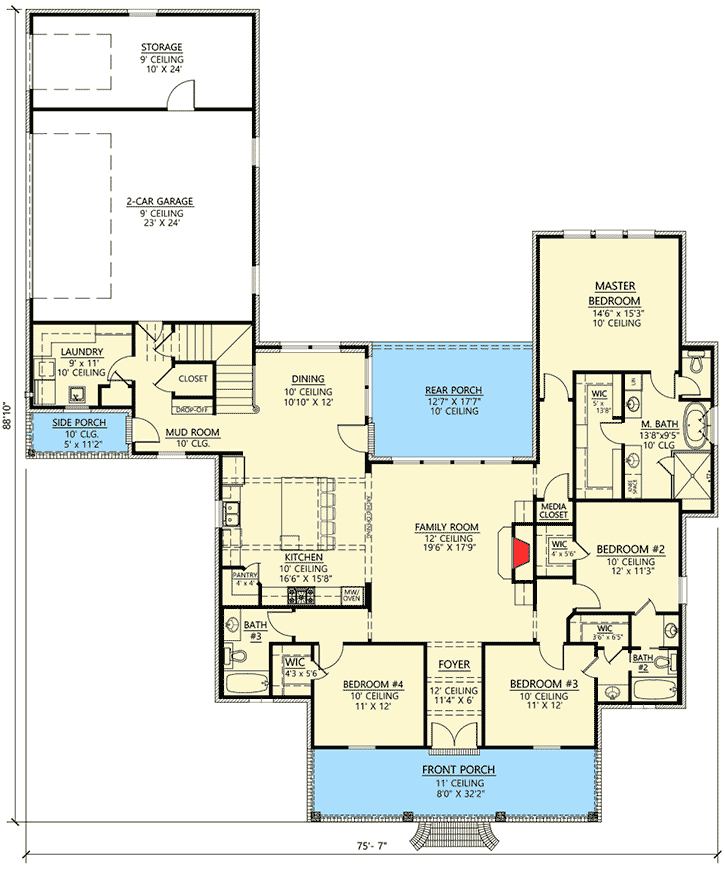

4-Bed Acadian House Plan - 56407SM floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Bed Acadian House Plan - 56407SM floor plan - Bonus

4-Bed Acadian House Plan

  • 2,512

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 2,512 sq. ft.
  • 1st Floor: 2,512 sq. ft.

Dimensions

  • Width: 75' 7"
  • Depth: 88' 10"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 552 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
