4 Bed Acadian House Plan with Bonus Room

Plan 56399SM

2,684
Heated s.f.
4
Beds
3.5
Baths
1-2
Stories
2
Cars

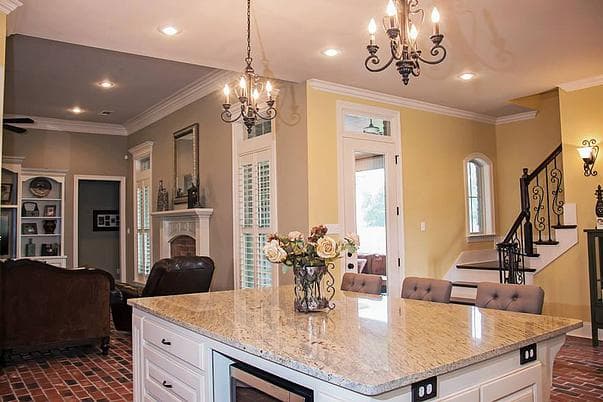

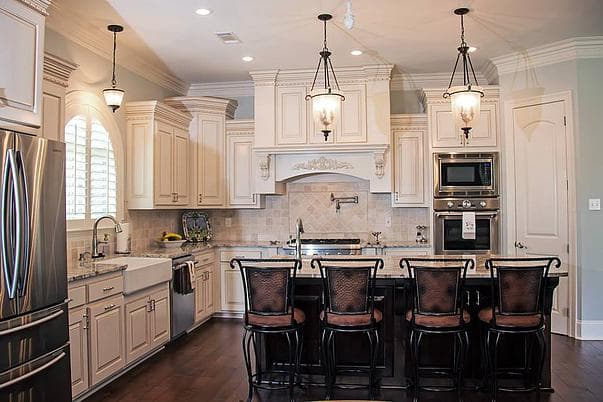

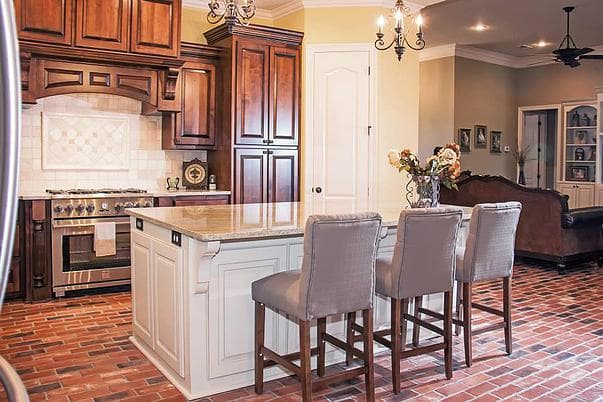

This Acadian house plan has an open floorplan featuring a large island in the kitchen that has the window over sink for natural light source.
The foyer and large family both have high 12' ceilings while the bedrooms check in at 10'.
The formal dining and breakfast area give you formal and informal places to eat, in addition to seating at the oversized island in the kitchen.

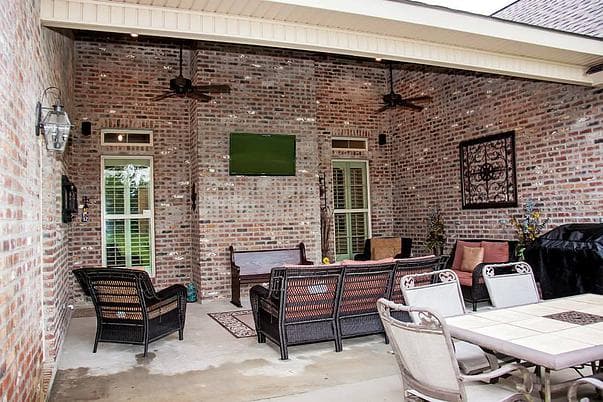

Front and rear porches, plus the patio open to the air, give you lots of room to enjoy the fresh air.
Other features include a bonus room over the garage, a bronze awning over side entrance and a 2-car garage with separate storage.
NOTE: Please allow a 5 to 10 day delay for 2x6 option to be completed.

Each plan set includes the following:

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.

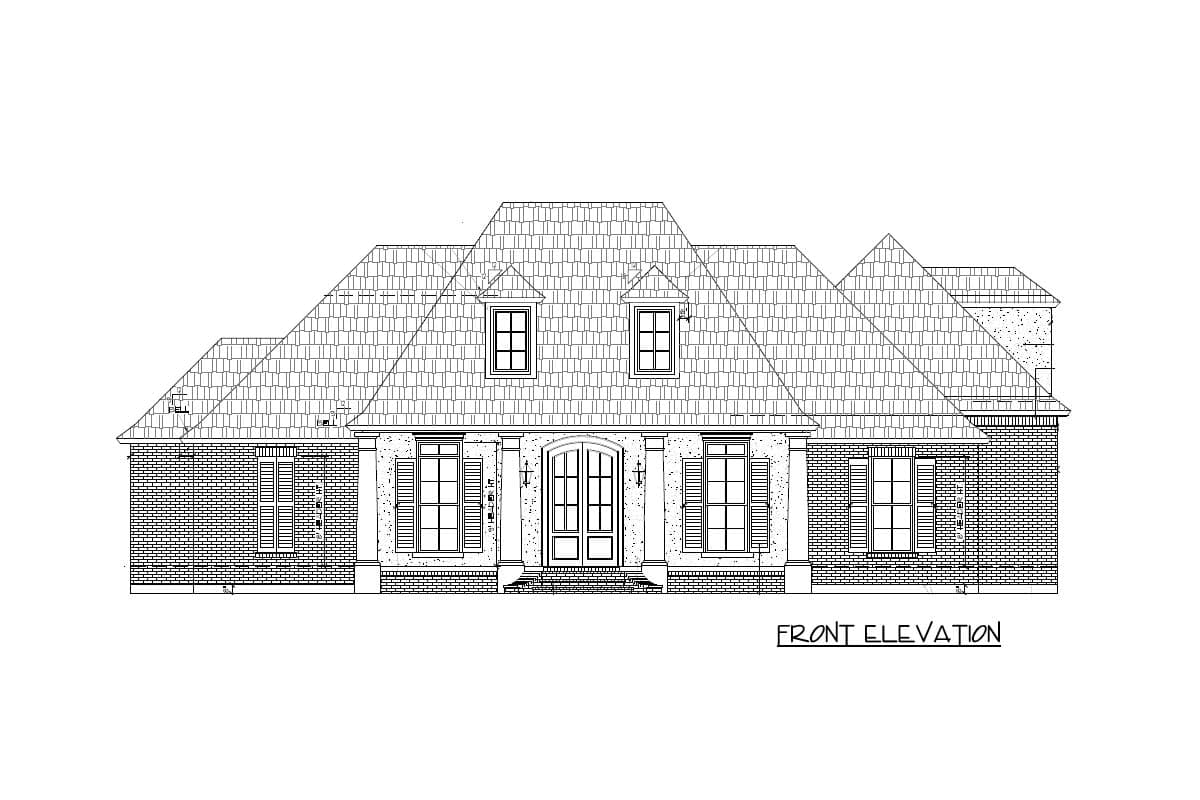

FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

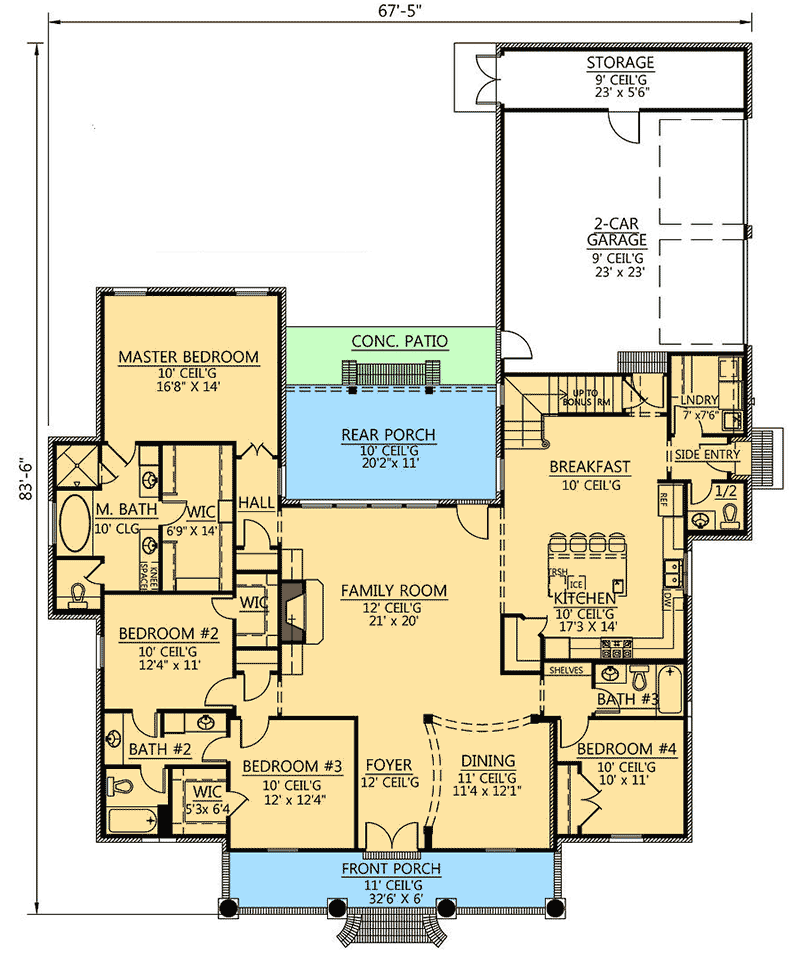

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

4 Bed Acadian House Plan with Bonus Room - 56399SM floor plan - Main Level

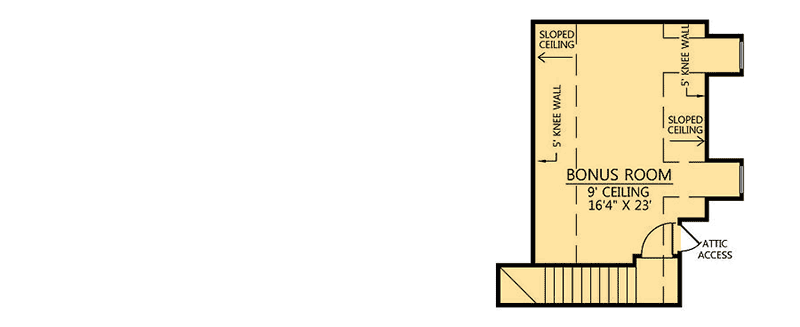

Bonus

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

4 Bed Acadian House Plan with Bonus Room - 56399SM floor plan - Bonus

Plan details

Square Footage Breakdown

Total Heated Area: 2,684 sq. ft.
1st Floor: 2,684 sq. ft.

Storage: 199 sq. ft.
Porch, Rear: 222 sq. ft.
Porch, Front: 195 sq. ft.
Bonus: 414 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 3
Half bathrooms: 1

Foundation Type

Standard Foundations: Slab

Optional Foundations: Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 67' 5"
Depth: 83' 6"

Garage

Type: Attached
Area: 529 sq. ft.
Count: 2 Cars
Entry Location: Side

Ceiling Heights

Floor / Height: First Floor / 10' 0"

Roof Details

Primary Pitch: 9 on 12

Framing Type: Stick

Architectural Style

Special features

Plan Collections
